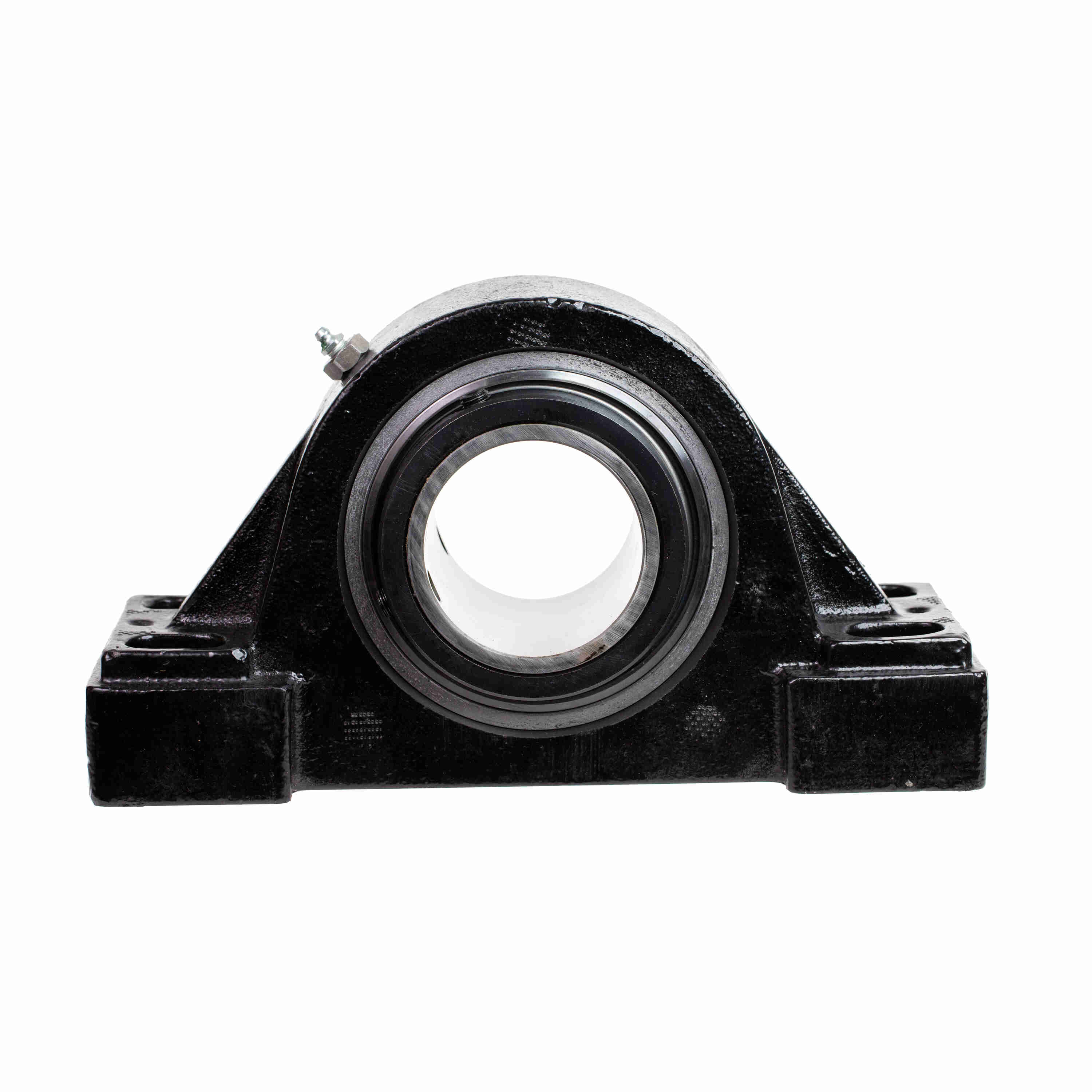

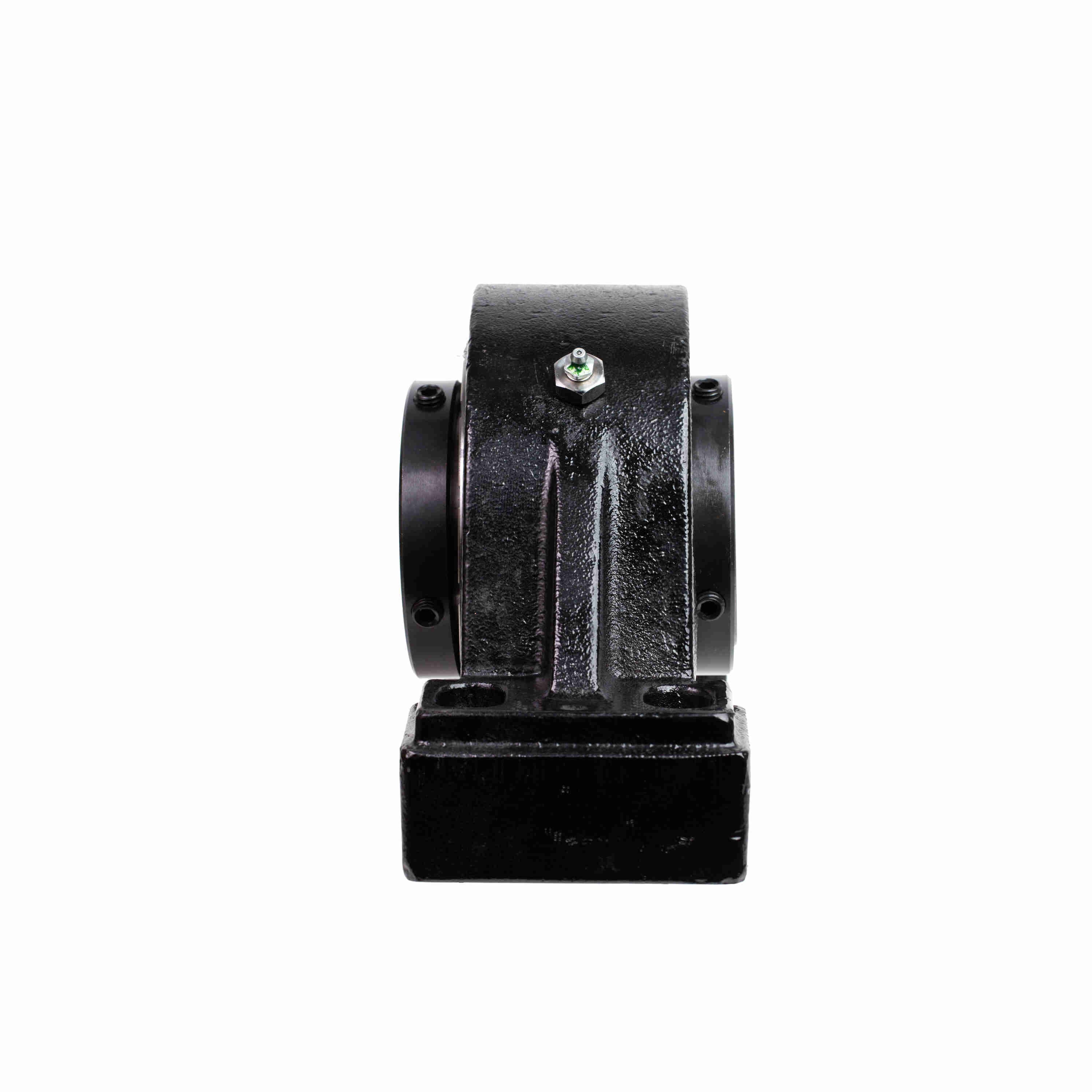

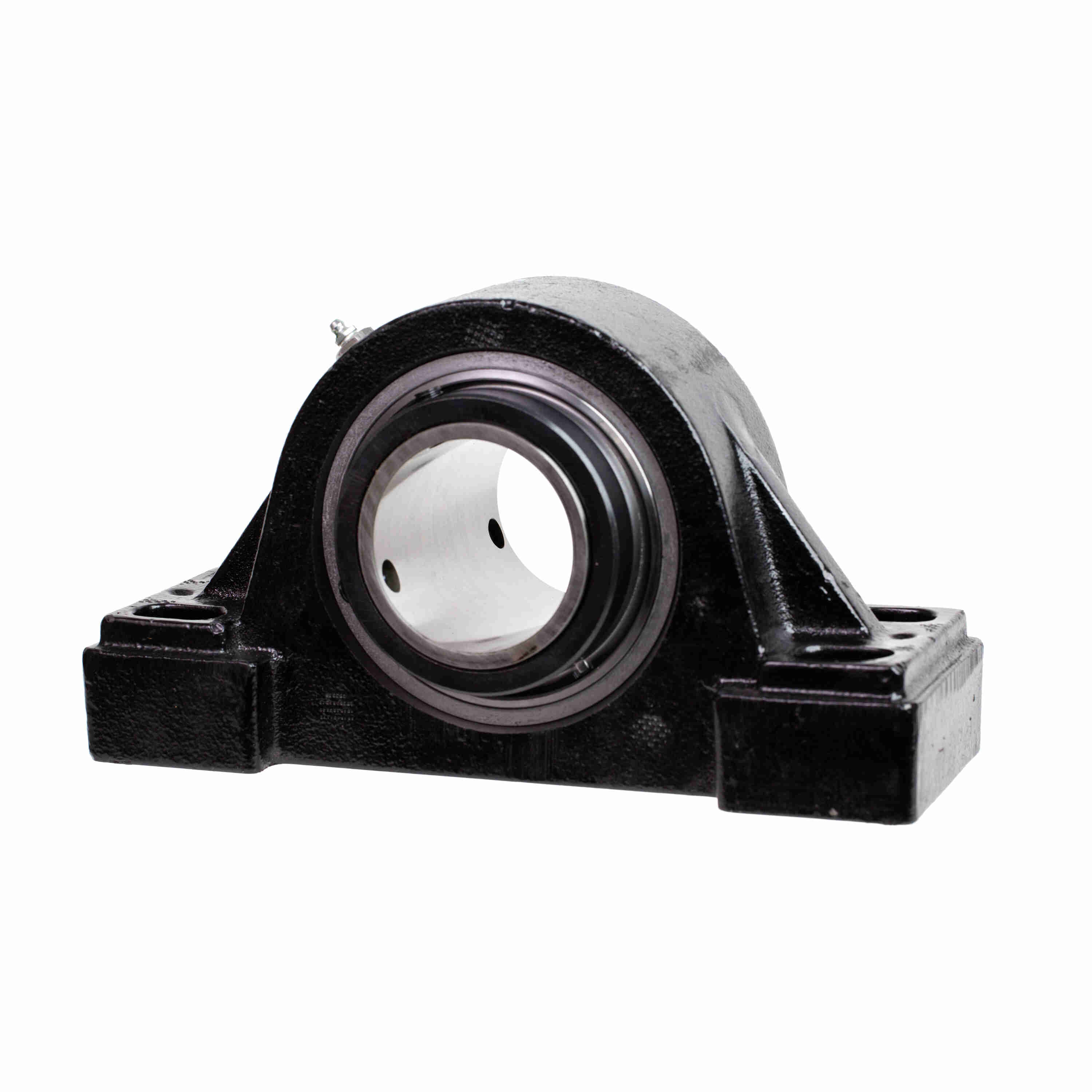

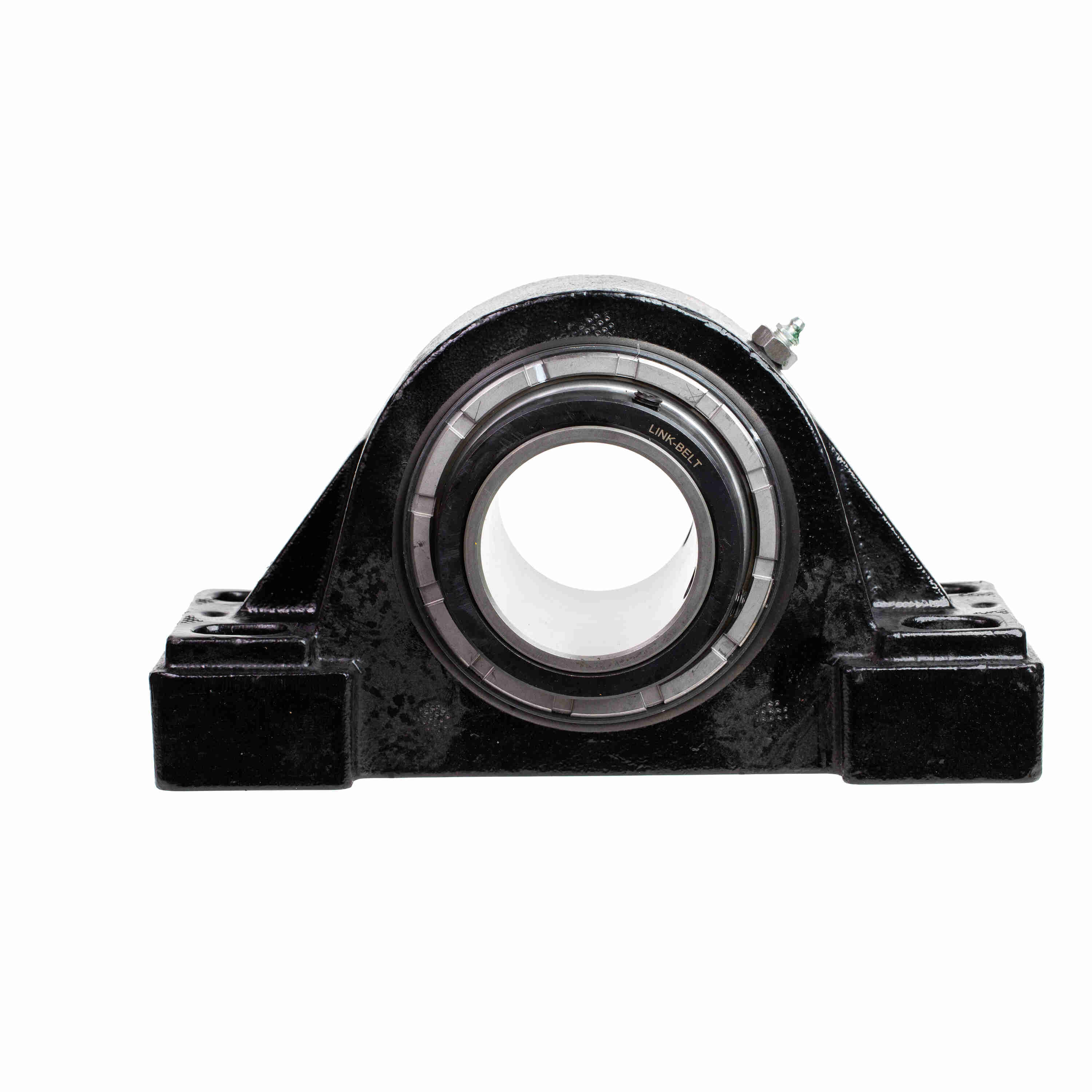

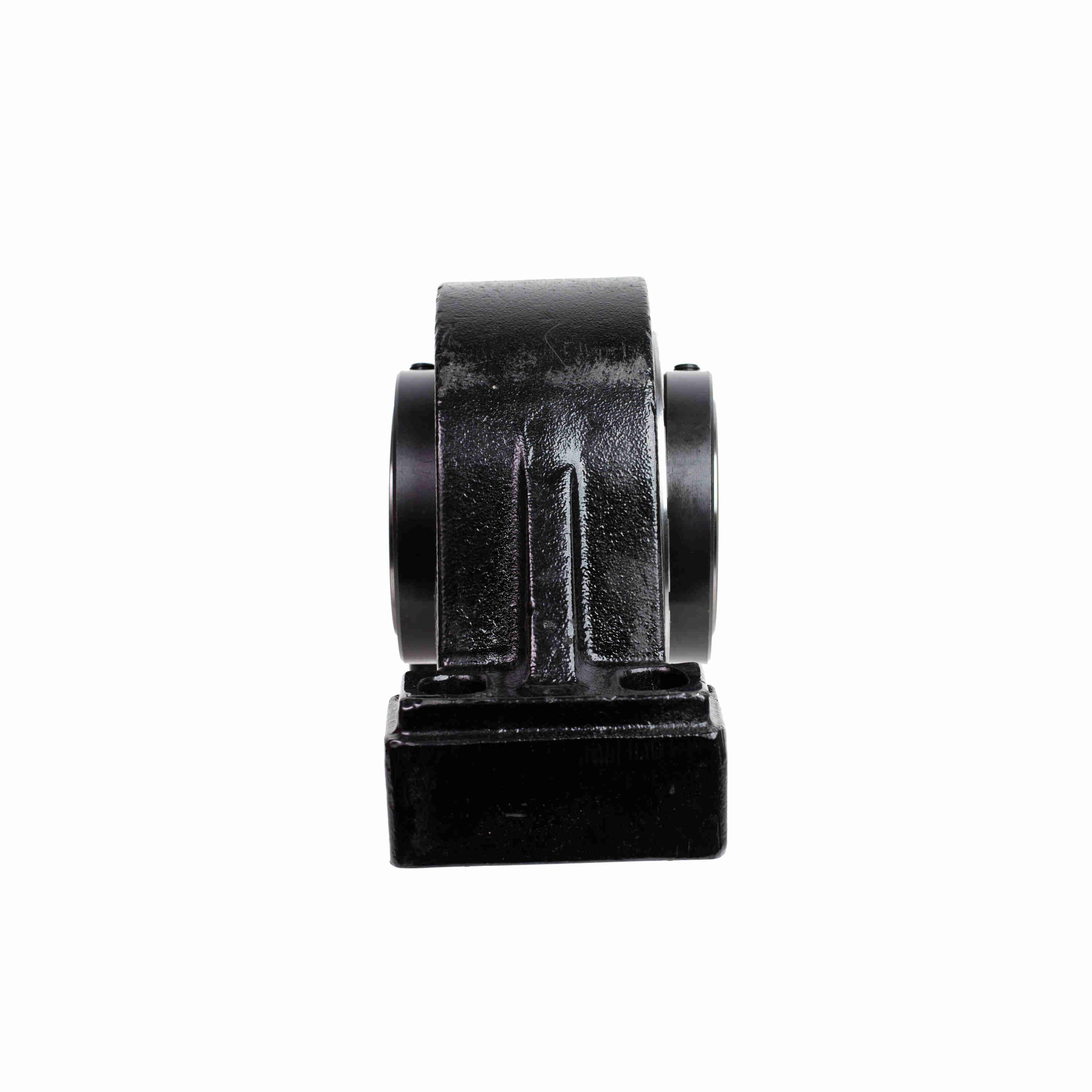

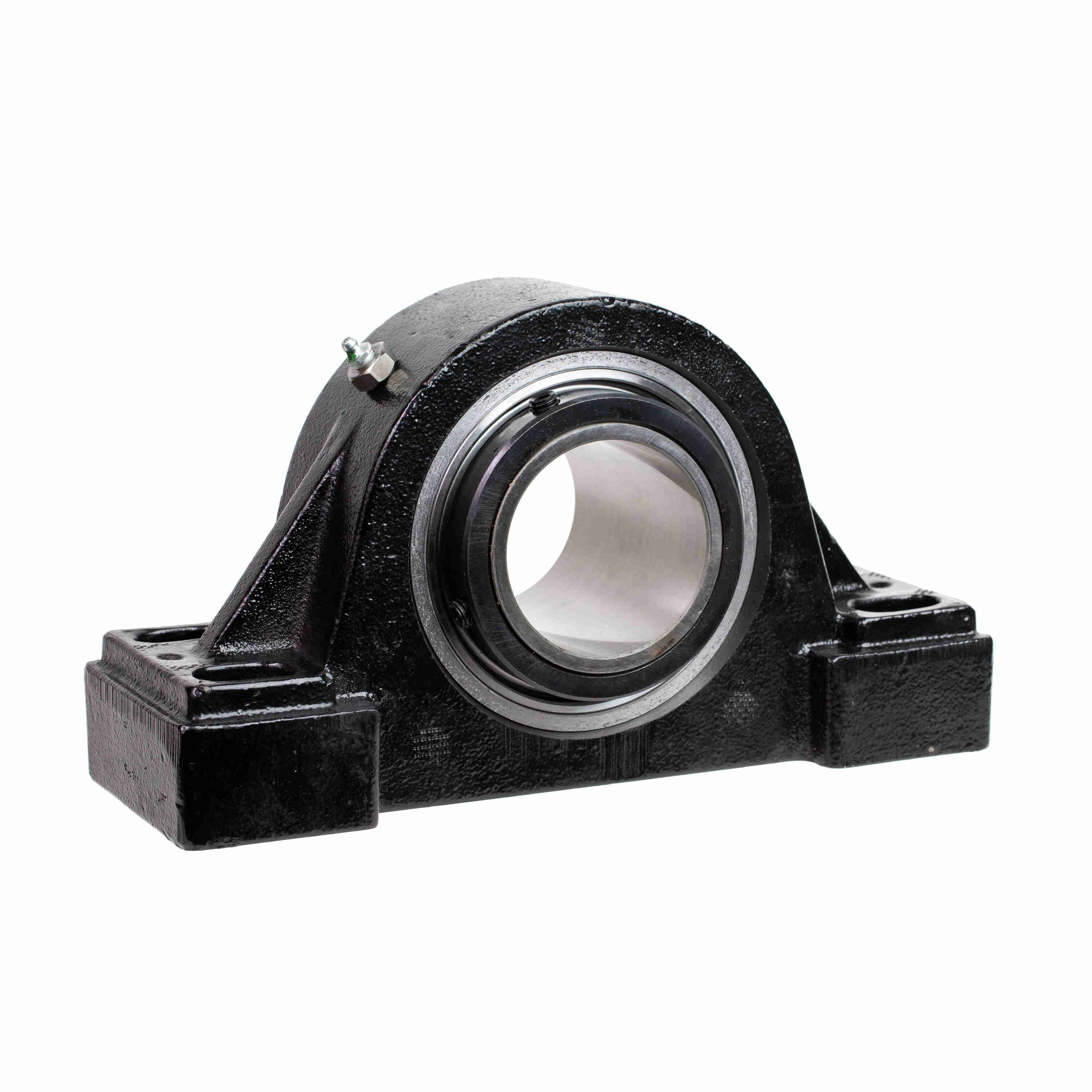

Link-Belt PEB22555FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PEB22555FH
Part #:10420033
Catalog #:PEB22555FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 1.5 in | Foot Height (in): | 2.5 in |
| Overall Width (in): | 5.31 in | Base to Center Height (in): | 4 in |
| Bore Diameter (in): | 3.4375 in | Bolt Size (in): | 3/4 in |
| Base Width (in): | 5 in | Overall Height (in): | 8 in |
| Overall Length (in): | 14.25 in | Locking Collar Outside Diameter (in): | 4.91 in |
| Base Length (in): | 14.25 in | Bolt Spacing Width (in): | 3 in |
| Expansion Capability (in): | 0.38 in | Centerline to Outermost Bearing Face (in): | 2.66 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.94 in | Length Through Bore (in): | 5.31 in |
| Bolt Spacing (in): | 11.5 in | Inner Ring Outside Diameter (in): | 3.975 in |
Technical Specifications
| Housing Color: | Black | Housing Style: | Pillow Block |
| Fixed/Expansion: | Expansion | Seal Type: | Clearance Seal |
| Static Load Rating (lb): | 90,700 lb | Rolling Element: | Spherical Roller |
| Misalignment Type: | Dynamic | Radial Dynamic Load Capacity (lb): | 62,300 lb |
| Housing Material: | Cast Iron | Shaft Locking Type: | Double Set Collar |
| Cage Material: | Steel | Product: | PEB22500F |
| Radial Clearance: | C0 STANDARD | Housing Construction: | Solid |
| Series: | Solid-housed Pillow Blocks | Housing Type: | Pillow Block, Four Bolt |
| Maximum Speed (RPM): | 1650 rpm | Setscrew Torque (in-lbs): | 680 in/lbs |
| Seal Kit: | B456HS | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Max Operating Temperature (C): | 107 °C | Size Code: | B556 |
| Primary Seal: | STEEL CLEARANCE SEAL | Expansion Lock Plug: | B225728A |
| Locking Device Kit: | B456SC QTY 2 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Roller Spin: | 0.0628 cps |
| Vibration Frequency Fundamental Train: | 0.0073 cps | Housing Coating: | POWDER COATED |
| Lubricant: | Lithium Complex NLGI 2 Grease | Max Operating Temperature (F): | 225 °F |
| Insert: | CSEB22555H | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
General Specifications
| UPC: | 662327112318 | Weight: | 59.00 LB |
| Packaged Length: | 8.38 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 14.63 IN | HTC: | 8483204080 |
| Country of Origin: | United States of America |
