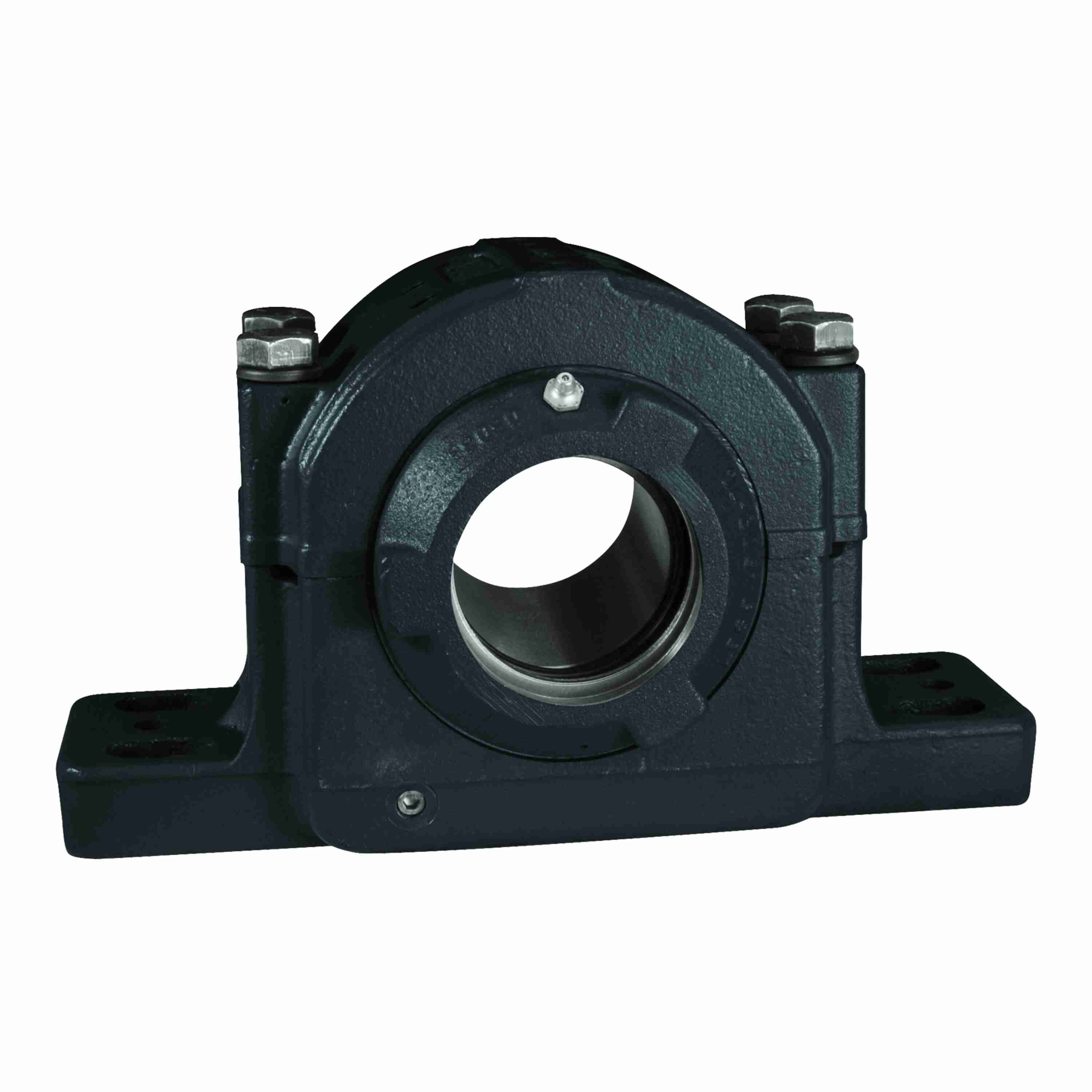

Link-Belt PLB6895FD8 Split-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PLB6895FD8
Part #:10414155
Catalog #:PLB6895FD8
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 5.9375 in | Overall Width (in): | 11 in |
| Bolt Size (in): | 1 in | Base to Center Height (in): | 7.063 in |
| Overall Length (in): | 24.75 in | Base Width (in): | 6.75 in |
| Overall Height (in): | 14.25 in | Foot Height (in): | 2.75 in |
| Required Distance for Cap Removal (in): | 18 in | Centerline to Shaft Face for Closed End Unit (in): | 3.13 in |
| Expansion Capability (in): | 0.38 in | Bolt Spacing Width (in): | 4.25 in |
| Bolt Spacing Min (in): | 19.38 in | Base Length (in): | 24.75 in |
| Bolt Spacing Max (in): | 21.63 in |
Technical Specifications
| Static Load Rating (lb): | 345,000 lb | Misalignment Type: | Dynamic |
| Housing Color: | Black | Housing Type: | Pillow Block, Four Bolt, SAF Style |
| Radial Dynamic Load Capacity (lb): | 250,000 lb | Housing Material: | Cast Iron |
| Housing Construction: | Split | Series: | Split-housed Pillow Blocks |
| Rolling Element: | Spherical Roller | Shaft Locking Type: | Adapter Mount |
| Cage Material: | Bronze | End Cap: | LB68104D86 |
| Radial Clearance: | C3 STANDARD | Product: | PLB6800F |
| Seal Type: | Taconite Seal | Fixed/Expansion: | Fixed/Expansion |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 960 rpm |
| Seal Kit: | LB6895D8 (qty 2) | Cap Bolt Torque (ft-lbs): | 400-440 ft/lbs |
| Ability to Relubricate: | Yes | C-Spacer: | 68964 |
| Available Seal Type: | D8 Taconite Seal; D5 PenTac Seal; R Labyrinth Seal | Vibration Frequency Outer Ring Defect: | 0.1186 cps |
| Locking Device Kit: | H3134095 | Grease Fitting Thread Size: | 1/4 NPT |
| Housing Kit: | PLB6895FD802 | Primary Seal: | D8 TACONITE DUTY SEAL |
| Size Code: | 22234 | Max Operating Temperature (F): | 225 °F |
| Housing Coating: | POWDER COATED | Vibration Frequency Roller Spin: | 0.0492 cps |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.007 cps |
| Misalignment Capability: | ±0.5° Misalignment - Dynamic | Insert: | 22234LBKC3 |
| Vibration Frequency Inner Ring Defect: | 0.165 cps |
General Specifications
| UPC: | 662327118228 | Weight: | 293.00 LB |
| HTC: | 8483208080 | Country of Origin: | China |
