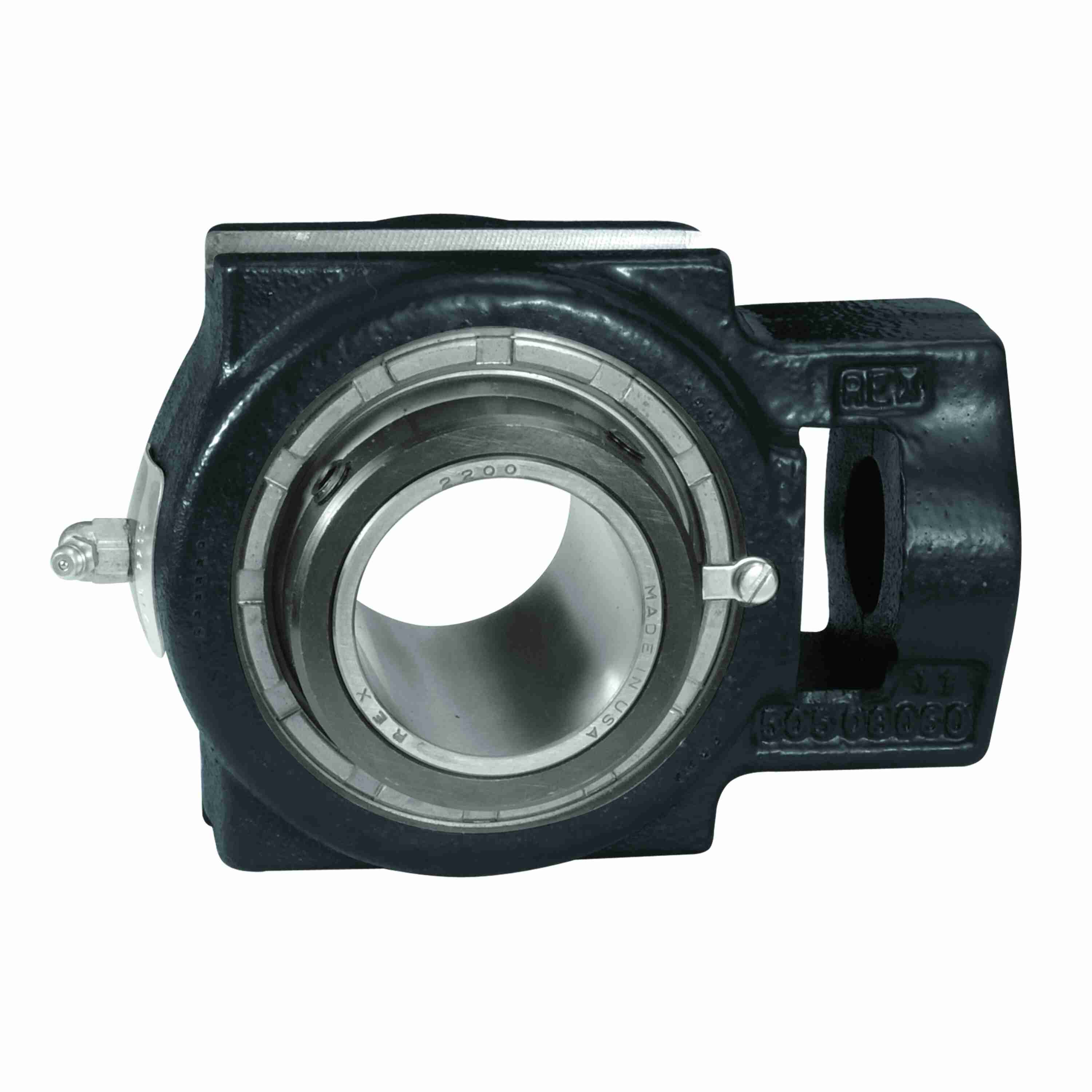

Link-Belt TB22423HK81 Take-up Blocks Link-Belt Spherical Roller Bearings - TB22423HK81
Part #:10440172
Catalog #:TB22423HK81
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 2.75 in | Overall Height (in): | 4.13 in |
| Overall Width (in): | 2.88 in | Overall Length (in): | 5.06 in |
| Housing Width (in): | 2.19 in | Slot Width (in): | 0.53 in |
| Base to Center Height (in): | 3.25 in | Bore Diameter (in): | 1.4375 in |
| Slot Spacing (in): | 3.5 in | Adjusting Screw Clearance Hole Diameter (in): | 0.88 in |
| Locking Collar Outside Diameter (in): | 2.31 in | Adjustment Pad Height (in): | 2.44 in |
| Adjusting Screw Square Nut Seat Height (in): | 1.44 in | Adjustment Slot Width (in): | 0.63 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.69 in | Housing Outside Diameter to Cast Square Nut Slot Face (in): | 3.75 in |
| Centerline to Outermost Bearing Face (in): | 1.78 in | Length Through Bore (in): | 2.88 in |
| Inner Ring Outside Diameter (in): | 1.745 in |
Technical Specifications
| Seal Type: | Clearance Seal | Shaft Locking Type: | Single Set Collar |
| Housing Style: | Take-Up Block | Housing Material: | Cast Iron |
| Housing Color: | Black | Housing Construction: | Solid |
| Radial Dynamic Load Capacity (lb): | 17,800 lb | End Cap: | B424DTC |
| Series: | Take-up Blocks | Housing Type: | Take Up, Wide Slot |
| Misalignment Type: | Dynamic | Cage Material: | Steel |
| Product: | TB22400 | Static Load Rating (lb): | 20,900 lb |
| Rolling Element: | Spherical Roller | Fixed/Expansion: | Fixed |
| Radial Clearance: | C0 STANDARD | Seal Kit: | B424HS |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 3600 rpm |
| Setscrew Torque (in-lbs): | 325 in/lbs | Allowable Working Load [2/3 Yield Strength] (lb): | 7,600 lb |
| Microlock Kit: | B436MLK | Vibration Frequency Outer Ring Defect: | 0.1055 cps |
| Housing Coating: | POWDER COATED | Max Operating Temperature (C): | 107 °C |
| Lube Fitting Type: | 90 DEG LUBE FITTING | Vibration Frequency Inner Ring Defect: | 0.1445 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Insert: | B423L |
| Vibration Frequency Fundamental Train: | 0.007 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Locking Device Kit: | B424SC | Size Code: | B424 |
| Vibration Frequency Roller Spin: | 0.0499 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Lube Fill Percent: | 40% GREASE FILL | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 793699069815 | Weight: | 7.00 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
