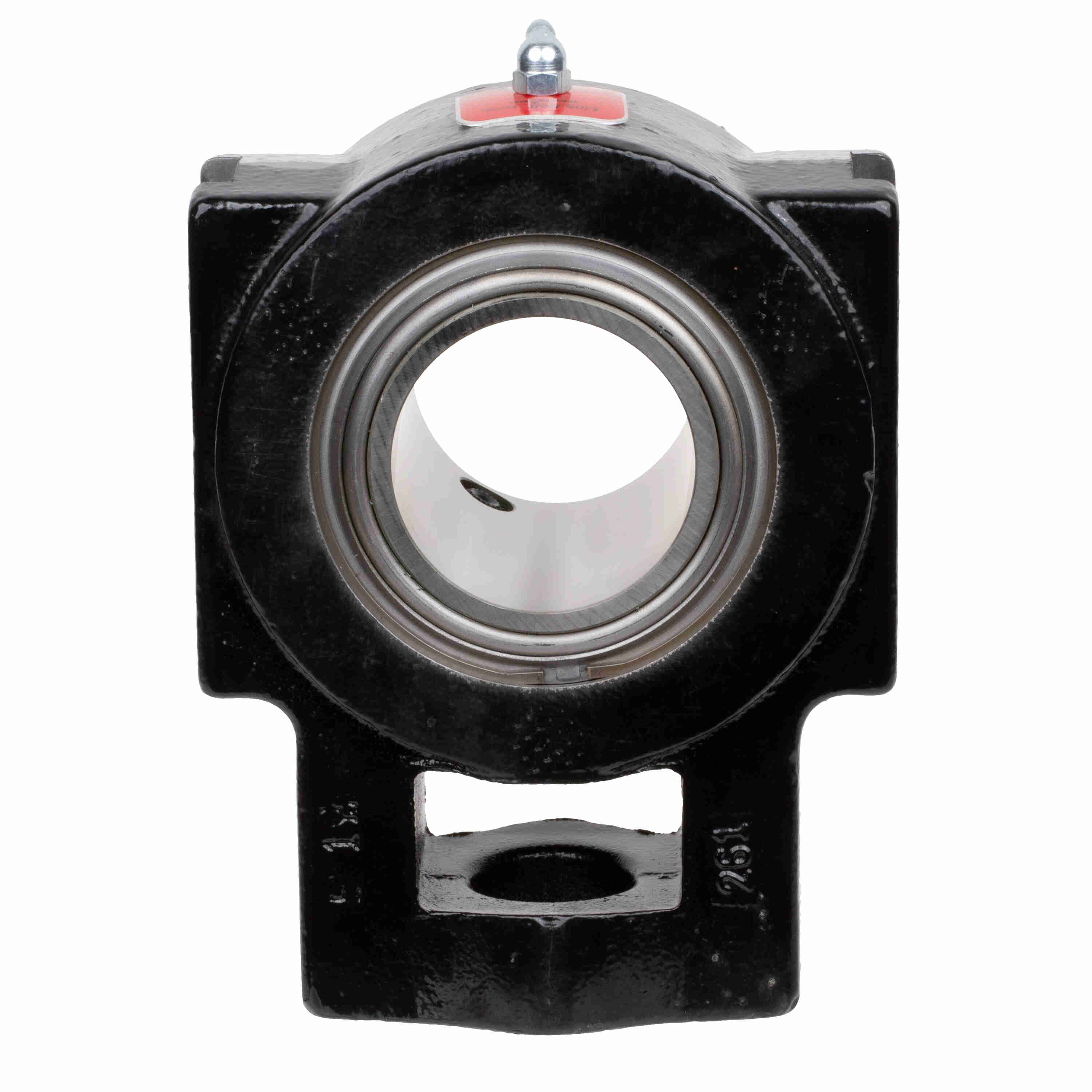

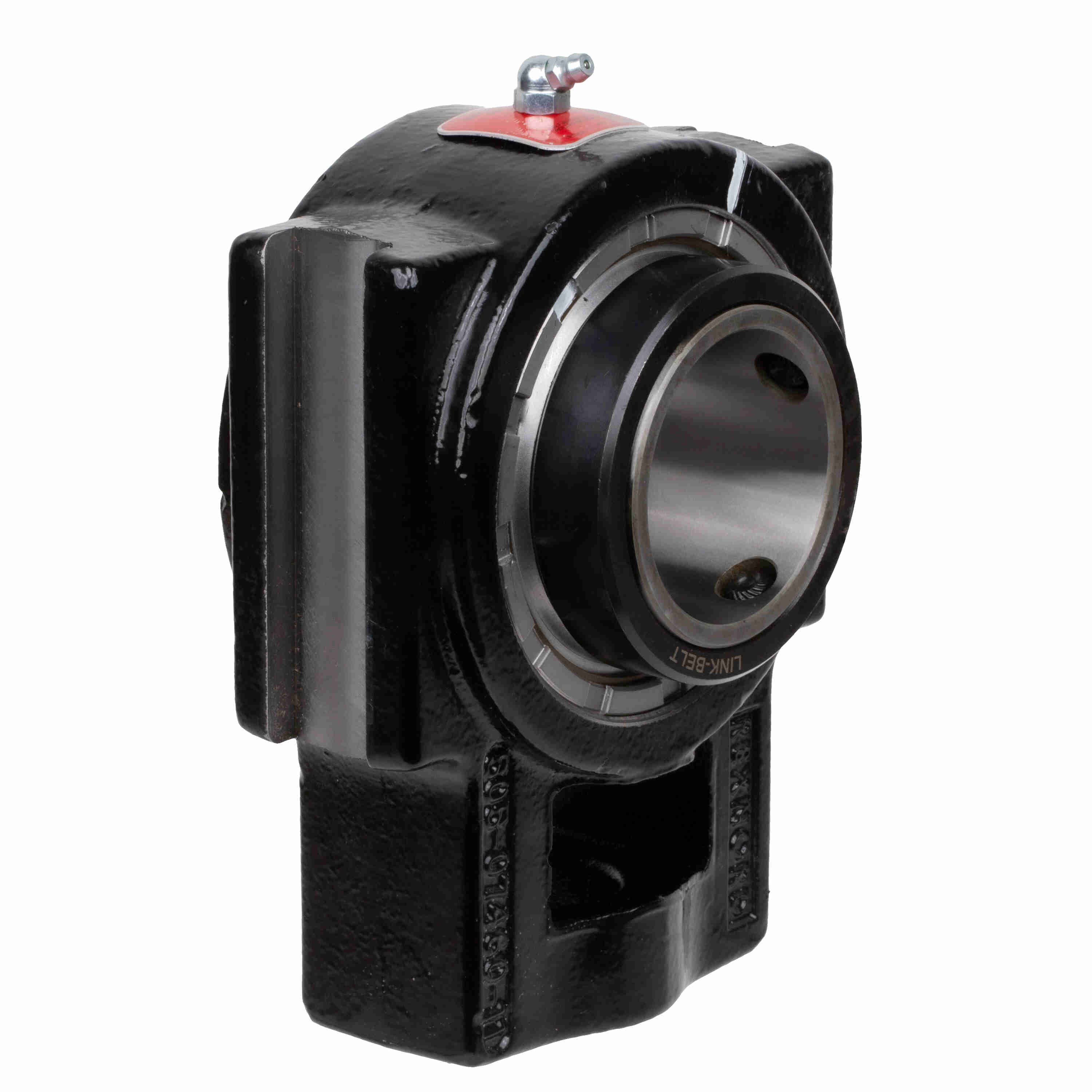

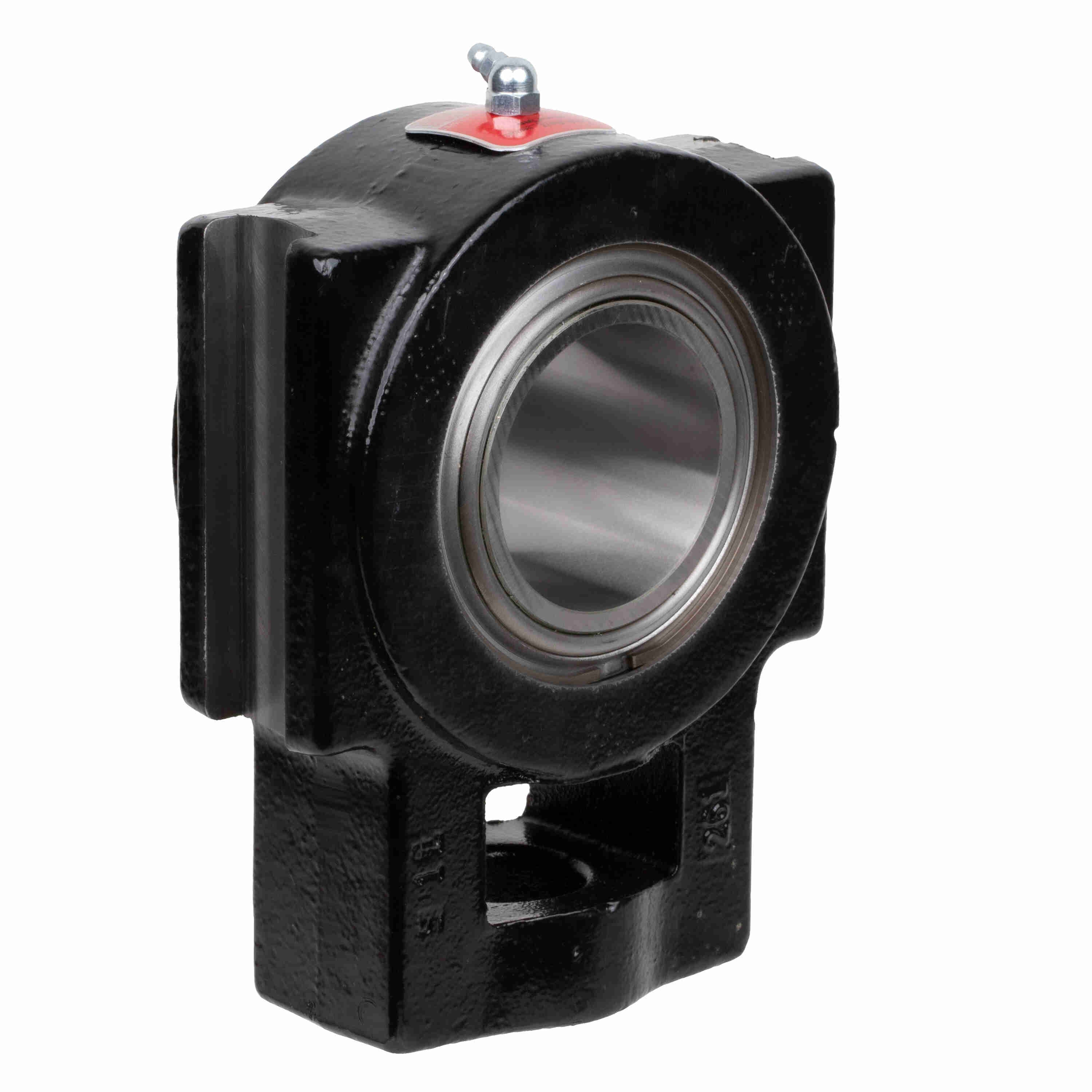

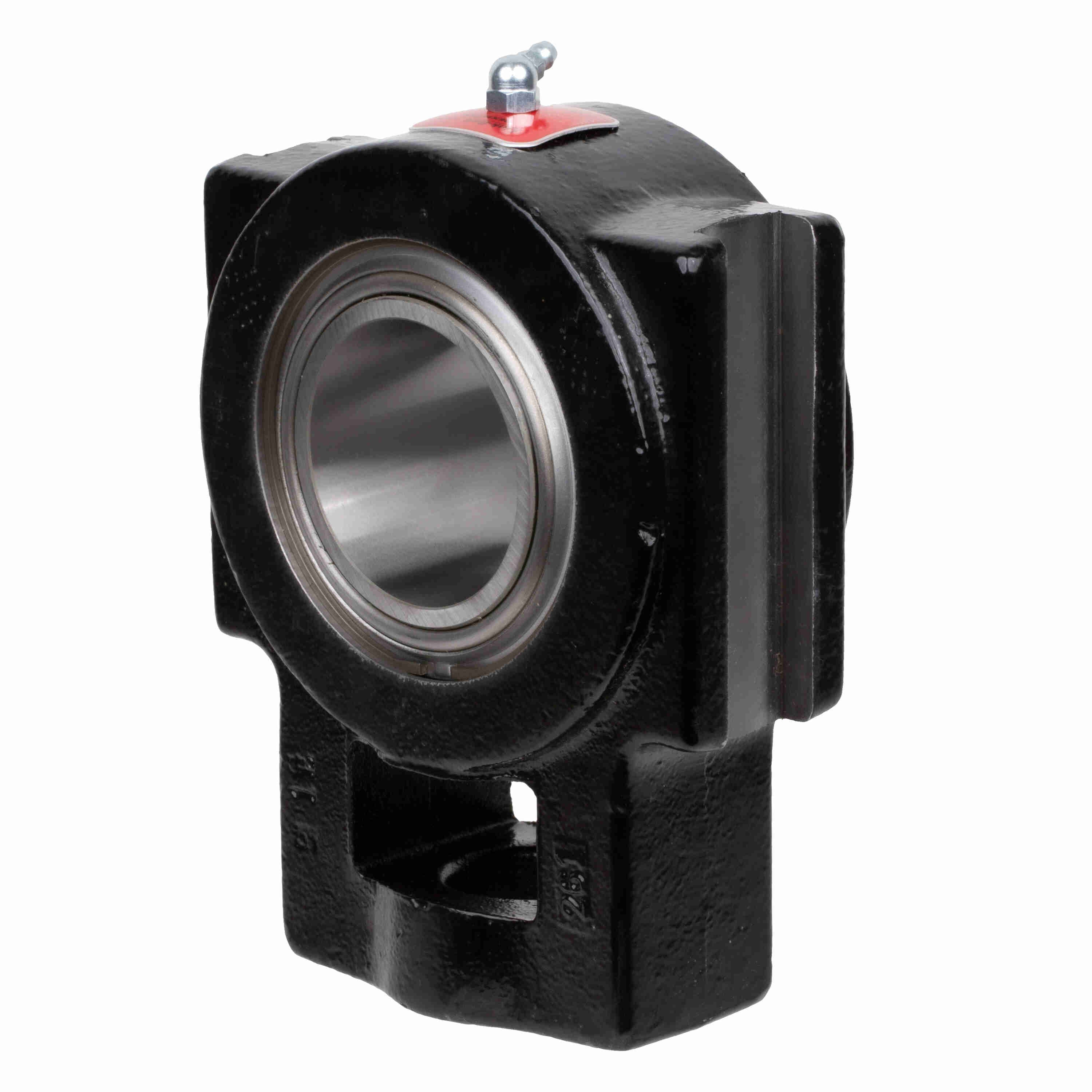

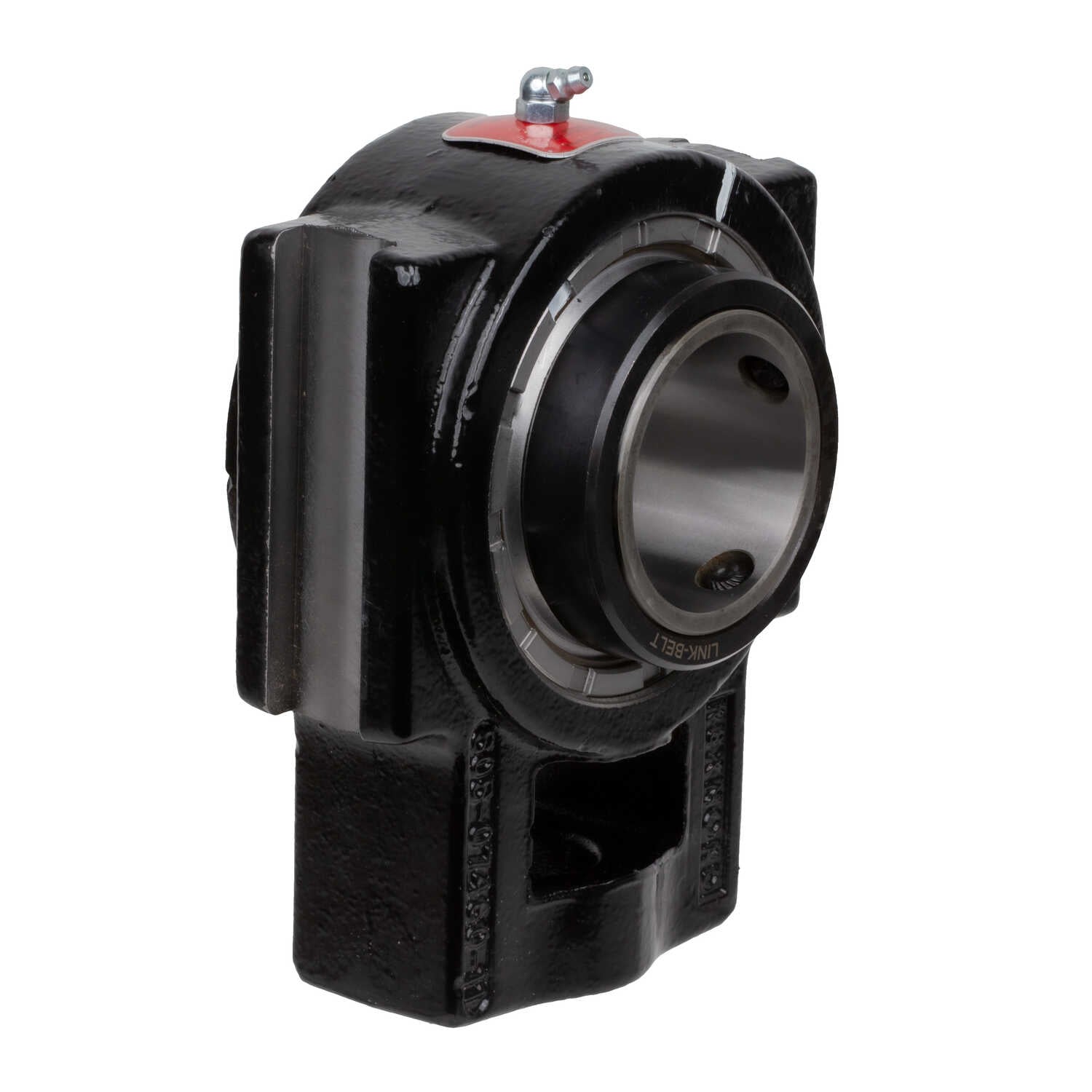

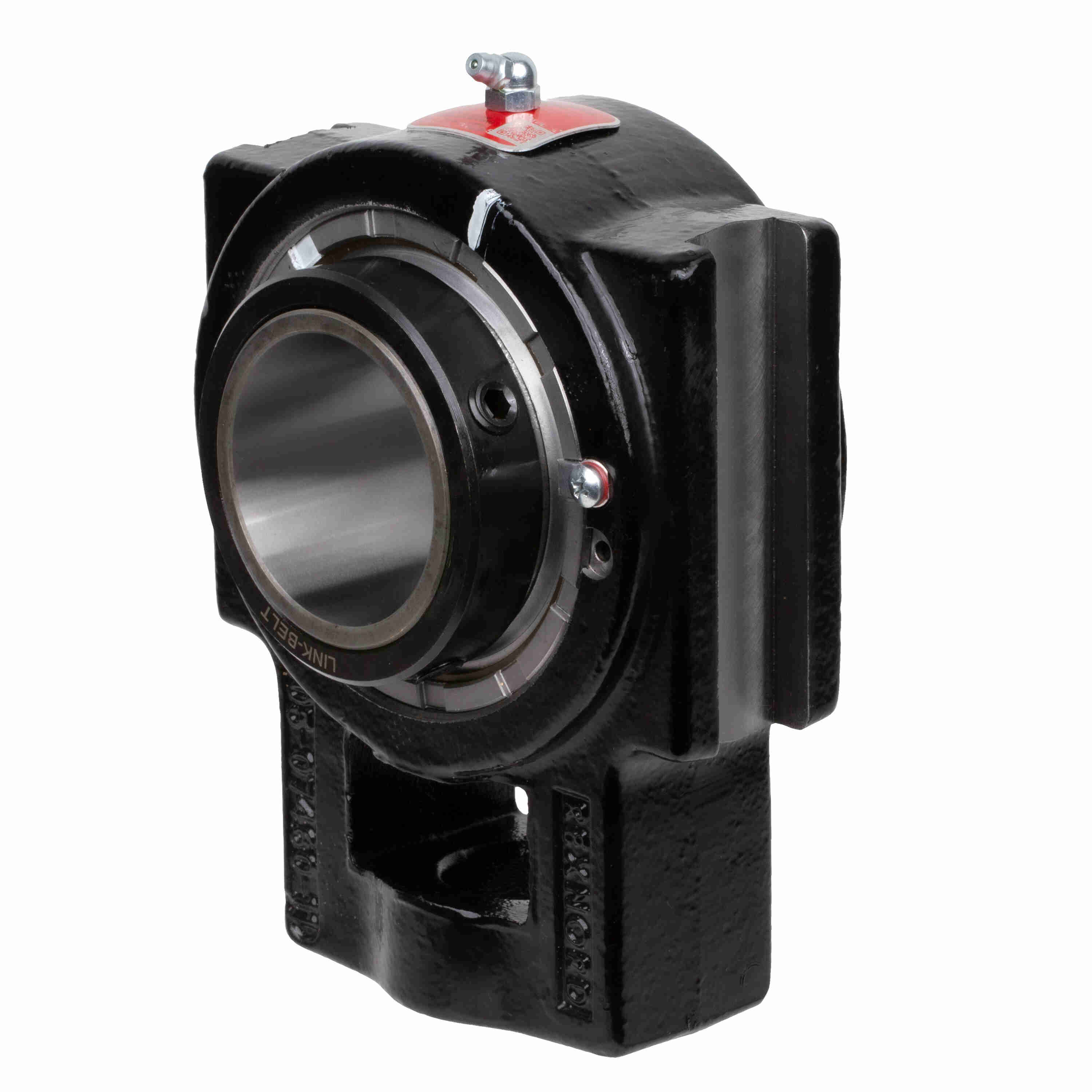

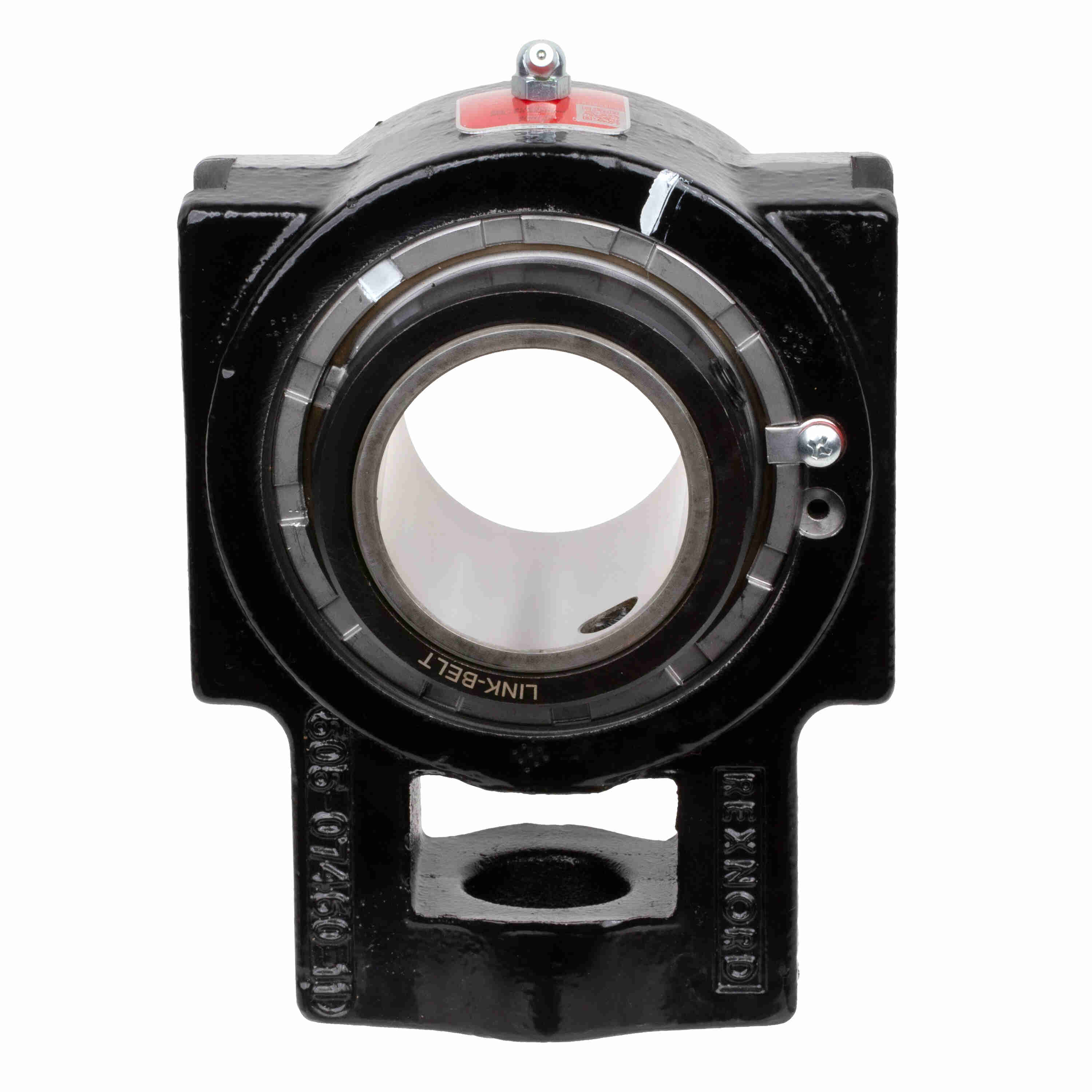

Link-Belt TB22440H Take-up Blocks Link-Belt Spherical Roller Bearings - TB22440H
Part #:10424727
Catalog #:TB22440H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 3.51 in | Bore Diameter (in): | 2.5000 in |
| Overall Length (in): | 7.81 in | Overall Height (in): | 5.88 in |
| Housing Width (in): | 2.63 in | Slot Width (in): | 1.06 in |
| Slot Length (in): | 4 in | Base to Center Height (in): | 5.063 in |
| Adjusting Screw Square Nut Seat Height (in): | 2.25 in | Locking Collar Outside Diameter (in): | 3.56 in |
| Slot Spacing (in): | 5.13 in | Adjustment Pad Height (in): | 4.25 in |
| Adjusting Screw Clearance Hole Diameter (in): | 1.38 in | Adjustment Slot Width (in): | 1.25 in |
| Centerline to Outermost Bearing Face (in): | 2.19 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Length Through Bore (in): | 3.51 in | Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
| Housing Outside Diameter to Cast Square Nut Slot Face (in): | 5.5 in |
Technical Specifications
| Rolling Element: | Spherical Roller | End Cap: | B440DTC |
| Misalignment Type: | Dynamic | Housing Material: | Cast Iron |
| Radial Dynamic Load Capacity (lb): | 38,300 lb | Static Load Rating (lb): | 53,500 lb |
| Cage Material: | Steel | Housing Color: | Black |
| Shaft Locking Type: | Single Set Collar | Product: | TB22400 |
| Housing Construction: | Solid | Fixed/Expansion: | Fixed |
| Housing Type: | Take Up, Wide Slot | Seal Type: | Clearance Seal |
| Housing Style: | Take-Up Block | Series: | Take-up Blocks |
| Radial Clearance: | C0 STANDARD | Setscrew Torque (in-lbs): | 680 in/lbs |
| Allowable Working Load [2/3 Yield Strength] (lb): | 20,900 lb | Microlock Kit: | B448MLK |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Ability to Relubricate: | Yes |
| Seal Kit: | B440HS | Maximum Speed (RPM): | 2300 rpm |
| Locking Device Kit: | B440SC | Size Code: | B440 |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | POWDER COATED | Primary Seal: | STEEL CLEARANCE SEAL |
| Insert: | B440L | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Roller Spin: | 0.0607 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 662327141929 | Weight: | 18.50 LB |
| Packaged Length: | 10.44 IN | Packaged Width: | 3.50 IN |
| Packaged Height: | 6.13 IN | HTC: | 8483204080 |
| Country of Origin: | United States of America |
