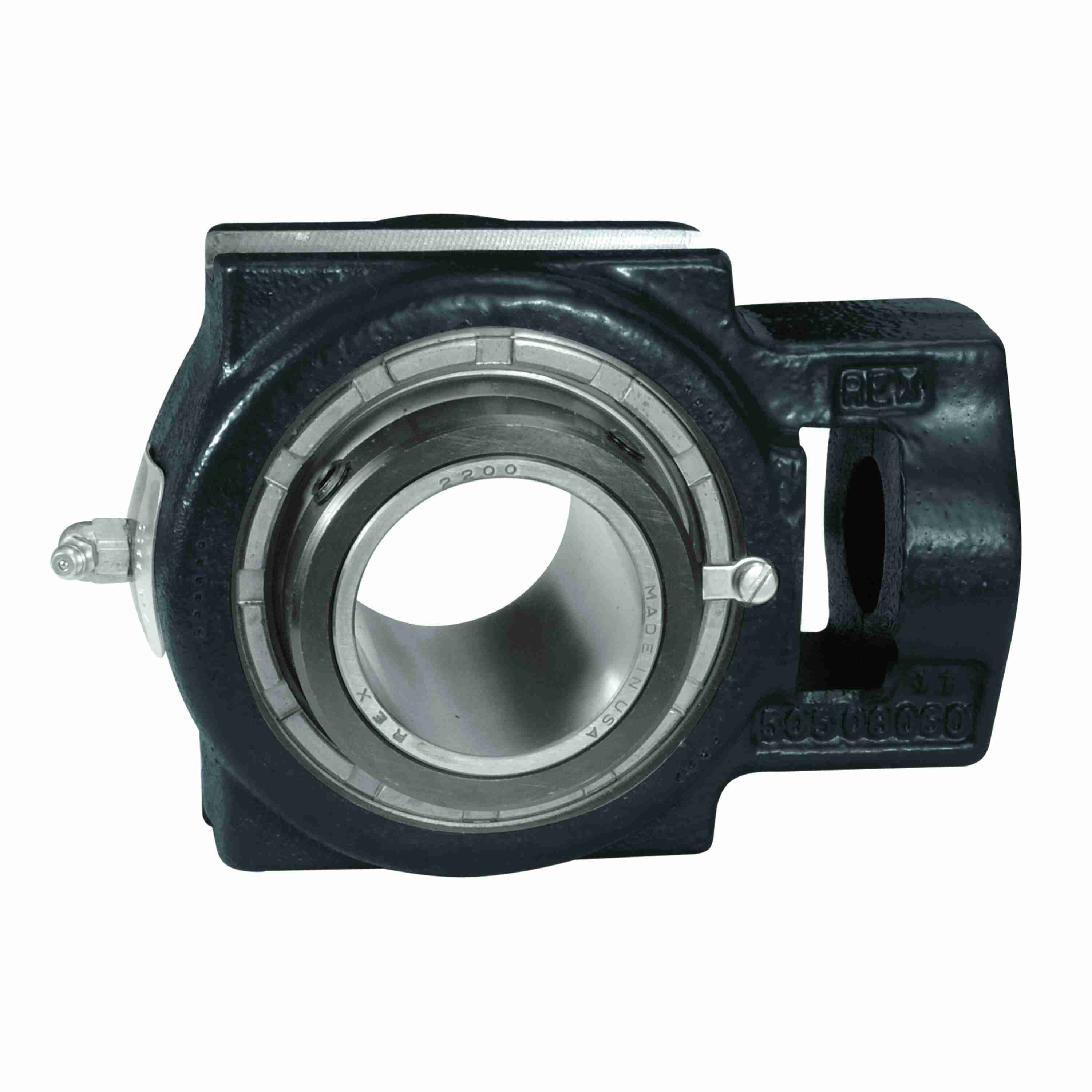

Link-Belt TB224M70HHC Take-up Blocks Link-Belt Spherical Roller Bearings - TB224M70HHC
Part #:10415795
Catalog #:TB224M70HHC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 4.75 in | Overall Height (in): | 6.69 in |
| Slot Width (in): | 1.81 in | Bore Diameter (mm): | 70 mm |
| Overall Length (in): | 9.13 in | Housing Width (in): | 3.13 in |
| Overall Width (in): | 4 in | Base to Center Height (in): | 5.938 in |
| Locking Collar Outside Diameter (in): | 4.06 in | Adjustment Slot Width (in): | 1.5 in |
| Slot Spacing (in): | 5.94 in | Adjusting Screw Square Nut Seat Height (in): | 2.75 in |
| Adjustment Pad Height (in): | 4.88 in | Adjusting Screw Clearance Hole Diameter (in): | 1.63 in |
| Centerline to Cap Face (in): | 2.78 in | Inner Ring Outside Diameter (in): | 3.37 in |
| Centerline to Outermost Bearing Face (in): | 2.44 in | Housing Outside Diameter to Cast Square Nut Slot Face (in): | 6.44 in |
| Length Through Bore (in): | 4 in | Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
Technical Specifications
| Cage Material: | Steel | End Cap: | B448EC |
| Fixed/Expansion: | Fixed | Product: | TB22400 |
| Housing Construction: | Solid | Radial Dynamic Load Capacity (lb): | 51,100 lb |
| Radial Clearance: | C0 STANDARD | Rolling Element: | Spherical Roller |
| Shaft Locking Type: | Single Set Collar | Housing Color: | Black |
| Housing Type: | Take Up, Wide Slot | Seal Type: | Clearance Seal |
| Housing Style: | Take-Up Block | Series: | Take-up Blocks |
| Misalignment Type: | Dynamic | Housing Material: | Cast Iron |
| Static Load Rating (lb): | 71,500 lb | Setscrew Torque (in-lbs): | 680 in/lbs |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1950 rpm |
| Microlock Kit: | B448MLK | Allowable Working Load [2/3 Yield Strength] (lb): | 26,800 lb |
| Seal Kit: | B448HS | Auxiliary Seals: | 1 LB STYLE CLOSED CAP STEEL |
| Vibration Frequency Roller Spin: | 0.0591 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Insert: | B4M70L | Locking Device Kit: | B448SC |
| Housing Coating: | POWDER COATED | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Size Code: | B448 | Primary Seal: | STEEL CLEARANCE SEAL |
General Specifications
| UPC: | 662864710923 | Weight: | 30.50 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
