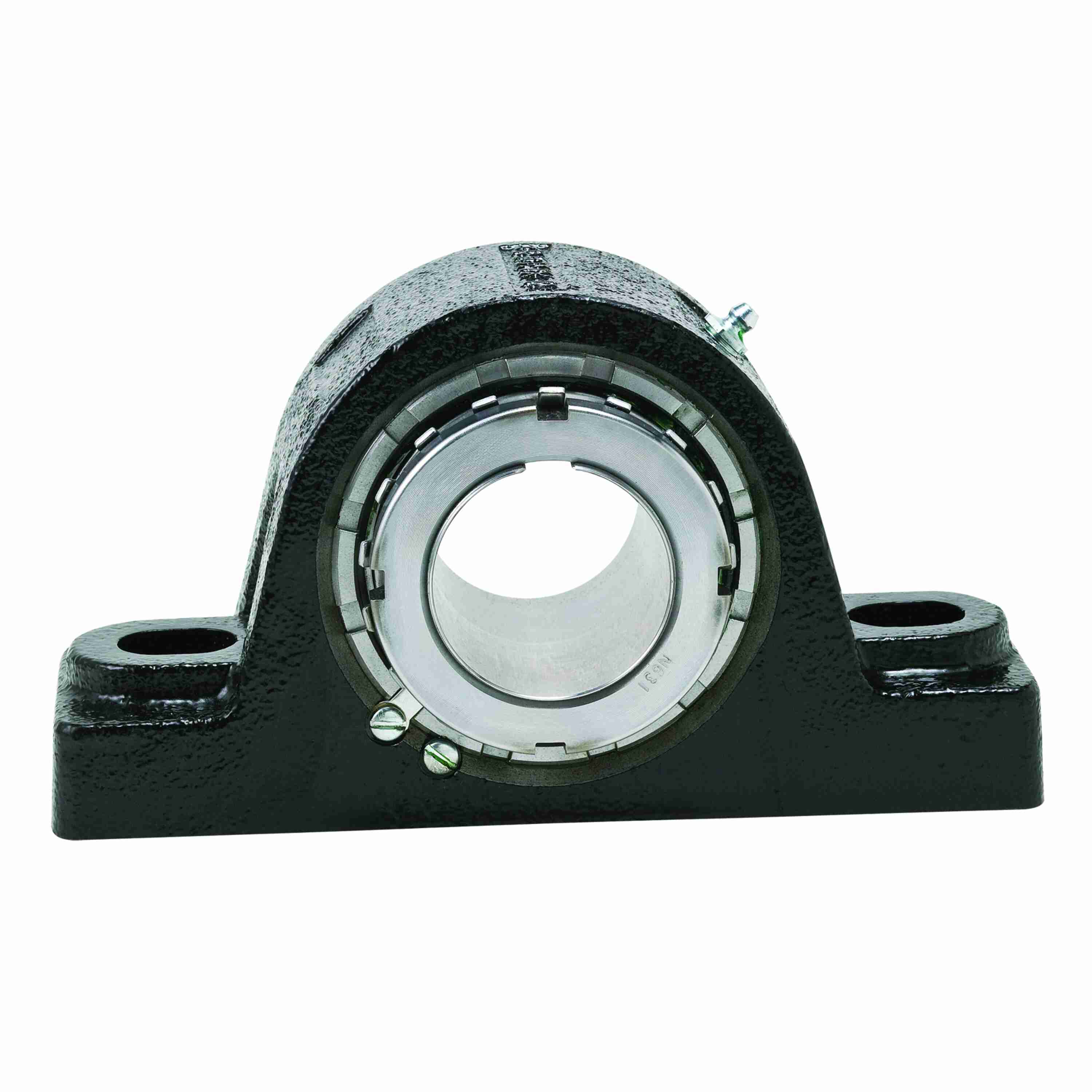

Rexnord ZA9307 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZA9307
Part #:10419019
Catalog #:ZA9307
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 14.25 in | Overall Width (in): | 5.07 in |
| Base Width (in): | 4.13 in | Slot Length (in): | 1.75 in |
| Overall Height (in): | 8.5 in | Base to Center Height (in): | 4.125 in |
| Bore Diameter (in): | 3.4375 in | Bolt Size (in): | 1 in |
| Foot Height (in): | 2.13 in | Locking Collar Outside Diameter (in): | 5.19 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.94 in | Length Through Bore (in): | 5.07 in |
| Base Length (in): | 14.25 in | Inner Ring Outside Diameter (in): | 4.561 in |
| Bolt Spacing (in): | 10.88 in |
Technical Specifications
| Misalignment Type: | Dynamic | Housing Construction: | Solid |
| Radial Dynamic Load Capacity (lb): | 130,970 lb | Rolling Element: | Spherical Roller |
| Series: | Solid-housed Pillow Blocks | Housing Material: | Cast Iron |
| Housing Style: | Pillow Block | Cage Material: | Engineered Polymer |
| Radial Clearance: | C3 STANDARD | Product: | ZA9000 |
| Housing Color: | Black | Seal Type: | Clearance Seal |
| Housing Type: | Pillow Block, Two Bolt | Static Load Rating (lb): | 137,000 lb |
| Shaft Locking Type: | Adapter Mount | Fixed/Expansion: | Fixed |
| Microlock Kit: | ML4 | Seal Kit: | ZS11 |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 2050 rpm |
| Insert: | 9307U | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Inner Ring Defect: | 0.1717 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
| Housing Coating: | POWDER COATED | Size Code: | 11 |
| Vibration Frequency Roller Spin: | 0.0548 cps | Shaft Locking Collar Kit/Adapter Assembly: | AK11307 |
| Vibration Frequency Outer Ring Defect: | 0.1283 cps | Locking Device Kit: | AK11307 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Primary Seal: | STEEL CLEARANCE SEAL |
| Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 698210879471 | Weight: | 60.00 LB |
| HTC: | 84833080 |
