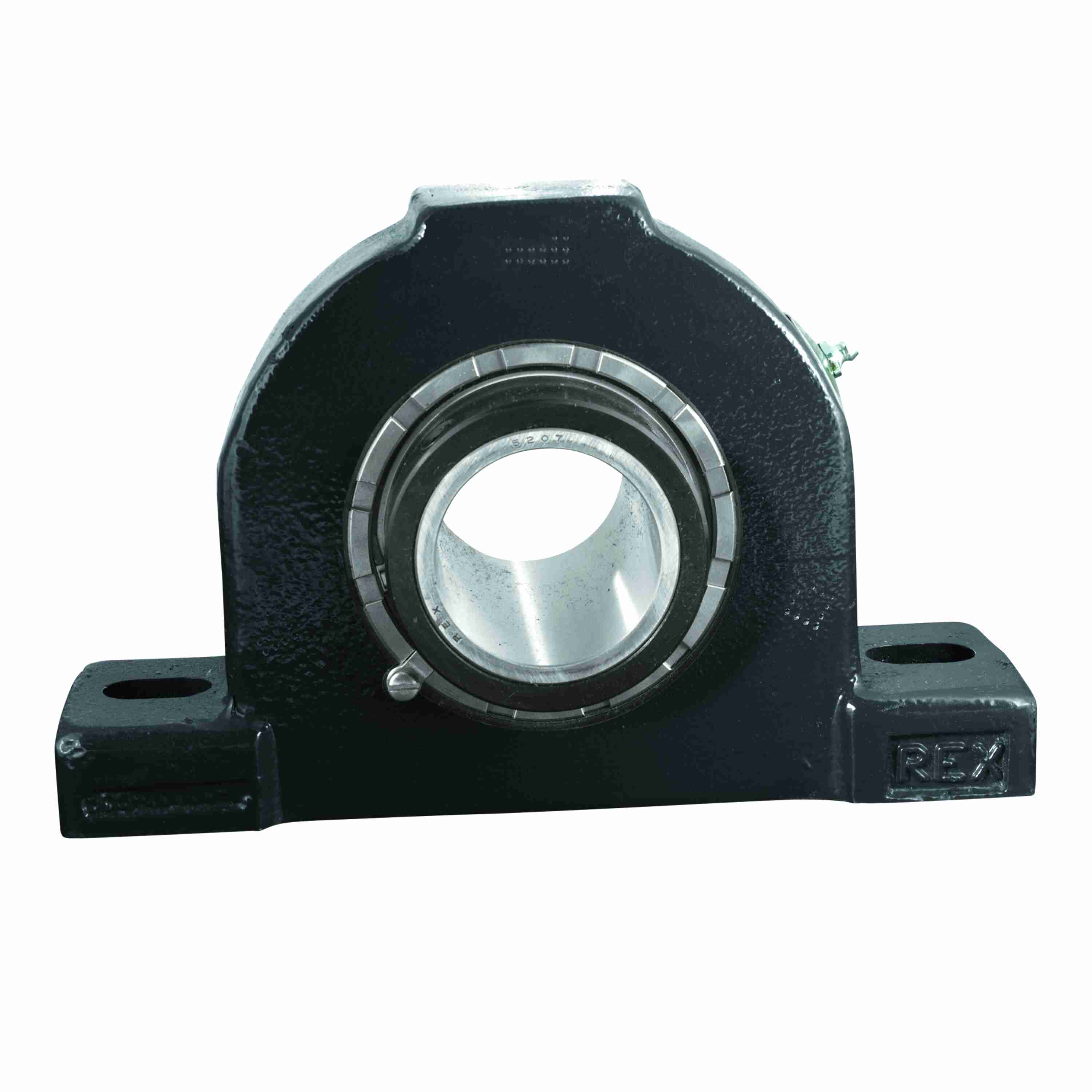

Rexnord ZAF5215F Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAF5215F
Part #:10443309
Catalog #:ZAF5215F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 5/8 in | Overall Height (in): | 7.75 in |
| Base to Center Height (in): | 3.75 in | Overall Length (in): | 12.59 in |
| Bore Diameter (in): | 2.9375 in | Foot Height (in): | 1.25 in |
| Base Width (in): | 3.5 in | Slot Length (in): | 1.25 in |
| Overall Width (in): | 4.88 in | Locking Collar Outside Diameter (in): | 4.06 in |
| Bolt Spacing Max (in): | 11 in | Inner Ring Outside Diameter (in): | 3.37 in |
| Bolt Spacing Width (in): | 2.13 in | Bolt Spacing Min (in): | 9.88 in |
| Length Through Bore (in): | 4.88 in | Base Length (in): | 12.59 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
Technical Specifications
| Housing Color: | Black | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | Housing Style: | Pillow Block |
| Fixed/Expansion: | Fixed | Cage Material: | Engineered Polymer |
| Radial Clearance: | C3 STANDARD | Seal Type: | Clearance Seal |
| End Cap: | DTC9 | Misalignment Type: | Dynamic |
| Product: | ZAF5000F | Shaft Locking Type: | Double Set Collar |
| Static Load Rating (lb): | 71,500 lb | Radial Dynamic Load Capacity (lb): | 57,750 lb |
| Housing Construction: | Solid | Housing Type: | Pillow Block, Four Bolt, SAF Style |
| Series: | Solid-housed Pillow Blocks | Seal Kit: | ZS9 |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 2800 rpm |
| Microlock Kit: | ML3 | Setscrew Torque (in-lbs): | 680 in/lbs |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Housing Coating: | POWDER COATED | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Insert: | 5215U | Vibration Frequency Roller Spin: | 0.0591 cps |
| Locking Device Kit: | SC9 QTY 2 | Max Operating Temperature (F): | 225 °F |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Size Code: | 9 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Primary Seal: | STEEL CLEARANCE SEAL |
General Specifications
| UPC: | 793699724868 | Weight: | 45.00 LB |
| Packaged Length: | 13.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 7.88 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
