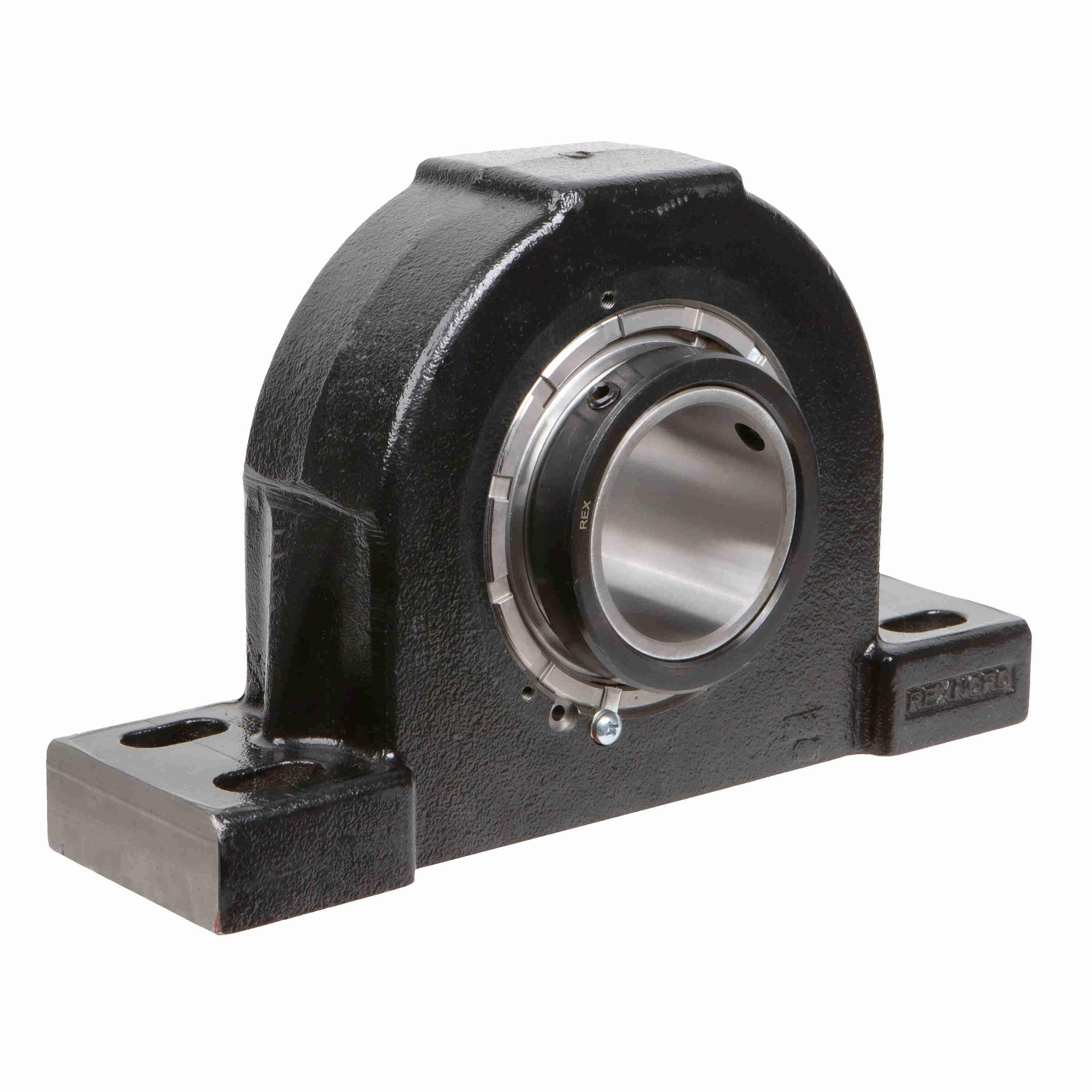

Rexnord ZAF6307F0463 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAF6307F0463
Part #:10408424
Catalog #:ZAF6307F0463
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 9.28 in | Foot Height (in): | 1.66 in |
| Bore Diameter (in): | 3.4375 in | Bolt Size (in): | 3/4 in |
| Overall Width (in): | 5.03 in | Overall Length (in): | 15.38 in |
| Base Width (in): | 4.34 in | Slot Length (in): | 1.56 in |
| Base to Center Height (in): | 4.5 in | Locking Collar Outside Diameter (in): | 4.95 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.59 in | Bolt Spacing Min (in): | 11.63 in |
| Bolt Spacing Max (in): | 13.13 in | Inner Ring Outside Diameter (in): | 3.975 in |
| Bolt Spacing Width (in): | 2.38 in | Length Through Bore (in): | 5.03 in |
| Base Length (in): | 15.38 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Series: | Solid-housed Pillow Blocks |
| Radial Dynamic Load Capacity (lb): | 84,330 lb | Misalignment Type: | Dynamic |
| Seal Type: | Clearance Seal | Housing Color: | Black |
| End Cap: | NEED EXT EC | Radial Clearance: | C5 INCREASED |
| Housing Construction: | Solid | Housing Style: | Pillow Block |
| Cage Material: | Engineered Polymer | Static Load Rating (lb): | 90,700 lb |
| Rolling Element: | Spherical Roller | Housing Material: | Cast Iron |
| Product: | ZAF6000F | Shaft Locking Type: | Adapter Mount |
| Housing Type: | Pillow Block, Four Bolt, SAF Style | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Microlock Kit: | ML4 | Seal Kit: | ZS10 |
| Maximum Speed (RPM): | 2400 rpm | Ability to Relubricate: | Yes |
| Max Operating Temperature (C): | 150 °C | Housing Coating: | POWDER COATED |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Locking Device Kit: | AK106307 | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Impact Style Shurlok Install Tool: | 105-90425-51 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Size Code: | 10 |
| Lubricant: | MOBIL MOBILITH SHC100 | Insert: | 6307U |
| Vibration Frequency Roller Spin: | 0.0628 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Shaft Locking Collar Kit/Adapter Assembly: | AK106307 | Max Operating Temperature (F): | 300 °F |
General Specifications
| UPC: | 662864567039 | Weight: | 75.00 LB |
| Country of Origin: | Mexico |
