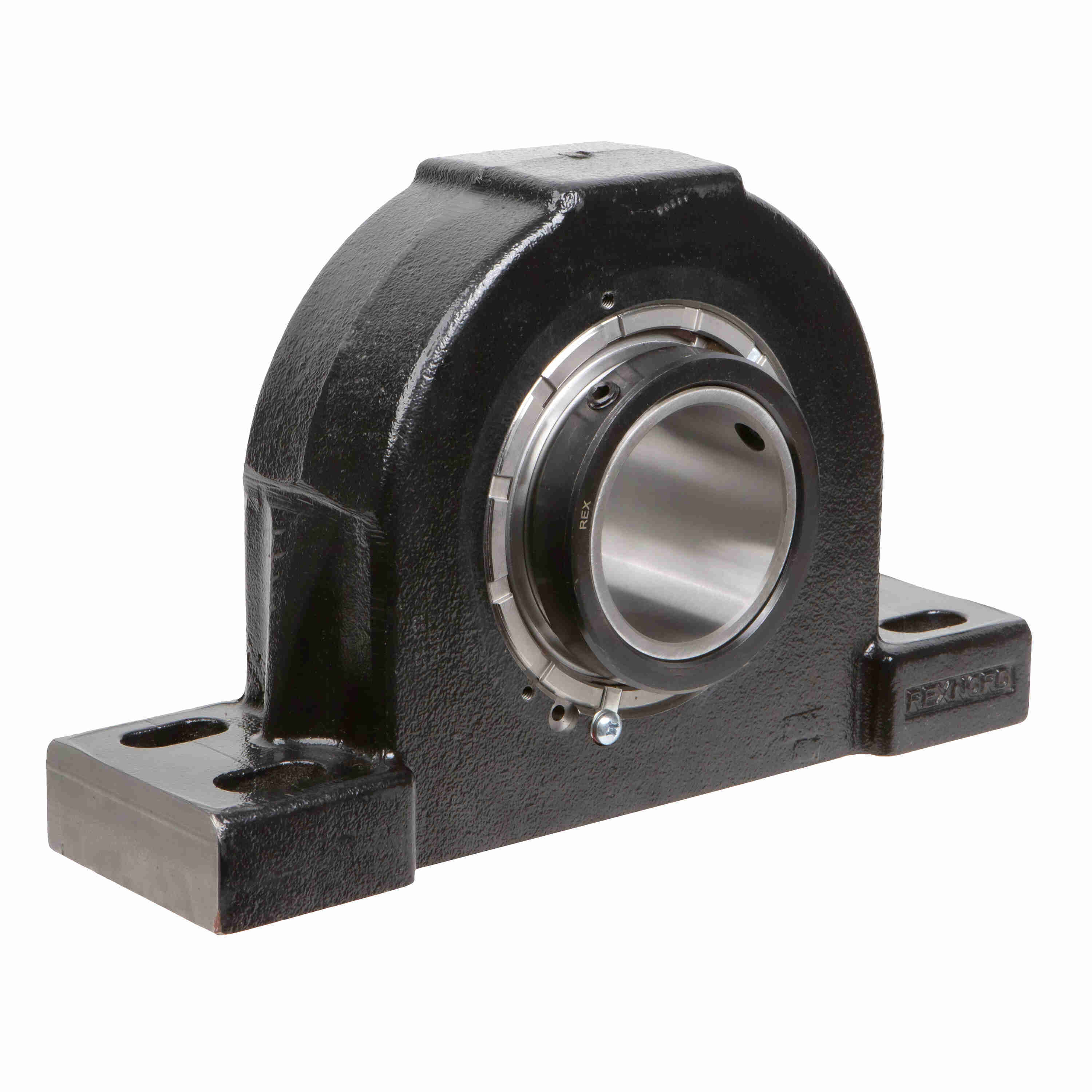

Rexnord ZAF6415F05 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAF6415F05
Part #:10424879
Catalog #:ZAF6415F05
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 1.94 in | Base to Center Height (in): | 6 in |
| Bolt Size (in): | 1 in | Overall Width (in): | 7.93 in |
| Foot Height (in): | 2.06 in | Base Width (in): | 5.88 in |
| Overall Length (in): | 19.7 in | Bore Diameter (in): | 4.9375 in |
| Overall Height (in): | 12.56 in | Locking Collar Outside Diameter (in): | 6.95 in |
| Bolt Spacing Max (in): | 17.38 in | Bolt Spacing Min (in): | 15.63 in |
| Bolt Spacing Width (in): | 3.38 in | Housing Cast Face to Outermost Bearing Face (in): | 2.25 in |
| Length Through Bore (in): | 7.93 in | Inner Ring Outside Diameter (in): | 5.75 in |
| Base Length (in): | 19.7 in |
Technical Specifications
| Series: | Solid-housed Pillow Blocks | Housing Color: | Black |
| Rolling Element: | Spherical Roller | Misalignment Type: | Dynamic |
| Radial Dynamic Load Capacity (lb): | 191,500 lb | Housing Material: | Cast Iron |
| Fixed/Expansion: | Fixed | Housing Type: | Pillow Block, Four Bolt, SAF Style |
| Seal Type: | Clearance Seal | Static Load Rating (lb): | 241,900 lb |
| Shaft Locking Type: | Adapter Mount | Housing Style: | Pillow Block |
| Cage Material: | Engineered Polymer | Product: | ZAF6000F |
| Radial Clearance: | C4 INCREASED | Housing Construction: | Solid |
| Seal Kit: | ZS13 | Maximum Speed (RPM): | 1600 rpm |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Ability to Relubricate: | Yes |
| Microlock Kit: | ML4 | Primary Seal: | STEEL CLEARANCE SEAL |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Outer Ring Defect: | 0.127 cps |
| Locking Device Kit: | AK136415 | Insert: | 6415U |
| Grease Fitting Thread Size: | 1/4 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Impact Style Shurlok Install Tool: | 105-90425-81 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Fundamental Train: | 0.0071 cps | Housing Coating: | POWDER COATED |
| Shaft Locking Collar Kit/Adapter Assembly: | AK136415 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.173 cps | Vibration Frequency Roller Spin: | 0.0515 cps |
| Size Code: | 13 |
General Specifications
| UPC: | 662864556743 | Weight: | 206.50 LB |
| Country of Origin: | Mexico |
