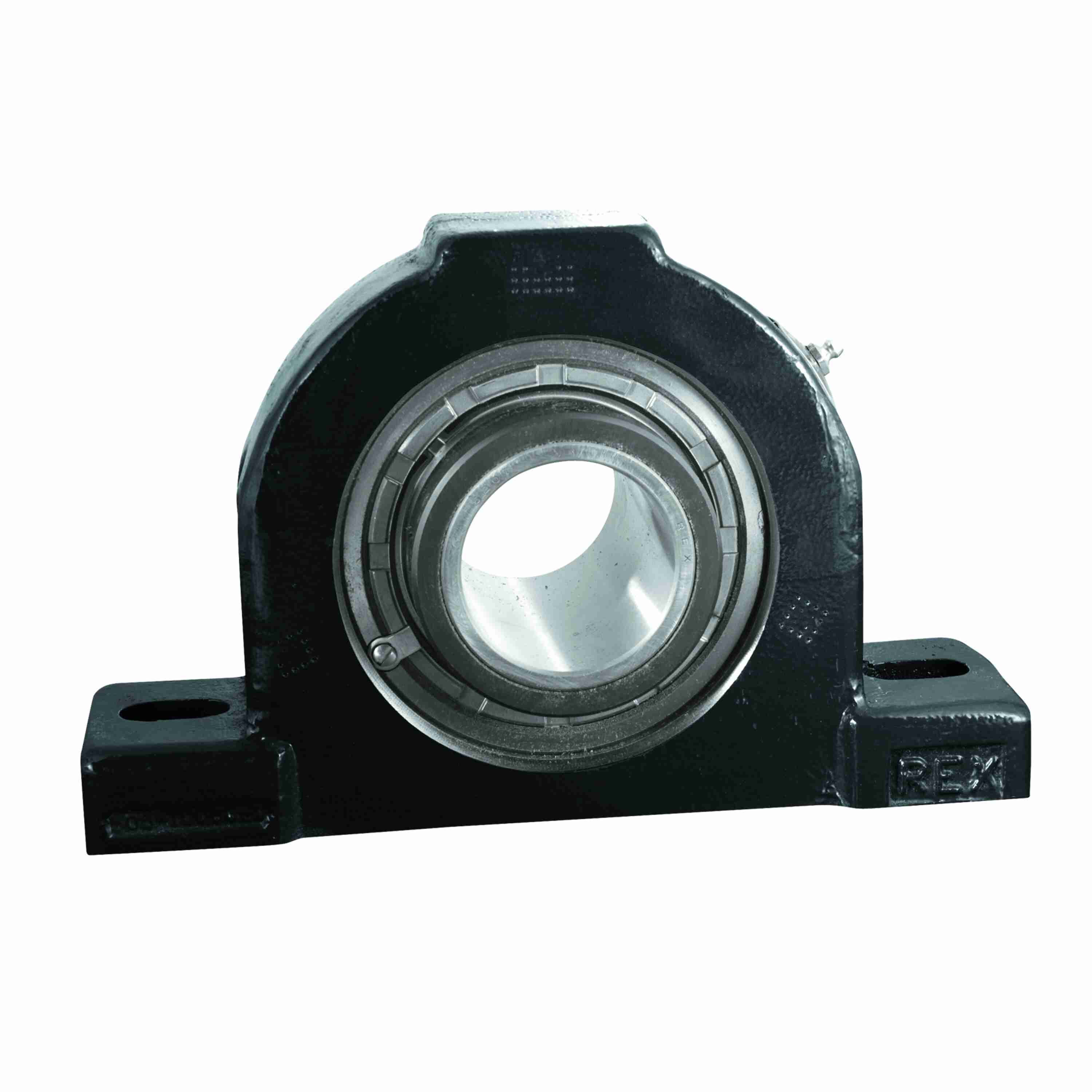

Rexnord ZAFS5307F Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAFS5307F
Part #:10427927
Catalog #:ZAFS5307F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 3.4375 in | Base Width (in): | 4.34 in |
| Base to Center Height (in): | 4.5 in | Overall Width (in): | 5.31 in |
| Slot Length (in): | 1.56 in | Bolt Size (in): | 3/4 in |
| Overall Height (in): | 9.28 in | Foot Height (in): | 1.66 in |
| Overall Length (in): | 15.38 in | Locking Collar Outside Diameter (in): | 4.91 in |
| Bolt Spacing Max (in): | 13.13 in | Bolt Spacing Min (in): | 11.63 in |
| Base Length (in): | 15.38 in | Inner Ring Outside Diameter (in): | 3.975 in |
| Length Through Bore (in): | 5.31 in | Bolt Spacing Width (in): | 2.38 in |
| Expansion Capability (in): | 0.5 in | Housing Cast Face to Outermost Bearing Face (in): | 0.94 in |
Technical Specifications
| Housing Type: | Pillow Block, Four Bolt, SAF Style | Housing Style: | Pillow Block |
| Cage Material: | Engineered Polymer | Fixed/Expansion: | Expansion |
| Housing Construction: | Solid | Housing Color: | Black |
| End Cap: | DTC10 | Static Load Rating (lb): | 90,700 lb |
| Radial Dynamic Load Capacity (lb): | 84,330 lb | Product: | ZAFS5000F |
| Seal Type: | Clearance Seal | Radial Clearance: | C3 STANDARD |
| Series: | Solid-housed Pillow Blocks | Shaft Locking Type: | Double Set Collar |
| Rolling Element: | Spherical Roller | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | Maximum Speed (RPM): | 2400 rpm |
| Ability to Relubricate: | Yes | Microlock Kit: | ML3 |
| Seal Kit: | ZS10 | Setscrew Torque (in-lbs): | 680 in/lbs |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Roller Spin: | 0.0628 cps | Expansion Lock Plug: | 105-95008-36 |
| Size Code: | 10 | Grease Fitting Thread Size: | 1/8 NPT |
| Insert: | 5307U | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Housing Coating: | POWDER COATED | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (C): | 107 °C | Max Operating Temperature (F): | 225 °F |
| Locking Device Kit: | SC10 QTY 2 | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
General Specifications
| UPC: | 793699725155 | Weight: | 75.50 LB |
| Packaged Length: | 17.50 IN | Packaged Width: | 6.38 IN |
| Packaged Height: | 9.88 IN | Country of Origin: | Mexico |
