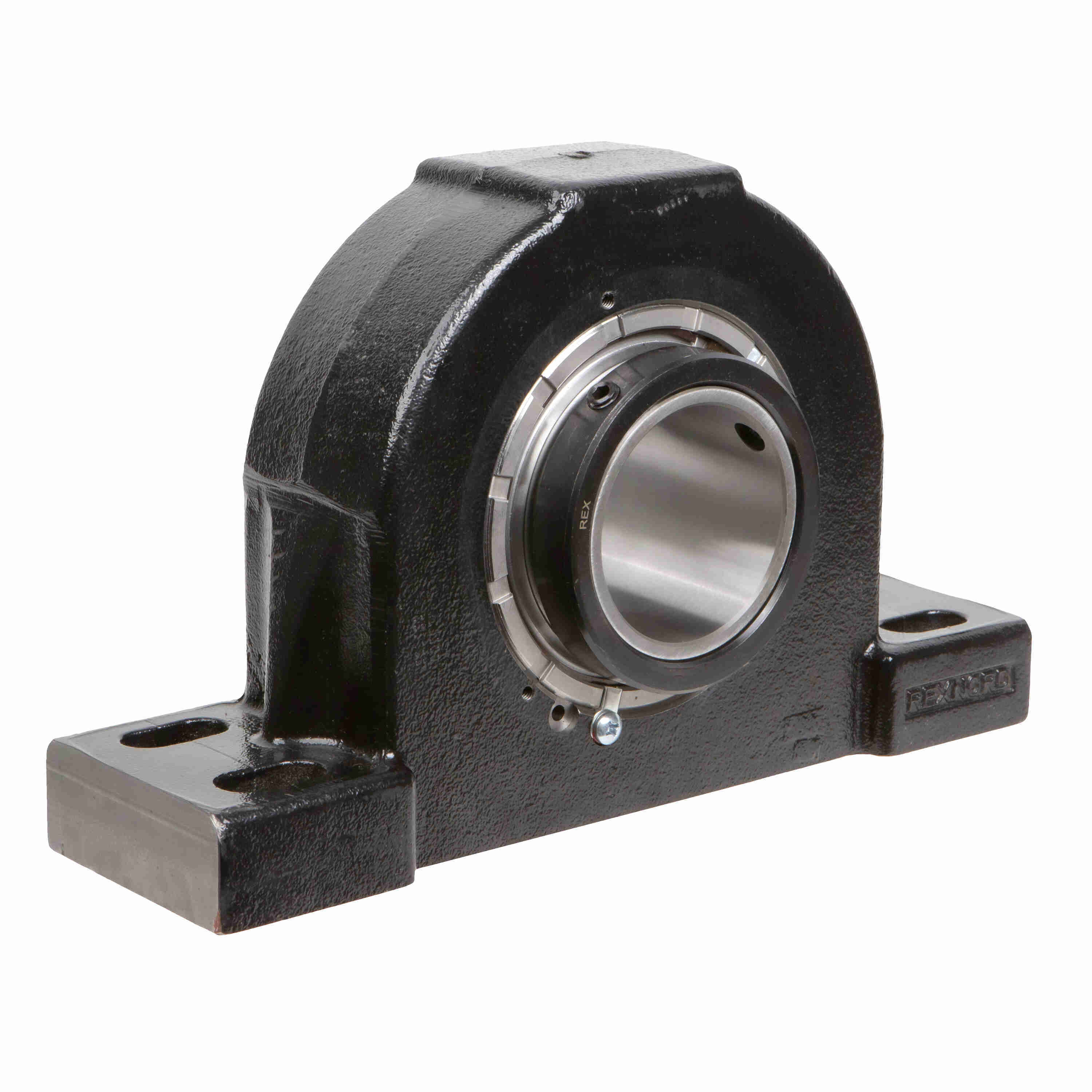

Rexnord ZAFS6407YF0478 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAFS6407YF0478
Part #:10408427
Catalog #:ZAFS6407YF0478
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 6 in | Slot Length (in): | 1.75 in |
| Base Width (in): | 5.13 in | Overall Height (in): | 11.88 in |
| Bolt Size (in): | 7/8 in | Overall Width (in): | 6.25 in |
| Overall Length (in): | 18.38 in | Foot Height (in): | 2.06 in |
| Bore Diameter (in): | 4.4375 in | Locking Collar Outside Diameter (in): | 6.06 in |
| Base Length (in): | 18.38 in | Bolt Spacing Max (in): | 16.5 in |
| Expansion Capability (in): | 0.75 in | Bolt Spacing Min (in): | 14.5 in |
| Inner Ring Outside Diameter (in): | 5.032 in | Bolt Spacing Width (in): | 3.25 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.88 in | Length Through Bore (in): | 6.25 in |
Technical Specifications
| Misalignment Type: | Dynamic | Rolling Element: | Spherical Roller |
| Housing Construction: | Solid | Static Load Rating (lb): | 159,300 lb |
| Housing Type: | Pillow Block, Four Bolt, SAF Style | Housing Material: | Cast Iron |
| Product: | ZAFS6000F | Seal Type: | Clearance Seal |
| Radial Clearance: | C5 INCREASED | Series: | Solid-housed Pillow Blocks |
| Radial Dynamic Load Capacity (lb): | 149,500 lb | Shaft Locking Type: | Adapter Mount |
| Fixed/Expansion: | Expansion | Housing Color: | Black |
| Housing Style: | Pillow Block | Cage Material: | Steel |
| Seal Kit: | ZS12Y | Setscrew Torque (in-lbs): | 290-325 in/lbs |
| Maximum Speed (RPM): | 1850 rpm | Ability to Relubricate: | Yes |
| Microlock Kit: | ML4 | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Grease Fitting Thread Size: | 1/4 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Impact Style Shurlok Install Tool: | 105-90425-71 |
| Vibration Frequency Outer Ring Defect: | 0.1433 cps | Housing Coating: | POWDER COATED |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Insert: | 6407YU78 |
| Vibration Frequency Roller Spin: | 0.0568 cps | Expansion Lock Plug: | 105-95008-13 |
| Size Code: | 12 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.1901 cps | Locking Device Kit: | AK126407Y |
| Primary Seal: | STEEL CLEARANCE SEAL | Shaft Locking Collar Kit/Adapter Assembly: | AK126407Y |
General Specifications
| UPC: | 662864904810 | Weight: | 144.00 LB |
| Country of Origin: | Mexico |
