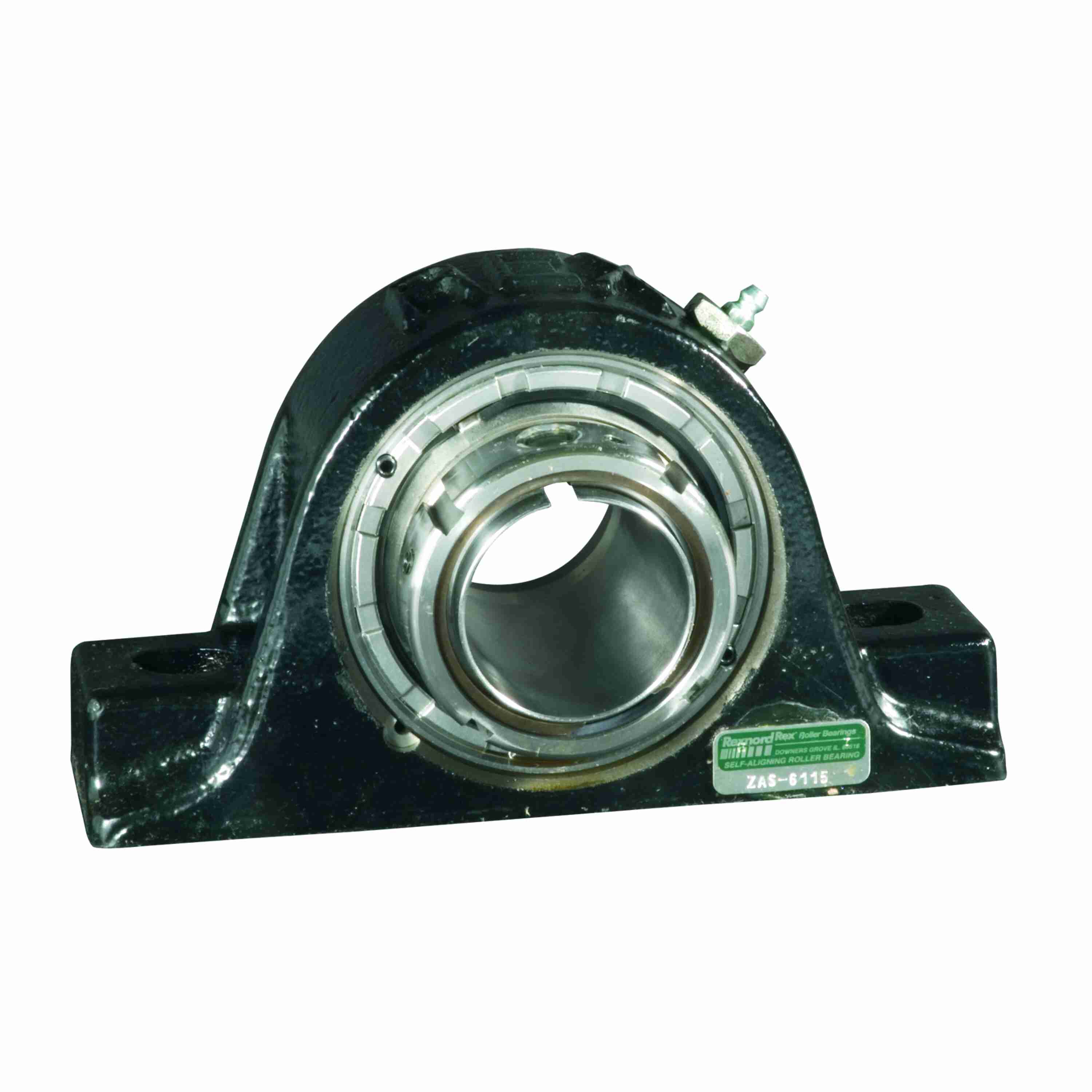

Rexnord ZAS6203F Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZAS6203F
Part #:10411467
Catalog #:ZAS6203F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 5 in | Overall Width (in): | 3.77 in |
| Overall Length (in): | 8.88 in | Bolt Size (in): | 1/2 in |
| Bore Diameter (in): | 2.1875 in | Slot Length (in): | 0.88 in |
| Foot Height (in): | 1.63 in | Base to Center Height (in): | 2.5 in |
| Base Width (in): | 3.25 in | Locking Collar Outside Diameter (in): | 3.24 in |
| Expansion Capability (in): | 0.38 in | Bolt Spacing Width (in): | 1.69 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Housing Cast Face to Outermost Bearing Face (in): | 1.16 in |
| Length Through Bore (in): | 3.77 in | Base Length (in): | 8.88 in |
| Bolt Spacing (in): | 6.75 in |
Technical Specifications
| Misalignment Type: | Dynamic | Fixed/Expansion: | Expansion |
| Radial Dynamic Load Capacity (lb): | 36,370 lb | Housing Construction: | Solid |
| Cage Material: | Engineered Polymer | Product: | ZAS6000F |
| Radial Clearance: | C3 STANDARD | Housing Style: | Pillow Block |
| Series: | Solid-housed Pillow Blocks | Shaft Locking Type: | Adapter Mount |
| Static Load Rating (lb): | 44,400 lb | Seal Type: | Clearance Seal |
| Rolling Element: | Spherical Roller | Housing Color: | Black |
| Housing Type: | Pillow Block, Four Bolt | Housing Material: | Cast Iron |
| Seal Kit: | ZS7 | Maximum Speed (RPM): | 3650 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip Seal | Wrench Style Shurlok Install Tool: | 105-90420-21 |
| Setscrew Torque (in-lbs): | 87-92 in/lbs | Ability to Relubricate: | Yes |
| Locking Device Kit: | AK76203 | Housing Coating: | POWDER COATED |
| Size Code: | 7 | Max Operating Temperature (F): | 225 °F |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (C): | 107 °C |
| Grease Fitting Thread Size: | 1/8 NPT | Shaft Locking Collar Kit/Adapter Assembly: | AK76203 |
| Vibration Frequency Roller Spin: | 0.0606 cps | Vibration Frequency Outer Ring Defect: | 0.1377 cps |
| Expansion Lock Plug: | B224408A | Insert: | ZCS6203 |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Inner Ring Defect: | 0.179 cps |
| Impact Style Shurlok Install Tool: | 105-90425-21 |
General Specifications
| UPC: | 793699902204 | Weight: | 15.30 LB |
| Packaged Length: | 9.56 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 5.50 IN | Country of Origin: | Mexico |
