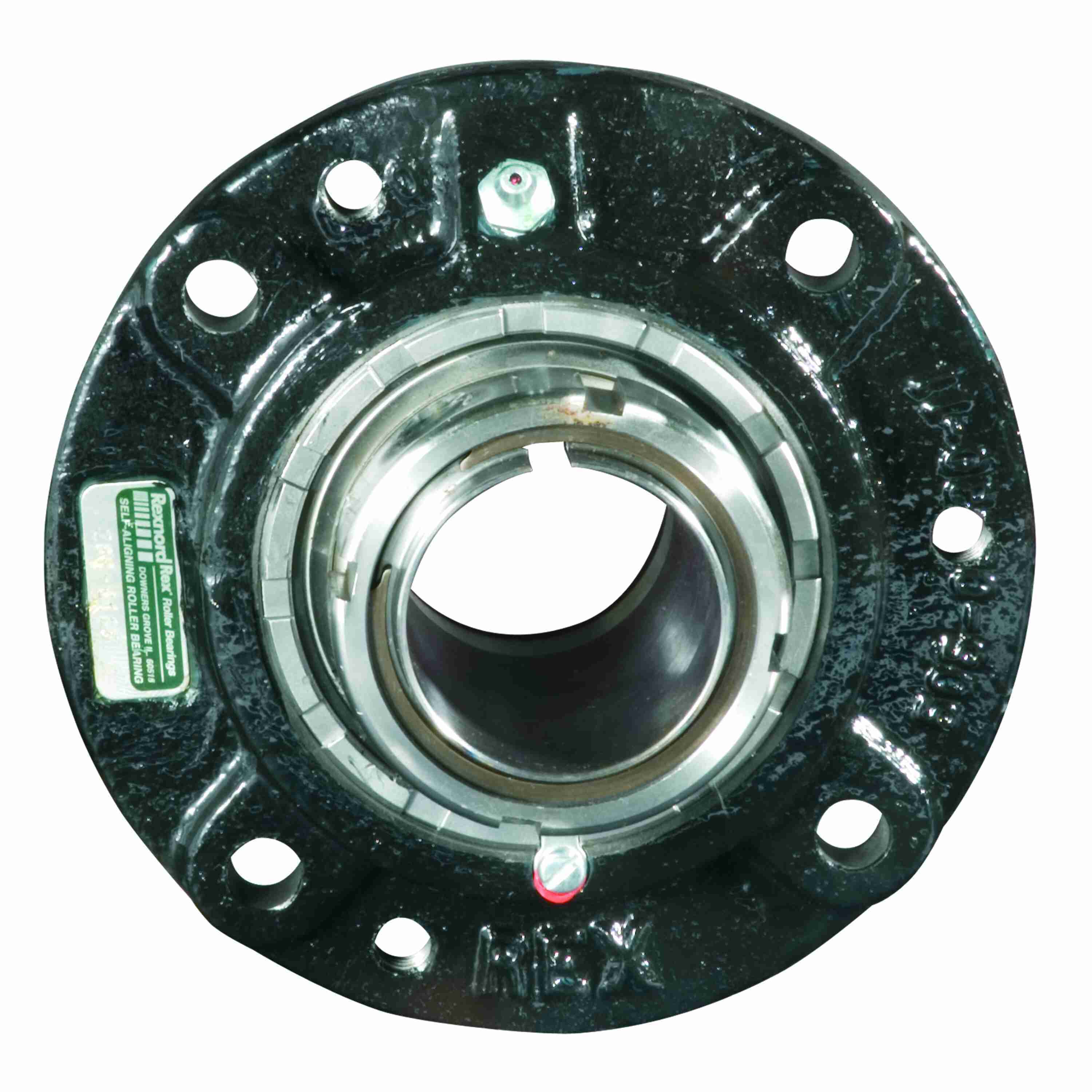

Rexnord ZBR6515 Flanged Cartridge Blocks Rex Spherical Roller Bearings - 10411490
Part #:10411490
Catalog #:10411490
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 9.3 in | Pilot Diameter (in): | 14 in |
| Foot Height (in): | 1 in | Overall Width (in): | 19 in |
| Housing Height (in): | 5.94 in | Bolt Size (in): | 7/8 in |
| Bore Diameter (in): | 5.9375 in | Overall Length (in): | 19 in |
| Housing Outside Diameter (in): | 19 in | Pilot Depth (in): | 1.38 in |
| Mounting Plate to Collar Face (in): | 5.36 in | Locking Collar Outside Diameter (in): | 8.66 in |
| Length Through Bore (in): | 9.3 in | Housing Cast Face to Outermost Bearing Face (in): | 3.44 in |
| Mounting Surface to End of Housing (in): | 4.19 in | Inner Ring Outside Diameter (in): | 7.2 in |
| Bolt Circle (in): | 16.5 in | Bolt Spacing (in): | 8.25 in |
Technical Specifications
| Housing Construction: | Solid | Shaft Locking Type: | Adapter Mount |
| Static Load Rating (lb): | 304,600 lb | Rolling Element: | Spherical Roller |
| Radial Clearance: | C3 STANDARD | Misalignment Type: | Dynamic |
| Seal Type: | Clearance Seal | Series: | Flanged Cartridge Blocks |
| Housing Color: | Black | Housing Style: | Flange Block |
| Housing Type: | Flange, Cartridge | Housing Material: | Cast Iron |
| Cage Material: | Steel | Radial Dynamic Load Capacity (lb): | 248,200 lb |
| Product: | ZBR6000 | Fixed/Expansion: | Fixed |
| Seal Kit: | ZS15NEW | Maximum Speed (RPM): | 900 rpm |
| Microlock Kit: | ML4 | Ability to Relubricate: | Yes |
| Bolt Hole Shape: | Round Hole | Locking Device Kit: | AK156515 |
| Max Operating Temperature (C): | 107 °C | Grease Fitting Thread Size: | 1/4 NPT |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Roller Spin: | 0.0509 cps |
| Vibration Frequency Inner Ring Defect: | 0.1637 cps | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Fundamental Train: | 0.007 cps | Housing Coating: | POWDER COATED |
| Primary Seal: | STEEL CLEARANCE SEAL | Shaft Locking Collar Kit/Adapter Assembly: | AK156515 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Impact Style Shurlok Install Tool: | 105-90426-11 |
| Vibration Frequency Outer Ring Defect: | 0.1196 cps | Size Code: | 15 |
| Insert: | 6515U |
General Specifications
| UPC: | 662864237901 | Weight: | 214.00 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
