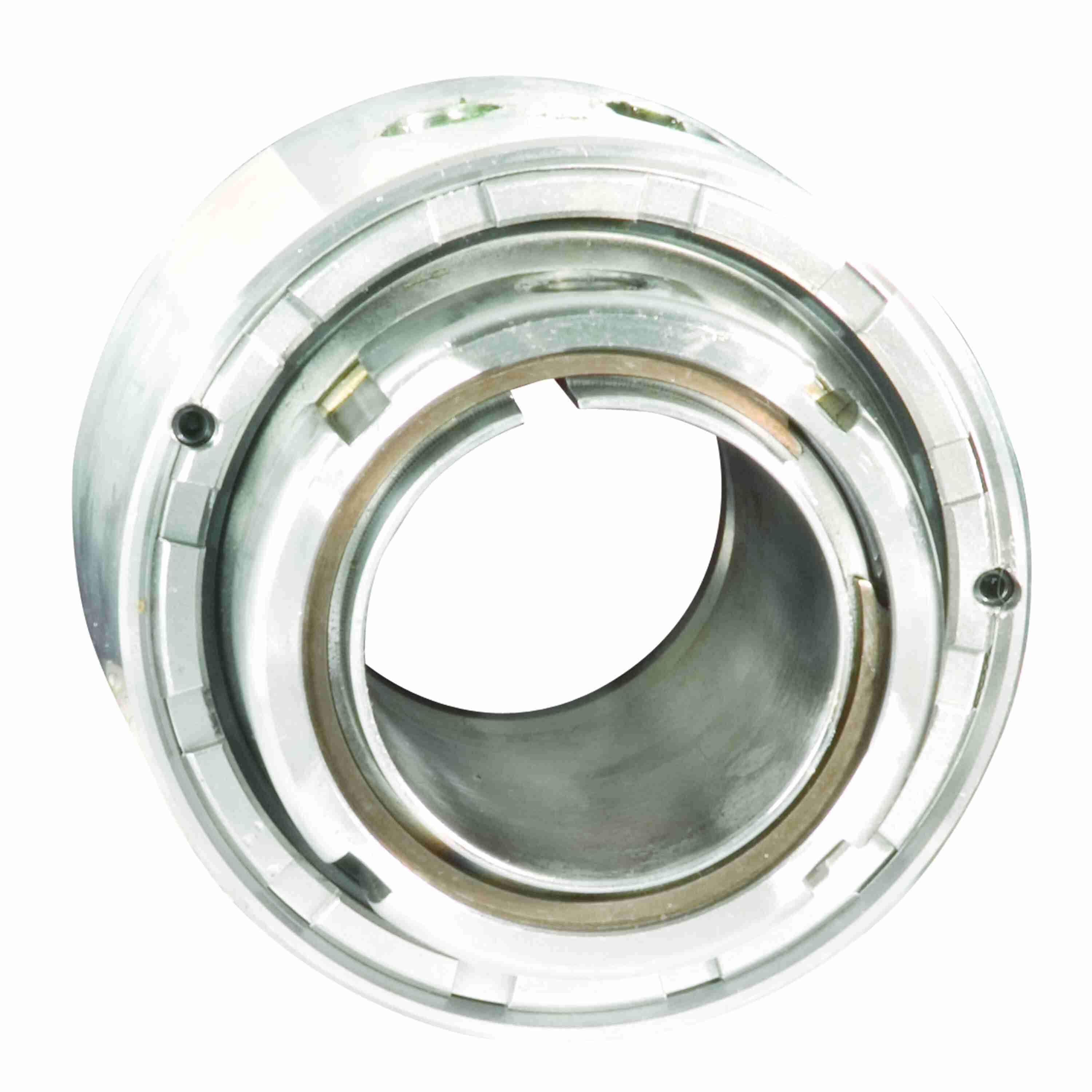

Rexnord ZCS6107 Cartridge Blocks Rex Spherical Roller Bearings - ZCS6107
Part #:10424916
Catalog #:ZCS6107
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 3.33 in | Outside Diameter (in): | 3.124 in |
| Overall Height (in): | 3.12 in | Overall Length (in): | 3.12 in |
| Bore Diameter (in): | 1.4375 in | Housing Width (in): | 2.19 in |
| Locking Collar Outside Diameter (in): | 2.39 in | Centerline to Outermost Bearing Face (in): | 2.23 in |
| Length Through Bore (in): | 3.33 in | Inner Ring Outside Diameter (in): | 1.745 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.14 in |
Technical Specifications
| Seal Type: | Clearance Seal | Product: | ZCS6000 |
| Shaft Locking Type: | Adapter Mount | Fixed/Expansion: | Fixed |
| Misalignment Type: | Dynamic | Housing Style: | Cartridge Block |
| Rolling Element: | Spherical Roller | Static Load Rating (lb): | 20,900 lb |
| Series: | Cartridge Blocks | Radial Clearance: | C3 STANDARD |
| Radial Dynamic Load Capacity (lb): | 19,860 lb | Cage Material: | Engineered Polymer |
| Housing Construction: | Solid | Housing Material: | Steel |
| Seal Kit: | ZS4 | Maximum Speed (RPM): | 5250 rpm |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.1445 cps |
| Locking Device Kit: | AK46107 | Vibration Frequency Outer Ring Defect: | 0.1055 cps |
| Vibration Frequency Roller Spin: | 0.0499 cps | Max Operating Temperature (F): | 225 °F |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Primary Seal: | STEEL CLEARANCE SEAL |
| Impact Style Shurlok Install Tool: | N6107-IMP | Max Operating Temperature (C): | 107 °C |
| Size Code: | 4 | Vibration Frequency Fundamental Train: | 0.007 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Shaft Locking Collar Kit/Adapter Assembly: | AK46107 |
General Specifications
| UPC: | 662864679596 | Weight: | 2.90 LB |
| Country of Origin: | Mexico |
