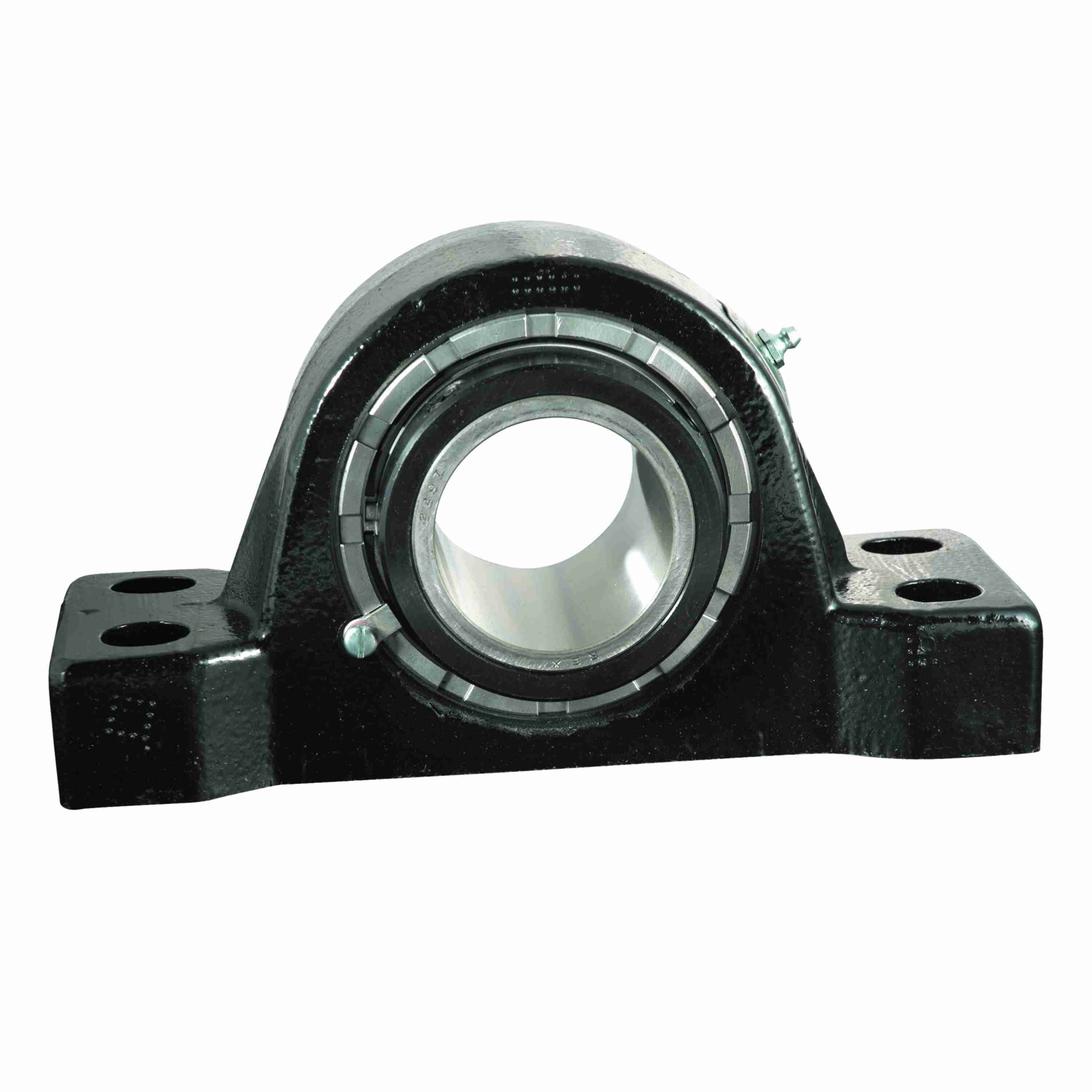

Rexnord ZEP6407YF0543 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZEP6407YF0543
Part #:10420447
Catalog #:ZEP6407YF0543
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 4.63 in | Bolt Size (in): | 3/4 in |
| Bore Diameter (in): | 4.4375 in | Overall Width (in): | 6.25 in |
| Overall Length (in): | 16.5 in | Overall Height (in): | 9.38 in |
| Foot Height (in): | 2.75 in | Base to Center Height (in): | 4.75 in |
| Locking Collar Outside Diameter (in): | 6.06 in | Housing Cast Face to Outermost Bearing Face (in): | 1.88 in |
| Bolt Spacing Min (in): | 12.88 in | Bolt Spacing Max (in): | 14.13 in |
| Base Length (in): | 16.5 in | Bolt Spacing Width (in): | 2.5 in |
| Centerline to Outermost Bearing Face (in): | 4.19 in | Inner Ring Outside Diameter (in): | 5.032 in |
| Length Through Bore (in): | 6.25 in |
Technical Specifications
| Housing Construction: | Solid | Radial Clearance: | C4 INCREASED |
| Cage Material: | Engineered Polymer | Misalignment Type: | Dynamic |
| Product: | ZEP6000F | Rolling Element: | Spherical Roller |
| Shaft Locking Type: | Adapter Mount | Housing Color: | Black |
| Housing Type: | Pillow Block, Four Bolt, Type E | Series: | Solid-housed Pillow Blocks |
| Seal Type: | Clearance Seal | Housing Style: | Pillow Block |
| Fixed/Expansion: | Fixed | Static Load Rating (lb): | 159,300 lb |
| Housing Material: | Cast Iron | Radial Dynamic Load Capacity (lb): | 149,500 lb |
| Setscrew Torque (in-lbs): | 290-325 in/lbs | Maximum Speed (RPM): | 1850 rpm |
| Ability to Relubricate: | Yes | Microlock Kit: | ML4 |
| Seal Kit: | ZS12Y | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Roller Spin: | 0.0568 cps | Vibration Frequency Inner Ring Defect: | 0.1901 cps |
| Insert: | 6407YU | Vibration Frequency Outer Ring Defect: | 0.1433 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | AK126407Y | Grease Fitting Thread Size: | 1/4 NPT |
| Lubricant: | MOBIL MOBILITH SHC460 | Primary Seal: | STEEL CLEARANCE SEAL |
| Locking Device Kit: | AK126407Y | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Impact Style Shurlok Install Tool: | 105-90425-71 | Size Code: | 12 |
| Max Operating Temperature (F): | 225 °F | Housing Coating: | POWDER COATED |
| Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 662864901703 | Weight: | 78.00 LB |
| Country of Origin: | Mexico |
