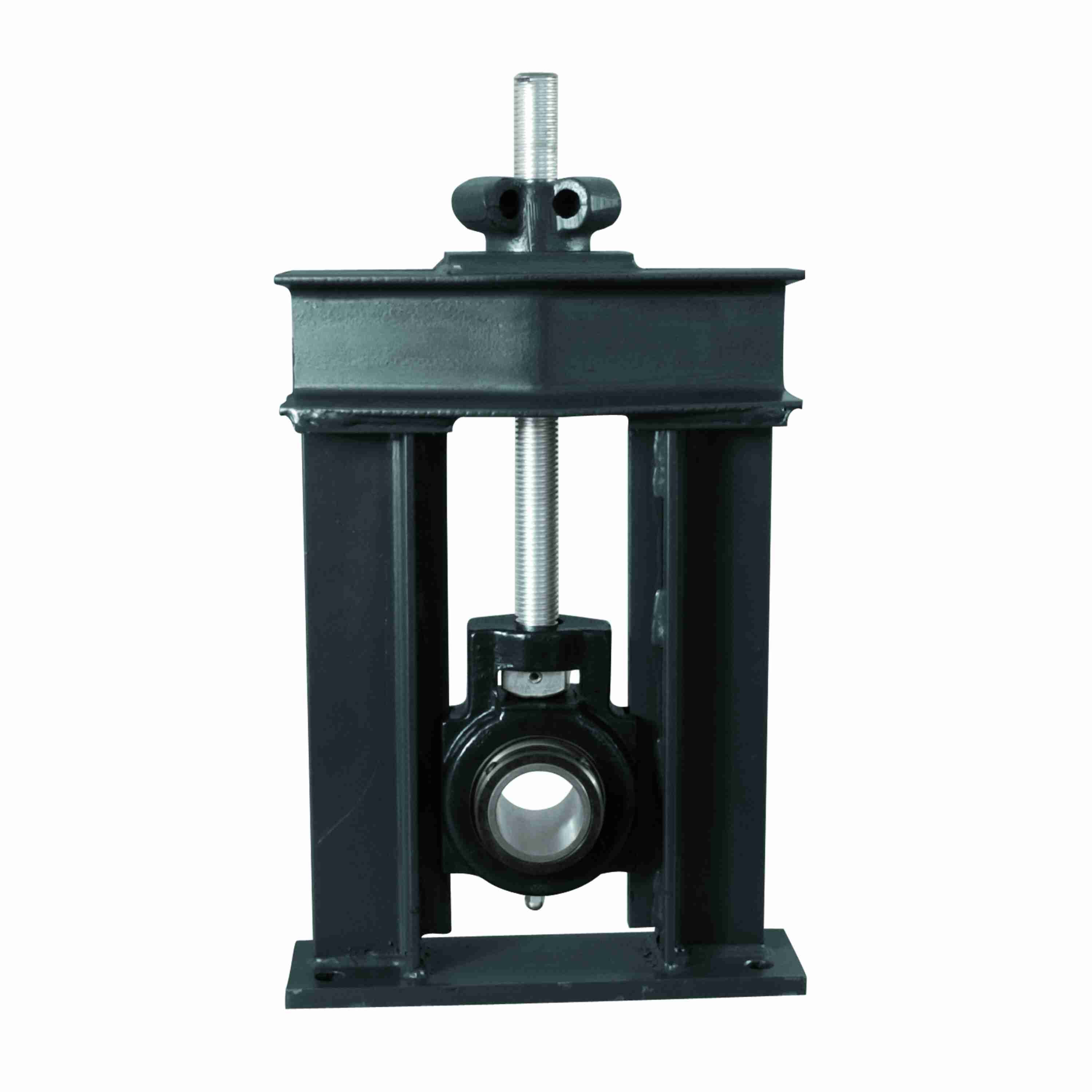

Rexnord ZGT952157 Take-up Assemblies Rex Spherical Roller Bearings - ZGT952157
Part #:10416015
Catalog #:ZGT952157
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 14.5 in | Bolt Size (in): | 5/8 in |
| Overall Width (in): | 5.25 in | Foot Height (in): | 0.75 in |
| Base to Center Height (in): | 4.625 in | Bore Diameter (in): | 2.9375 in |
| Overall Height (in): | 22.51 in | Travel Length (in): | 7 in |
| Frame Height (in): | 20.88 in | Distance from Bearing Centerline to End of Rod (in): | 17.88 in |
| Frame Length (in): | 14.5 in | Overall Rod Length (in): | 15.5 in |
| Frame Width at Top of Frame (in): | 5.25 in | Frame Width (in): | 5 in |
| Bolt Spacing Width (in): | 2.5 in | Bolt Spacing (in): | 12 in |
| Length Through Bore (in): | 4.88 in |
Technical Specifications
| Rolling Element: | Spherical Roller | Housing Construction: | Solid |
| Shaft Locking Type: | Double Set Collar | Cage Material: | Engineered Polymer |
| Housing Color: | Black | Radial Dynamic Load Capacity (lb): | 57,750 lb |
| Static Load Rating (lb): | 71,500 lb | Seal Type: | Clearance Seal |
| Housing Style: | Take-Up Assembly | End Cap: | DTC9 |
| Misalignment Type: | Dynamic | Series: | Take-up Assemblies |
| Frame Material: | Welded Steel | Radial Clearance: | C3 STANDARD |
| Product: | ZGT5000 | Frame Type: | Center Pull Elevator Head Assembly |
| Fixed/Expansion: | Fixed | Housing Material: | Cast Iron |
| Housing Type: | Take-Up Assembly | Setscrew Torque (in-lbs): | 680 in/lbs |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Allowable Working Load [2/3 Yield Strength] (lb): | 26,800 lb |
| Maximum Speed (RPM): | 2800 rpm | Microlock Kit: | ML3 |
| Adjusting Screw Thread Size: | 1 1/2-6 NC | Seal Kit: | ZS9 |
| Ability to Relubricate: | Yes | Frame: | ZGT97 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Locking Device Kit: | SC9 QTY 2 | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | STEEL CLEARANCE SEAL | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Replacement Take-up Block: | ZT95215 | Size Code: | 9 |
| Housing Coating: | POWDER COATED | Vibration Frequency Roller Spin: | 0.0591 cps |
| Insert: | 5215U |
General Specifications
| UPC: | 698210715472 | Weight: | 100.00 LB |
| Country of Origin: | Mexico |
