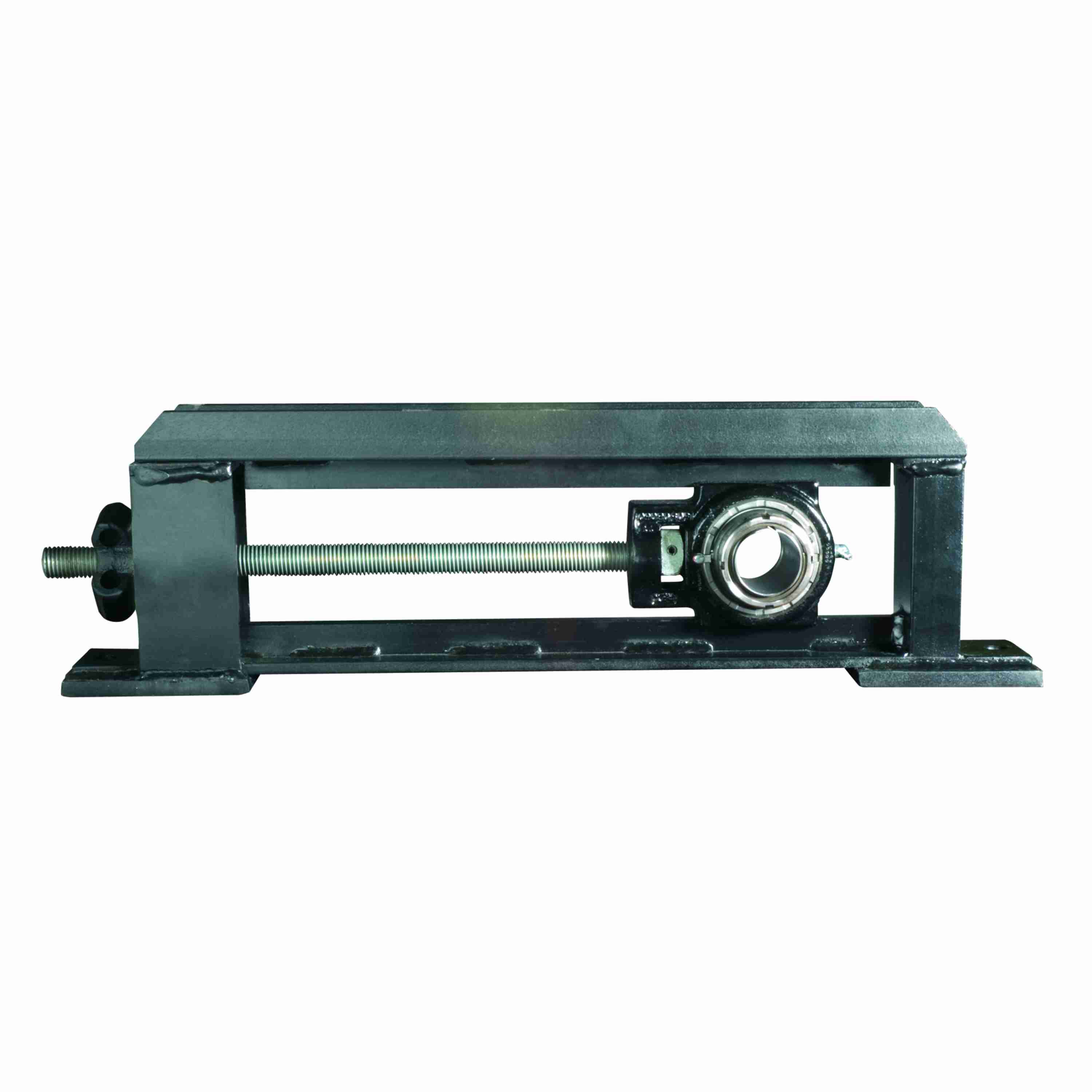

Rexnord ZHT8620618 Take-up Assemblies Rex Spherical Roller Bearings - ZHT8620618
Part #:10429490
Catalog #:ZHT8620618
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 36.5 in | Overall Width (in): | 4.16 in |
| Base to Center Height (in): | 4.375 in | Foot Height (in): | 0.75 in |
| Bore Diameter (in): | 2.4375 in | Overall Height (in): | 9.19 in |
| Bolt Size (in): | 3/4 in | Frame Height (in): | 9.19 in |
| Travel Length (in): | 18 in | Overall Rod Length (in): | 26 in |
| Frame Width (in): | 4 in | Frame Length (in): | 36.5 in |
| Frame Bolt Hole Center to Bearing Centerline (in): | 7.5 in | Bolt Spacing (in): | 34.5 in |
| Length Through Bore (in): | 4.16 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Cage Material: | Engineered Polymer |
| Shaft Locking Type: | Adapter Mount | Product: | ZHT6000 |
| Frame Type: | Center Pull Type Heavy Duty | Seal Type: | Clearance Seal |
| Housing Type: | Take-Up Assembly | End Cap: | DTC8138 |
| Housing Style: | Take-Up Assembly | Housing Color: | Black |
| Radial Dynamic Load Capacity (lb): | 43,240 lb | Frame Material: | Welded Steel |
| Static Load Rating (lb): | 53,500 lb | Series: | Take-up Assemblies |
| Fixed/Expansion: | Fixed | Housing Material: | Cast Iron |
| Housing Construction: | Solid | Misalignment Type: | Dynamic |
| Rolling Element: | Spherical Roller | Maximum Speed (RPM): | 3300 rpm |
| Seal Kit: | ZS8 | Ability to Relubricate: | Yes |
| Microlock Kit: | ML3 | Frame: | ZHT818 |
| Adjusting Screw Thread Size: | 1 1/4-7 NC | Allowable Working Load [2/3 Yield Strength] (lb): | 16,300 lb |
| Insert: | 6206U | Replacement Take-up Block: | ZT86206 |
| Impact Style Shurlok Install Tool: | 105-90425-31 | Housing Coating: | POWDER COATED |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Locking Device Kit: | AK86206 | Vibration Frequency Roller Spin: | 0.0607 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Max Operating Temperature (C): | 107 °C |
| Primary Seal: | STEEL CLEARANCE SEAL | Size Code: | 8 |
| Max Operating Temperature (F): | 225 °F | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Shaft Locking Collar Kit/Adapter Assembly: | AK86206 |
General Specifications
| UPC: | 662864207706 | Weight: | 86.00 LB |
| HTC: | 84833080 |
