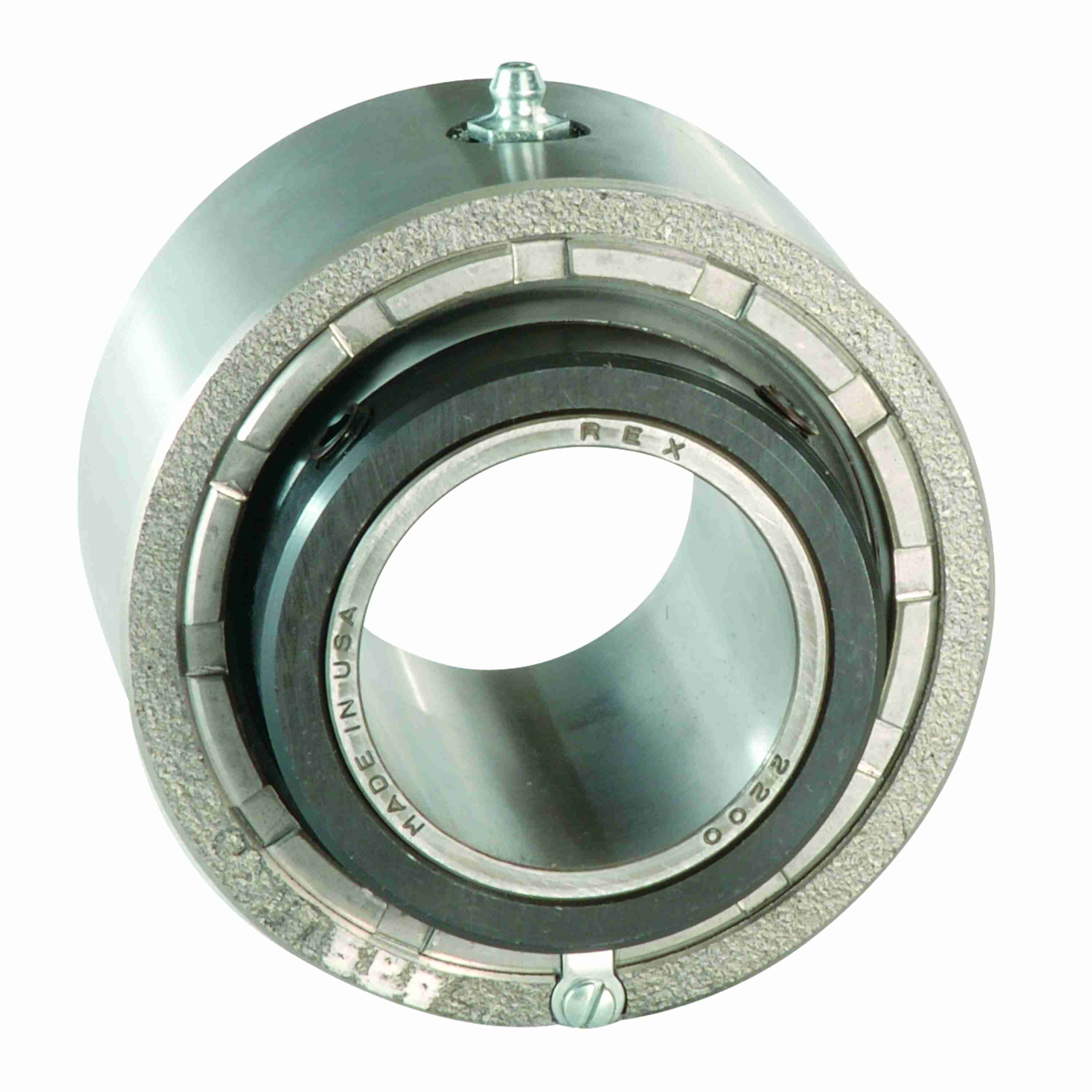

Link-Belt ZMC2111 Cartridge Blocks Rex Spherical Roller Bearings - ZMC2111
Part #:10408522
Catalog #:ZMC2111
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (in): | 3.937 in | Overall Width (in): | 3.13 in |
| Overall Height (in): | 3.94 in | Housing Width (in): | 2.44 in |
| Overall Length (in): | 3.94 in | Slot Width (in): | 0.53 in |
| Slot Length (in): | 0.91 in | Bore Diameter (in): | 1.6875 in |
| Slot Depth (in): | 0.19 in | Locking Collar Outside Diameter (in): | 2.59 in |
| Inner Ring Outside Diameter (in): | 2.027 in | Centerline to Outermost Bearing Face (in): | 1.91 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.69 in | Length Through Bore (in): | 3.13 in |
Technical Specifications
| Series: | Cartridge Blocks | Radial Clearance: | C3 STANDARD |
| Rolling Element: | Spherical Roller | Radial Dynamic Load Capacity (lb): | 27,820 lb |
| Housing Style: | Cartridge Block | End Cap: | DTC5 |
| Cage Material: | Engineered Polymer | Static Load Rating (lb): | 28,700 lb |
| Product: | ZMC2000 | Seal Type: | Clearance Seal |
| Housing Material: | Cast Iron | Housing Construction: | Solid |
| Shaft Locking Type: | Single Set Collar | Fixed/Expansion: | Fixed |
| Misalignment Type: | Dynamic | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 325 in/lbs | Microlock Kit: | ML2 |
| Seal Kit: | ZS5 | Maximum Speed (RPM): | 4450 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Insert: | 2111U |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Roller Spin: | 0.0466 cps |
| Locking Device Kit: | SC5 | Max Operating Temperature (F): | 225 °F |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.0069 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Vibration Frequency Outer Ring Defect: | 0.0972 cps | Size Code: | 5 |
| Vibration Frequency Inner Ring Defect: | 0.1361 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 698210179007 | Weight: | 5.60 LB |
| Packaged Length: | 5.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 4.00 IN | Country of Origin: | Mexico |
