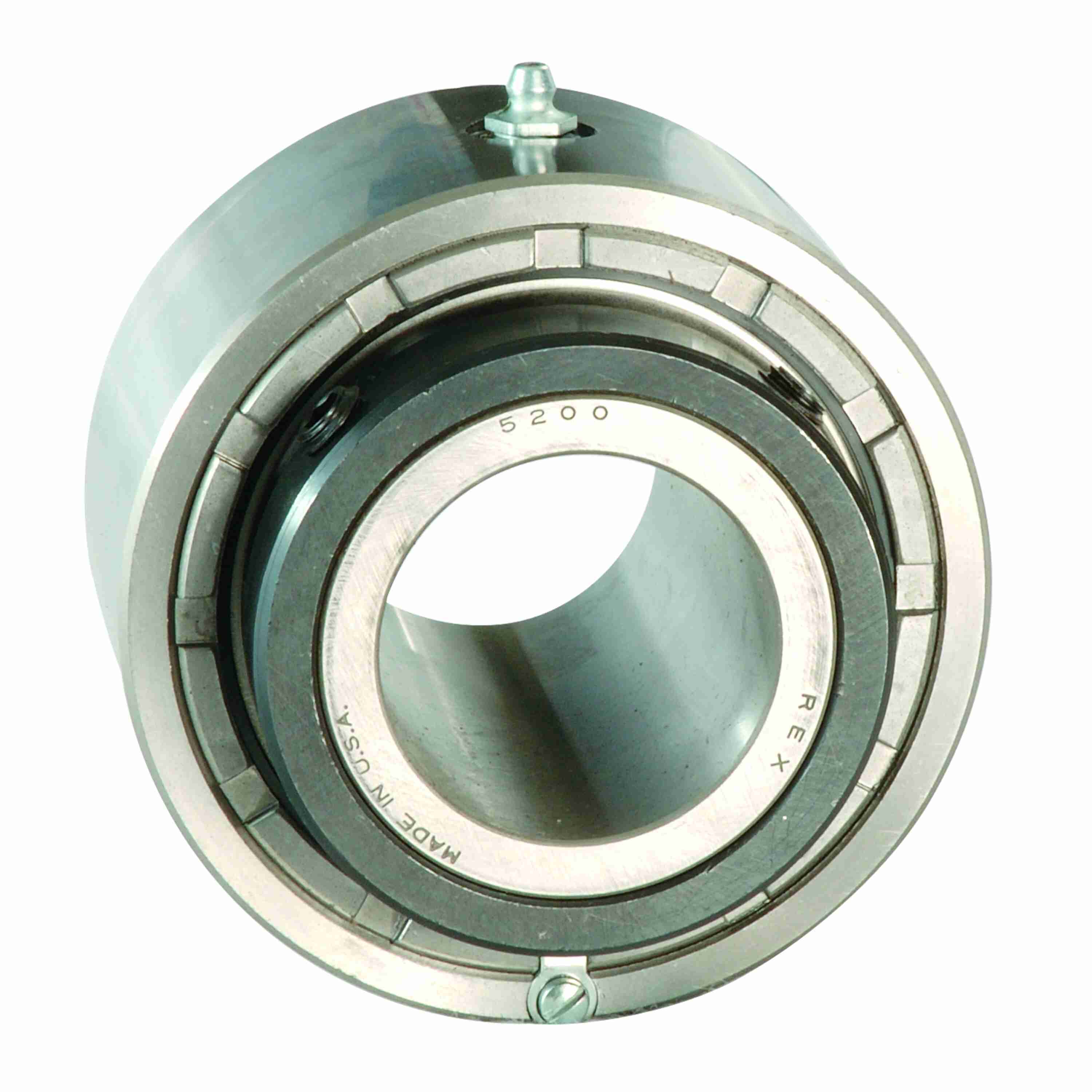

Rexnord ZMC5215 Cartridge Blocks Rex Spherical Roller Bearings - ZMC5215
Part #:10419133
Catalog #:ZMC5215
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (in): | 5.875 in | Overall Height (in): | 5.88 in |
| Overall Length (in): | 5.88 in | Slot Width (in): | 0.59 in |
| Slot Length (in): | 1.03 in | Bore Diameter (in): | 2.9375 in |
| Overall Width (in): | 4.88 in | Housing Width (in): | 3.13 in |
| Locking Collar Outside Diameter (in): | 4.06 in | Slot Depth (in): | 0.25 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Centerline to Outermost Bearing Face (in): | 2.44 in |
| Length Through Bore (in): | 4.88 in | Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | Cage Material: | Engineered Polymer |
| Static Load Rating (lb): | 71,500 lb | Fixed/Expansion: | Fixed |
| Housing Style: | Cartridge Block | Housing Construction: | Solid |
| Rolling Element: | Spherical Roller | Series: | Cartridge Blocks |
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Shaft Locking Type: | Double Set Collar |
| End Cap: | DTC9 | Product: | ZMC5000 |
| Seal Type: | Clearance Seal | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Seal Kit: | ZS9 | Ability to Relubricate: | Yes |
| Maximum Speed (RPM): | 2800 rpm | Insert: | 5215U |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Max Operating Temperature (C): | 107 °C | Size Code: | 9 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Locking Device Kit: | SC9 QTY 2 | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Max Operating Temperature (F): | 225 °F | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Roller Spin: | 0.0591 cps | Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 698210671389 | Weight: | 15.70 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 6.00 IN |
| Packaged Height: | 6.38 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
