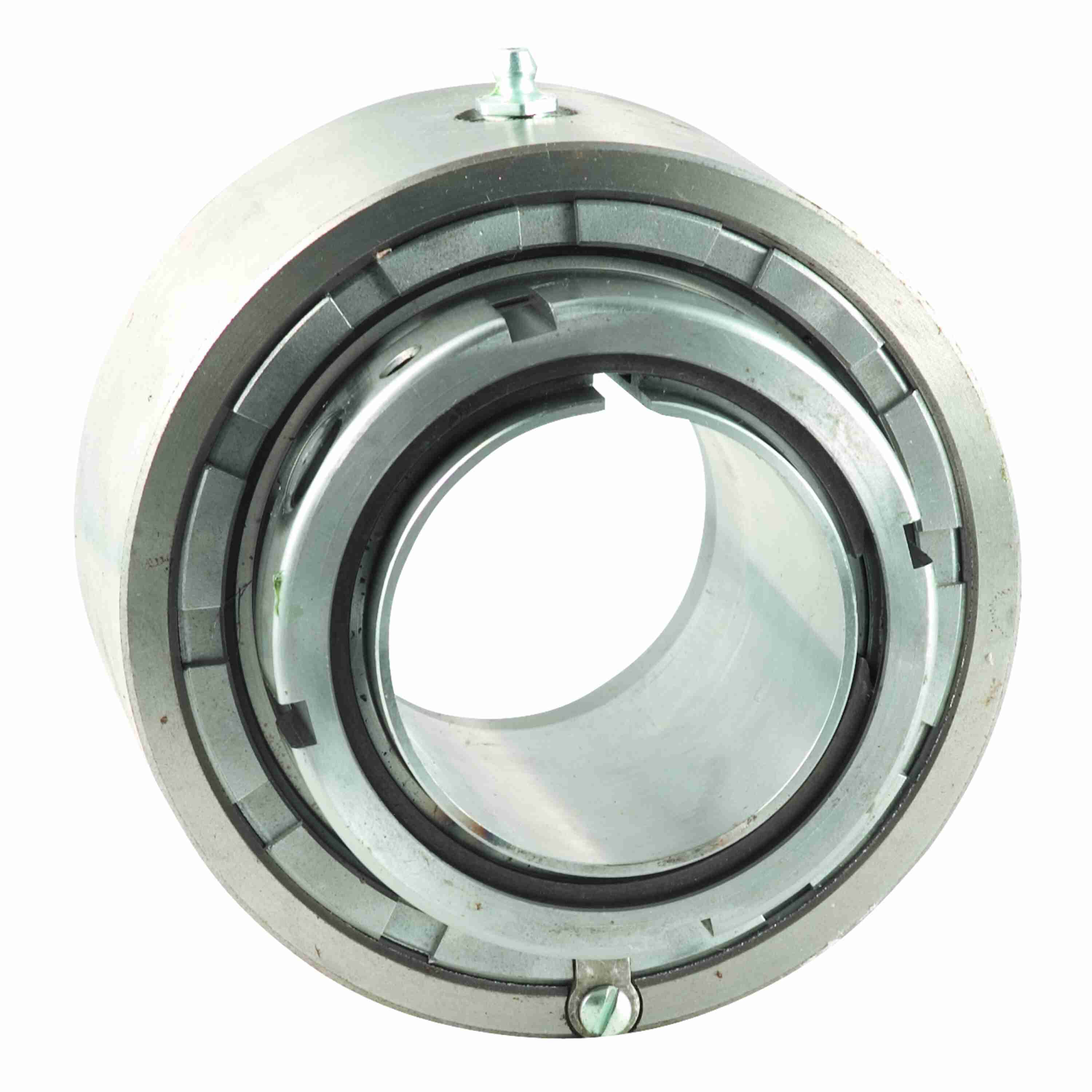

Rexnord ZMC6203 Cartridge Blocks Rex Spherical Roller Bearings - ZMC6203
Part #:10441930
Catalog #:ZMC6203
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 4.53 in | Slot Width (in): | 0.53 in |
| Housing Width (in): | 2.56 in | Overall Length (in): | 4.53 in |
| Outside Diameter (in): | 4.531 in | Bore Diameter (in): | 2.1875 in |
| Overall Width (in): | 3.69 in | Slot Length (in): | 0.91 in |
| Locking Collar Outside Diameter (in): | 3.23 in | Slot Depth (in): | 0.19 in |
| Centerline to Outermost Bearing Face (in): | 2.44 in | Housing Cast Face to Outermost Bearing Face (in): | 1.16 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Length Through Bore (in): | 3.69 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Static Load Rating (lb): | 44,400 lb |
| Housing Construction: | Solid | Housing Style: | Cartridge Block |
| Cage Material: | Engineered Polymer | Misalignment Type: | Dynamic |
| Product: | ZMC6000 | Series: | Cartridge Blocks |
| End Cap: | NEED EXT EC | Fixed/Expansion: | Fixed |
| Shaft Locking Type: | Adapter Mount | Housing Material: | Cast Iron |
| Seal Type: | Clearance Seal | Radial Dynamic Load Capacity (lb): | 36,370 lb |
| Rolling Element: | Spherical Roller | Ability to Relubricate: | Yes |
| Seal Kit: | ZS7 | Maximum Speed (RPM): | 3650 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Microlock Kit: | ML2 |
| Setscrew Torque (in-lbs): | 87-92 in/lbs | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Vibration Frequency Inner Ring Defect: | 0.179 cps | Locking Device Kit: | AK76203 |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Roller Spin: | 0.0606 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | AK76203 | Insert: | 6203U |
| Impact Style Shurlok Install Tool: | 105-90425-21 | Max Operating Temperature (C): | 107 °C |
| Grease Fitting Thread Size: | 1/8 NPT | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 7 | Vibration Frequency Outer Ring Defect: | 0.1377 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 793699929553 | Weight: | 7.50 LB |
| Packaged Length: | 5.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 4.00 IN | HTC: | 84833080 |
