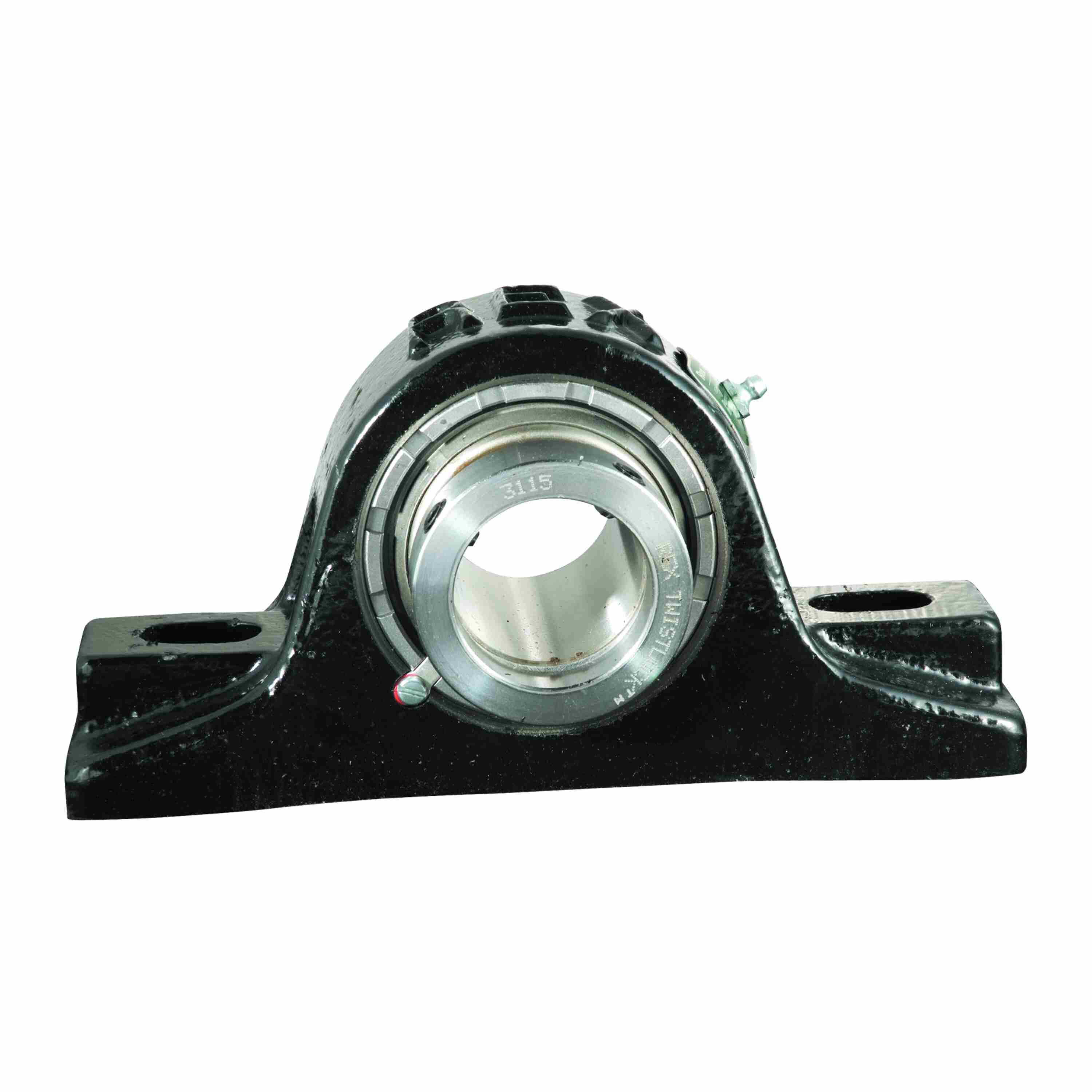

Rexnord ZP3207 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZP3207
Part #:10429511
Catalog #:ZP3207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 5.75 in | Bore Diameter (in): | 2.4375 in |
| Base Width (in): | 2.69 in | Base to Center Height (in): | 3 in |
| Bolt Size (in): | 3/4 in | Overall Length (in): | 11.25 in |
| Foot Height (in): | 1.75 in | Overall Width (in): | 3.65 in |
| Locking Collar Outside Diameter (in): | 3.55 in | Base Length (in): | 11.25 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.02 in | Length Through Bore (in): | 3.66 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Bolt Spacing (in): | 8.25 in |
Technical Specifications
| Seal Type: | Clearance Seal | Housing Material: | Cast Iron |
| End Cap: | DTC812 | Housing Construction: | Solid |
| Cage Material: | Engineered Polymer | Series: | Solid-housed Pillow Blocks |
| Radial Clearance: | C3 STANDARD | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Rolling Element: | Spherical Roller | Product: | ZP3000 |
| Housing Style: | Pillow Block | Fixed/Expansion: | Fixed |
| Housing Color: | Black | Static Load Rating (lb): | 53,500 lb |
| Misalignment Type: | Dynamic | Shaft Locking Type: | Eccentric Collar |
| Housing Type: | Pillow Block, Two Bolt | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Seal Kit: | ZS8 | Maximum Speed (RPM): | 3300 rpm |
| Setscrew Torque (in-lbs): | 460 in/lbs | Ability to Relubricate: | Yes |
| Microlock Kit: | ML3 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Locking Device Kit: | SC3207 |
| Max Operating Temperature (C): | 107 °C | Size Code: | 8 |
| Vibration Frequency Inner Ring Defect: | 0.1791 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Insert: | 3207U | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Housing Coating: | POWDER COATED |
| Vibration Frequency Roller Spin: | 0.0607 cps |
General Specifications
| UPC: | 698210917401 | Weight: | 23.40 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 11.25 IN | HTC: | 8483208080 |
