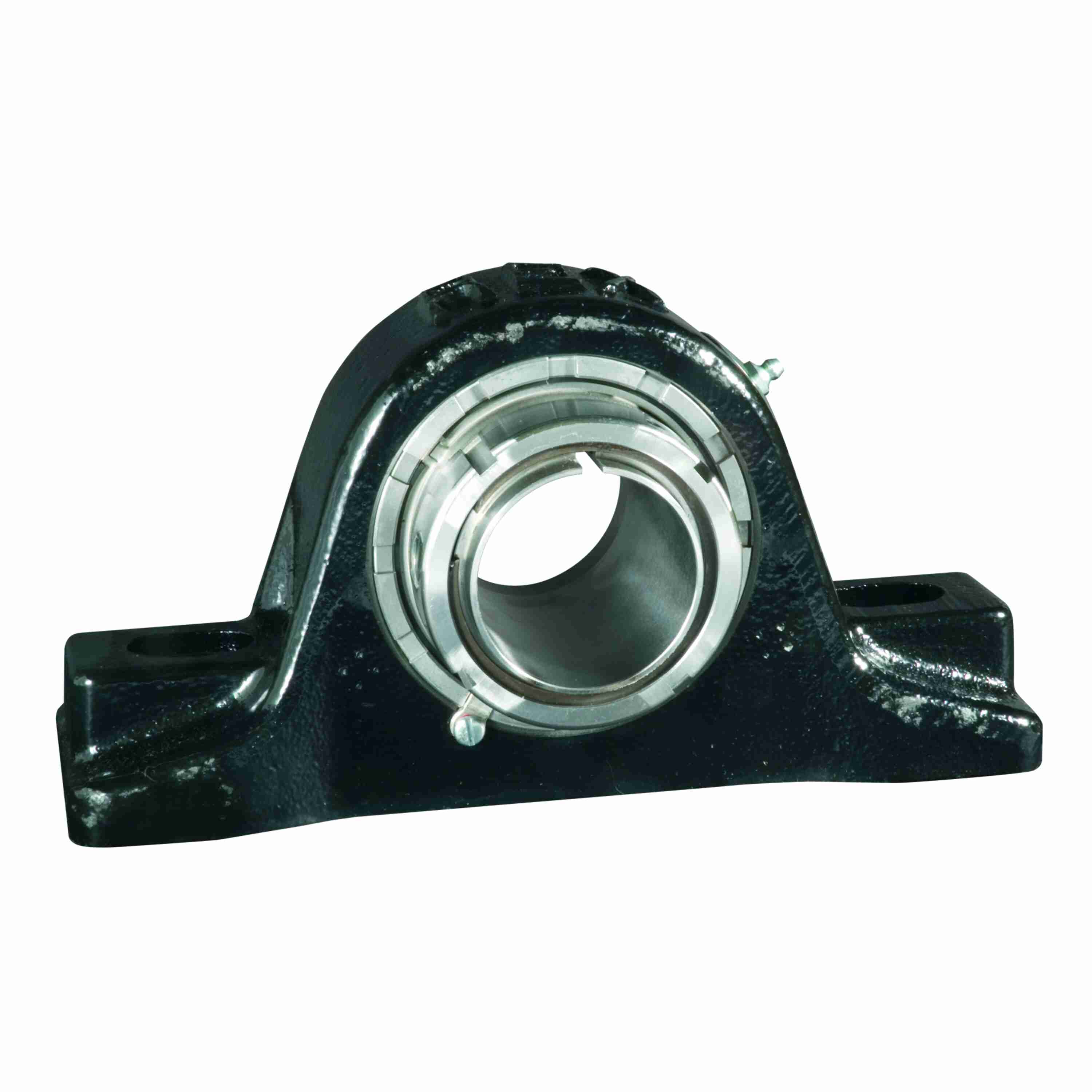

Rexnord ZP6207 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - ZP6207
Part #:10429519
Catalog #:ZP6207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 5.75 in | Base to Center Height (in): | 3 in |
| Base Width (in): | 3.38 in | Bore Diameter (in): | 2.4375 in |
| Overall Length (in): | 11.25 in | Overall Width (in): | 4.06 in |
| Bolt Size (in): | 3/4 in | Foot Height (in): | 1.75 in |
| Locking Collar Outside Diameter (in): | 3.59 in | Length Through Bore (in): | 4.06 in |
| Bolt Spacing (in): | 8.25 in | Housing Cast Face to Outermost Bearing Face (in): | 1.42 in |
| Base Length (in): | 11.25 in | Inner Ring Outside Diameter (in): | 2.901 in |
Technical Specifications
| Housing Construction: | Solid | Seal Type: | Clearance Seal |
| Shaft Locking Type: | Adapter Mount | Rolling Element: | Spherical Roller |
| Housing Style: | Pillow Block | Radial Clearance: | C3 STANDARD |
| Cage Material: | Engineered Polymer | Static Load Rating (lb): | 53,500 lb |
| Fixed/Expansion: | Fixed | Housing Type: | Pillow Block, Two Bolt |
| Radial Dynamic Load Capacity (lb): | 43,240 lb | End Cap: | DTC8138 |
| Housing Material: | Cast Iron | Misalignment Type: | Dynamic |
| Housing Color: | Black | Series: | Solid-housed Pillow Blocks |
| Product: | ZP6000 | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Seal Kit: | ZS8 | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Maximum Speed (RPM): | 3300 rpm | Ability to Relubricate: | Yes |
| Microlock Kit: | ML3 | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Insert: | 6207U | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (C): | 107 °C |
| Impact Style Shurlok Install Tool: | 105-90425-31 | Size Code: | 8 |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | AK86207 |
| Housing Coating: | POWDER COATED | Vibration Frequency Roller Spin: | 0.0607 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | AK86207 |
General Specifications
| UPC: | 793699904949 | Weight: | 21.20 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 11.25 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
