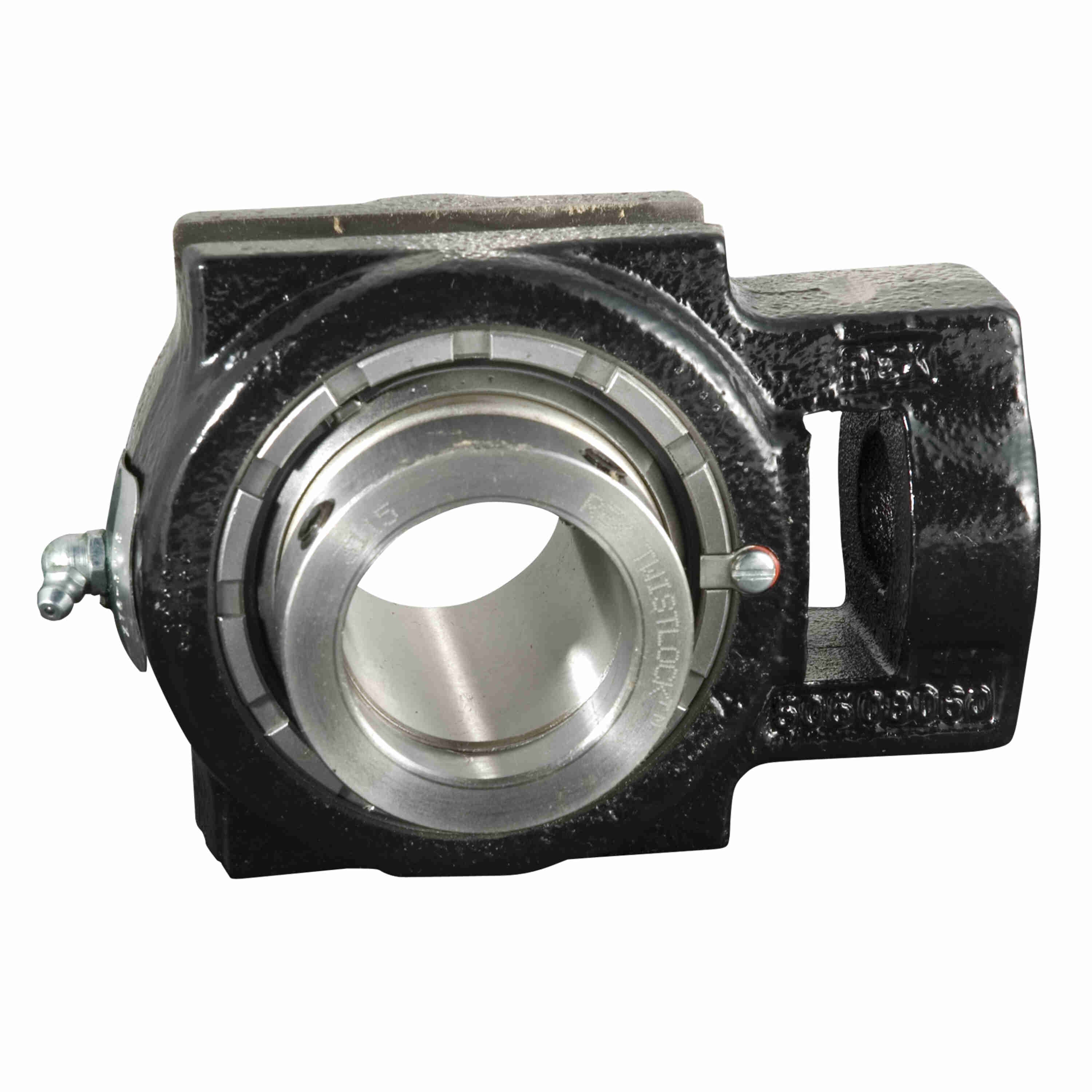

Rexnord ZT83207 Take-up Blocks Rex Spherical Roller Bearings - ZT83207
Part #:10411589
Catalog #:ZT83207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Width (in): | 1.06 in | Overall Height (in): | 5.88 in |
| Base to Center Height (in): | 5.063 in | Slot Length (in): | 4 in |
| Housing Width (in): | 2.63 in | Overall Width (in): | 3.65 in |
| Bore Diameter (in): | 2.4375 in | Overall Length (in): | 7.81 in |
| Locking Collar Outside Diameter (in): | 3.55 in | Slot Spacing (in): | 5.13 in |
| Adjusting Screw Clearance Hole Diameter (in): | 1.38 in | Adjusting Screw Square Nut Seat Height (in): | 2.25 in |
| Adjustment Slot Width (in): | 1.25 in | Adjustment Pad Height (in): | 4.25 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.02 in | Centerline to Outermost Bearing Face (in): | 2.34 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Housing Outside Diameter to Cast Square Nut Slot Face (in): | 5.5 in |
| Length Through Bore (in): | 3.65 in |
Technical Specifications
| Seal Type: | Clearance Seal | Cage Material: | Engineered Polymer |
| Housing Construction: | Solid | Series: | Take-up Blocks |
| Housing Color: | Black | Housing Material: | Cast Iron |
| Shaft Locking Type: | Eccentric Collar | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Housing Type: | Take Up, Wide Slot | Product: | ZT3000 |
| Housing Style: | Take-Up Block | Misalignment Type: | Dynamic |
| Fixed/Expansion: | Fixed | End Cap: | DTC812 |
| Rolling Element: | Spherical Roller | Radial Clearance: | C3 STANDARD |
| Static Load Rating (lb): | 53,500 lb | Microlock Kit: | ML3 |
| Setscrew Torque (in-lbs): | 460 in/lbs | Maximum Speed (RPM): | 3300 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Seal Kit: | ZS8 |
| Ability to Relubricate: | Yes | Allowable Working Load [2/3 Yield Strength] (lb): | 20,900 lb |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Primary Seal: | STEEL CLEARANCE SEAL |
| Vibration Frequency Inner Ring Defect: | 0.1791 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Size Code: | 8 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | SC3207 |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 225 °F |
| Insert: | 3207U | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Vibration Frequency Roller Spin: | 0.0607 cps |
General Specifications
| UPC: | 698210906627 | Weight: | 18.20 LB |
| Packaged Length: | 9.56 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 5.50 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
