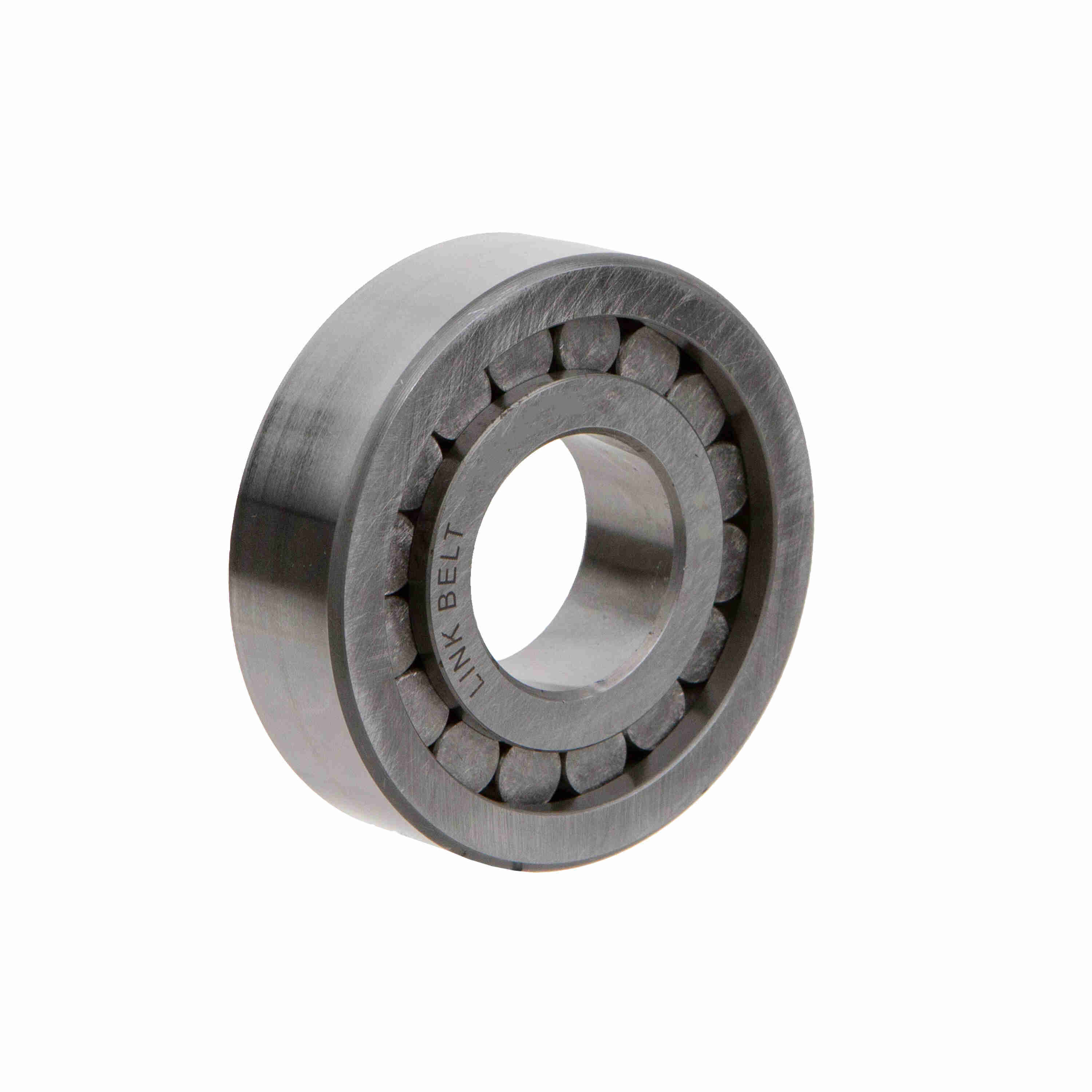

Link-Belt M1306UMW623 Outer Ring & Roller Assemblies Cylindrical Roller Bearings - M1306UMW623
Part #:10472382
Catalog #:M1306UMW623
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 72 mm |
Technical Specifications
| Outer Ring Raceway Inside Diameter (mm): | 60.41 mm | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 64 mm |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Mounted Clearance: | SEE DESCRIPTION | Series Weight: | Medium (3) |
| Outer Ring Rib Inside Diameter (mm): | 56.87 mm | Vibration Frequency Roller Spin: | CALL ENG cps |
| C Dynamic Load Rating: | CALL ENG lb | Maximum Speed (RPM): | CALL ENG rpm |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 40.71 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Rolling Element: | Cylindrical | Ring Width Series: | Narrow (1) |
| Bearing Width (mm): | 19 mm | Product: | Series 1300 Outer Ring & Roller Assemblies |
| Outer Ring Type: | Single Rib Outer Ring One Retaining Ring in I.D. (U) | Basic Bearing Number: | 1306 |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 60.2 mm | Retainer Type: | SEE DESCRIPTION |
| Co Static Load Rating: | CALL ENG lb | Series: | Outer Ring & Roller Assemblies |
General Specifications
| UPC: | 793699567588 | Weight: | 2.05 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
