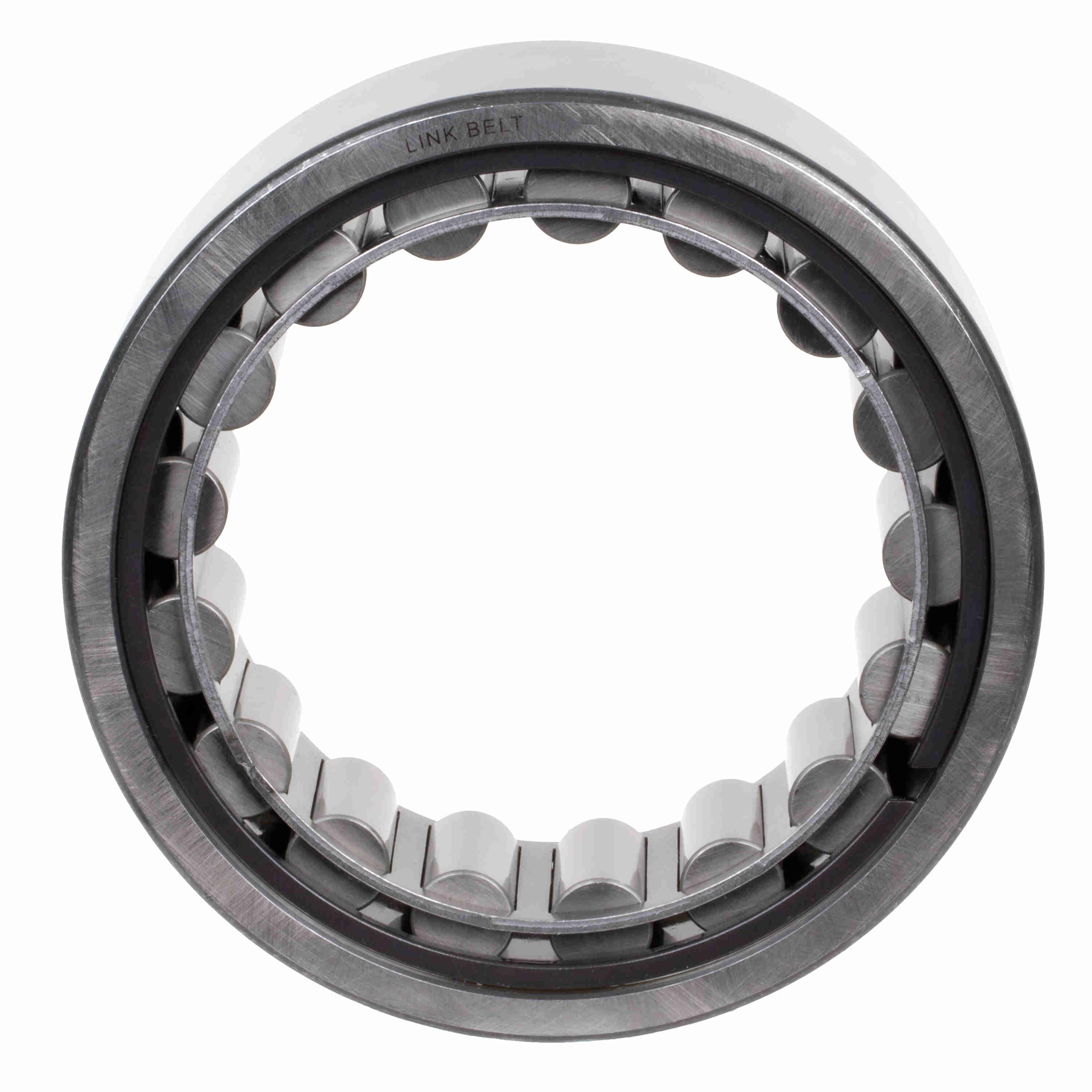

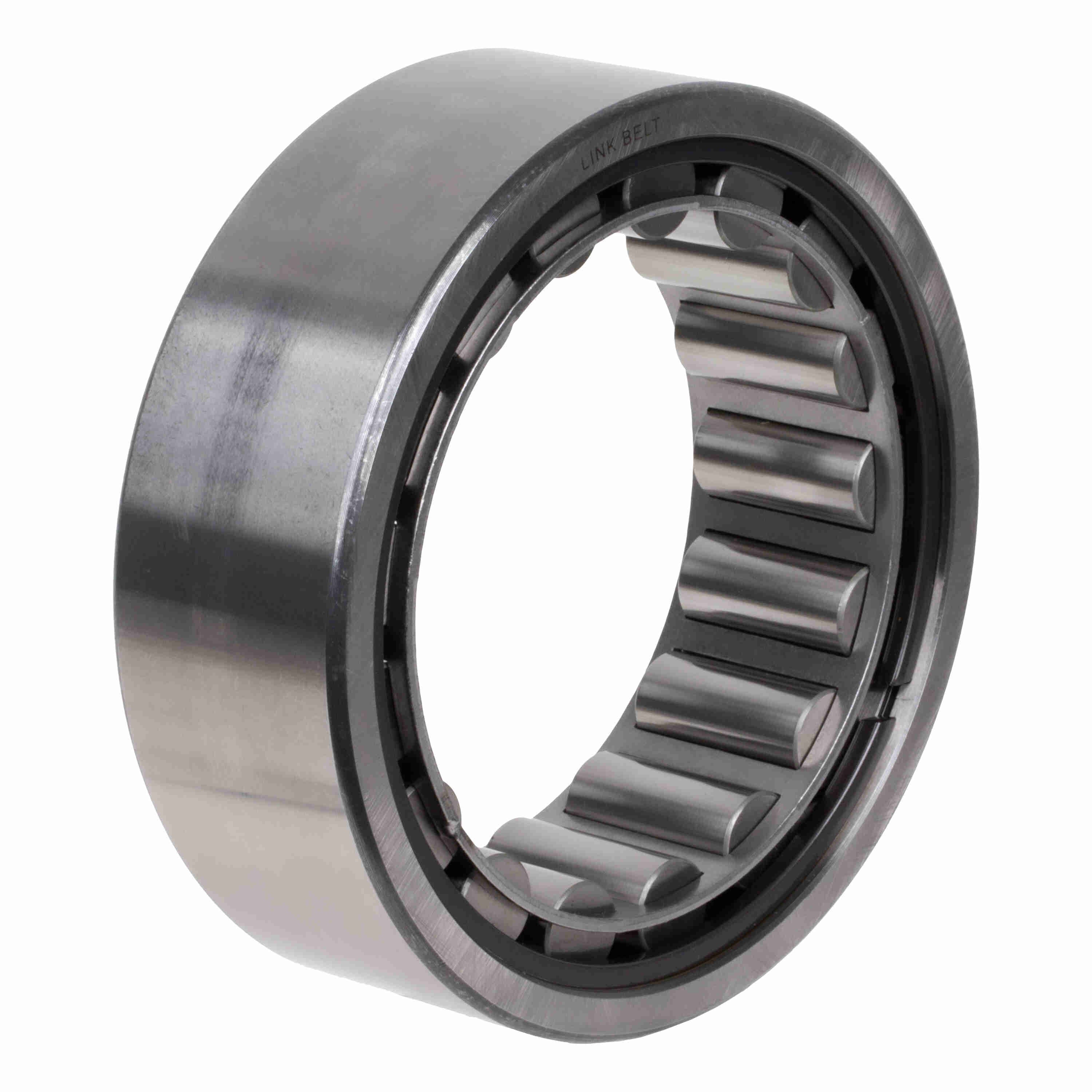

Link-Belt M5214TV Outer Ring & Roller Assemblies Cylindrical Roller Bearings - M5214TV
Part #:10475560
Catalog #:M5214TV
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 125 mm |
Technical Specifications
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 115.6 mm | Product: | Series 5200 Outer Ring & Roller Assemblies |
| Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) | C Dynamic Load Rating: | CALL ENG lb |
| Outer Ring Rib Inside Diameter (mm): | 107.01 mm | Vibration Frequency Roller Spin: | CALL ENG cps |
| Co Static Load Rating: | CALL ENG lb | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Series: | Outer Ring & Roller Assemblies | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 84.84 mm | Ring Width Series: | Wide (5) |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Rolling Element: | Cylindrical |
| Basic Bearing Number: | 5214 | Retainer Type: | SEE DESCRIPTION |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 111.5 mm | Outer Ring Raceway Inside Diameter (mm): | 111.54 mm |
| Bore Type: | Straight | Mounted Clearance: | SEE DESCRIPTION |
| Series Weight: | Light (2) | Bearing Width (mm): | 39.69 mm |
| Maximum Speed (RPM): | CALL ENG rpm |
General Specifications
| UPC: | 662327108014 | Weight: | 3.32 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
