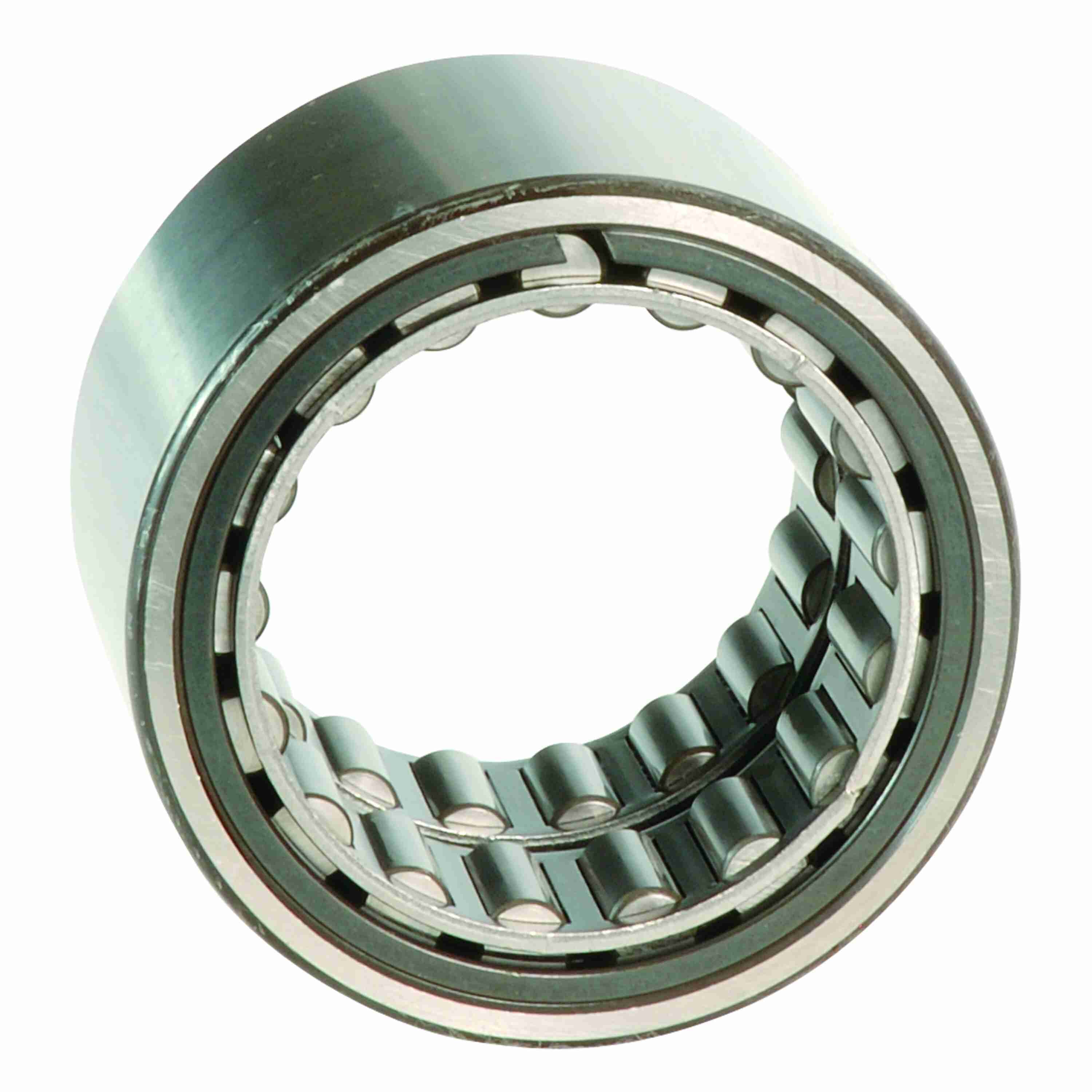

Link-Belt M6208TV Outer Ring & Roller Assemblies Cylindrical Roller Bearings - M6208TV
Part #:10471621
Catalog #:M6208TV
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 80 mm |
Technical Specifications
| Retainer Type: | SEE DESCRIPTION | Basic Bearing Number: | 6208 |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 72.9 mm | Outer Ring Raceway Inside Diameter (mm): | 69.62 mm |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 72.9 mm | Bearing Width (mm): | 60.33 mm |
| Series: | Outer Ring & Roller Assemblies | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 49.97 mm | Co Static Load Rating: | CALL ENG lb |
| Ring Width Series: | Double Row (6) | Rolling Element: | Cylindrical |
| Series Weight: | Light (2) | Mounted Clearance: | SEE DESCRIPTION |
| C Dynamic Load Rating: | CALL ENG lb | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Maximum Speed (RPM): | CALL ENG rpm | Vibration Frequency Roller Spin: | CALL ENG cps |
| Product: | Series 6200 Outer Ring & Roller Assemblies High Capacity |
General Specifications
| UPC: | 662327108748 | Weight: | 2.43 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
