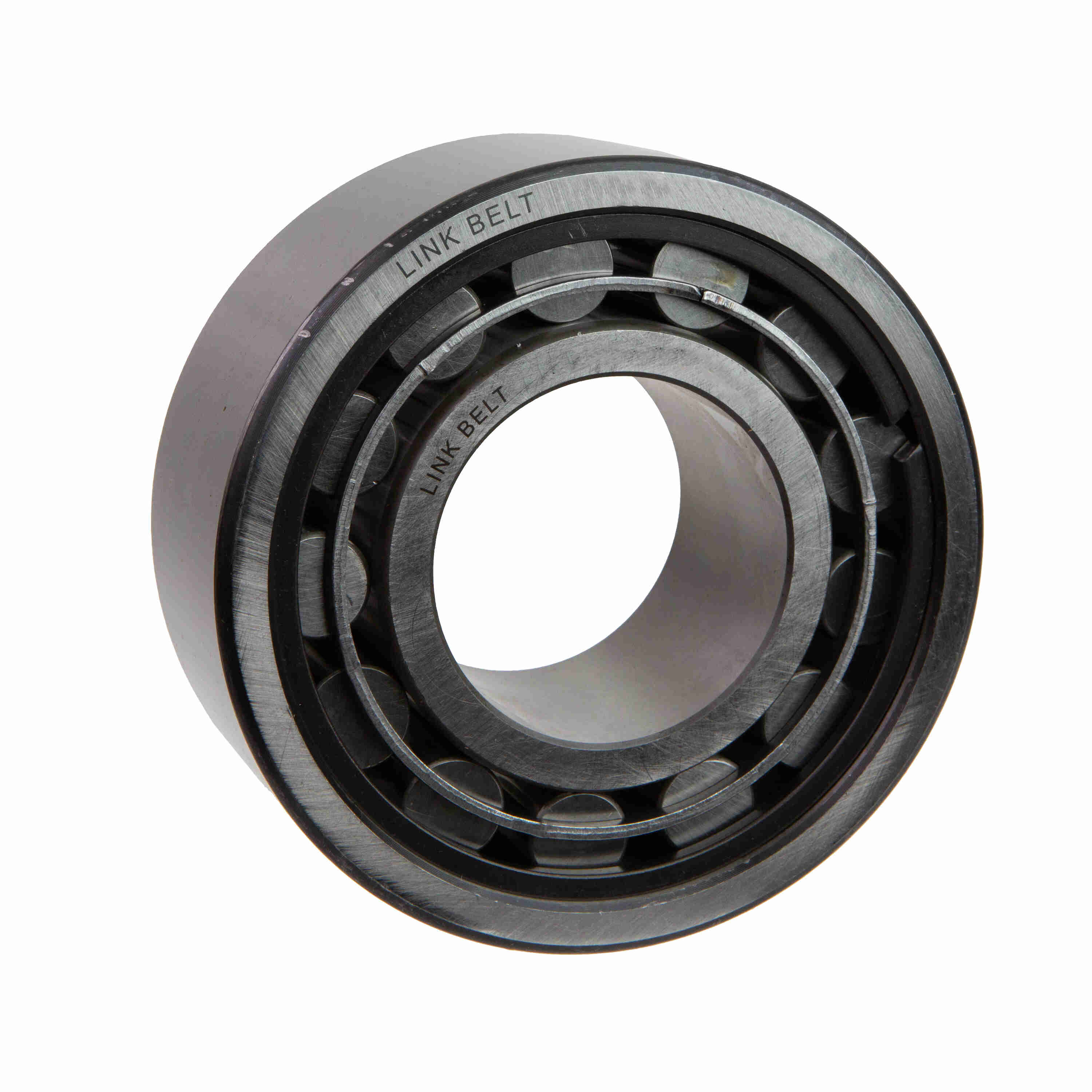

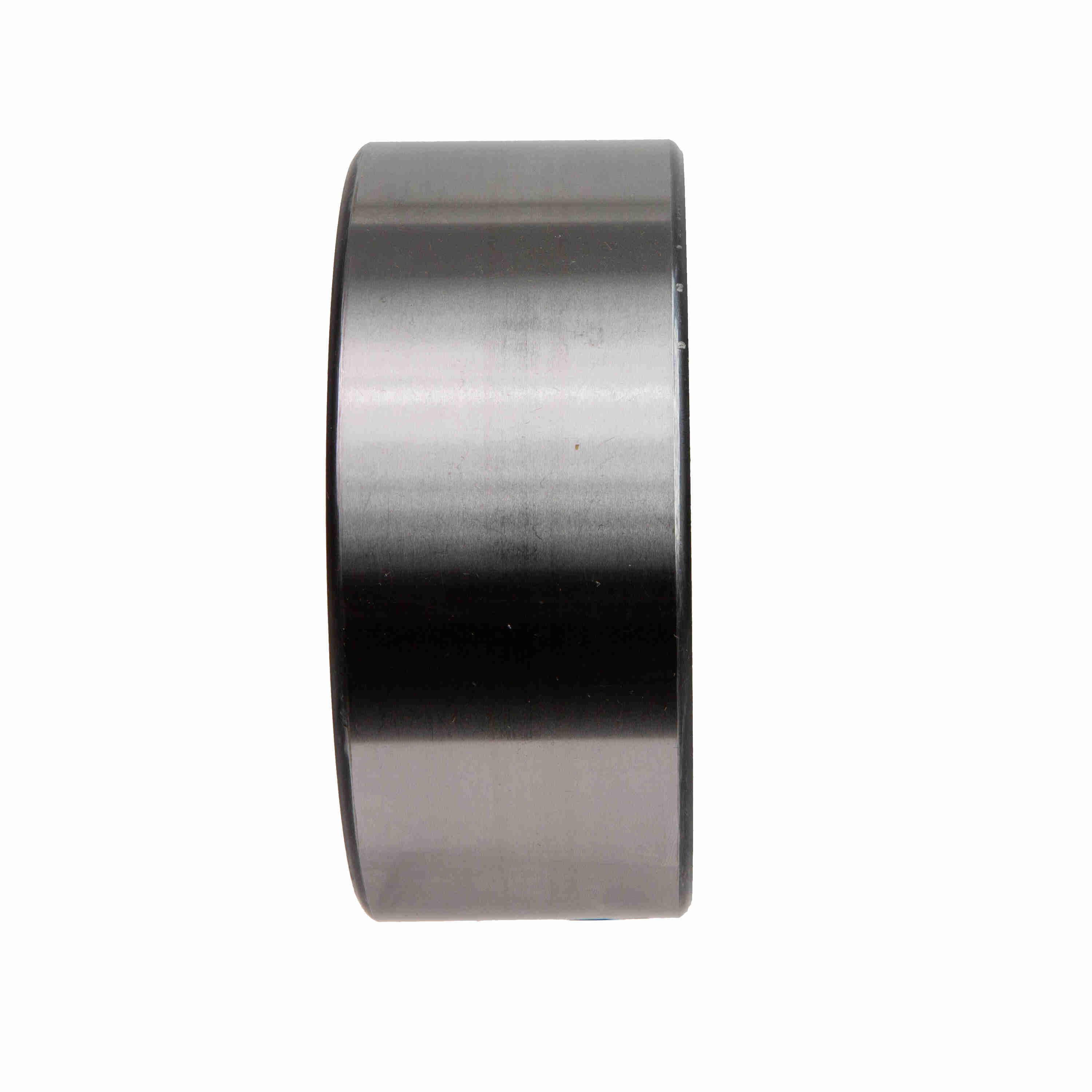

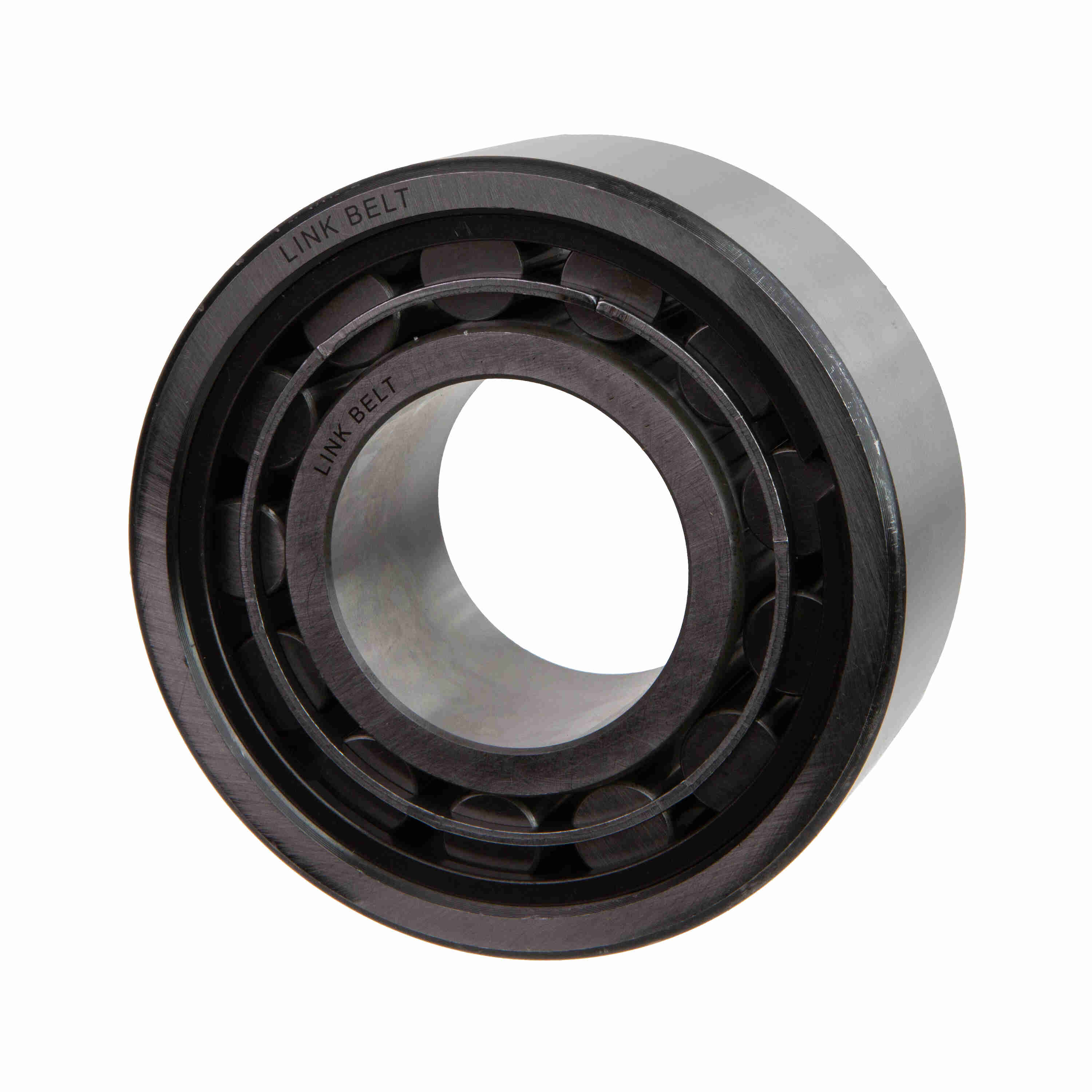

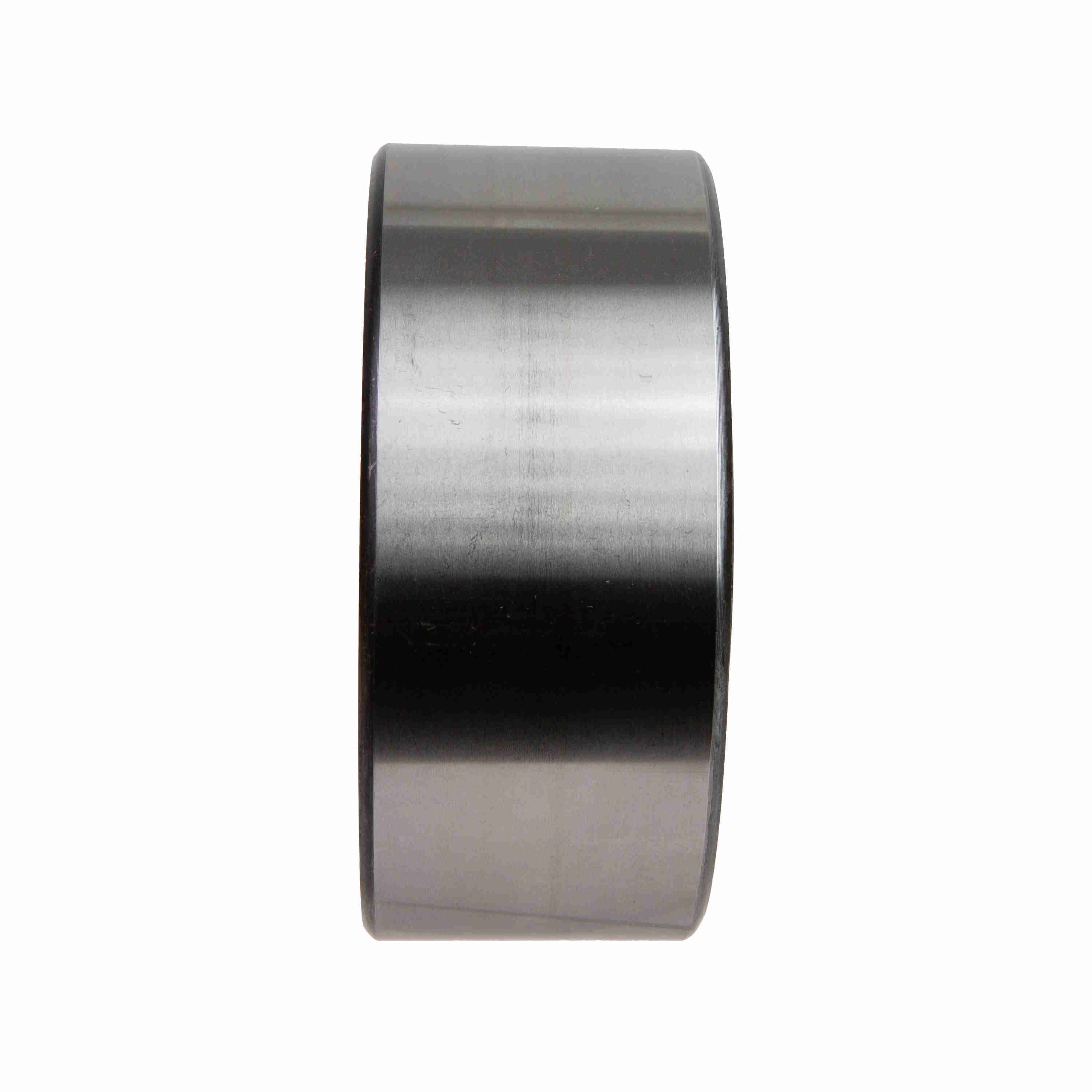

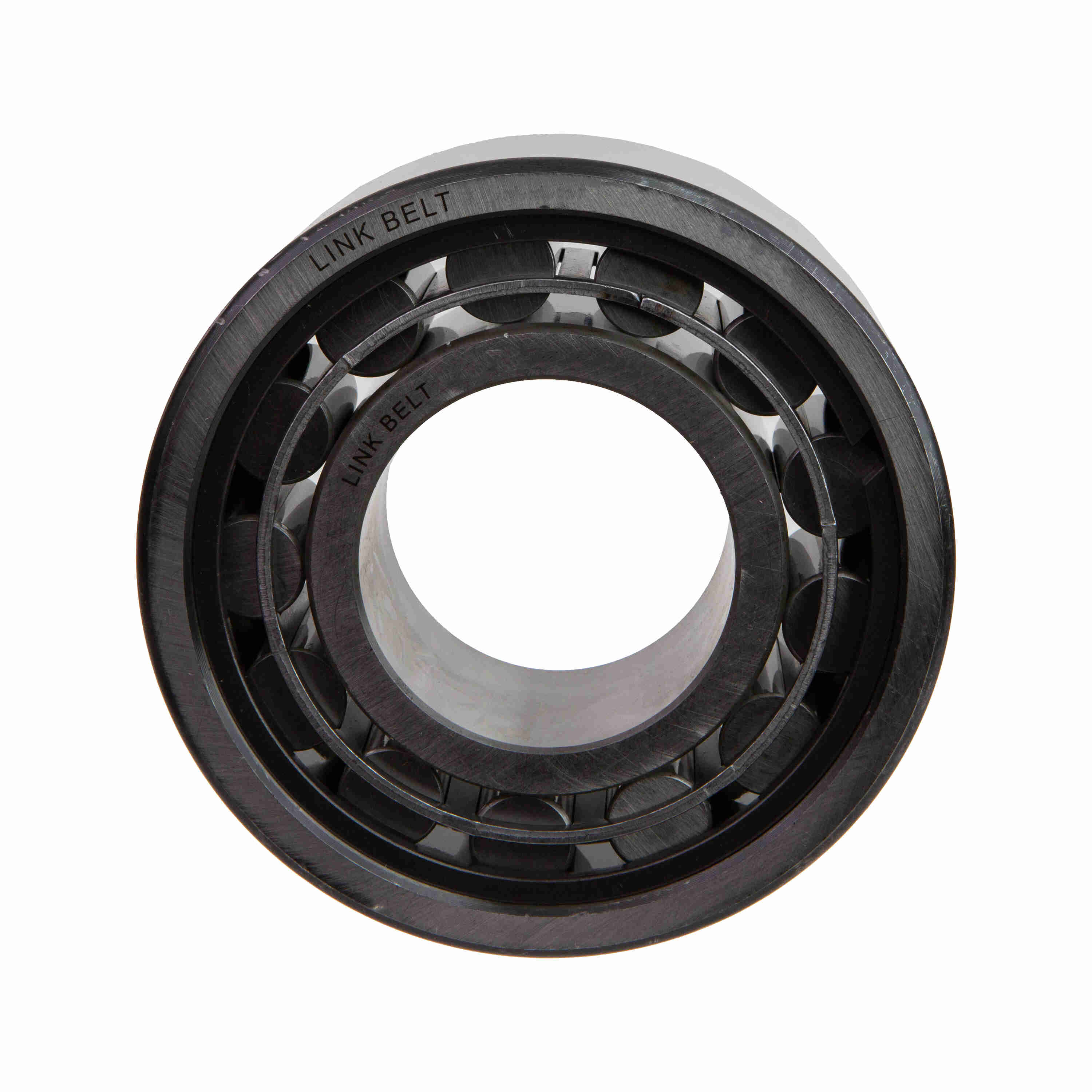

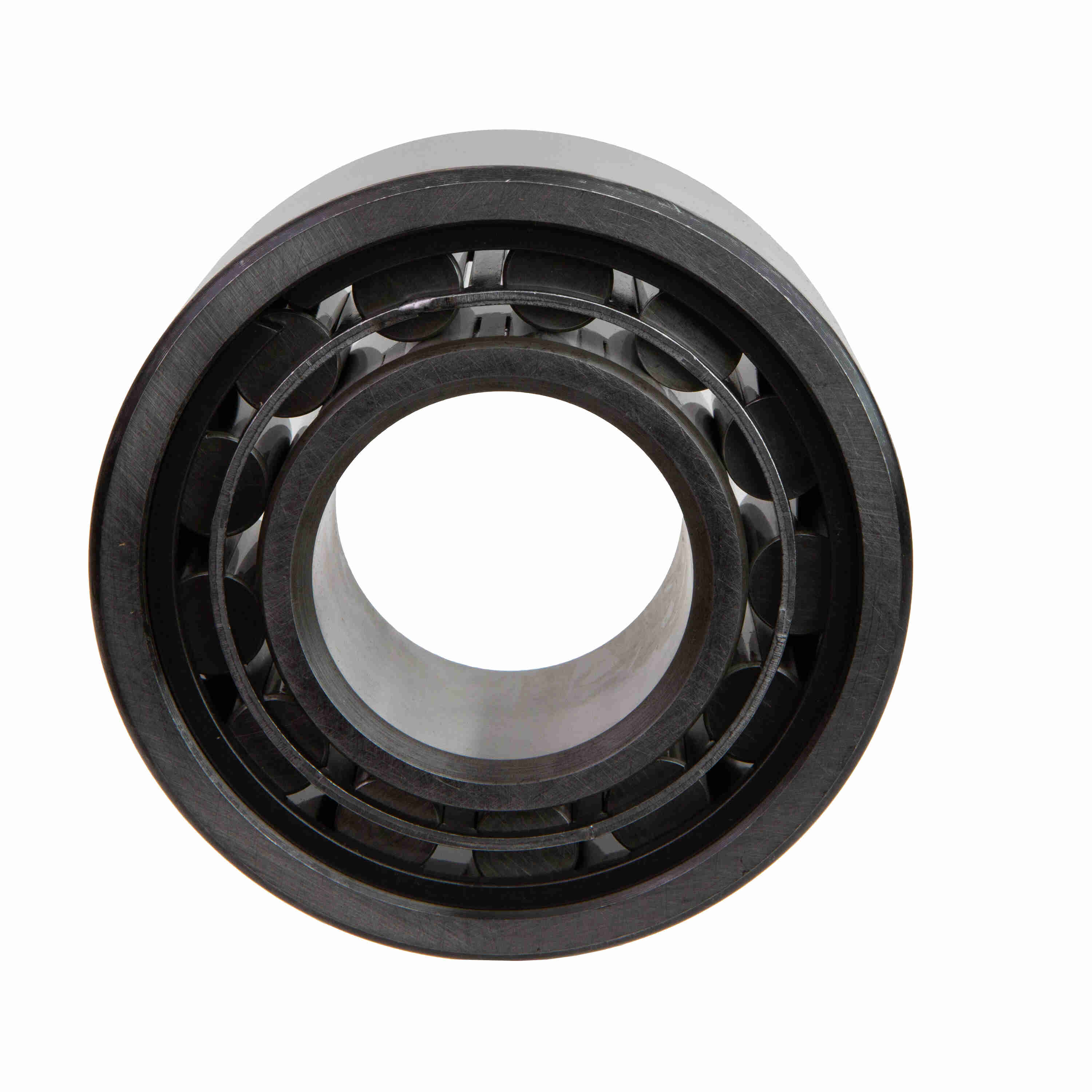

Link-Belt MA5240TV Unmounted Bearings Cylindrical Roller Bearings - MA5240TV
Part #:10472853
Catalog #:MA5240TV
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 200 mm | Outside Diameter (mm): | 360 mm |
Technical Specifications
| Retainer Type: | SEE DESCRIPTION | Co Static Load Rating: | CALL ENG lb |
| Ring Width Series: | Wide (5) | Mounted Clearance: | SEE DESCRIPTION |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 334.5 mm |
| Outer Ring Rib Inside Diameter (mm): | 308.2 mm | Inner Ring Raceway Outside Diameter (mm): | 242.2 mm |
| Series: | Unmounted Bearings | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Product: | Series 5200 Unmounted Bearings | Vibration Frequency Roller Spin: | CALL ENG cps |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 242.36 mm | Shaft Locking: | DIRECT SHAFT MOUNT |
| Rolling Element: | Cylindrical | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 232.4 mm |
| Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) | Maximum Speed (RPM): | CALL ENG rpm |
| C Dynamic Load Rating: | CALL ENG lb | Inner Ring Rib Outside Diameter (mm): | 257.43 mm |
| Inner Ring Bore Radius (mm): | 3.18 mm | Basic Bearing Number: | 5240 |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 242.1 mm | Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 322.6 mm |
| Outer Ring Raceway Inside Diameter (mm): | 322.65 mm | Inner Ring Type: | Plain Cylindrical (A) |
| Series Weight: | Light (2) | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 322.49 mm |
| Bearing Width (mm): | 120.65 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
General Specifications
| UPC: | 662327053550 | Weight: | 111.45 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
