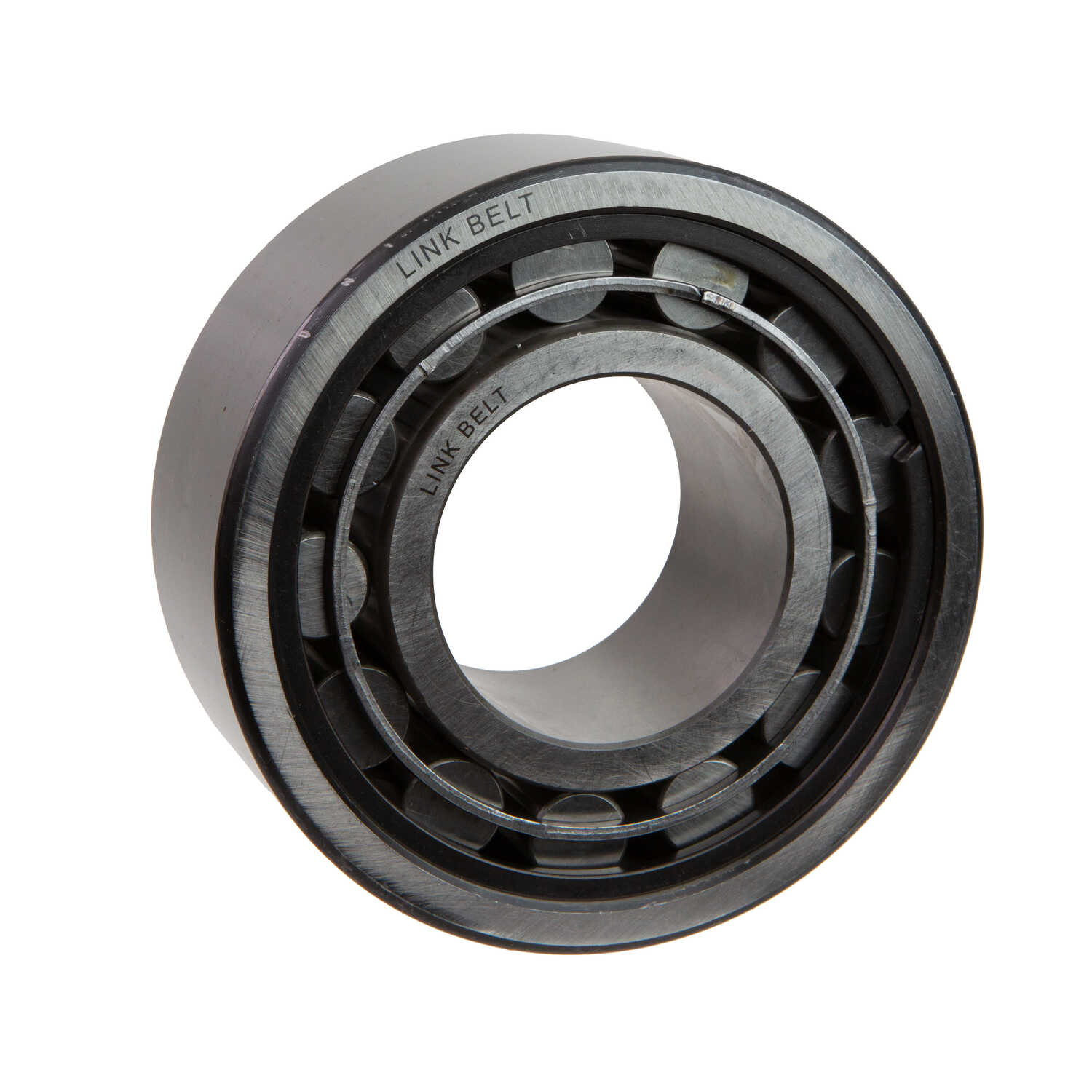

Link-Belt MA5312TV Unmounted Bearings Cylindrical Roller Bearings - 0323096 60
Part #:10039514
Catalog #:0323096 60
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 130 mm | Bore Size (mm): | 60 mm |
Technical Specifications
| C Dynamic Load Rating: | CALL ENG lb | Bearing Width (mm): | 53.98 mm |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 77.5 mm | Co Static Load Rating: | CALL ENG lb |
| Bore Type: | Straight | Maximum Speed (RPM): | CALL ENG rpm |
| Inner Ring and Roller Assembly Over Roller Diameter (mm): | 112.43 mm | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 72.9 mm |
| Inner Ring Rib Outside Diameter (mm): | 84.02 mm | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 77.61 mm | Rolling Element: | Cylindrical |
| Outer Ring Raceway Inside Diameter (mm): | 112.49 mm | Series Weight: | Medium (3) |
| Mounted Clearance: | SEE DESCRIPTION | Inner Ring Type: | Plain Cylindrical (A) |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 117.8 mm |
| Inner Ring Raceway Outside Diameter (mm): | 77.55 mm | Retainer Type: | SEE DESCRIPTION |
| Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) | Outer Ring Rib Inside Diameter (mm): | 106.35 mm |
| Product: | Series 5300 Unmounted Bearings | Series: | Unmounted Bearings |
| Ring Width Series: | Wide (5) | Vibration Frequency Roller Spin: | CALL ENG cps |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 112.3 mm | Basic Bearing Number: | 5312 |
| Inner Ring Bore Radius (mm): | 2.03 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Shaft Locking: | DIRECT SHAFT MOUNT |
General Specifications
| UPC: | 662327053758 | Weight: | 7.31 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
