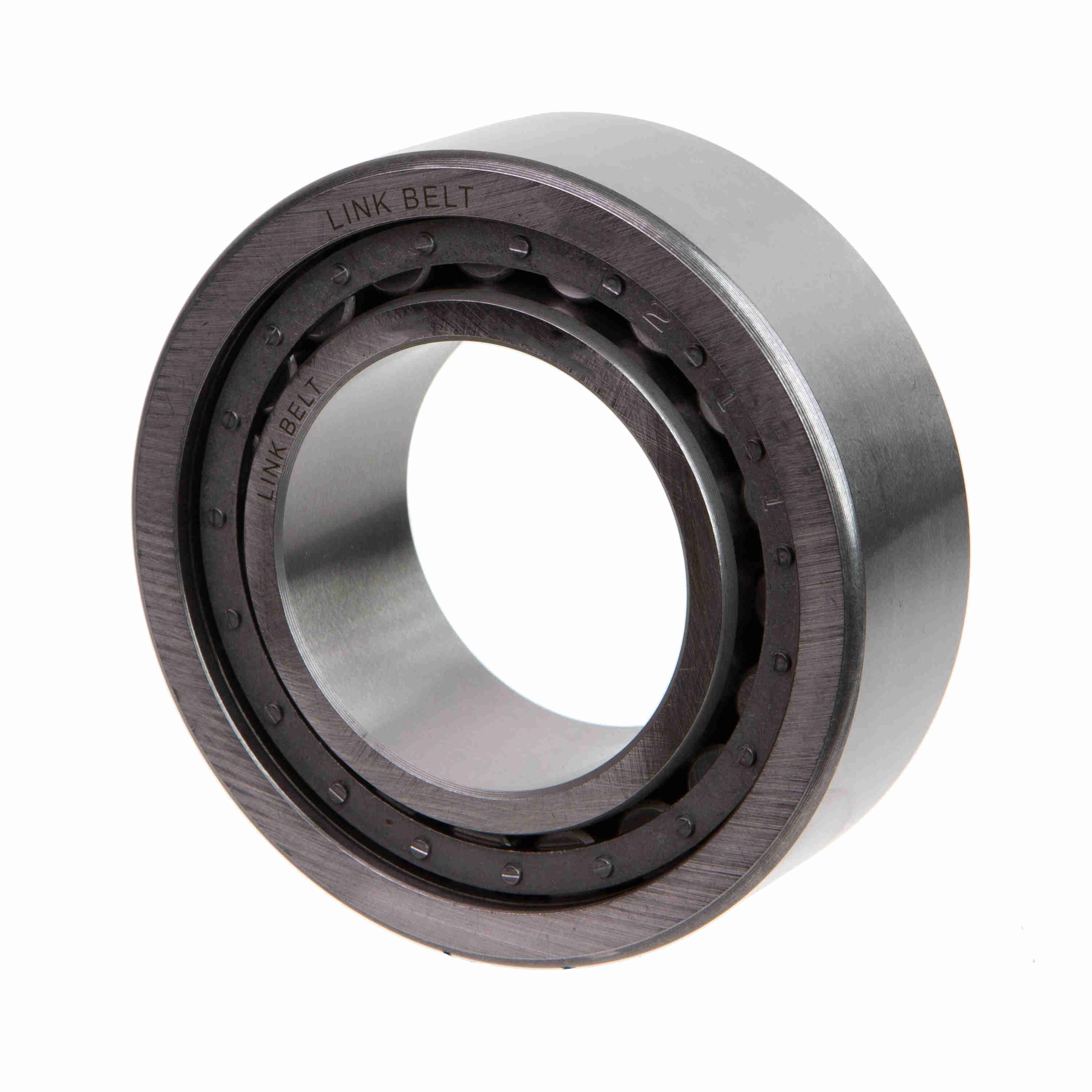

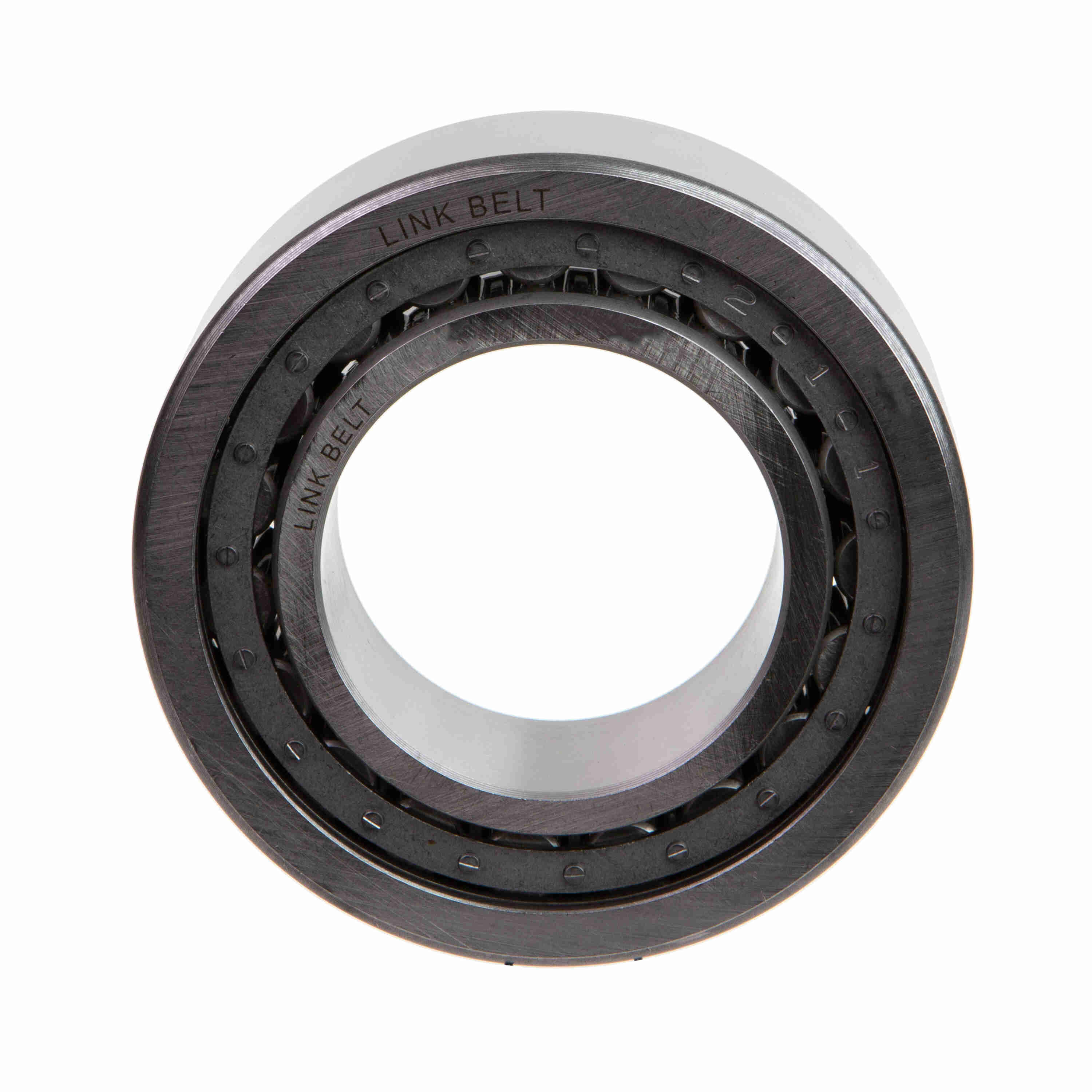

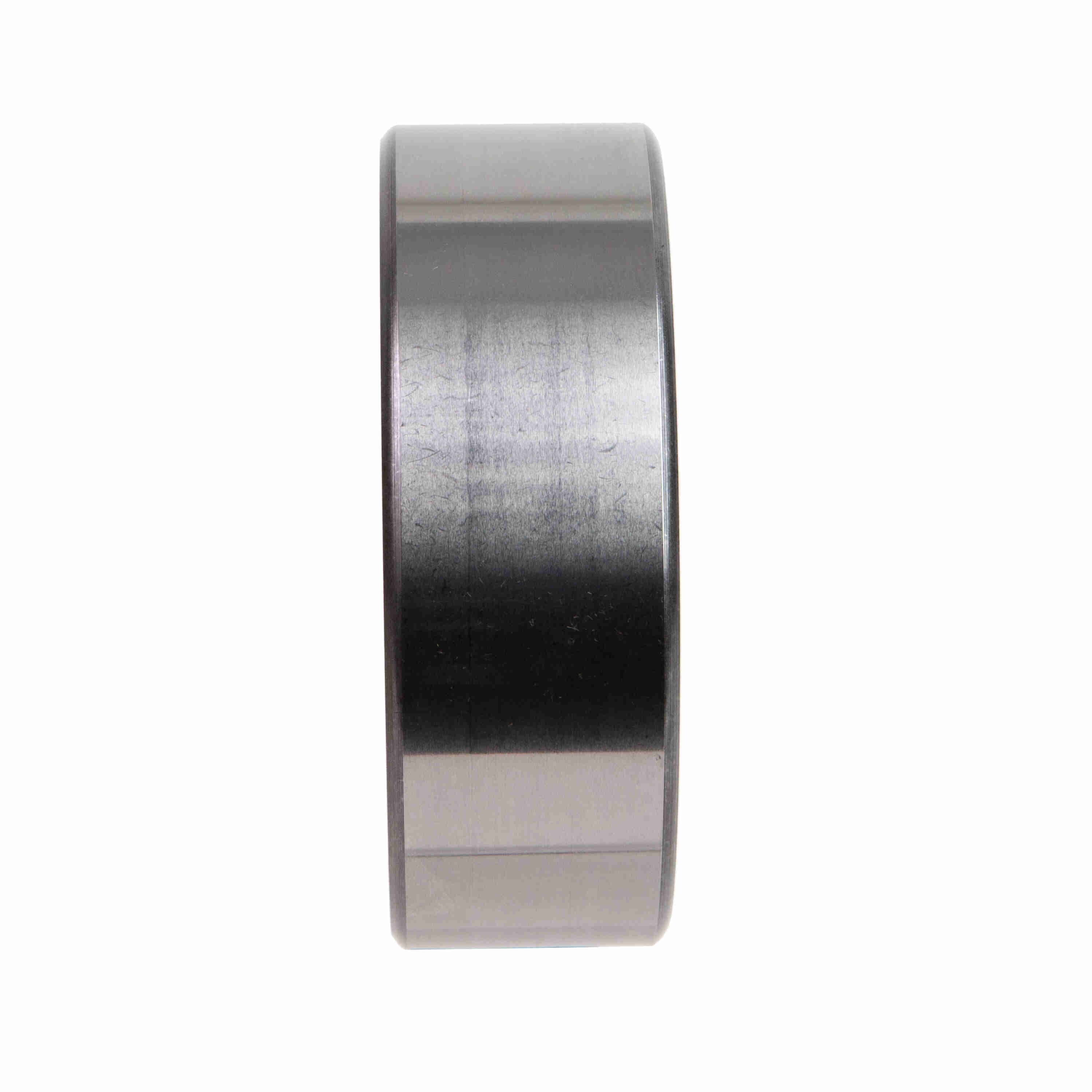

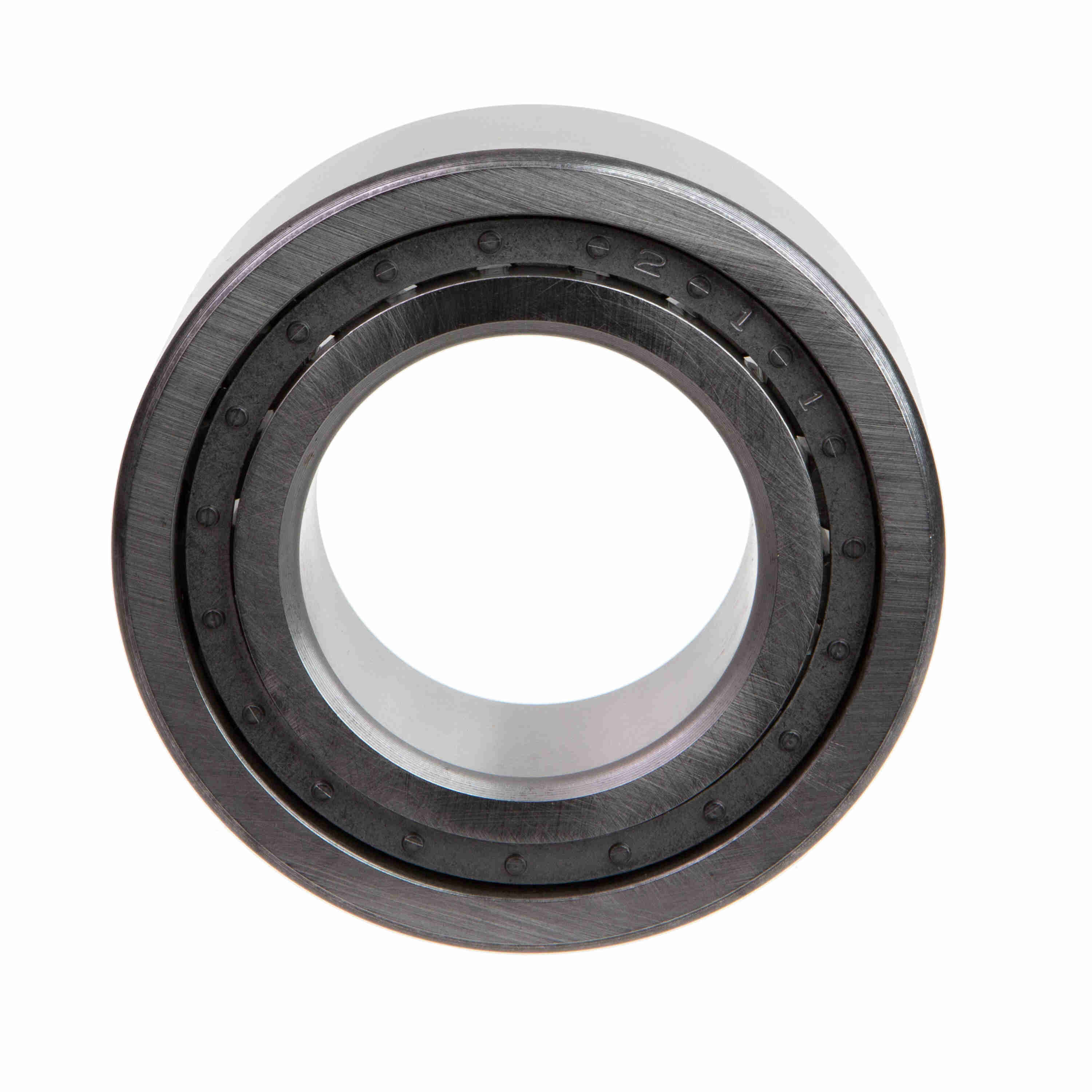

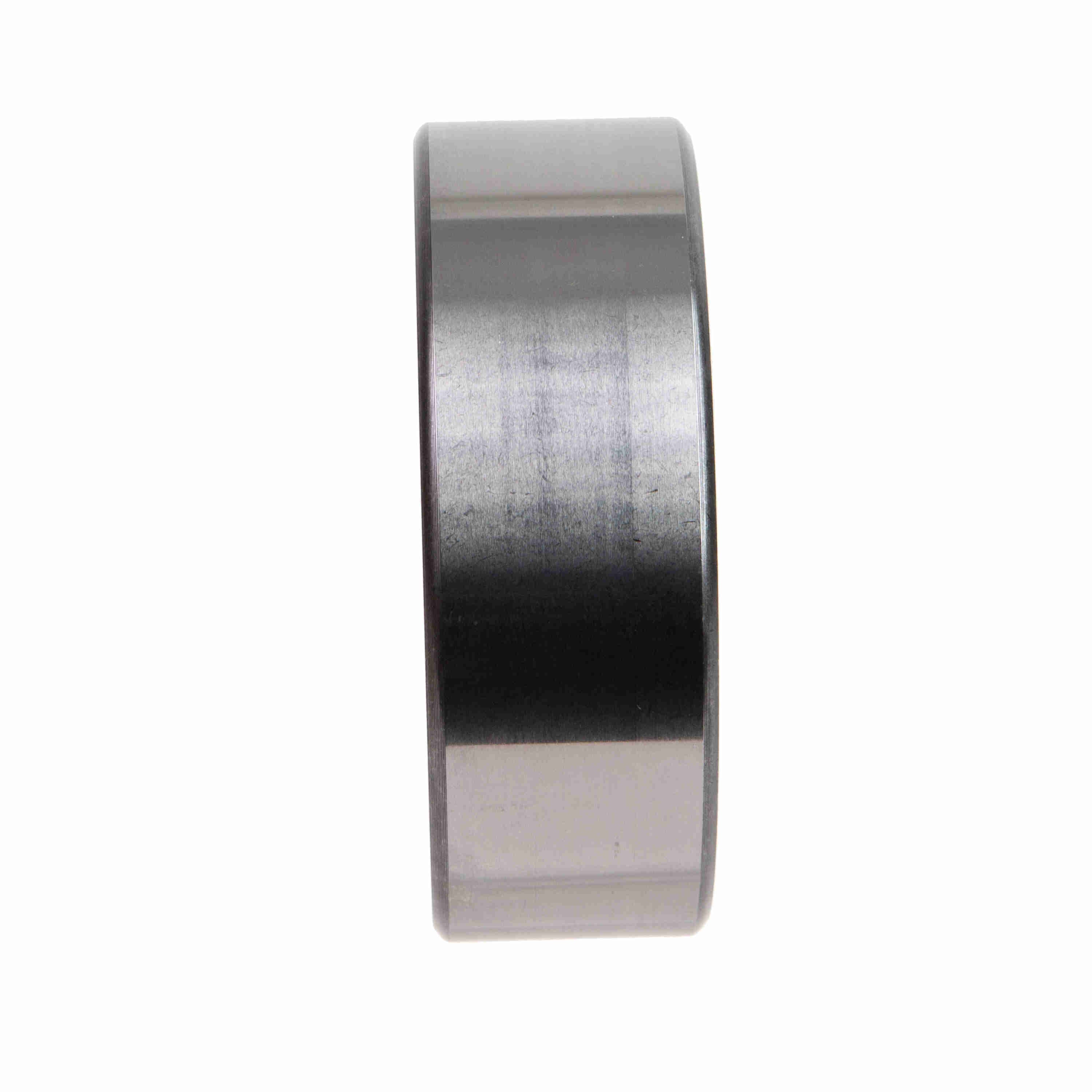

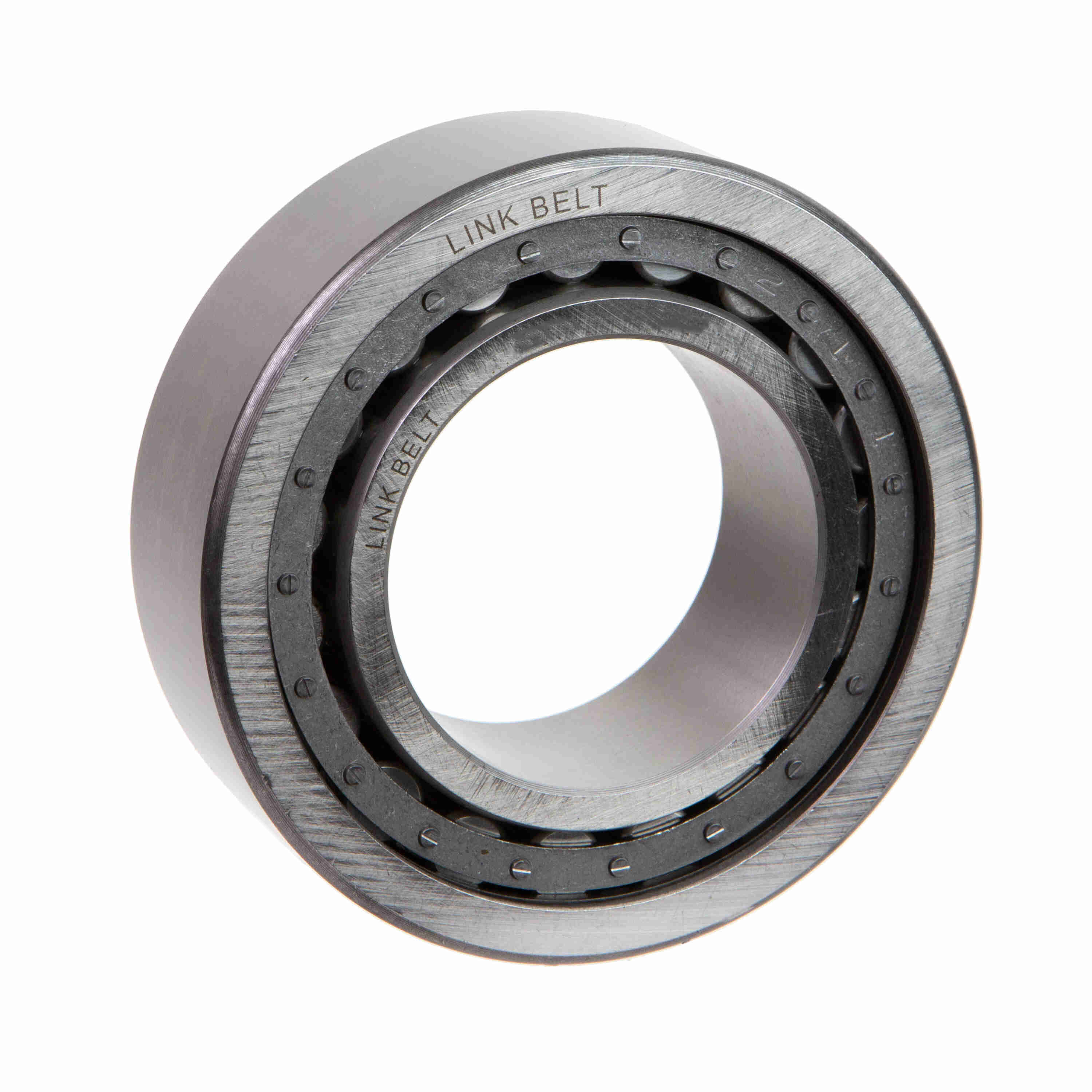

Link-Belt MR1209EXW824 Unmounted Bearings Cylindrical Roller Bearings - MR1209EXW824
Part #:10472135
Catalog #:MR1209EXW824
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 45 mm | Outside Diameter (mm): | 85 mm |
Technical Specifications
| Product: | Series 1200 Unmounted Bearings | Inner Ring Rib Outside Diameter (mm): | 59.03 mm |
| Outer Ring Type: | Double Rib Outer Ring (E) | Inner Ring Type: | Single Rib (R) |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Ring Width Series: | Narrow (1) |
| Co Static Load Rating: | CALL ENG lb | Mounted Clearance: | SEE DESCRIPTION |
| Series Weight: | Light (2) | C Dynamic Load Rating: | CALL ENG lb |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 55.57 mm | Outer Ring Rib Inside Diameter (mm): | 71.8 mm |
| Shaft Locking: | DIRECT SHAFT MOUNT | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 74.94 mm |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 55.4 mm | Inner Ring Bore Radius (mm): | 1.52 mm |
| Basic Bearing Number: | 1209 | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Retainer Type: | SEE DESCRIPTION | Inner Ring Raceway Outside Diameter (mm): | 55.52 mm |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 74.9 mm | Series: | Unmounted Bearings |
| Vibration Frequency Roller Spin: | CALL ENG cps | Bearing Width (mm): | 19 mm |
| Rolling Element: | Cylindrical | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 78.2 mm |
| Outer Ring Raceway Inside Diameter (mm): | 74.99 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 52.8 mm | Maximum Speed (RPM): | CALL ENG rpm |
General Specifications
| UPC: | 662327467845 | Weight: | 1.10 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
