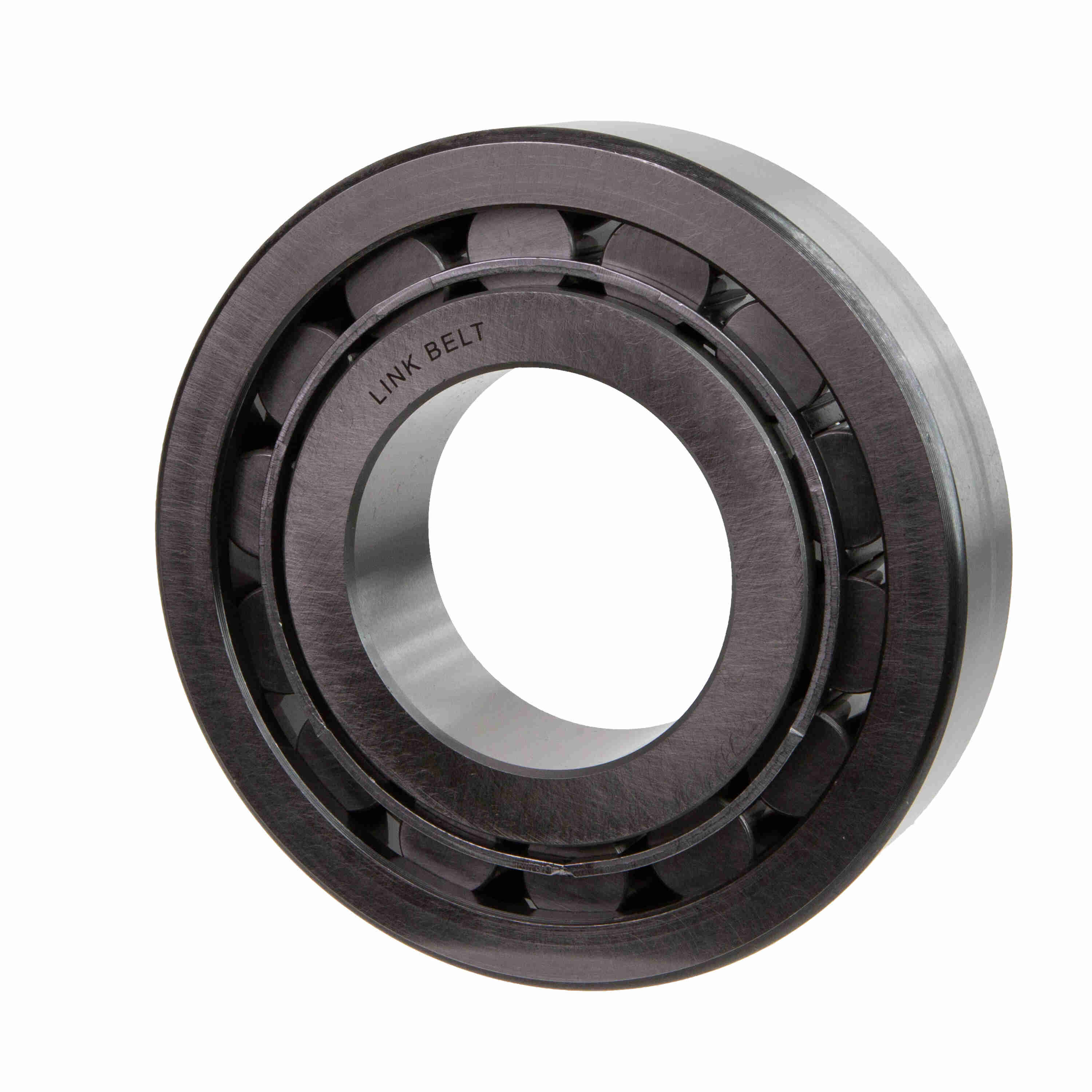

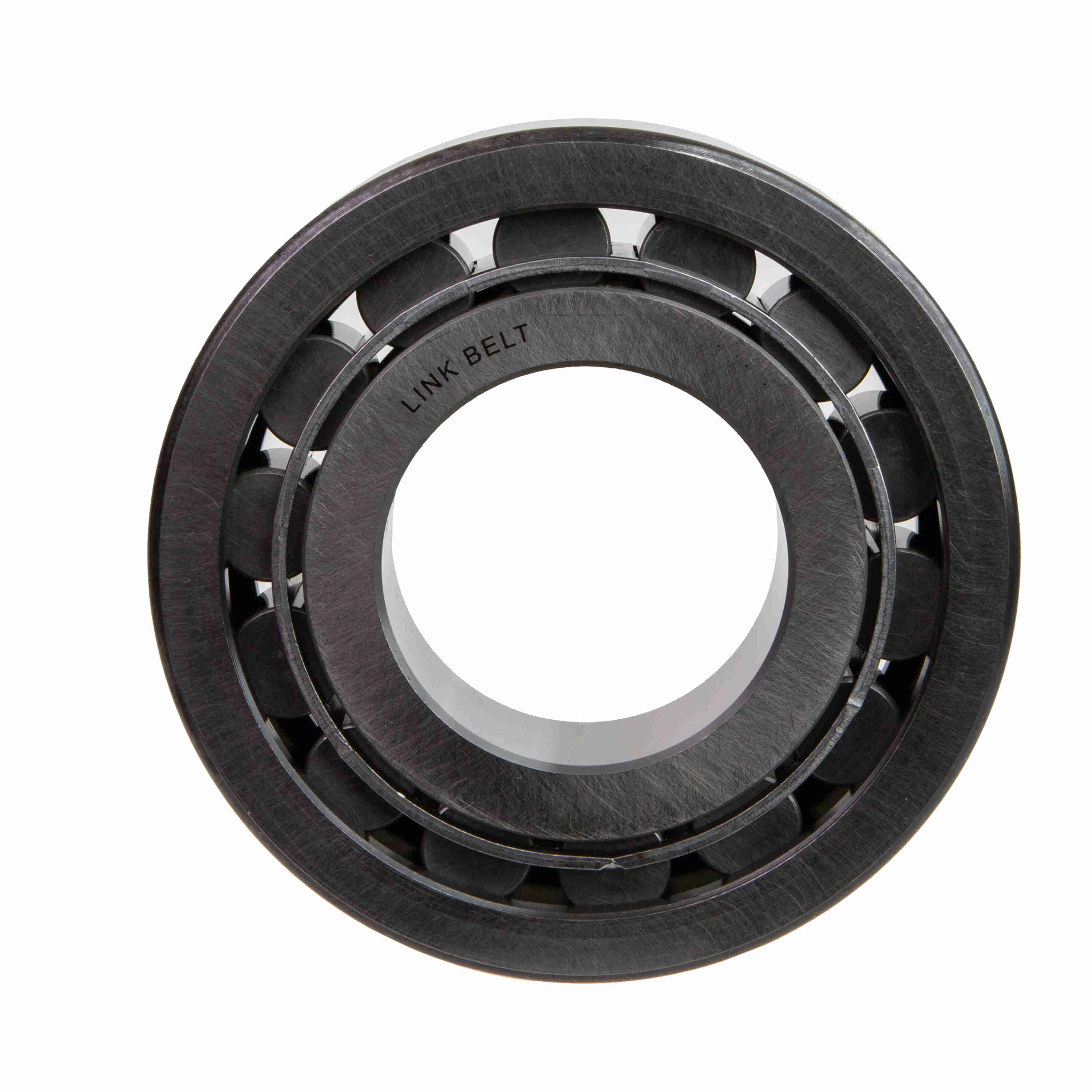

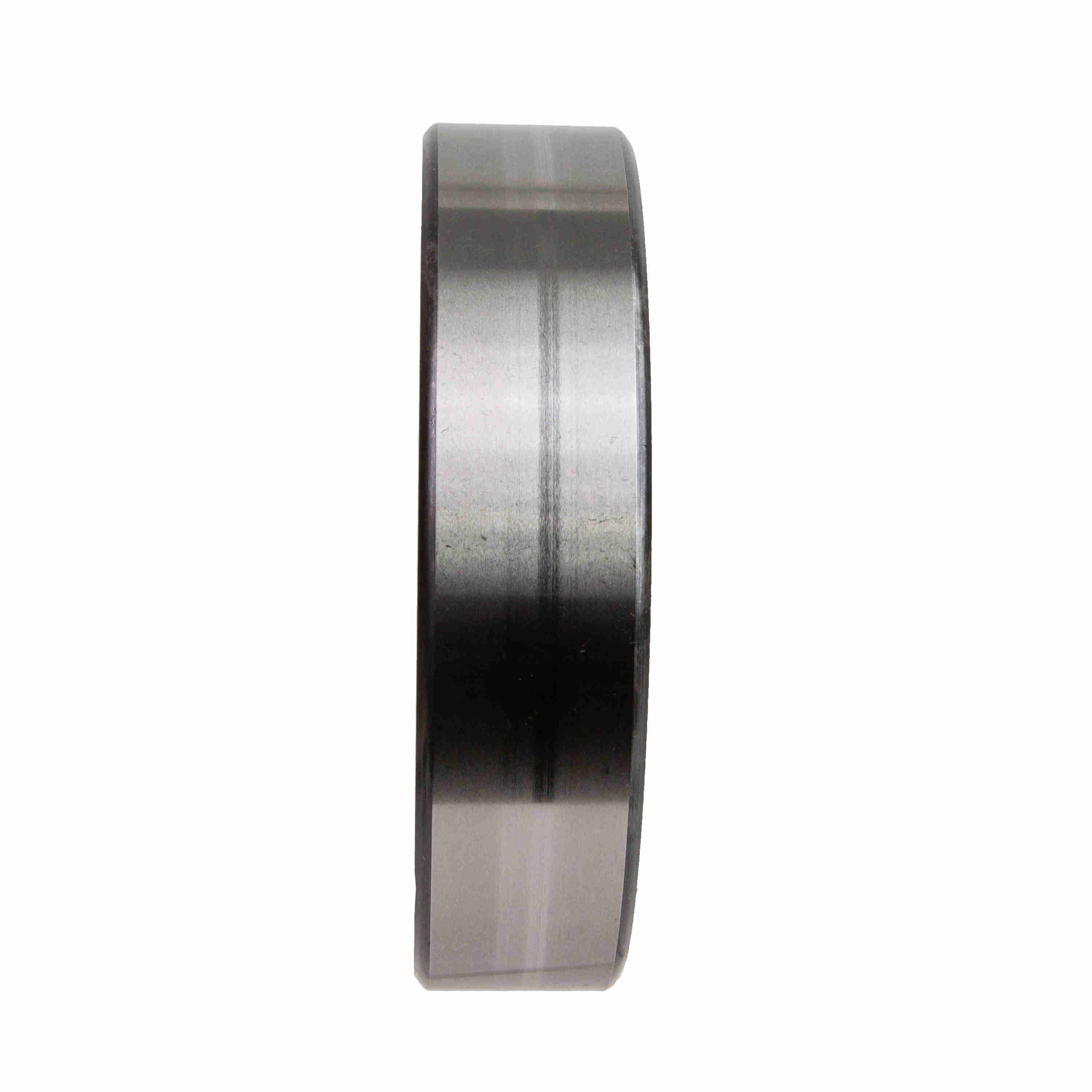

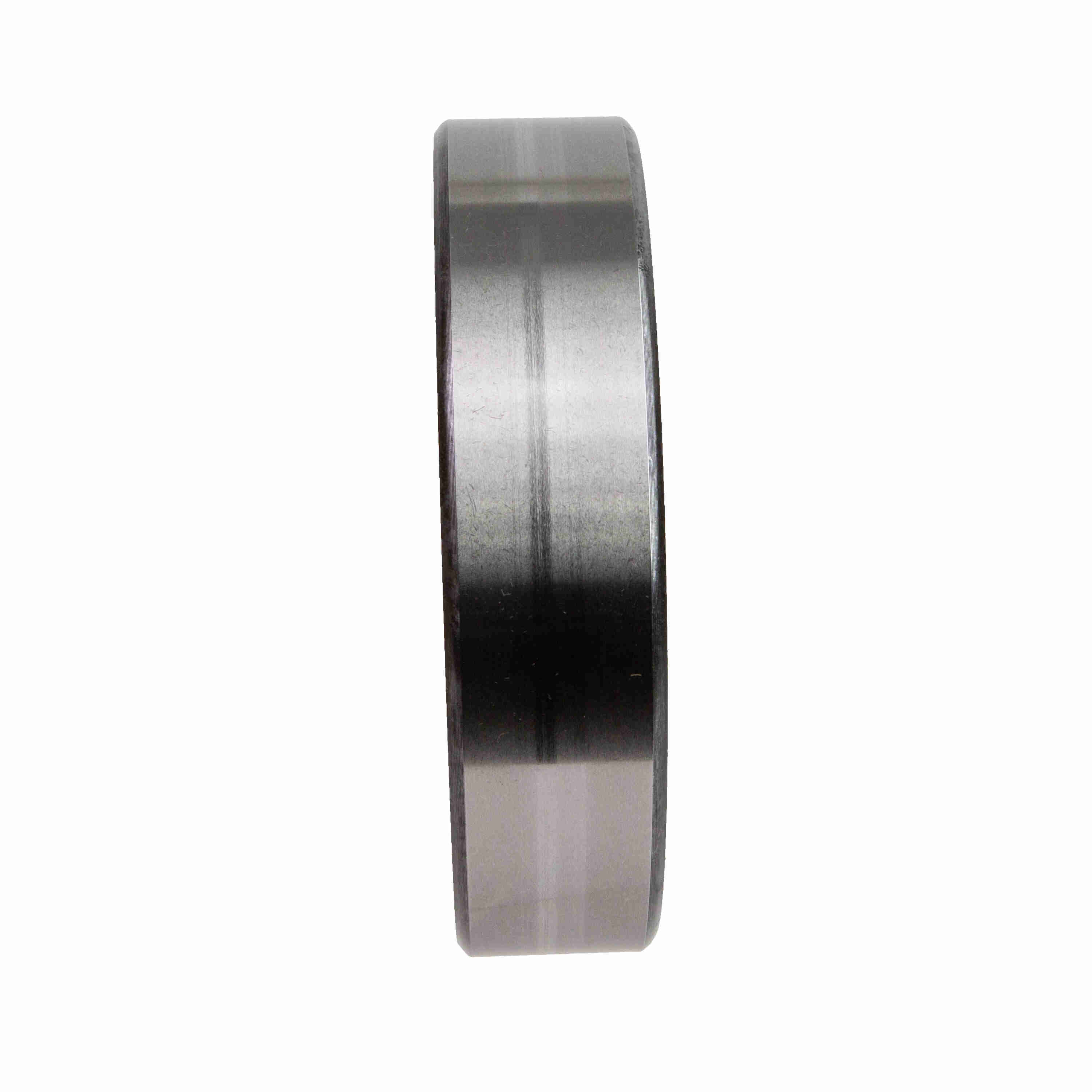

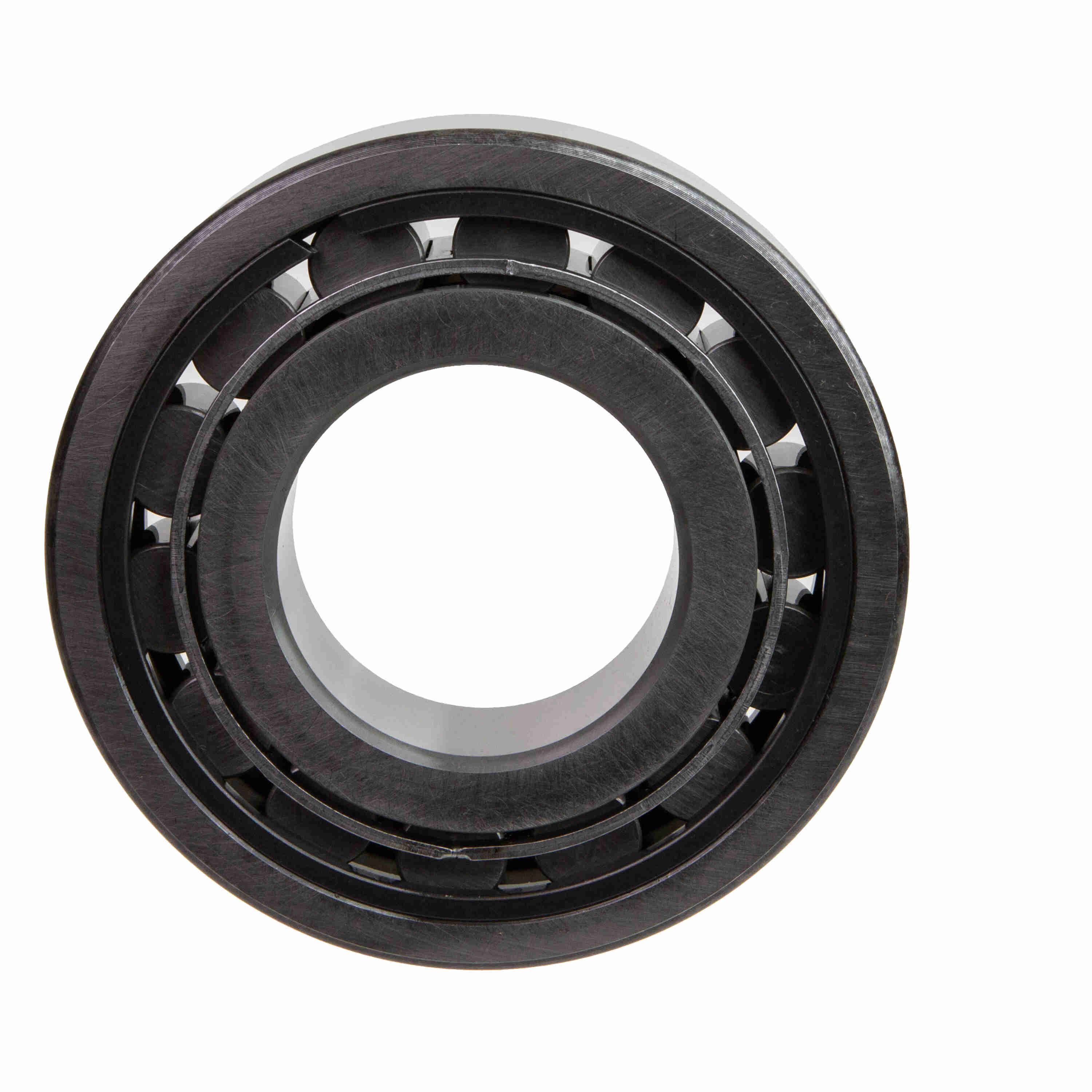

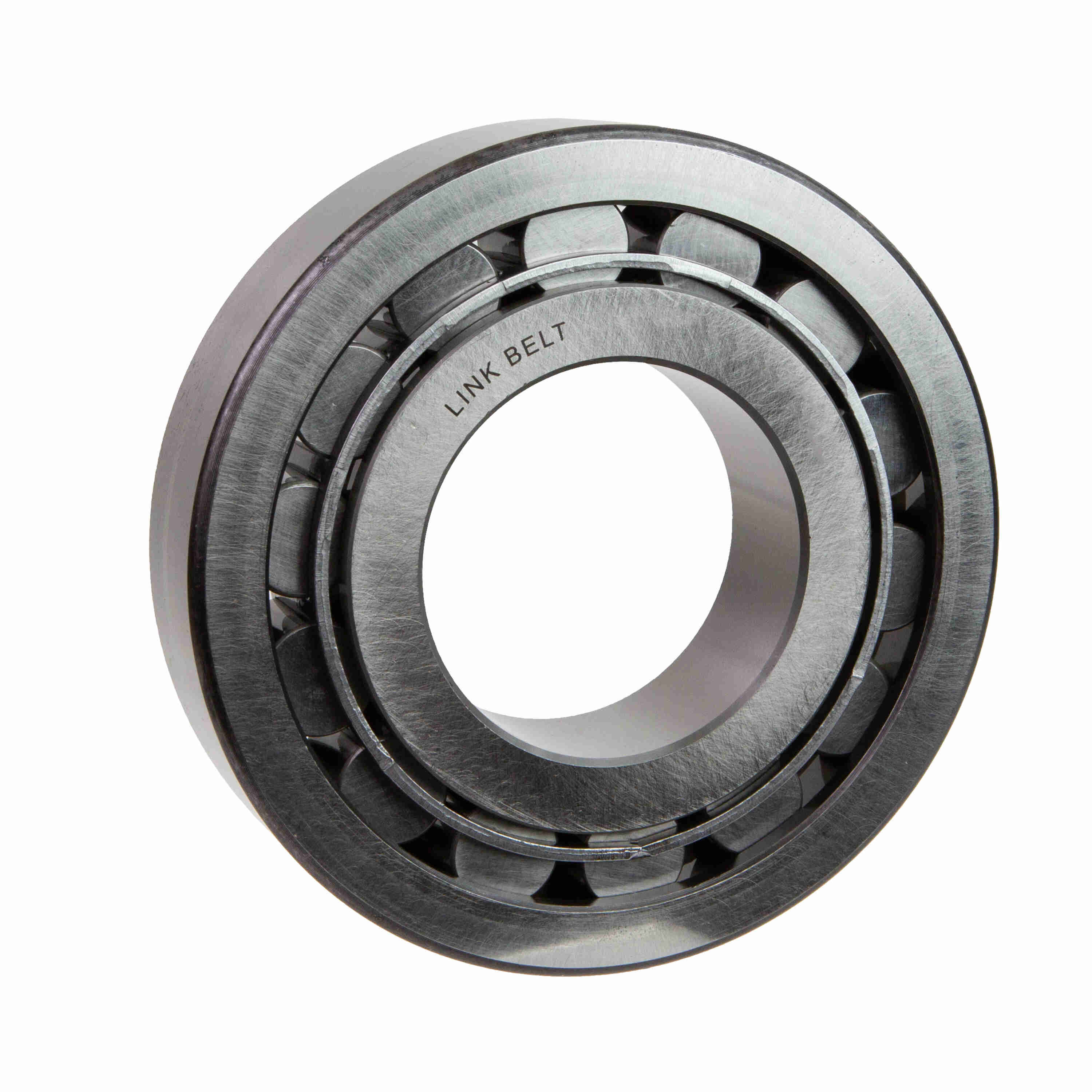

Link-Belt MU1208UV Unmounted Bearings Cylindrical Roller Bearings - MU1208UV
Part #:10473261
Catalog #:MU1208UV
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 40 mm | Outside Diameter (mm): | 80 mm |
Technical Specifications
| Ring Width Series: | Narrow (1) | Vibration Frequency Roller Spin: | CALL ENG cps |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Series: | Unmounted Bearings |
| Outer Ring Type: | Single Rib Outer Ring One Retaining Ring in I.D. (U) | Rolling Element: | Cylindrical |
| Shaft Locking: | DIRECT SHAFT MOUNT | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 49.97 mm | Co Static Load Rating: | CALL ENG lb |
| Inner Ring Bore Radius (mm): | 1.02 mm | Outer Ring Raceway Inside Diameter (mm): | 69.62 mm |
| Inner Ring and Roller Assembly Over Roller Diameter (mm): | 69.58 mm | Retainer Type: | SEE DESCRIPTION |
| C Dynamic Load Rating: | CALL ENG lb | Series Weight: | Light (2) |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 72.9 mm | Inner Ring Raceway Outside Diameter (mm): | 49.93 mm |
| Inner Ring Type: | Double Rib (U) | Maximum Speed (RPM): | CALL ENG rpm |
| Inner Ring Rib Outside Diameter (mm): | 53.44 mm | Bore Type: | Straight |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 69.6 mm | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 47.2 mm |
| Mounted Clearance: | SEE DESCRIPTION | Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 49.8 mm |
| Bearing Width (mm): | 18 mm | Outer Ring Rib Inside Diameter (mm): | 66.42 mm |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Product: | Series 1200 Unmounted Bearings |
| Basic Bearing Number: | 1208 |
General Specifications
| UPC: | 662327056926 | Weight: | 0.89 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
