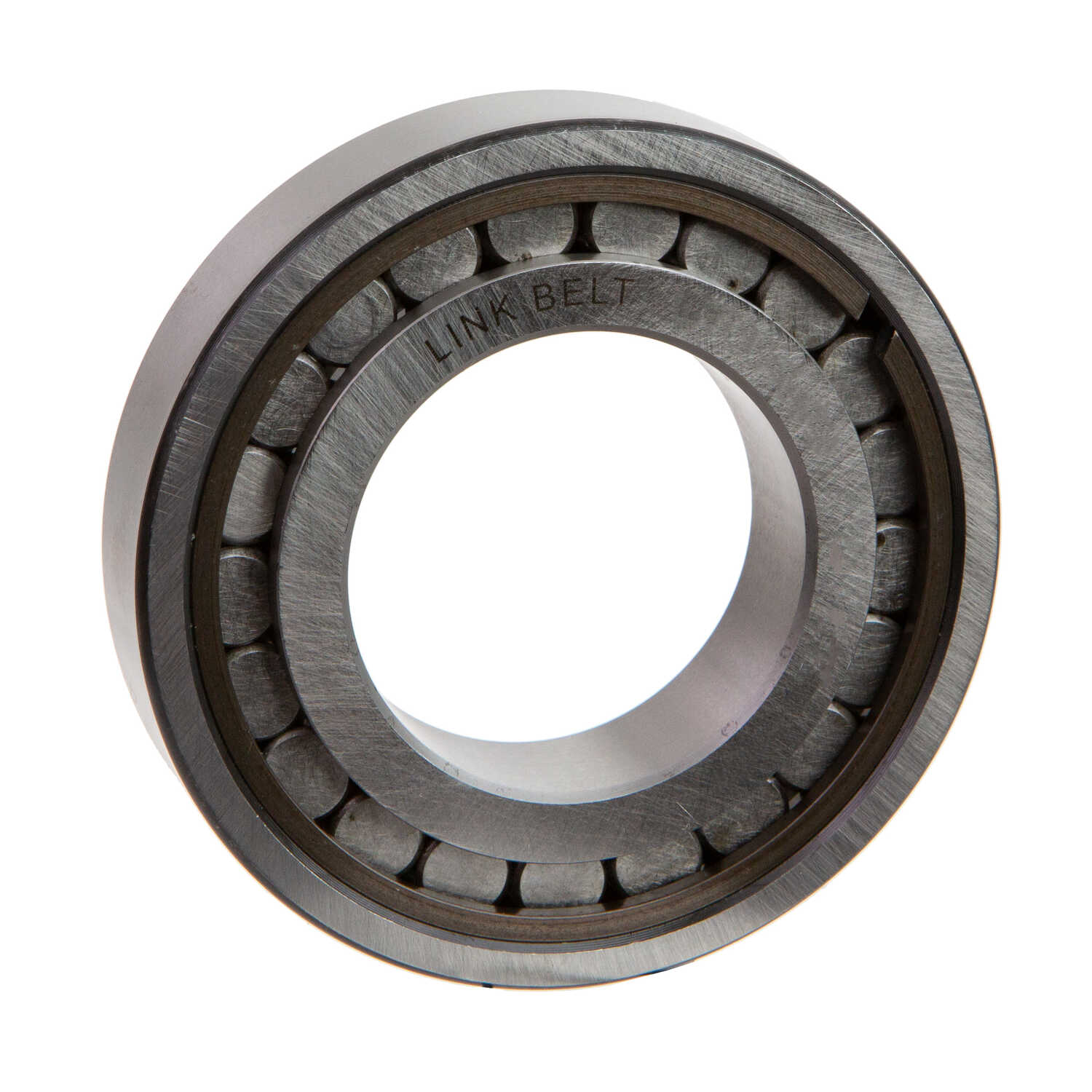

Link-Belt MU1209TM Unmounted Bearings Cylindrical Roller Bearings - MU1209TM
Part #:10472680
Catalog #:MU1209TM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 45 mm | Outside Diameter (mm): | 85 mm |
Technical Specifications
| Bore Type: | Straight | Co Static Load Rating: | CALL ENG lb |
| Inner Ring and Roller Assembly Over Roller Diameter (mm): | 74.94 mm | Series Weight: | Light (2) |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Ring Width Series: | Narrow (1) |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 74.9 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Inner Ring Type: | Double Rib (U) | Inner Ring Raceway Outside Diameter (mm): | 55.52 mm |
| Product: | Series 1200 Unmounted Bearings | Outer Ring Raceway Inside Diameter (mm): | 74.99 mm |
| Mounted Clearance: | SEE DESCRIPTION | Outer Ring Rib Inside Diameter (mm): | 71.8 mm |
| Retainer Type: | SEE DESCRIPTION | Series: | Unmounted Bearings |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | C Dynamic Load Rating: | CALL ENG lb |
| Bearing Width (mm): | 19 mm | Outer Ring and Roller Assembly Under Roller Diameter (mm): | 55.57 mm |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 52.8 mm | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 78.2 mm |
| Vibration Frequency Roller Spin: | CALL ENG cps | Shaft Locking: | DIRECT SHAFT MOUNT |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 55.4 mm | Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) |
| Inner Ring Bore Radius (mm): | 1.02 mm | Inner Ring Rib Outside Diameter (mm): | 59.03 mm |
| Basic Bearing Number: | 1209 | Rolling Element: | Cylindrical |
| Maximum Speed (RPM): | CALL ENG rpm |
General Specifications
| UPC: | 662327056988 | Weight: | 1.05 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
