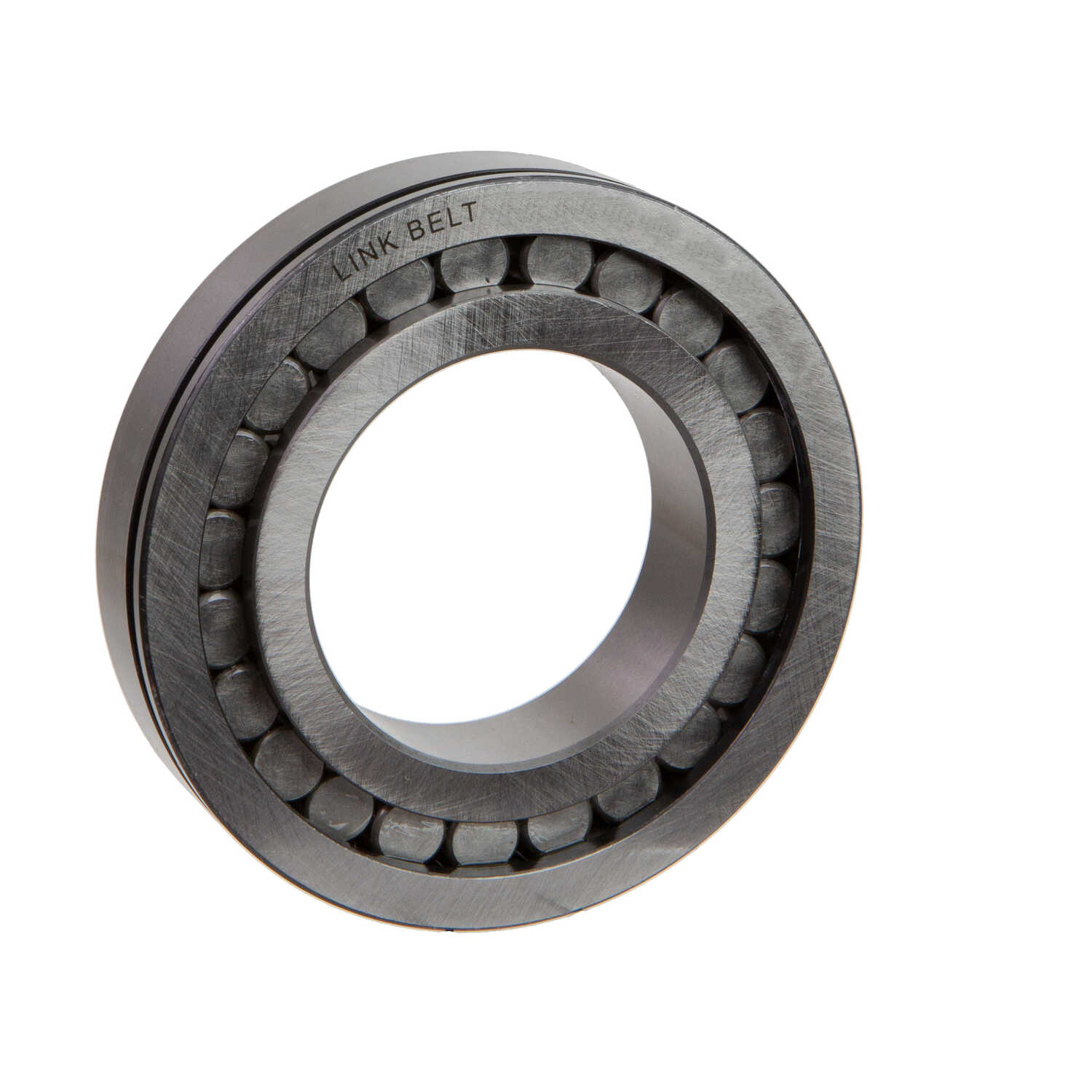

Link-Belt MU1211GUM Unmounted Bearings Cylindrical Roller Bearings - MU1211GUM
Part #:10471575
Catalog #:MU1211GUM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 55 mm | Outside Diameter (mm): | 100 mm |
Technical Specifications
| Inner Ring Type: | Double Rib (U) | Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 66.8 mm |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 64 mm | Outer Ring Raceway Inside Diameter (mm): | 88.02 mm |
| Maximum Speed (RPM): | CALL ENG rpm | Retainer Type: | SEE DESCRIPTION |
| Outer Ring Rib Inside Diameter (mm): | 84.53 mm | Shaft Locking: | DIRECT SHAFT MOUNT |
| Outer Ring Type: | Single Rib Outer Ring One Retaining Ring in I.D. (U) | Inner Ring Bore Radius (mm): | 2.03 mm |
| Series Weight: | Light (2) | Series: | Unmounted Bearings |
| Basic Bearing Number: | 1211 | C Dynamic Load Rating: | CALL ENG lb |
| Rolling Element: | Cylindrical | Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 87.9 mm |
| Mounted Clearance: | SEE DESCRIPTION | Product: | Series 1200 Unmounted Bearings |
| Co Static Load Rating: | CALL ENG lb | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 91.4 mm |
| Inner Ring Raceway Outside Diameter (mm): | 66.9 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Bore Type: | Straight | Ring Width Series: | Narrow (1) |
| Bearing Width (mm): | 21 mm | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 87.96 mm |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 66.96 mm | Inner Ring Rib Outside Diameter (mm): | 70.74 mm |
| Vibration Frequency Roller Spin: | CALL ENG cps |
General Specifications
| UPC: | 662327688110 | Weight: | 1.57 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
