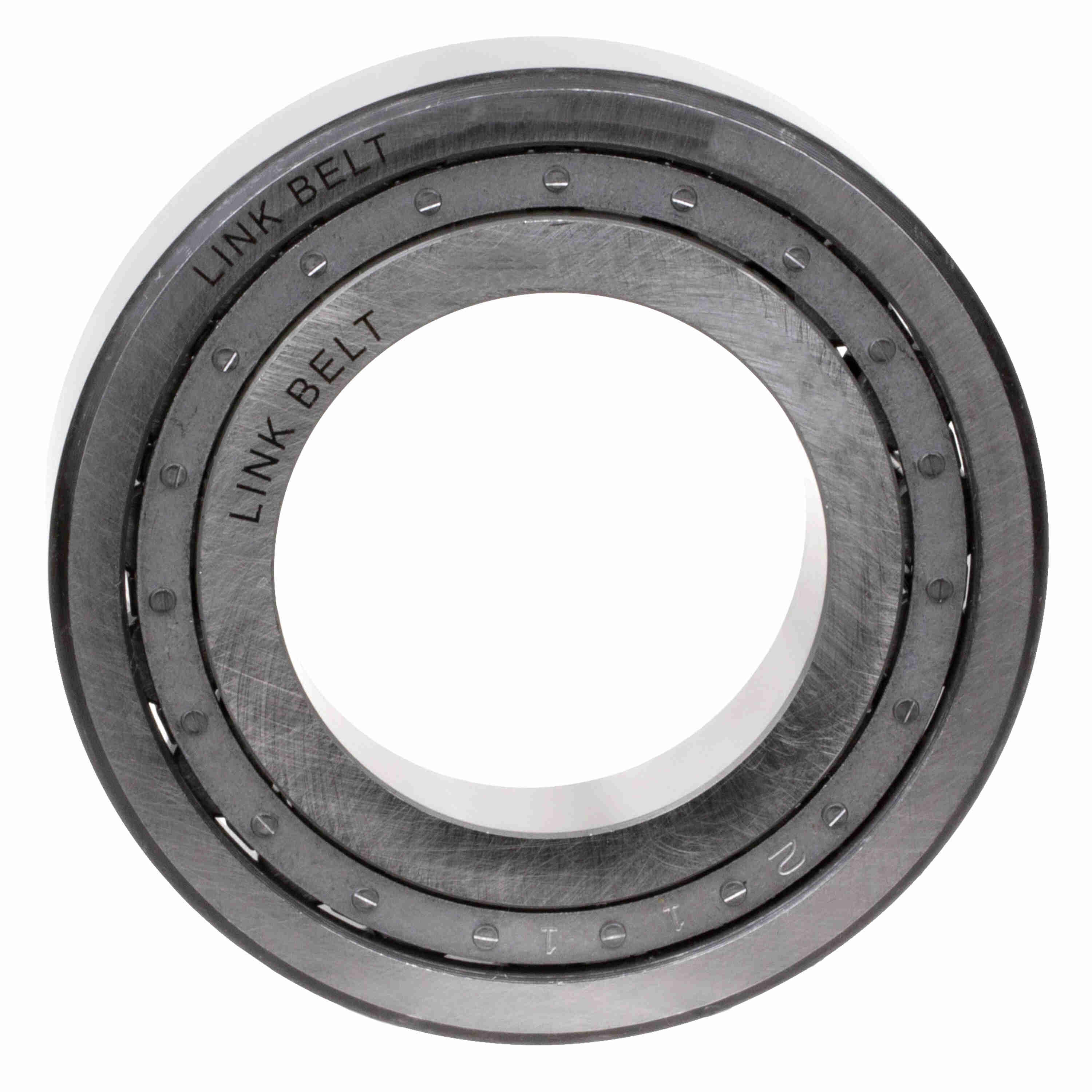

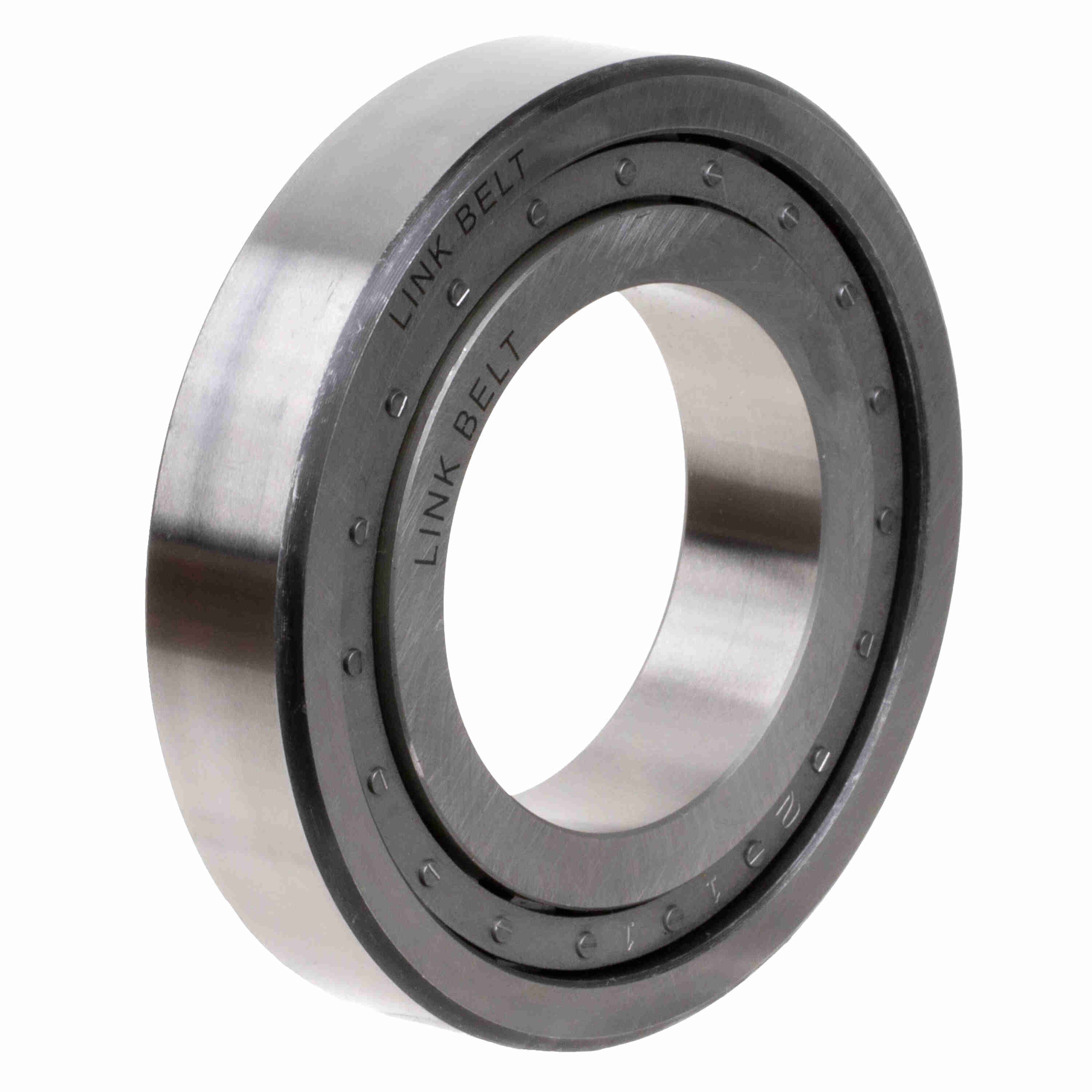

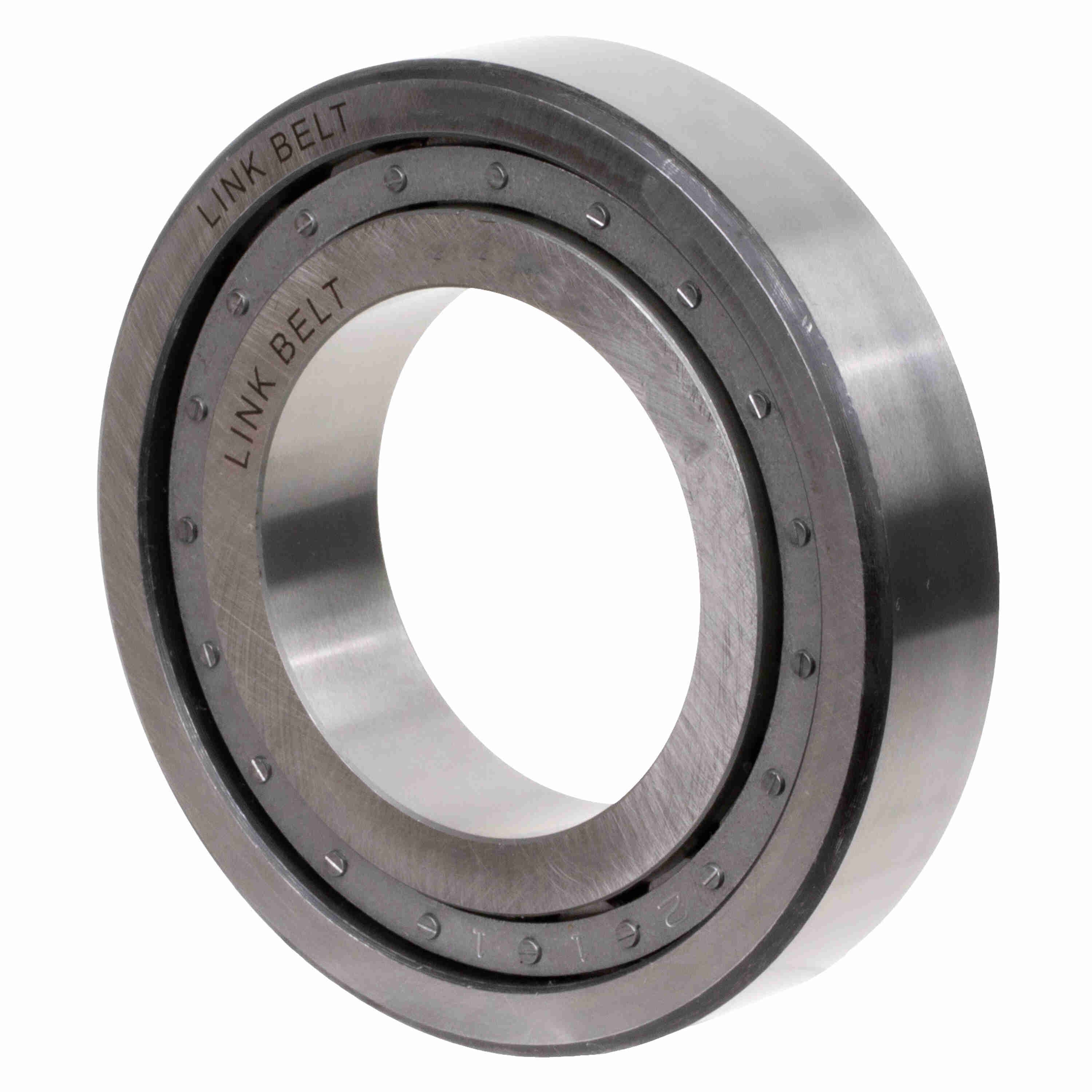

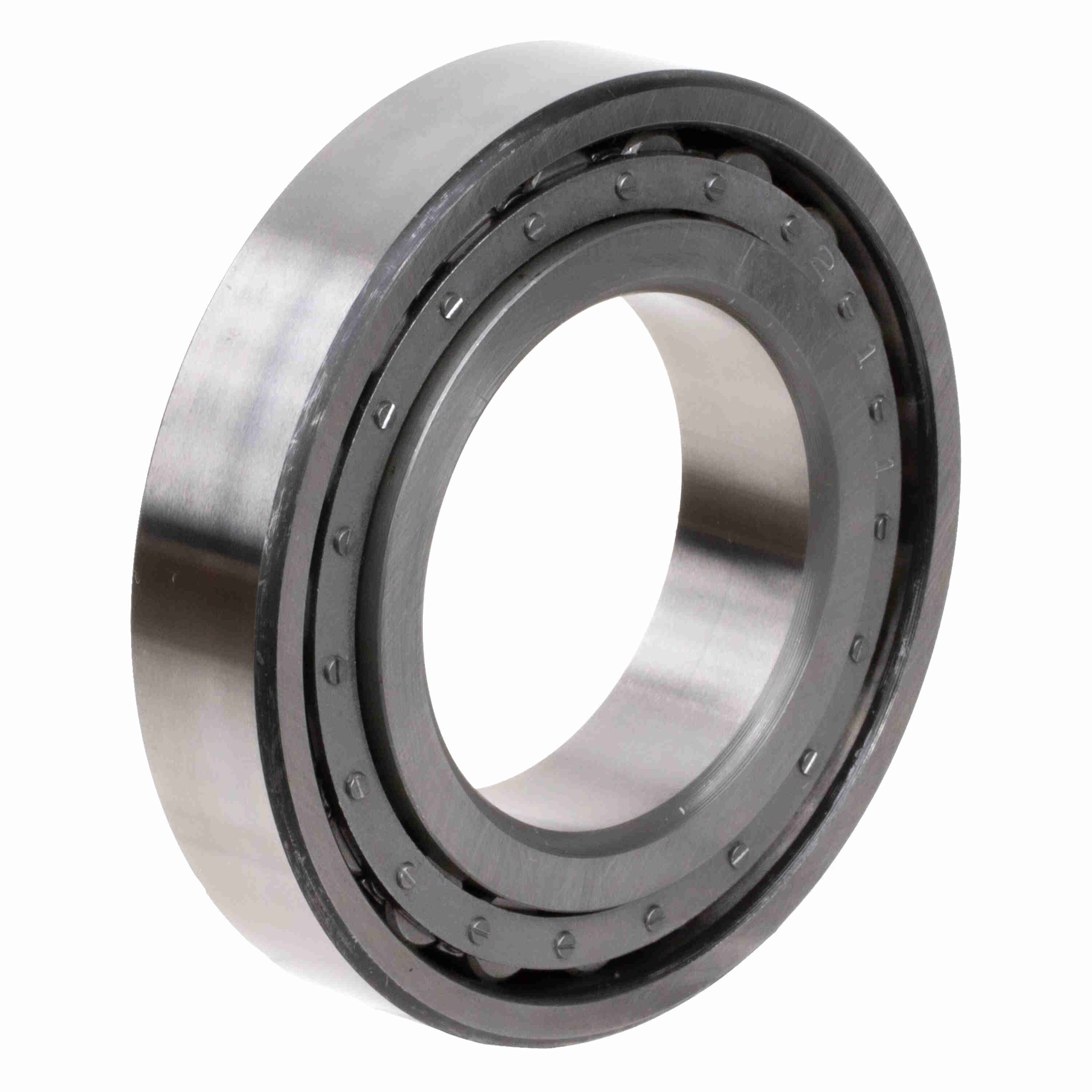

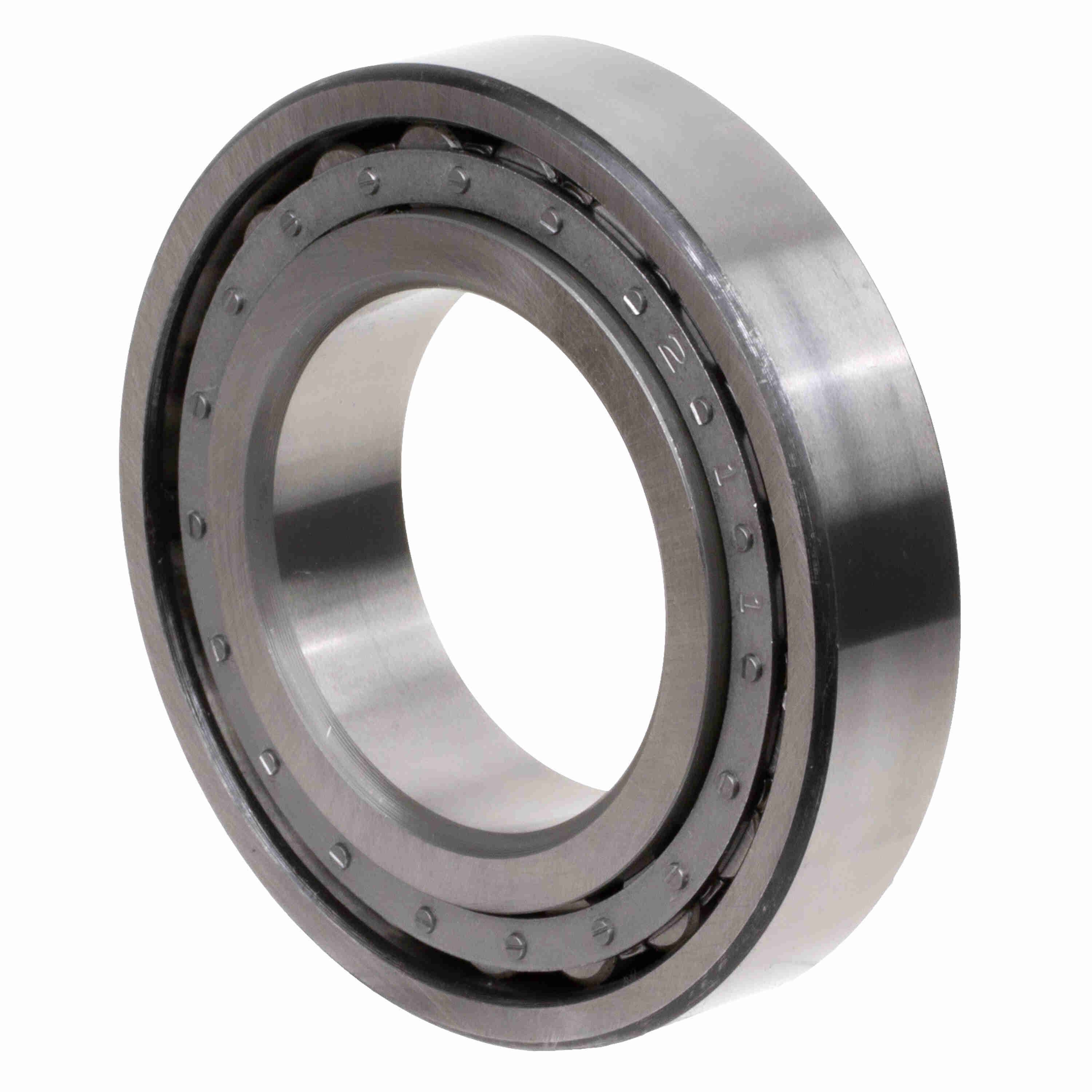

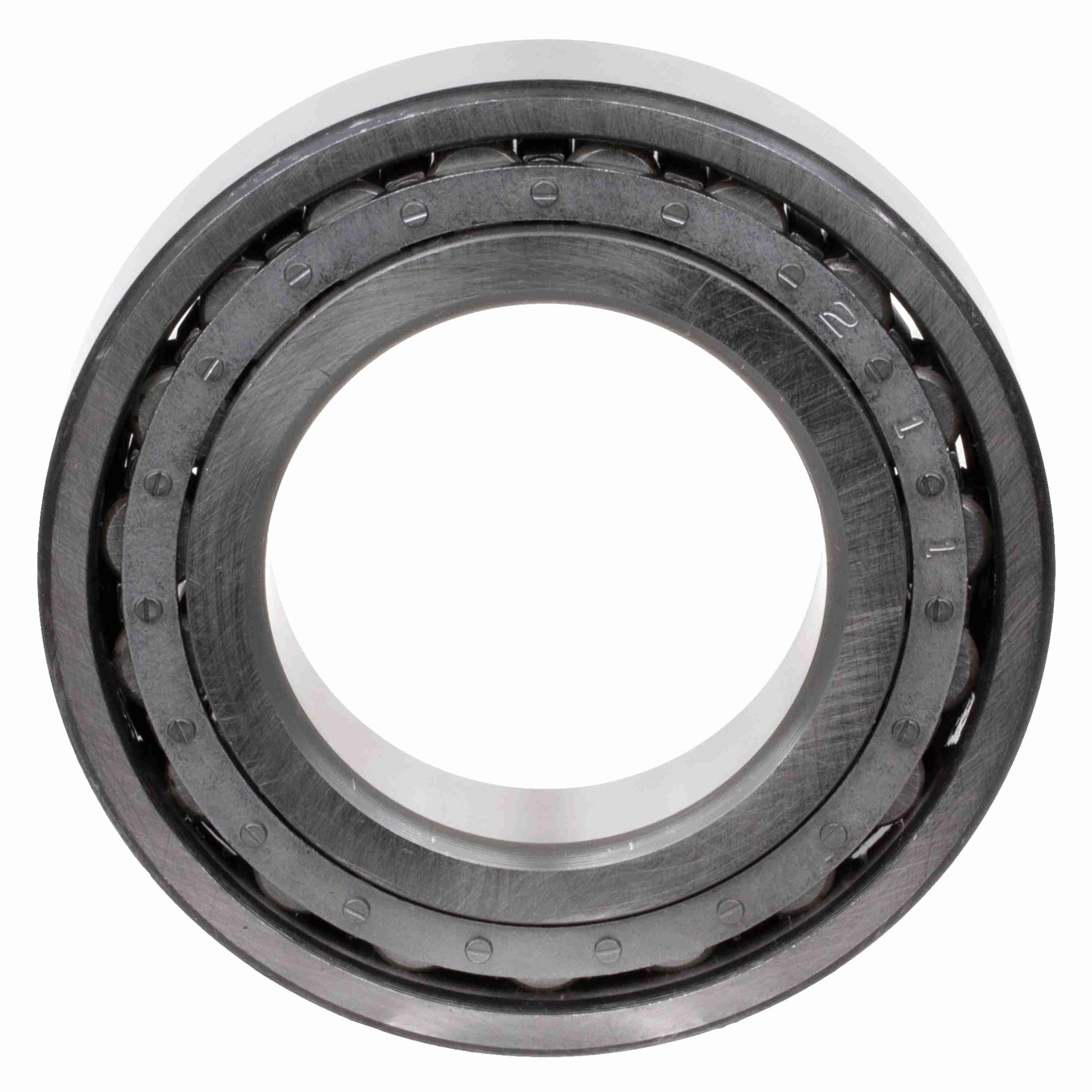

Link-Belt MU1308DX Unmounted Bearings Cylindrical Roller Bearings - MU1308DX
Part #:10474433
Catalog #:MU1308DX
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 90 mm | Bore Size (mm): | 40 mm |
Technical Specifications
| Mounted Clearance: | SEE DESCRIPTION | Rolling Element: | Cylindrical |
| Product: | Series 1300 Unmounted Bearings | Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 77.5 mm |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Series Weight: | Medium (3) |
| Basic Bearing Number: | 1308 | Bearing Width (mm): | 23 mm |
| Shaft Locking: | DIRECT SHAFT MOUNT | Inner Ring Type: | Double Rib (U) |
| Vibration Frequency Roller Spin: | CALL ENG cps | Outer Ring Type: | Single Rib Outer Ring (D) |
| Inner Ring Raceway Outside Diameter (mm): | 52.3 mm | Inner Ring Rib Outside Diameter (mm): | 57 mm |
| Outer Ring Raceway Inside Diameter (mm): | 77.66 mm | Inner Ring Bore Radius (mm): | 1.52 mm |
| C Dynamic Load Rating: | CALL ENG lb | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 81.3 mm |
| Outer Ring Rib Inside Diameter (mm): | 73.33 mm | Retainer Type: | SEE DESCRIPTION |
| Co Static Load Rating: | CALL ENG lb | Maximum Speed (RPM): | CALL ENG rpm |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 77.62 mm |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 52.34 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 52.1 mm | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 49 mm |
| Series: | Unmounted Bearings | Ring Width Series: | Narrow (1) |
General Specifications
| UPC: | 662327057855 | Weight: | 1.64 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
