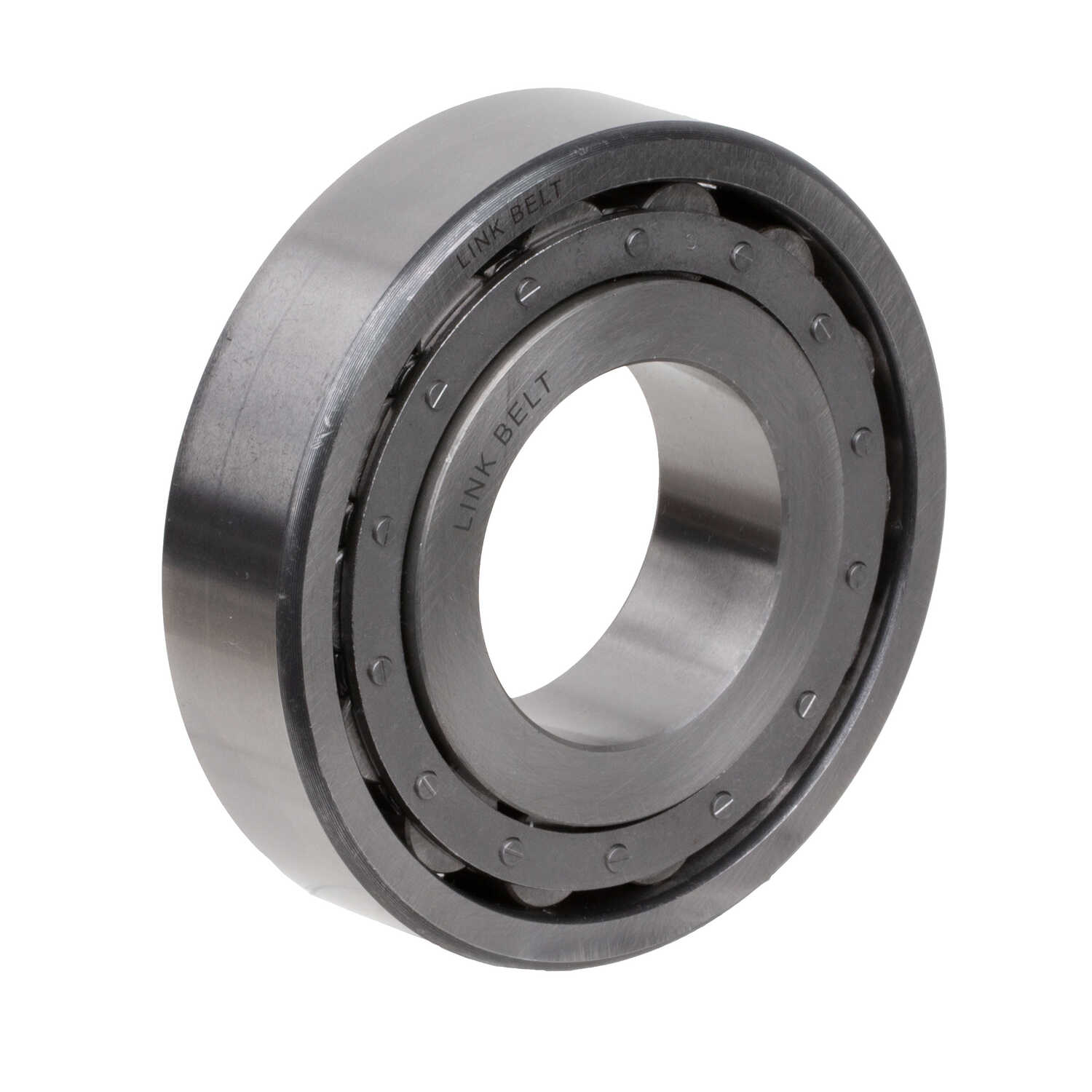

Link-Belt MU1309CX Unmounted Bearings Cylindrical Roller Bearings - MU1309CX
Part #:10472053
Catalog #:MU1309CX
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (mm): | 100 mm | Bore Size (mm): | 45 mm |
Technical Specifications
| Shaft Locking: | DIRECT SHAFT MOUNT | Outer Ring and Roller Assembly Under Roller Diameter (mm): | 59.41 mm |
| Bearing Width (mm): | 25 mm | Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 59.2 mm |
| Vibration Frequency Roller Spin: | CALL ENG cps | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 55.9 mm |
| Inner Ring Raceway Outside Diameter (mm): | 59.36 mm | Inner Ring Type: | Double Rib (U) |
| Product: | Series 1300 Unmounted Bearings | Outer Ring Rib Inside Diameter (mm): | 81.48 mm |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Inner Ring Bore Radius (mm): | 1.52 mm |
| Inner Ring and Roller Assembly Over Roller Diameter (mm): | 86.06 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Co Static Load Rating: | CALL ENG lb | Retainer Type: | SEE DESCRIPTION |
| Outer Ring Type: | Plain Cylindrical Outer Ring (C) | Rolling Element: | Cylindrical |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 85.8 mm | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Maximum Speed (RPM): | CALL ENG rpm | Mounted Clearance: | SEE DESCRIPTION |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 90.4 mm | C Dynamic Load Rating: | CALL ENG lb |
| Series Weight: | Medium (3) | Basic Bearing Number: | 1309 |
| Outer Ring Raceway Inside Diameter (mm): | 86.1 mm | Inner Ring Rib Outside Diameter (mm): | 64.31 mm |
| Series: | Unmounted Bearings | Ring Width Series: | Narrow (1) |
General Specifications
| UPC: | 662327057985 | Weight: | 2.17 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
