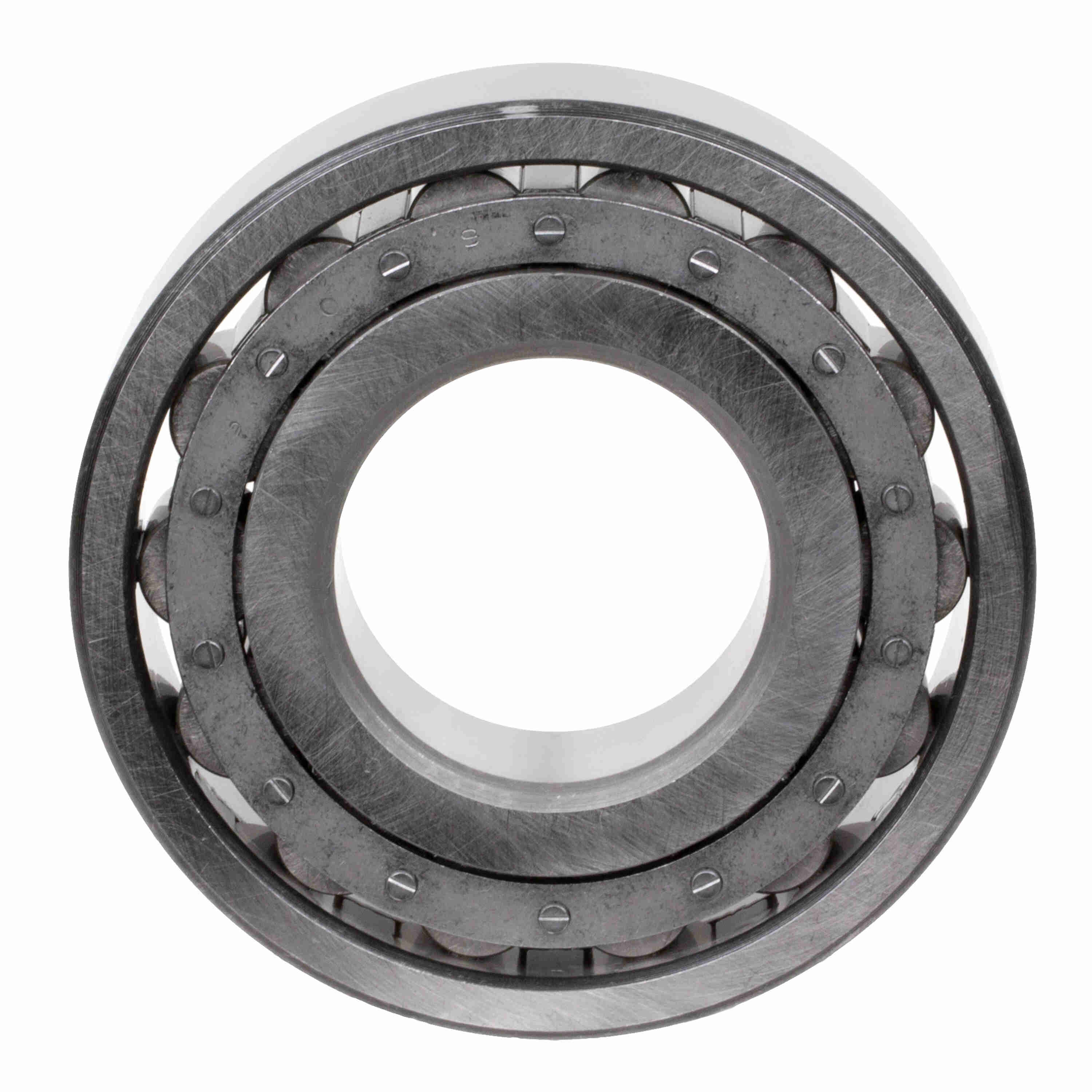

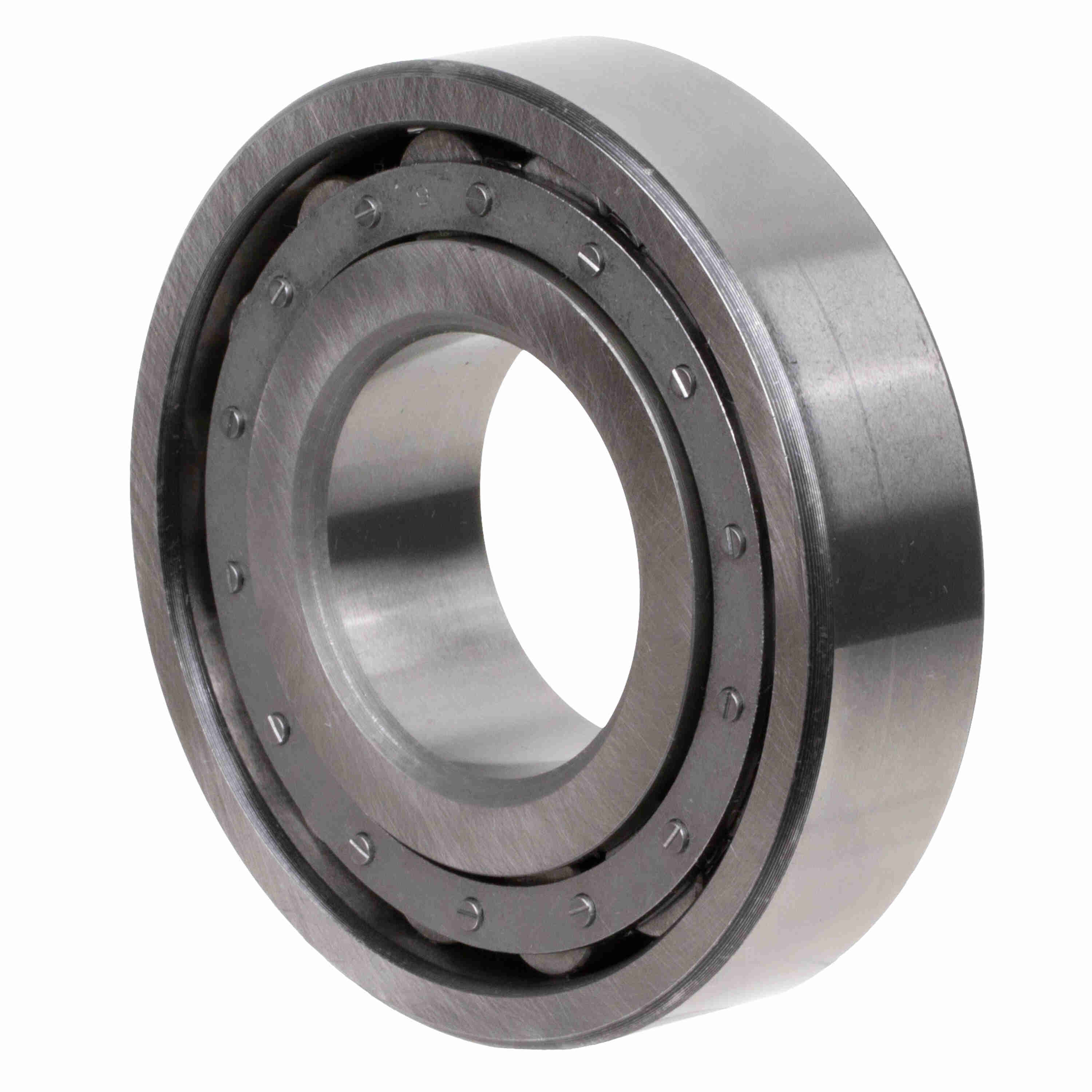

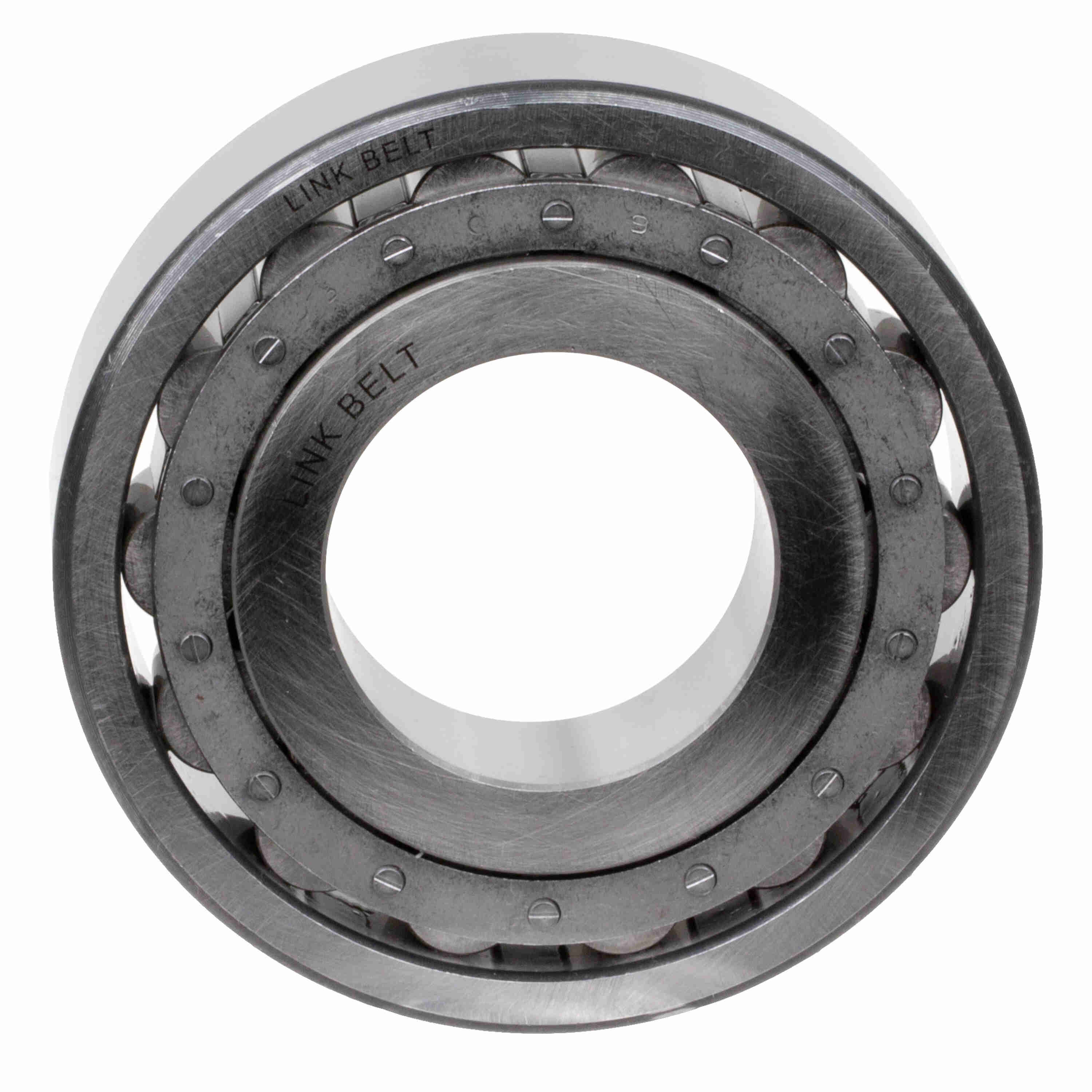

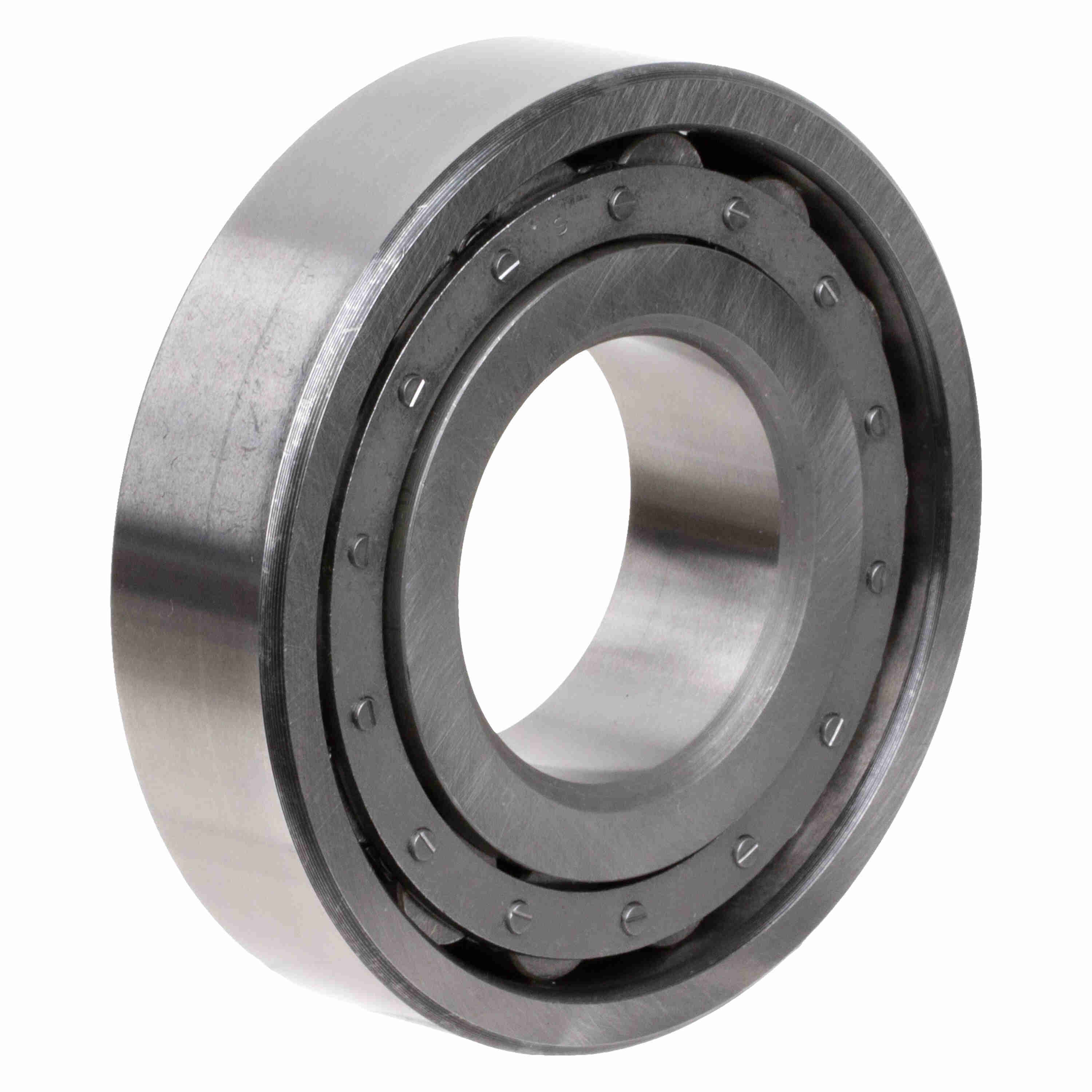

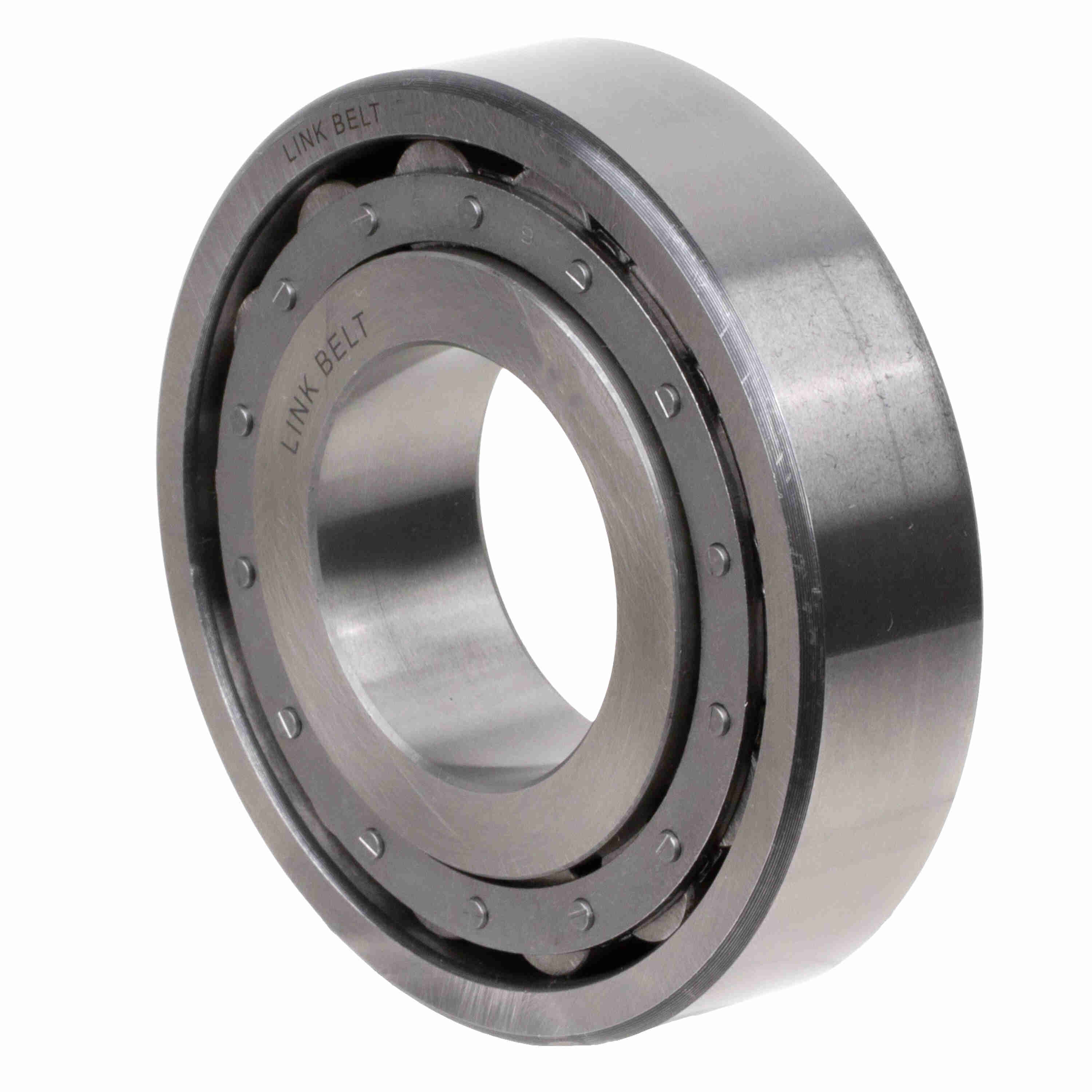

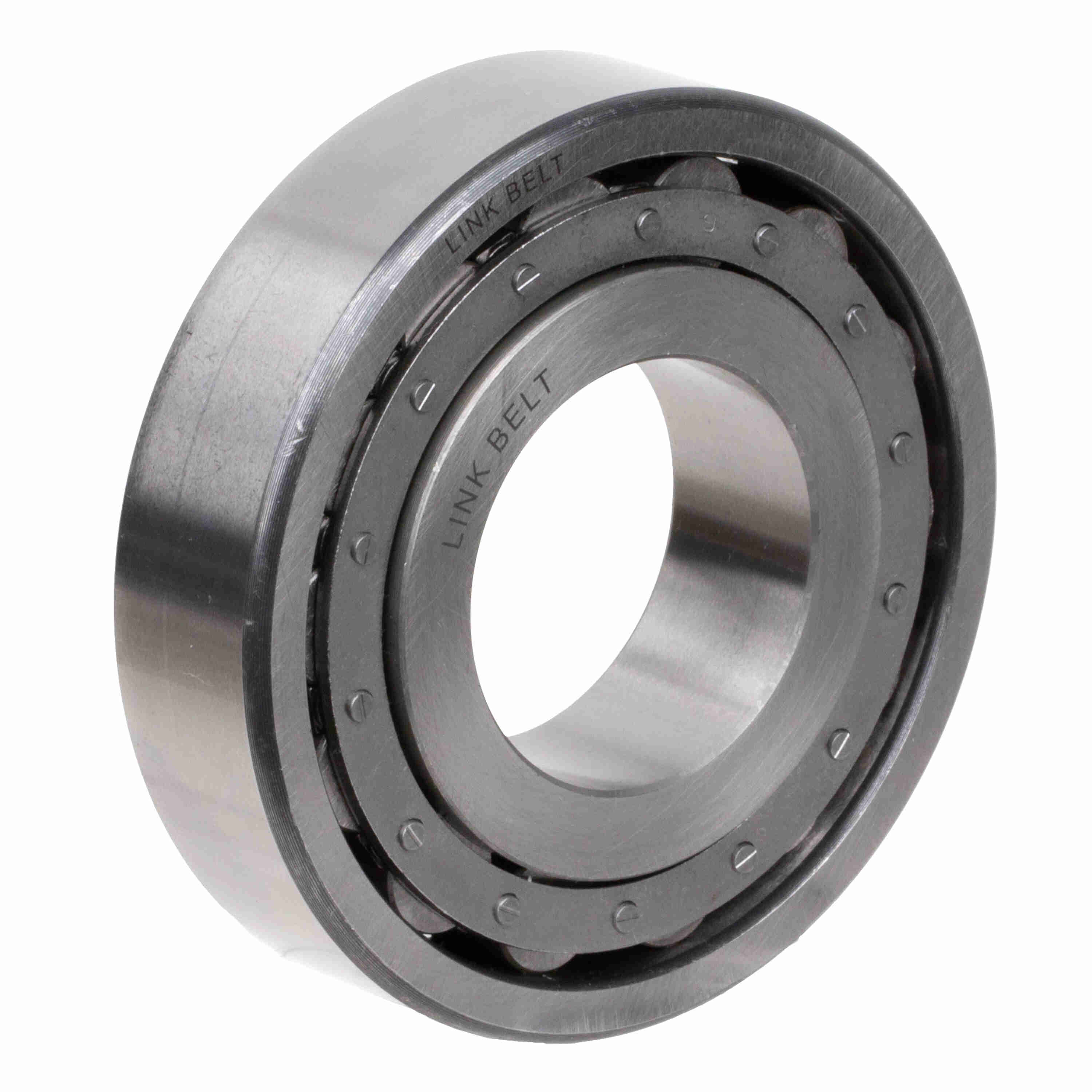

Link-Belt MU1310GCX Unmounted Bearings Cylindrical Roller Bearings - MU1310GCX
Part #:10474741
Catalog #:MU1310GCX
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 50 mm | Outside Diameter (mm): | 110 mm |
Technical Specifications
| Series: | Unmounted Bearings | Inner Ring Rib Outside Diameter (mm): | 70.64 mm |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 94.44 mm |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 61 mm | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| C Dynamic Load Rating: | CALL ENG lb | Rolling Element: | Cylindrical |
| Retainer Type: | SEE DESCRIPTION | Outer Ring and Roller Assembly Under Roller Diameter (mm): | 65.19 mm |
| Bearing Width (mm): | 27 mm | Co Static Load Rating: | CALL ENG lb |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 99.1 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Shaft Locking: | DIRECT SHAFT MOUNT | Mounted Clearance: | SEE DESCRIPTION |
| Vibration Frequency Roller Spin: | CALL ENG cps | Outer Ring Type: | Plain Cylindrical Outer Ring (C) |
| Maximum Speed (RPM): | CALL ENG rpm | Outer Ring Rib Inside Diameter (mm): | 89.36 mm |
| Product: | Series 1300 Unmounted Bearings | Ring Width Series: | Narrow (1) |
| Inner Ring Raceway Outside Diameter (mm): | 65.15 mm | Outer Ring Raceway Inside Diameter (mm): | 94.49 mm |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 65 mm | Inner Ring Type: | Double Rib (U) |
| Basic Bearing Number: | 1310 | Series Weight: | Medium (3) |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 94.5 mm | Inner Ring Bore Radius (mm): | 2.03 mm |
General Specifications
| UPC: | 662327750053 | Weight: | 2.82 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
