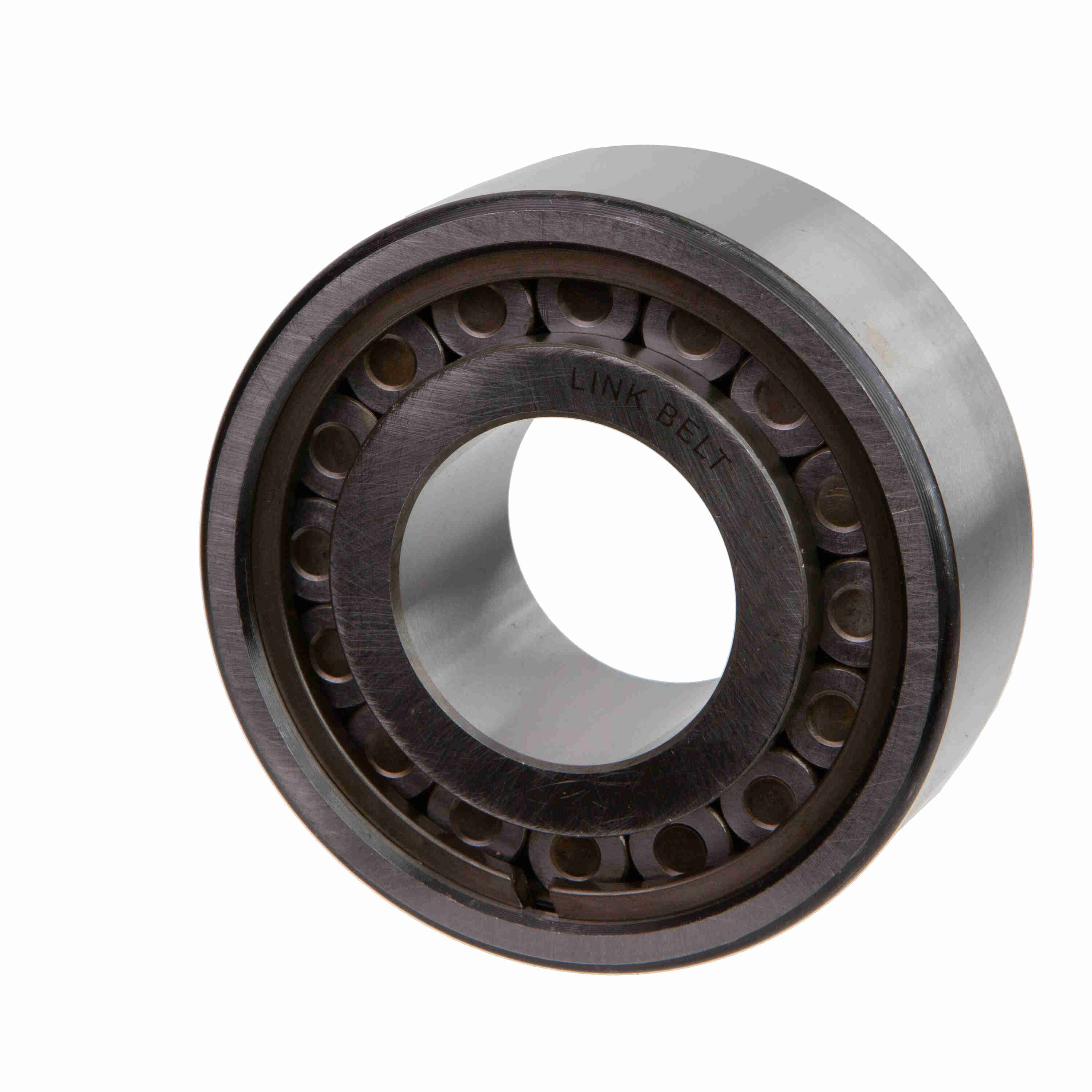

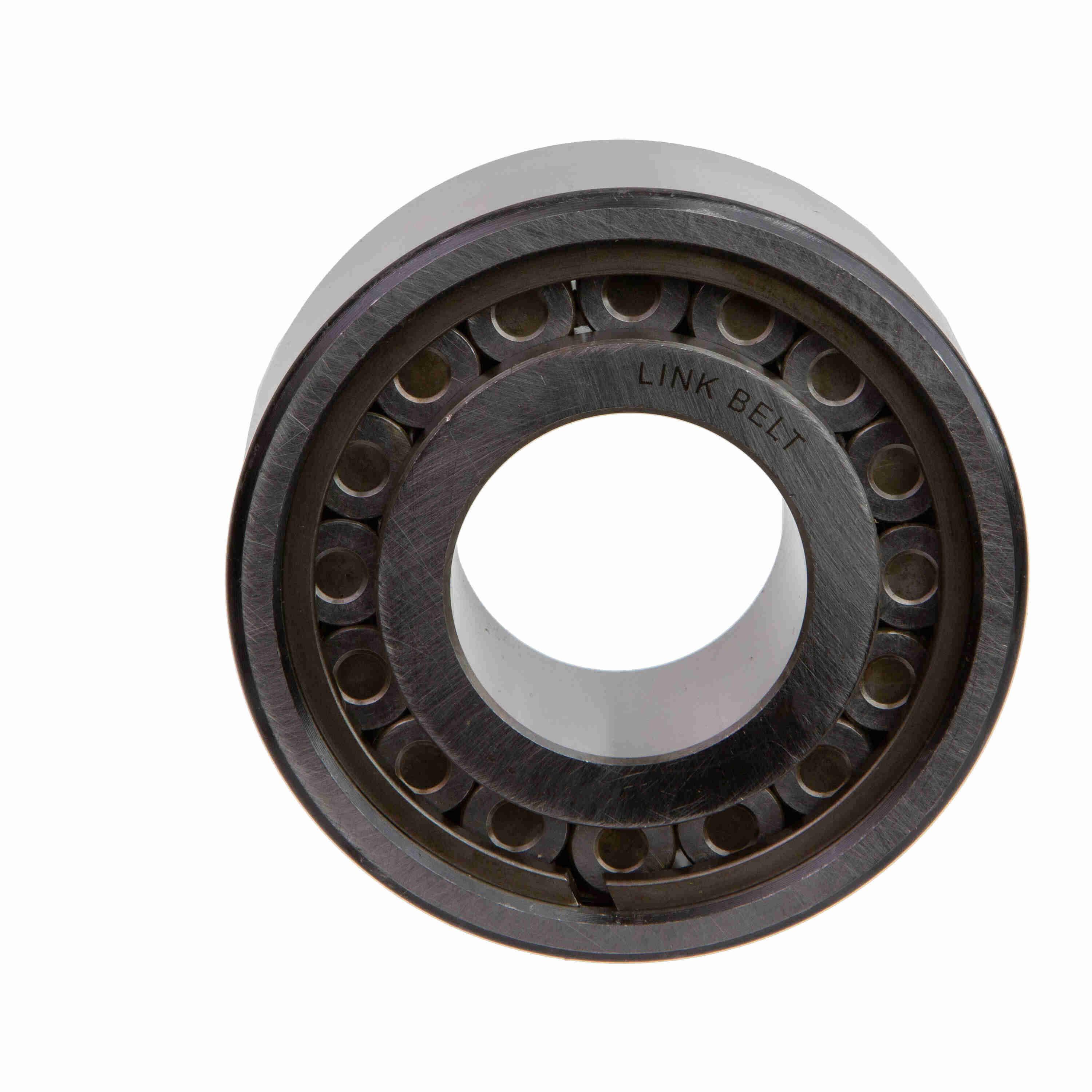

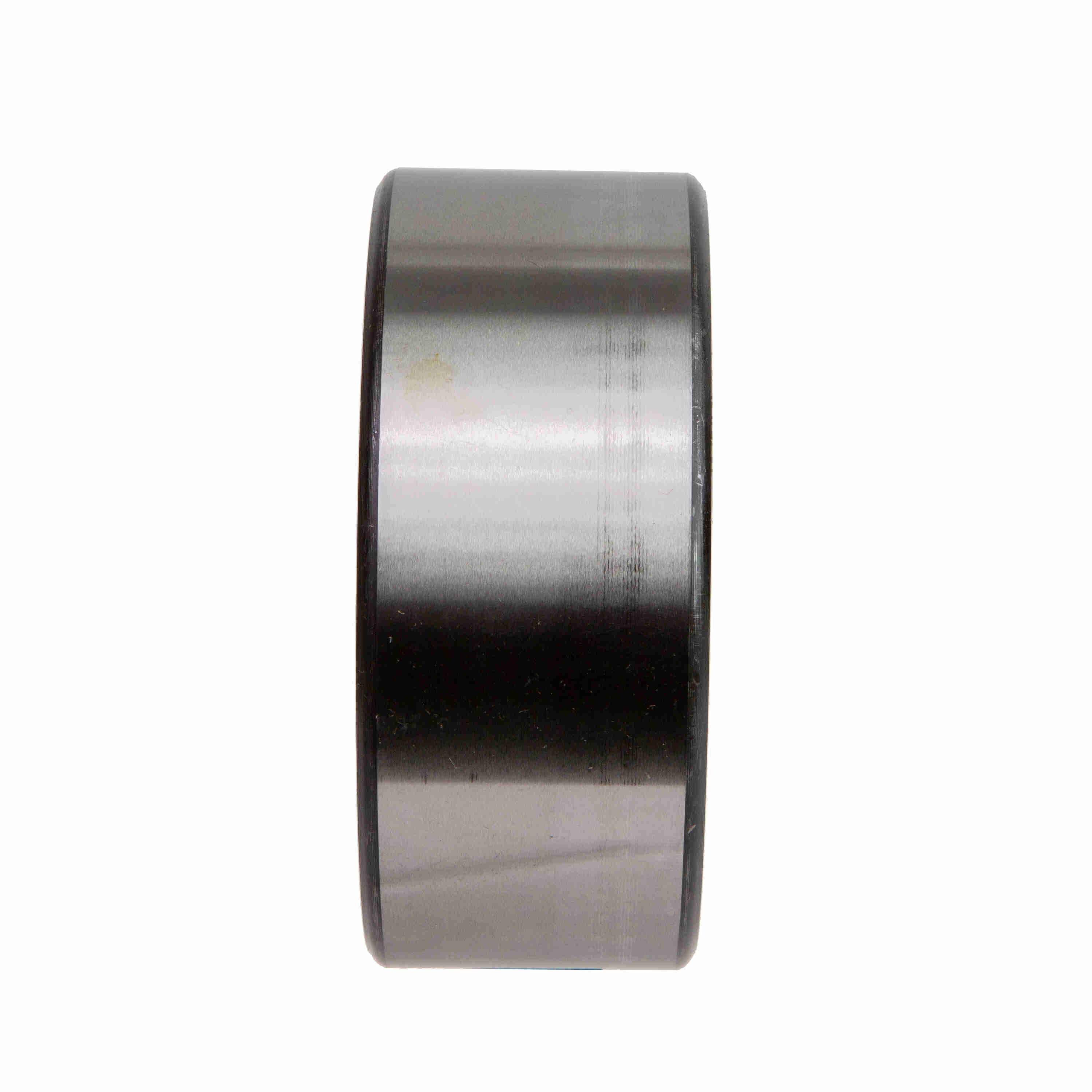

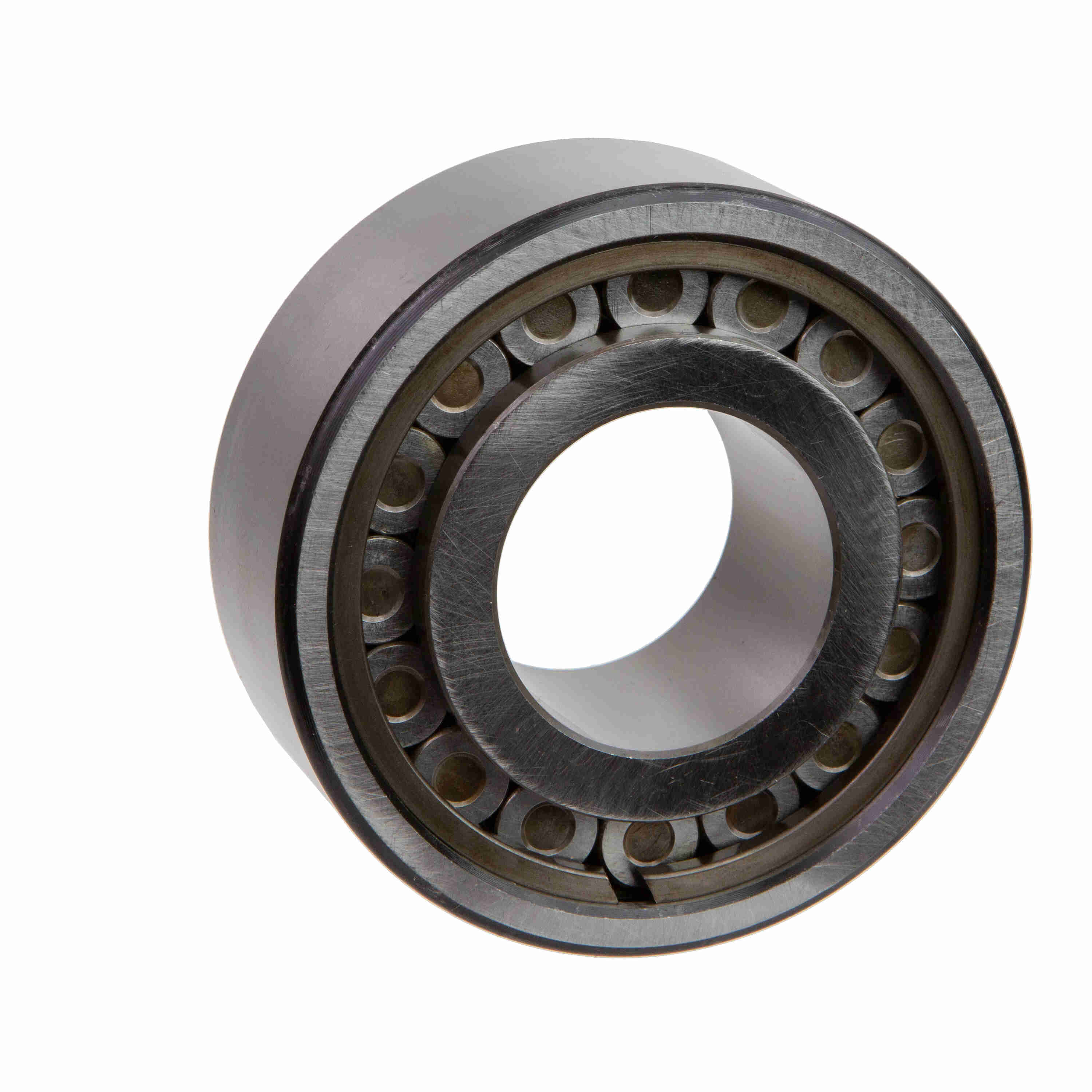

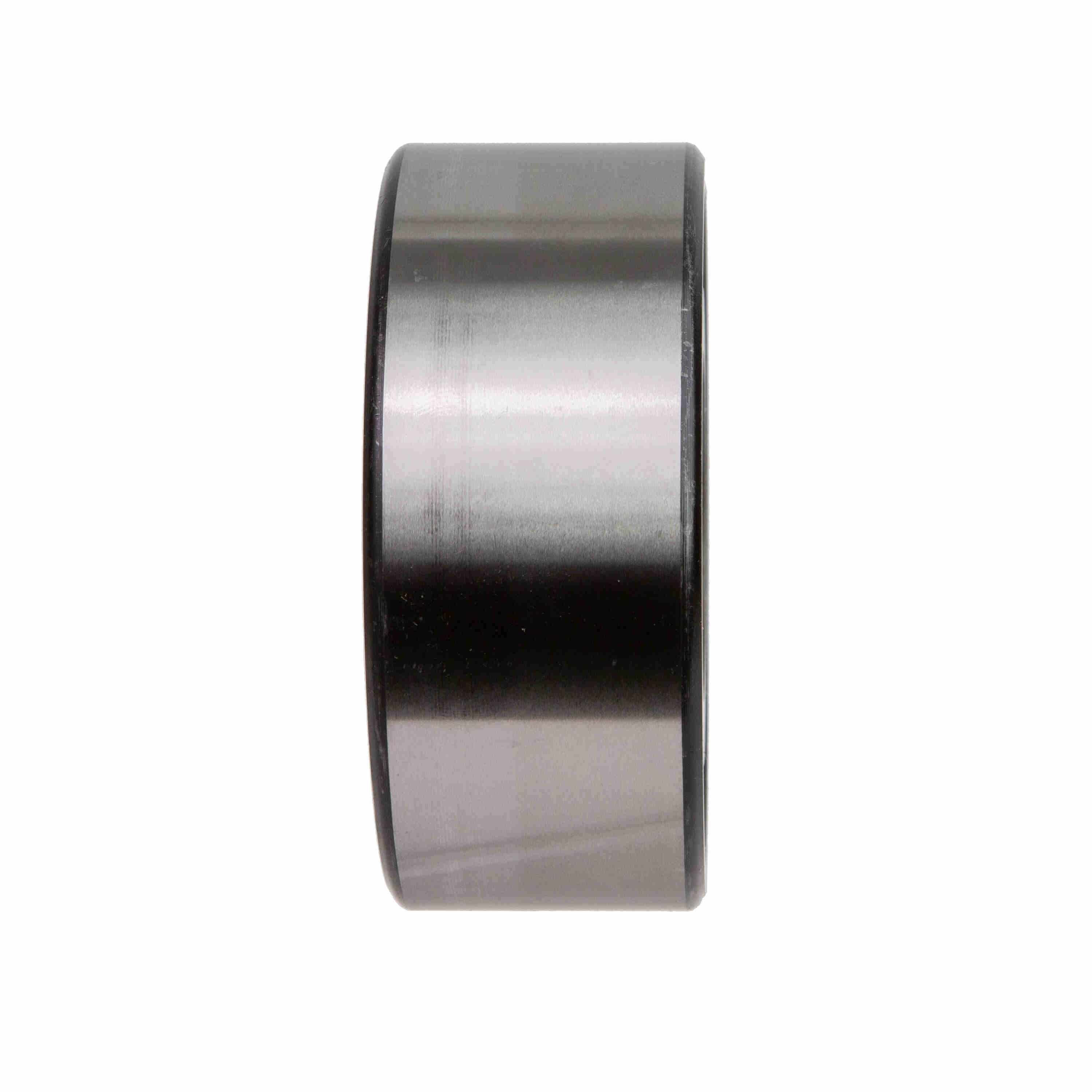

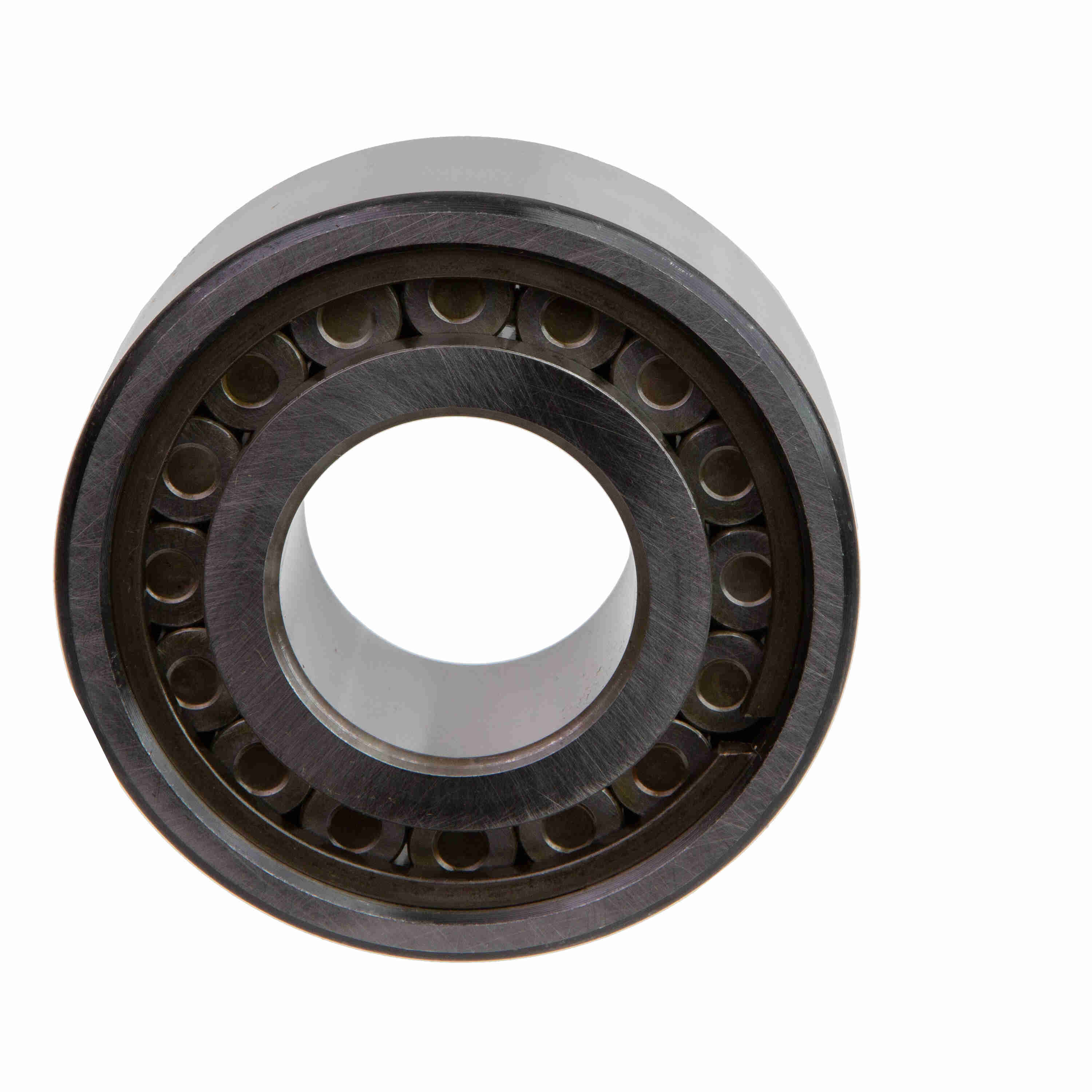

Link-Belt MU5211TM Unmounted Bearings Cylindrical Roller Bearings - MU5211TM
Part #:10471152
Catalog #:MU5211TM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 55 mm | Outside Diameter (mm): | 100 mm |
Technical Specifications
| Inner Ring Type: | Double Rib (U) | Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 87.9 mm |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 66.8 mm | Inner Ring Bore Radius (mm): | 1.52 mm |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 66.96 mm | Bore Type: | Straight |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 91.4 mm | Shaft Locking: | DIRECT SHAFT MOUNT |
| Inner Ring Rib Outside Diameter (mm): | 70.74 mm | Series Weight: | Light (2) |
| Rolling Element: | Cylindrical | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Outer Ring Rib Inside Diameter (mm): | 84.53 mm | Product: | Series 5200 Unmounted Bearings |
| Retainer Type: | SEE DESCRIPTION | Basic Bearing Number: | 5211 |
| Inner Ring Raceway Outside Diameter (mm): | 66.9 mm | Maximum Speed (RPM): | CALL ENG rpm |
| Bearing Width (mm): | 33.34 mm | C Dynamic Load Rating: | CALL ENG lb |
| Mounted Clearance: | SEE DESCRIPTION | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Outer Ring Raceway Inside Diameter (mm): | 88.02 mm | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 87.96 mm |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 64 mm | Co Static Load Rating: | CALL ENG lb |
| Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) | Ring Width Series: | Wide (5) |
| Vibration Frequency Roller Spin: | CALL ENG cps | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Series: | Unmounted Bearings |
General Specifications
| UPC: | 662327059071 | Weight: | 2.56 LB |
| HTC: | 8482500000 | Country of Origin: | Mexico |
