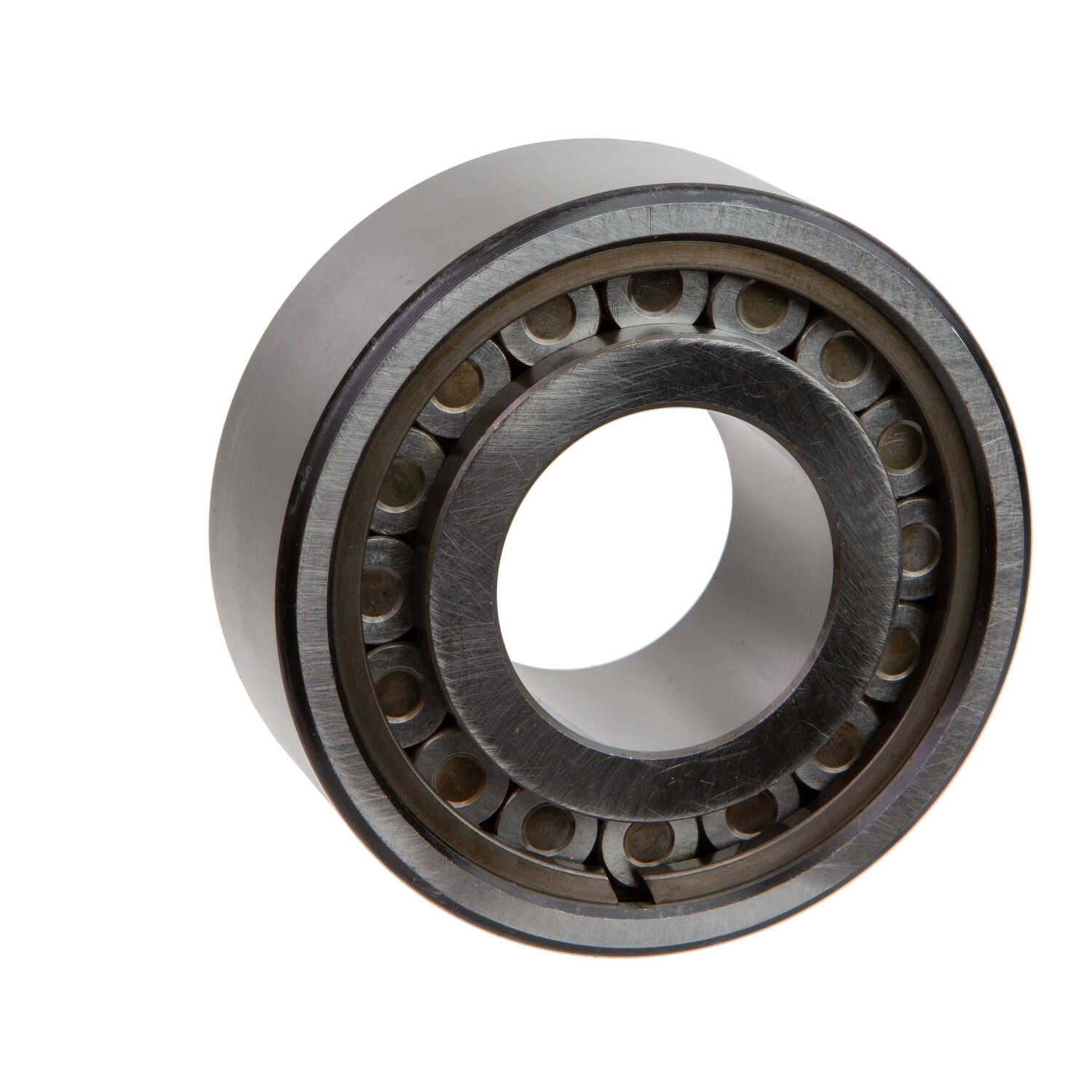

Link-Belt MU5308TM Unmounted Bearings Cylindrical Roller Bearings - MU5308TM
Part #:10471038
Catalog #:MU5308TM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 40 mm | Outside Diameter (mm): | 90 mm |
Technical Specifications
| Inner Ring Bore Radius (mm): | 1.52 mm | Bearing Width (mm): | 36.51 mm |
| Vibration Frequency Fundamental Train: | CALL ENG cps | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 77.62 mm |
| Co Static Load Rating: | CALL ENG lb | Series: | Unmounted Bearings |
| Vibration Frequency Roller Spin: | CALL ENG cps | Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 77.5 mm |
| Bore Type: | Straight | Product: | Series 5300 Unmounted Bearings |
| Rolling Element: | Cylindrical | Shaft Locking: | DIRECT SHAFT MOUNT |
| Outer Ring Rib Inside Diameter (mm): | 73.33 mm | C Dynamic Load Rating: | CALL ENG lb |
| Mounted Clearance: | SEE DESCRIPTION | Retainer Type: | SEE DESCRIPTION |
| Series Weight: | Medium (3) | Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 49 mm | Inner Ring Type: | Double Rib (U) |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 52.34 mm | Basic Bearing Number: | 5308 |
| Maximum Speed (RPM): | CALL ENG rpm | Outer Ring Raceway Inside Diameter (mm): | 77.66 mm |
| Inner Ring Rib Outside Diameter (mm): | 57 mm | Inner Ring Raceway Outside Diameter (mm): | 52.3 mm |
| Ring Width Series: | Wide (5) | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 52.1 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 81.3 mm |
General Specifications
| UPC: | 662327059347 | Weight: | 1.17 KG |
| HTC: | 8482500000 | Country of Origin: | Mexico |
