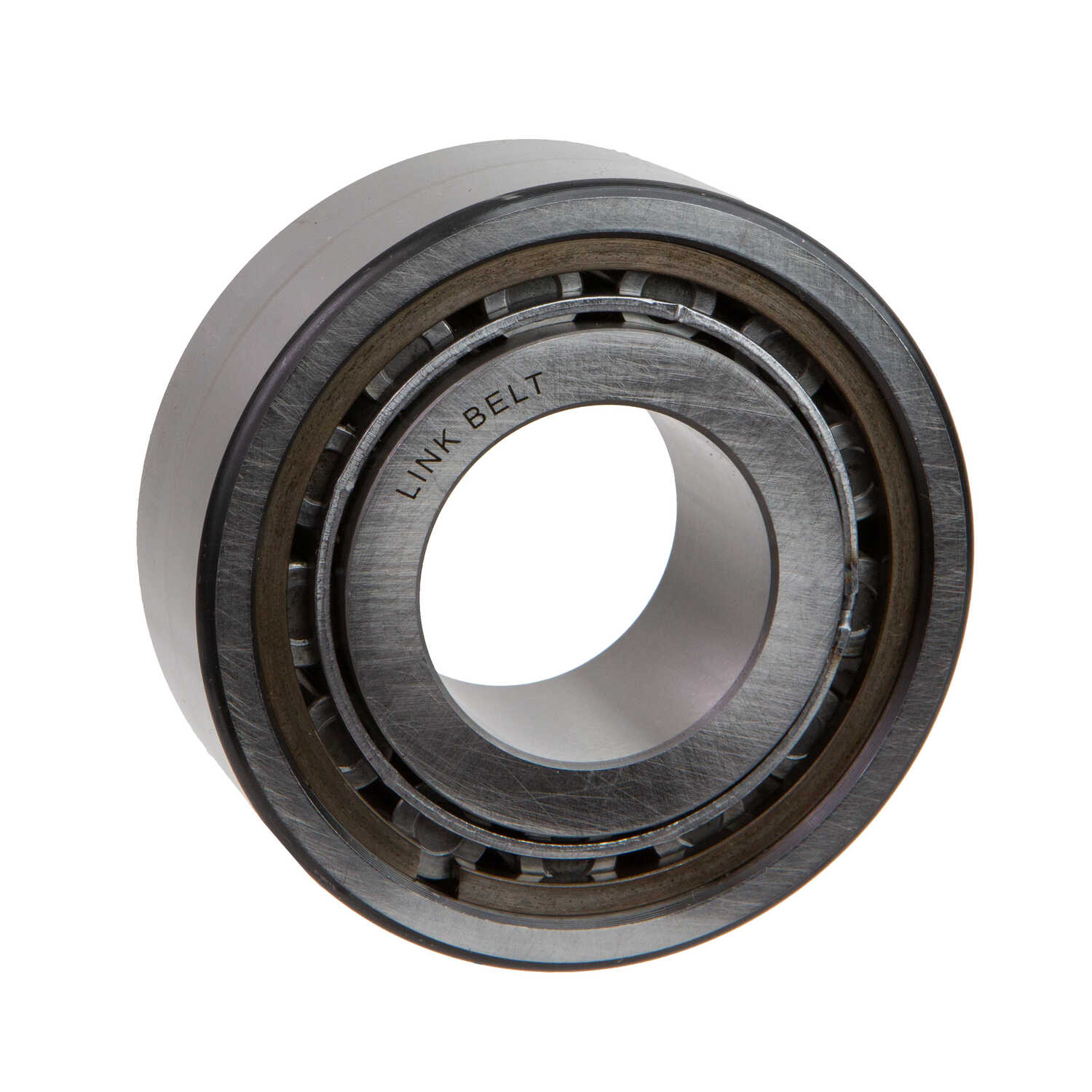

Link-Belt MU5309TV Unmounted Bearings Cylindrical Roller Bearings - MU5309TV
Part #:10066377
Catalog #:MU5309TV
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 45 mm | Outside Diameter (mm): | 100 mm |
Technical Specifications
| Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 90.4 mm | Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 55.9 mm |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 85.8 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) | Outer Ring Rib Inside Diameter (mm): | 81.48 mm |
| Outer Ring and Roller Assembly Under Roller Diameter (mm): | 59.41 mm | Maximum Speed (RPM): | CALL ENG rpm |
| Vibration Frequency Inner Ring Defect: | CALL ENG cps | Retainer Type: | SEE DESCRIPTION |
| Co Static Load Rating: | CALL ENG lb | Ring Width Series: | Wide (5) |
| Vibration Frequency Outer Ring Defect: | CALL ENG cps | Inner Ring Type: | Double Rib (U) |
| Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 59.2 mm | Basic Bearing Number: | 5309 |
| Series Weight: | Medium (3) | Inner Ring and Roller Assembly Over Roller Diameter (mm): | 86.06 mm |
| Shaft Locking: | DIRECT SHAFT MOUNT | Inner Ring Bore Radius (mm): | 1.52 mm |
| Bearing Width (mm): | 39.69 mm | Series: | Unmounted Bearings |
| Outer Ring Raceway Inside Diameter (mm): | 86.1 mm | C Dynamic Load Rating: | CALL ENG lb |
| Product: | Series 5300 Unmounted Bearings | Mounted Clearance: | SEE DESCRIPTION |
| Inner Ring Raceway Outside Diameter (mm): | 59.36 mm | Bore Type: | Straight |
| Rolling Element: | Cylindrical | Inner Ring Rib Outside Diameter (mm): | 64.31 mm |
| Vibration Frequency Roller Spin: | CALL ENG cps |
General Specifications
| UPC: | 662327059378 | Weight: | 3.34 LB |
| Packaged Length: | 1.56 IN | Packaged Width: | 3.94 IN |
| Packaged Height: | 1.77 IN | HTC: | 8482500000 |
| Country of Origin: | Mexico |
