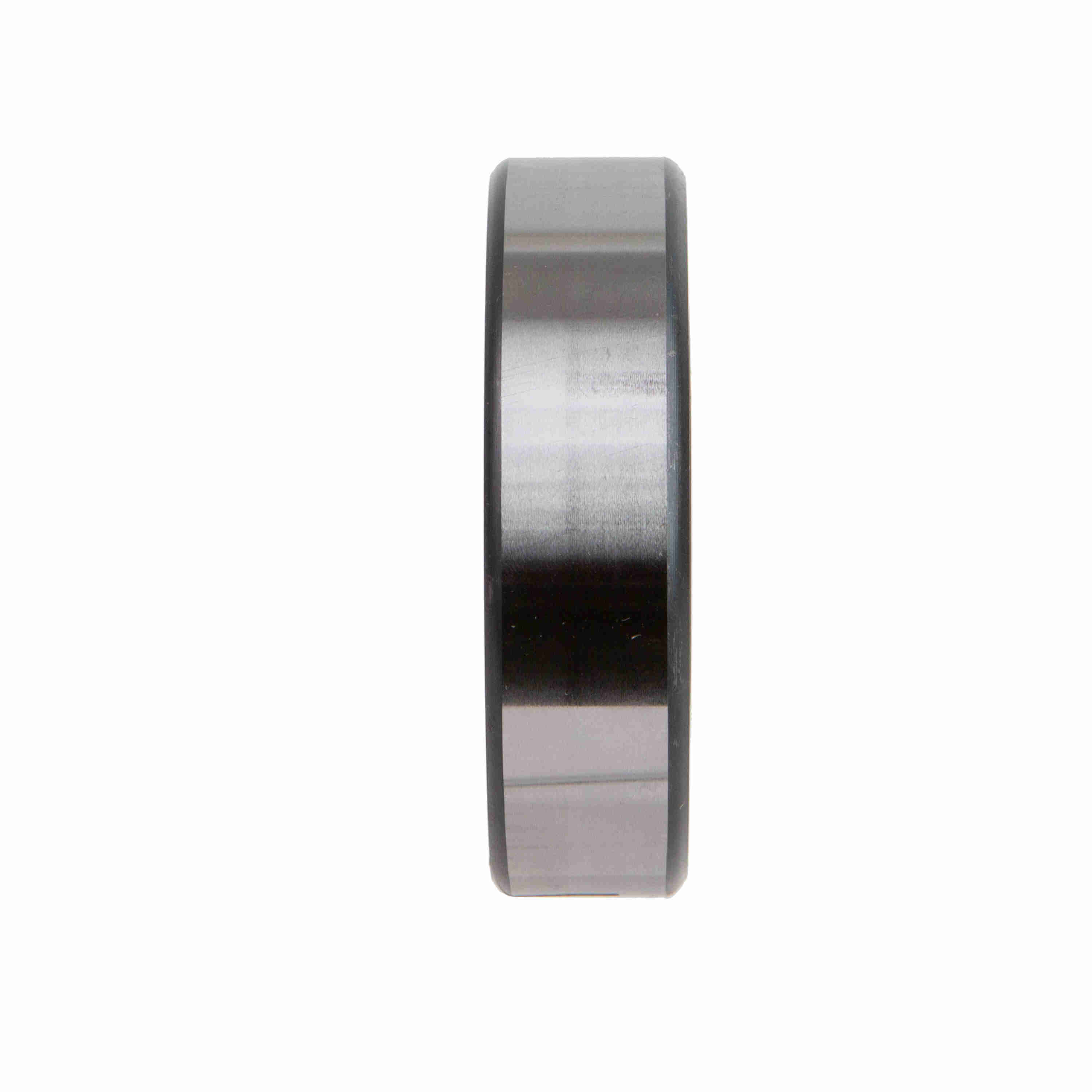

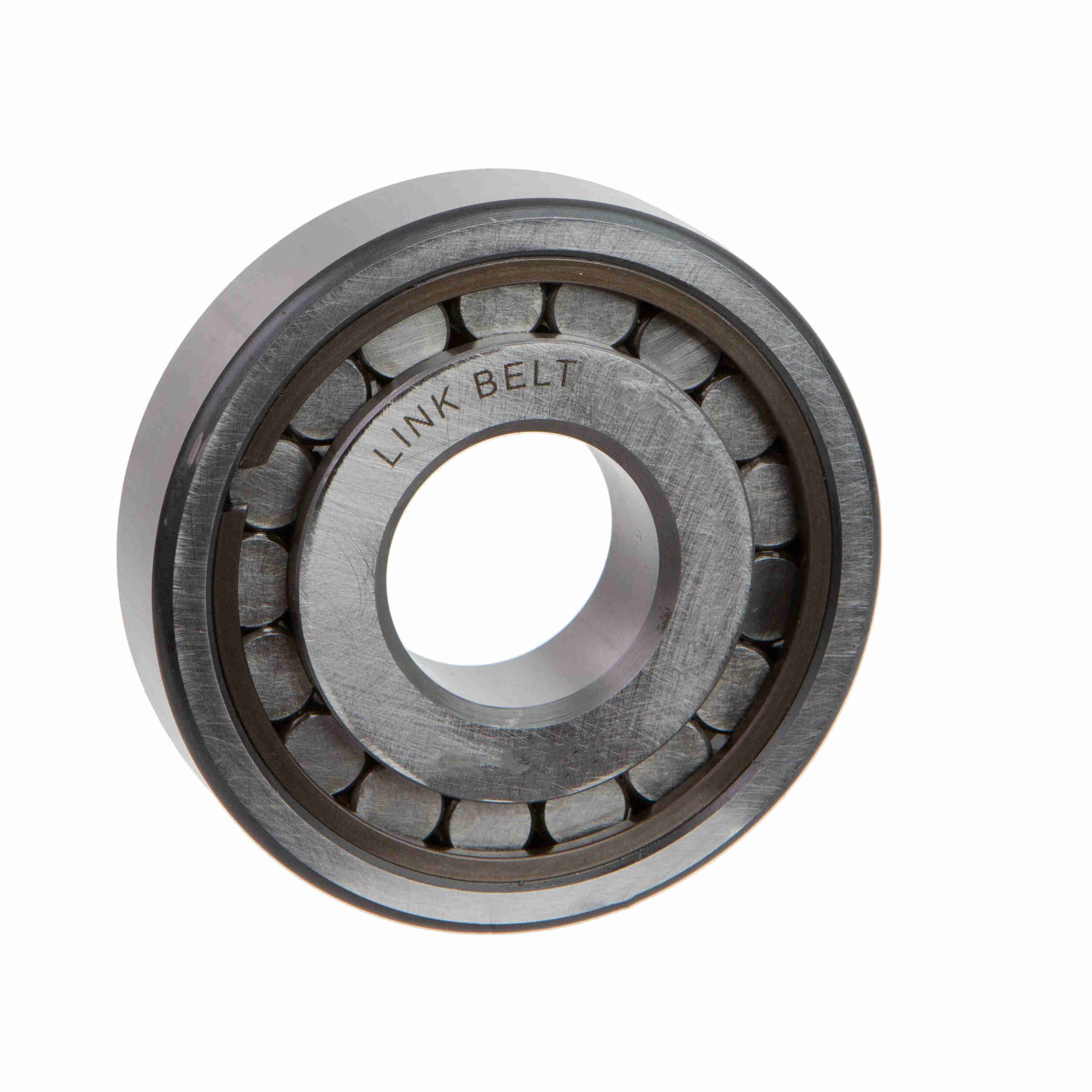

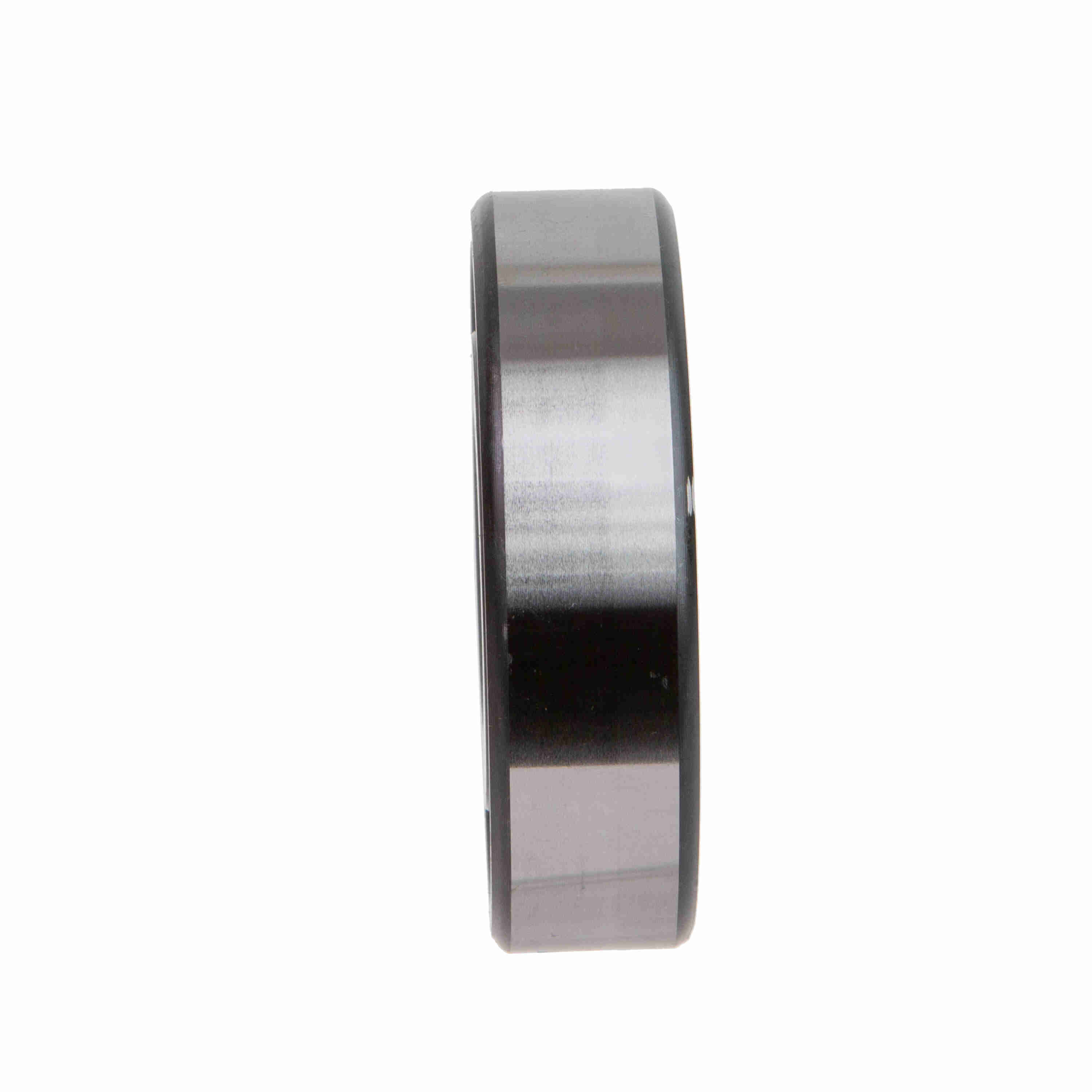

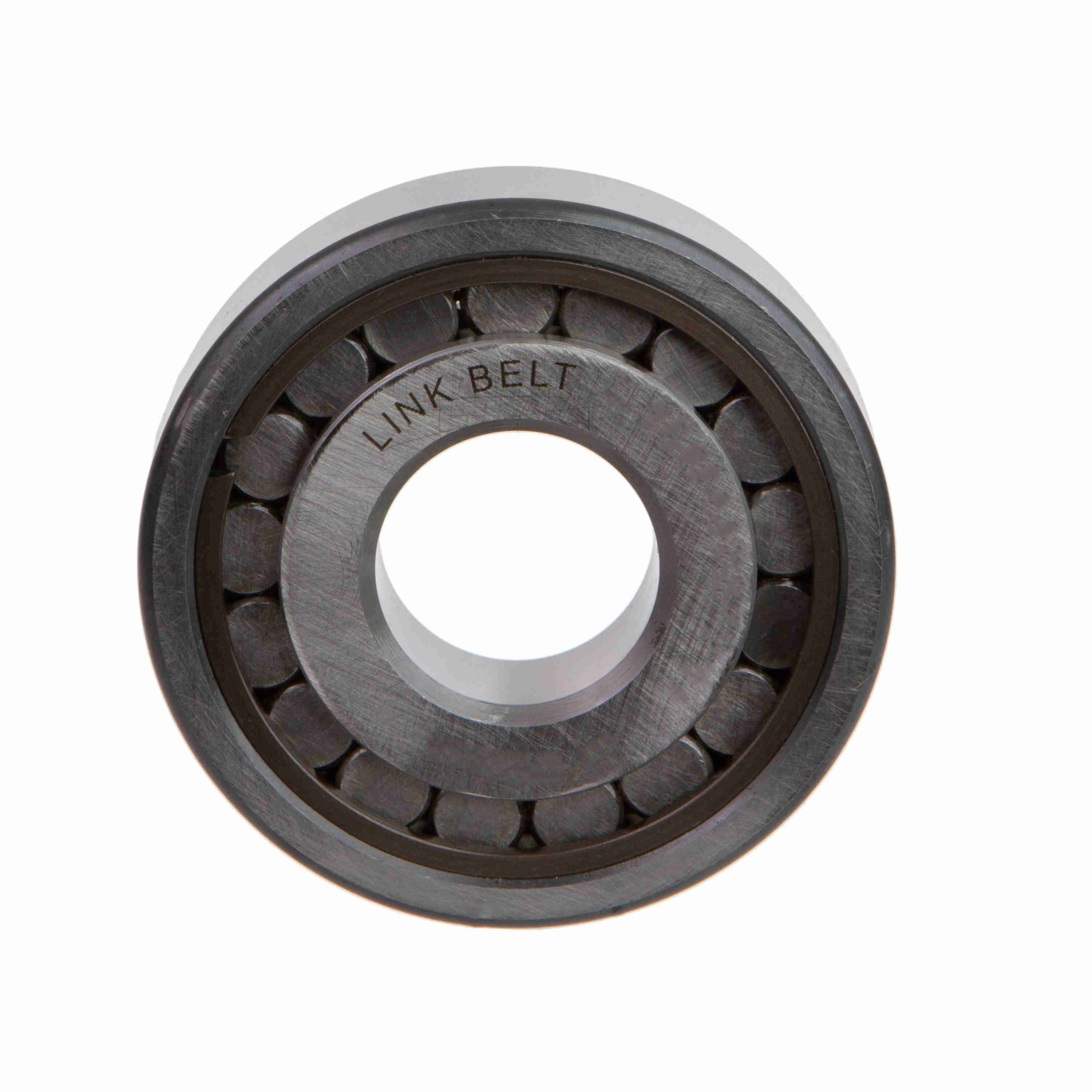

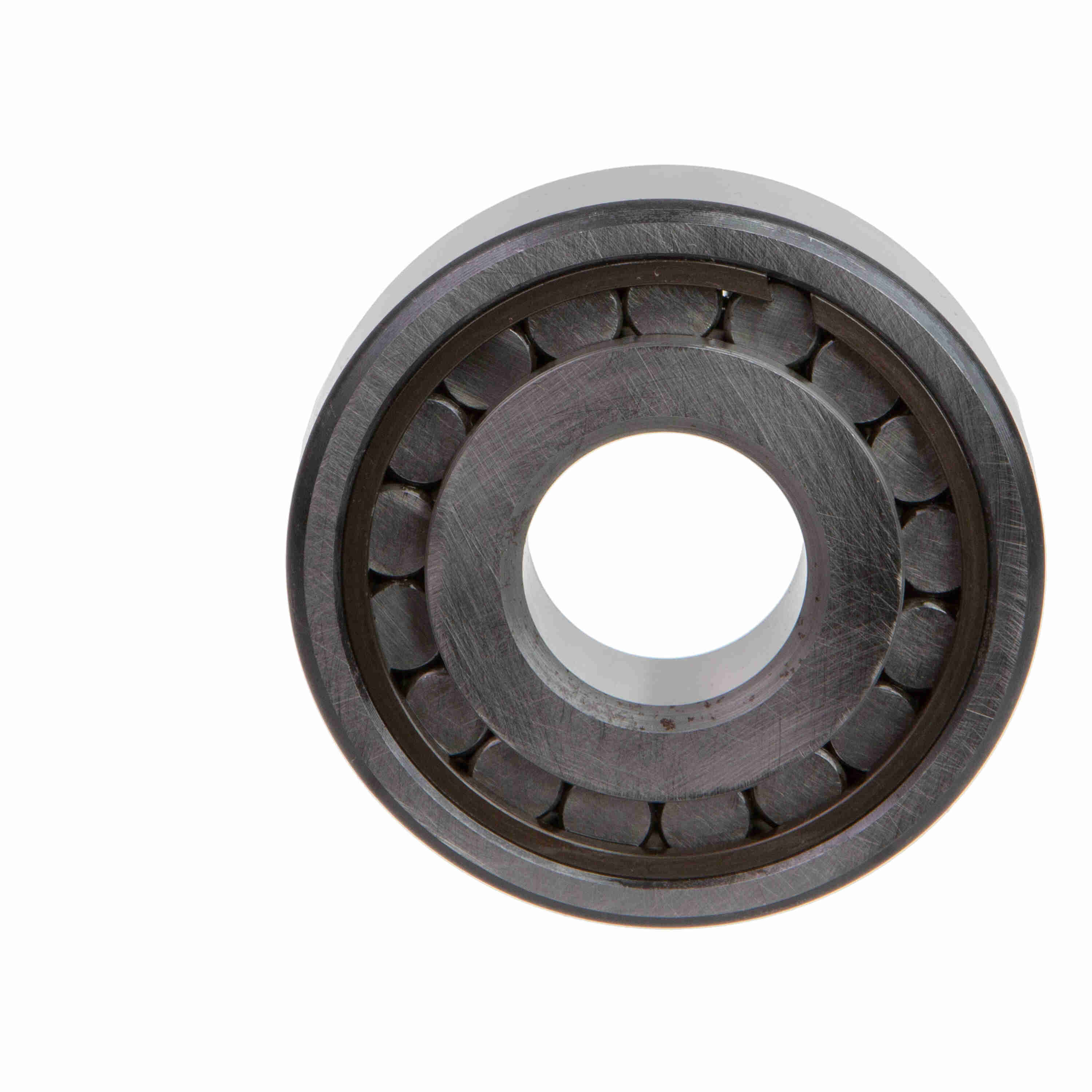

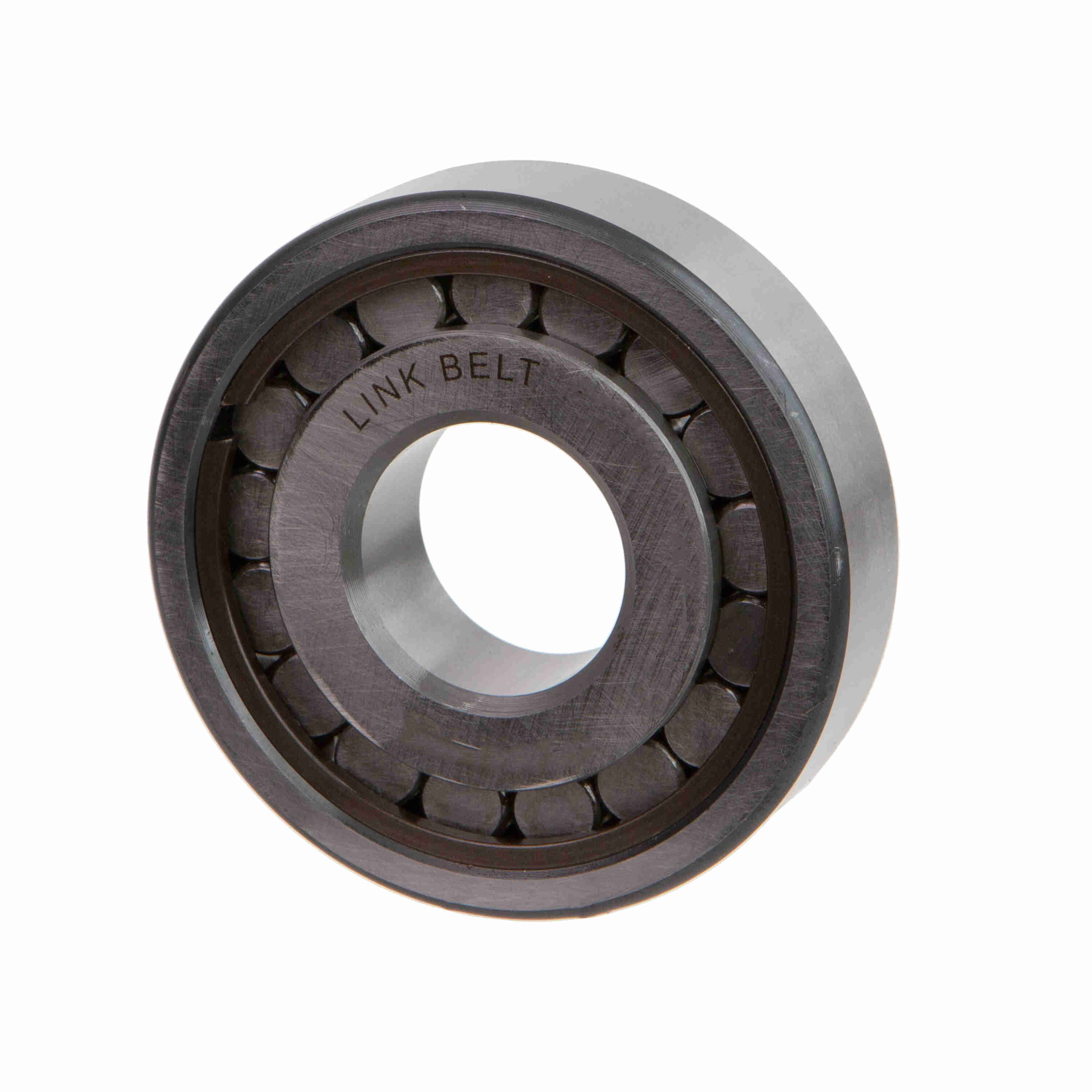

Link-Belt MUS1308TMW102 Unmounted Bearings Cylindrical Roller Bearings - MUS1308TMW102
Part #:10473158
Catalog #:MUS1308TMW102
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (mm): | 40 mm | Outside Diameter (mm): | 90 mm |
Technical Specifications
| Inner Ring and Roller Assembly Over Roller Diameter (mm): | 77.62 mm | Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm): | 52.1 mm |
| Retainer Type: | SEE DESCRIPTION | Inner Ring Type: | Double Rib (U) |
| Maximum Speed (RPM): | CALL ENG rpm | Outer Ring Raceway Inside Diameter (mm): | 77.66 mm |
| Inner Ring Bore Radius (mm): | 1.52 mm | Vibration Frequency Fundamental Train: | CALL ENG cps |
| Inner Ring Rib Outside Diameter (mm): | 57 mm | Mounted Clearance: | SEE DESCRIPTION |
| Basic Bearing Number: | 1308 | Rolling Element: | Cylindrical |
| Vibration Frequency Roller Spin: | CALL ENG cps | Ring Width Series: | Narrow (1) |
| Outer Ring Rib Inside Diameter (mm): | 73.33 mm | Outer Ring Type: | Outer Ring With Two Retaining Rings in I.D. (T) |
| C Dynamic Load Rating: | CALL ENG lb | Co Static Load Rating: | CALL ENG lb |
| Bearing Width (mm): | 23 mm | Vibration Frequency Outer Ring Defect: | CALL ENG cps |
| Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm): | 49 mm | Vibration Frequency Inner Ring Defect: | CALL ENG cps |
| Series: | Unmounted Bearings | Series Weight: | Medium (3) |
| Product: | Series 1300 Unmounted Bearings Next Smaller Bearing Bore Size | Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm): | 81.3 mm |
| Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm): | 77.5 mm | Outer Ring and Roller Assembly Under Roller Diameter (mm): | 52.34 mm |
| Inner Ring Raceway Outside Diameter (mm): | 52.3 mm |
General Specifications
| UPC: | 662327056629 | Weight: | 1.73 LB |
| HTC: | 8482400000 | Country of Origin: | Mexico |
