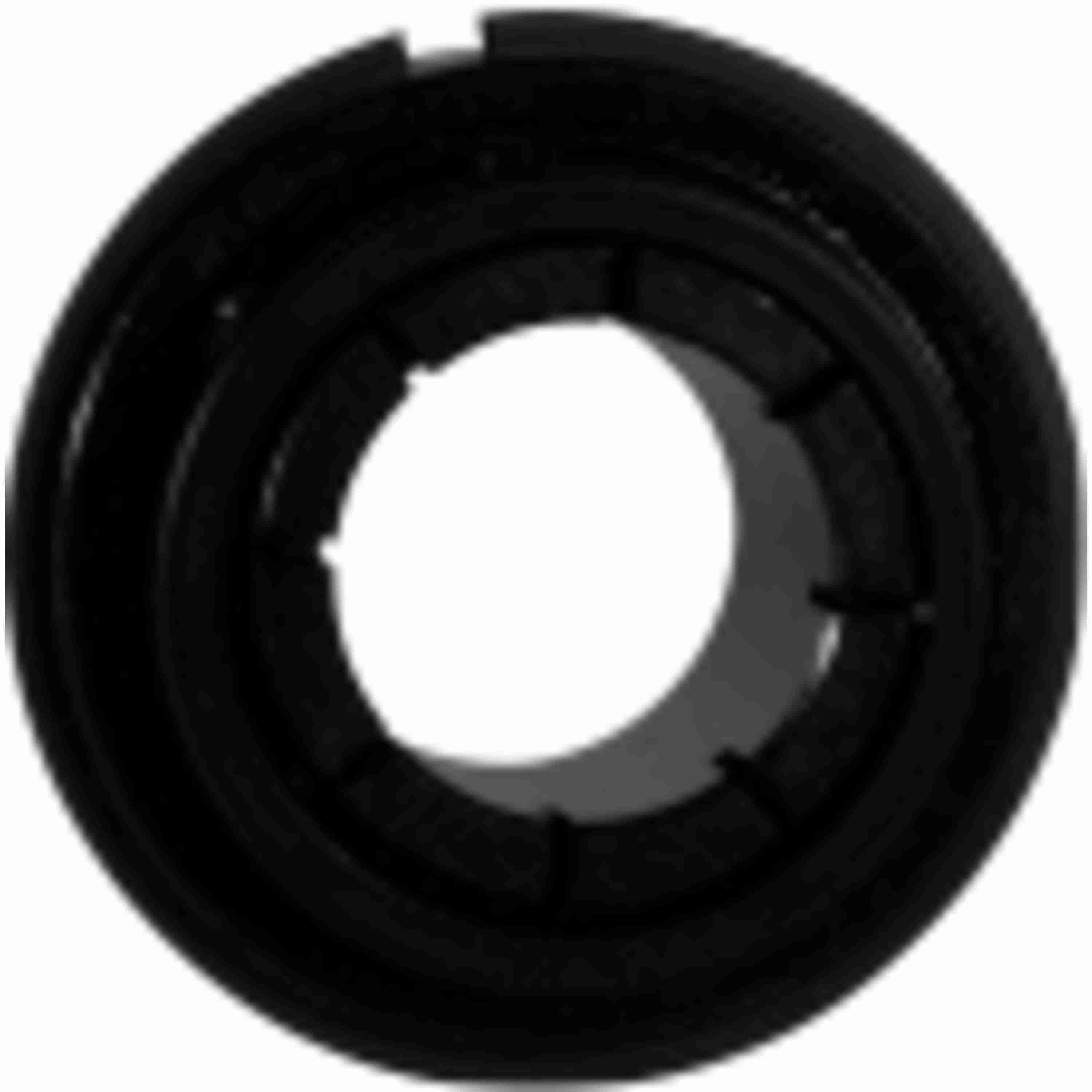

Link-Belt ER48K Unmounted Replacement Bearings Ball Bearings - ER48K
Part #:10418105
Catalog #:ER48K
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Length Through Bore (in): | 3.38 in | Outer Race Width (mm): | 42.9 mm |
| Inner Ring OD (in): | 3.92 in | Outer Race OD (mm): | 140 mm |
| Outer Race OD (in): | 5.5118 in | Bore Size (in): | 3 in |
| Outer Race Width (in): | 1.687 in | Overall Width (in): | 3.38 in |
| Collar OD (in): | 5 in |
Technical Specifications
| Bearing Insert Coating: | Black Oxide | Expansion: | No |
| Bore Shape: | Straight | Inner Race Profile: | Wide Inner Ring |
| Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in): | 0.38 in | Outer Race Profile: | Cylindrical |
| Vibration Frequency Roller Spin: | 0.0470 cps | Precision Rating: | ABEC 1 |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel |
| Seal Type: | Single Lip Contact Seal | Vibration Frequency Fundamental Train: | 0.0069 cps |
| Distance from Outer Ring Face to Snap Ring Face (in): | 0.16 in | Vibration Frequency Outer Ring Defect: | 0.0759 cps |
| Series: | Unmounted Replacement Bearings | Maximum Speed (rpm): | 2700 rpm |
| Locking Device Kit: | CL2515BS | Size Code: | 216 |
| End Cap: | No | Set Screw Thread: | 3/8-24 UNF |
| Misalignment: | None | Primary Seal: | BUNA SINGLE LIP CONTACT SEAL |
| Short Hub Length (in): | 1.31 in | Internal Clearance: | C3 STANDARD |
| Cage Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Locking Type: | Concentric | Snap Ring Width (in): | 0.11 in |
| Housing Type: | Insert (ER Style) | Duty/Status: | Standard |
| Snap Ring Outside Diameter (in): | 5.88 in | Locking Collar Width (in): | 0.75 in |
| Setscrew Torque (in-lbs): | 540-600 in/lbs | Lubrication Type: | EXXON RONEX MP STD |
| Outer Ring Land Profile: | Standard | Ability to Relubricate: | Yes |
| Available Seal Type: | N Lip Seal;E1 Viton Seal;FF Free Running;HFF Free Running;MHFF Free Running;NFF Lip Seal w/ Flinger | Product: | ER-K |
| Vibration Frequency Inner Ring Defect: | 0.1074 cps | Maximum Operating Temperature (F): | 225 °F |
| Inner Ring Fillet Radius (in): | 0.12 in | Cage Type: | Ball Riding Retainer |
| Static Load Rating (lb): | 11,400 lb | Maximum Operating Temperature (C): | 107 °C |
| Dynamic Load Rating (lb): | 17,420 lb |
General Specifications
| UPC: | 662864005159 | Weight: | 8.05 LB |
| Packaged Length: | 7.00 IN | Packaged Width: | 2.75 IN |
| Packaged Height: | 7.00 IN | HTC: | 8482105056 |
| Country of Origin: | Mexico |
