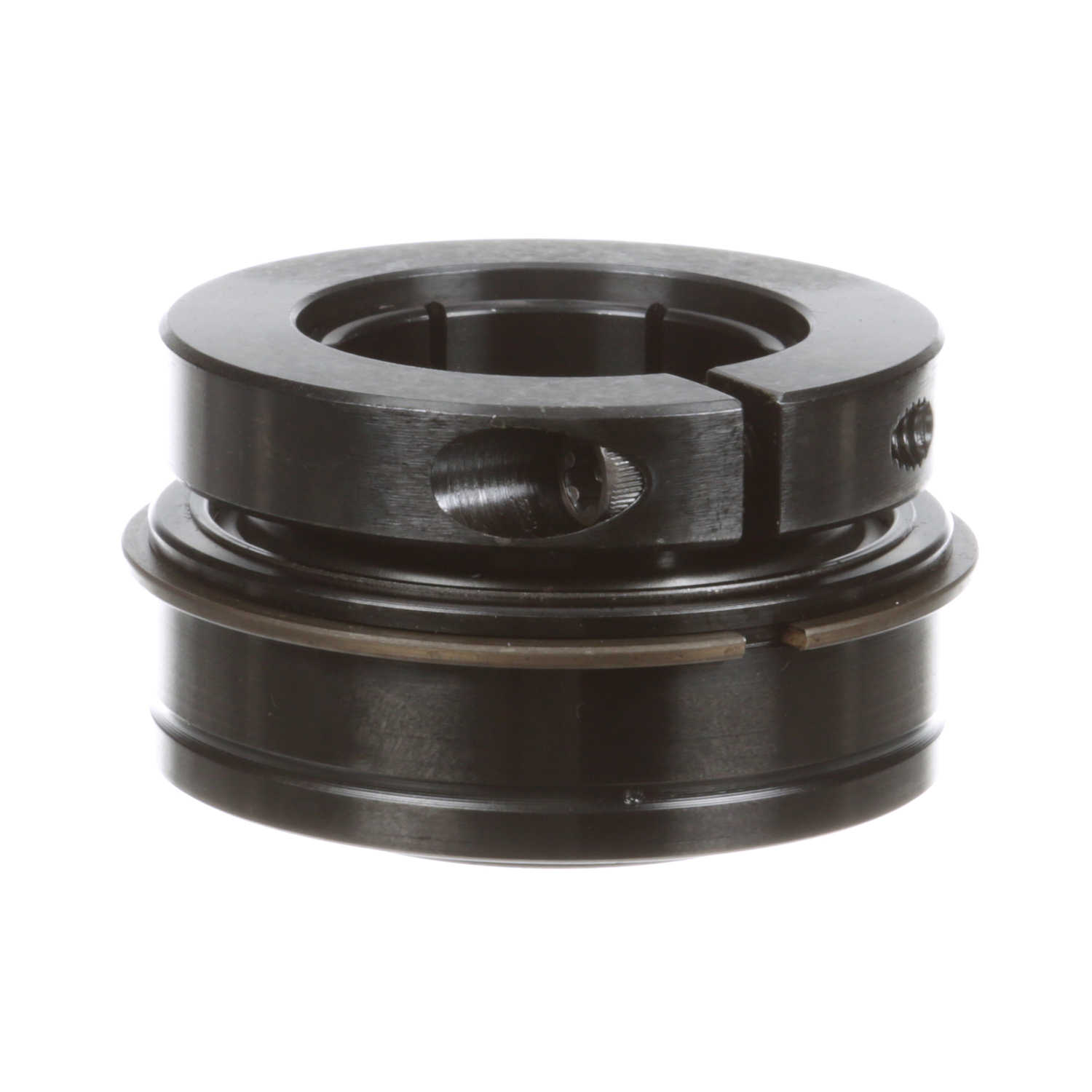

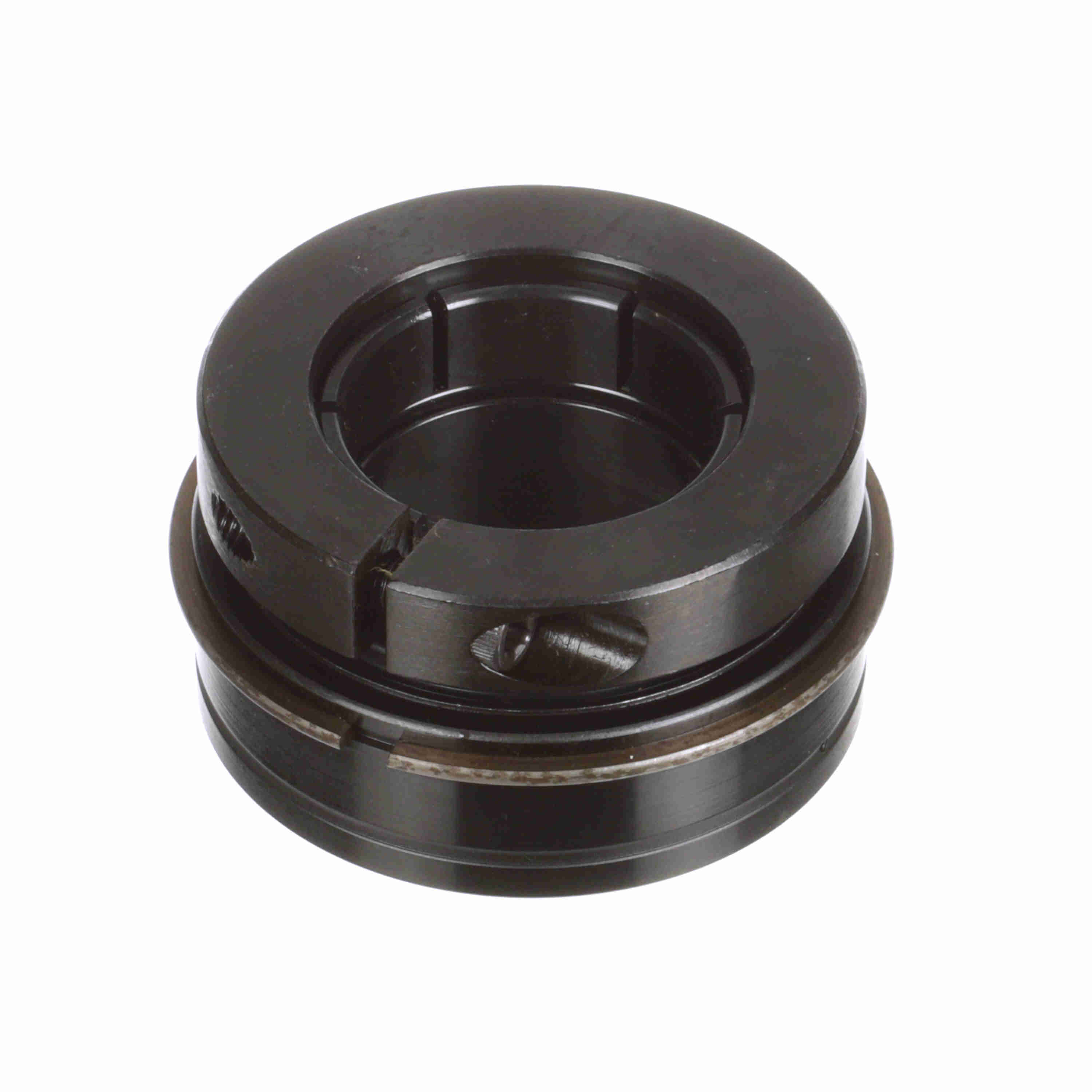

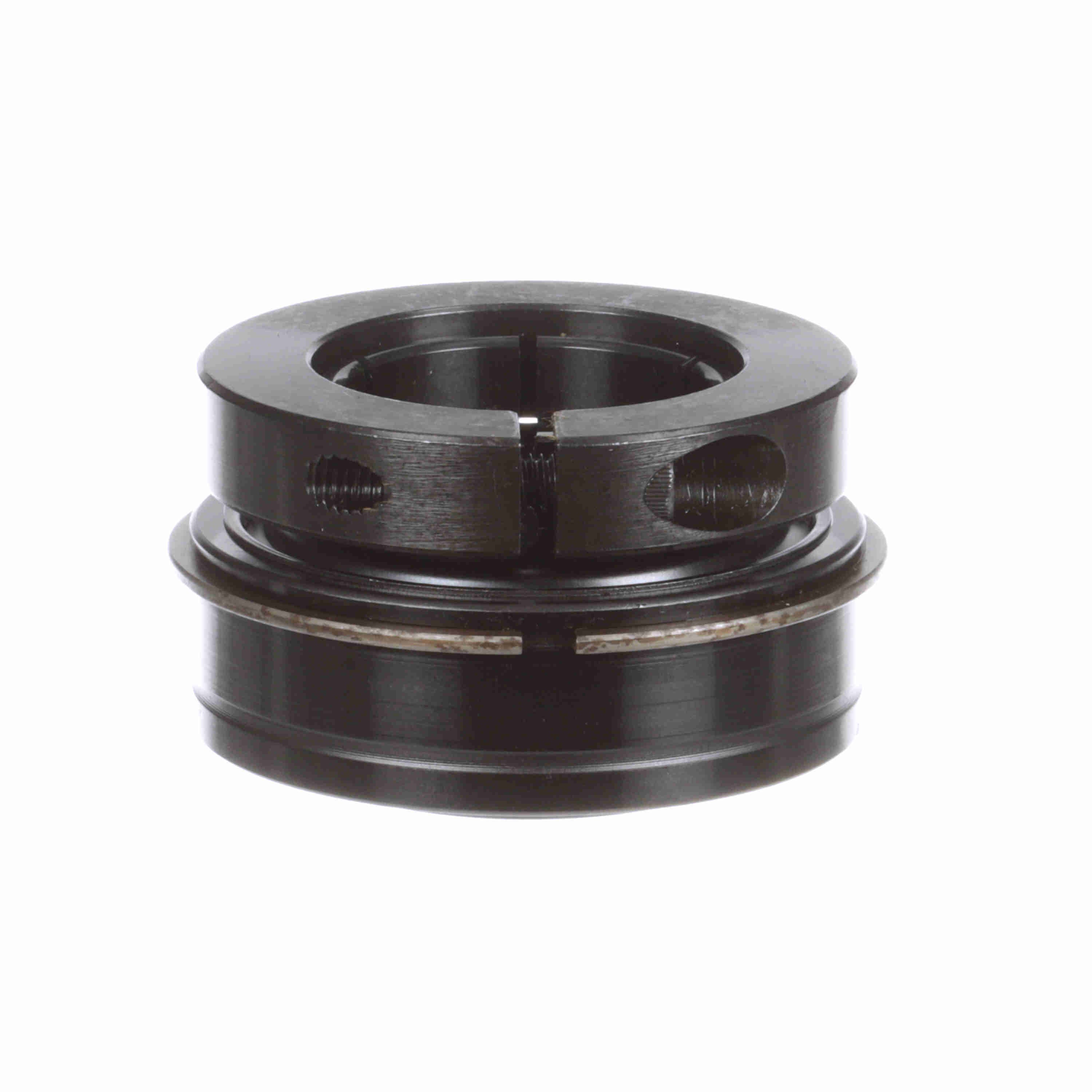

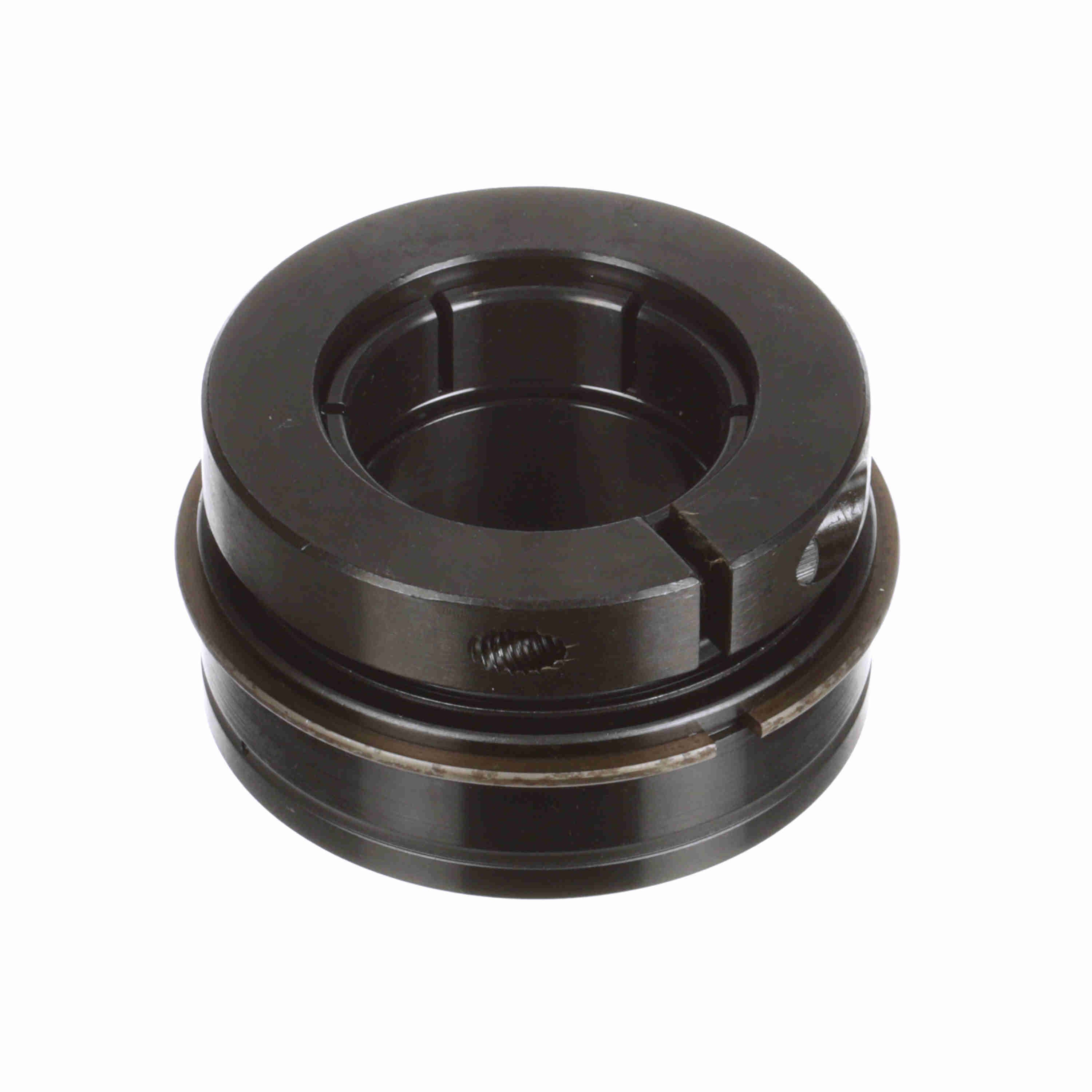

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - ER-31TC
Part #:705963
Catalog #:ER-31TC
KEY FEATURES
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 2.09 in | Bore Size (in): | 1.9375 in |
| Outer Race Width (in): | 1.125 in | Outer Race OD (in): | 3.5433 in |
| Centerline to Front Face (in): | 1.344 in | Collar OD (in): | 3.47 in |
| Inner Ring OD (in): | 2.469 in | Outer Race OD (mm): | 90 mm |
| Length Through Bore (in): | 2.09 in | Outer Race Width (mm): | 28.6 mm |
Technical Specifications
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Bore Shape: | Straight | Housing Type: | Insert (ER Style) |
| Torx Cap Screw: | 5/16-18 UNC | Insert Material: | 52100 Bearing Steel |
| Seal Type: | Single Lip Contact Seal | Expansion: | No |
| Internal Clearance: | Standard | Misalignment: | None |
| Bearing Insert Coating: | Black Oxide | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Tapered Lands |
| Misalignment Type: | Static Only | Precision Rating: | ABEC 1 |
| Cage Material: | PPS - Polyphenylene Sulfide | Inner Race Profile: | Wide Inner Ring |
| Outer Race Profile: | Cylindrical | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Maximum Speed (rpm): | 3550 rpm | Series: | Unmounted Replacement Bearings |
| Size Code: | 2-115 | Setscrew Torque (in-lbs): | 495 in/lbs |
| Inner Ring Fillet Radius (in): | 0.06 in | Locking Type: | Concentric |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Vibration Frequency Roller Spin: | 0.0445 cps | Maximum Operating Temperature (F): | 220 °F |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Duty/Status: | Standard |
| Vibration Frequency Inner Ring Defect: | 0.0984 cps | Vibration Frequency Outer Ring Defect: | 0.0683 cps |
| Dynamic Load Rating (lb): | 7,889 lb | Static Load Rating (lb): | 5,216 lb |
| Cage Type: | Land Riding Retainer |
General Specifications
| UPC: | 662461034262 | Weight: | 2.90 LB |
| Packaged Length: | 4.25 IN | Packaged Width: | 2.25 IN |
| Packaged Height: | 4.25 IN | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
