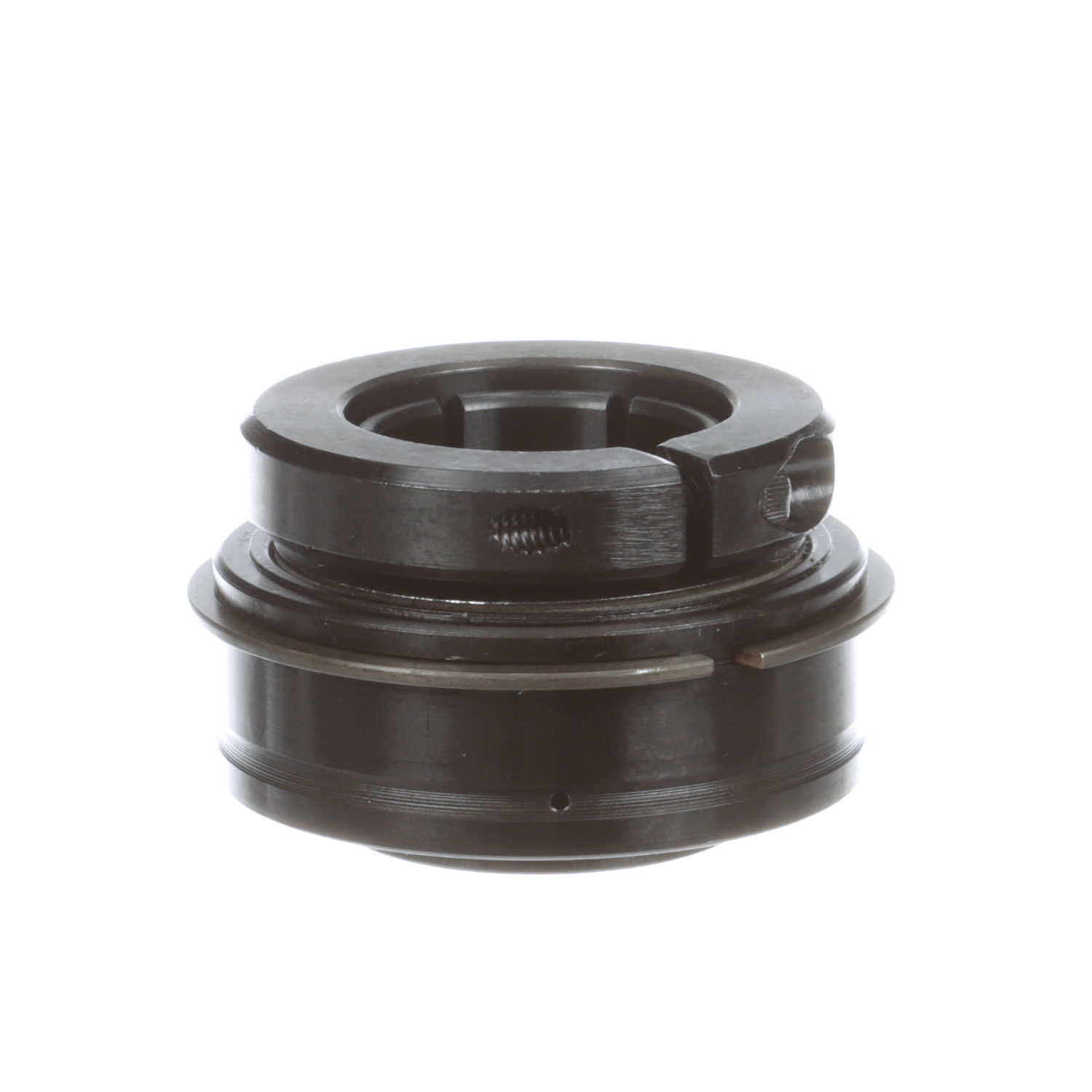

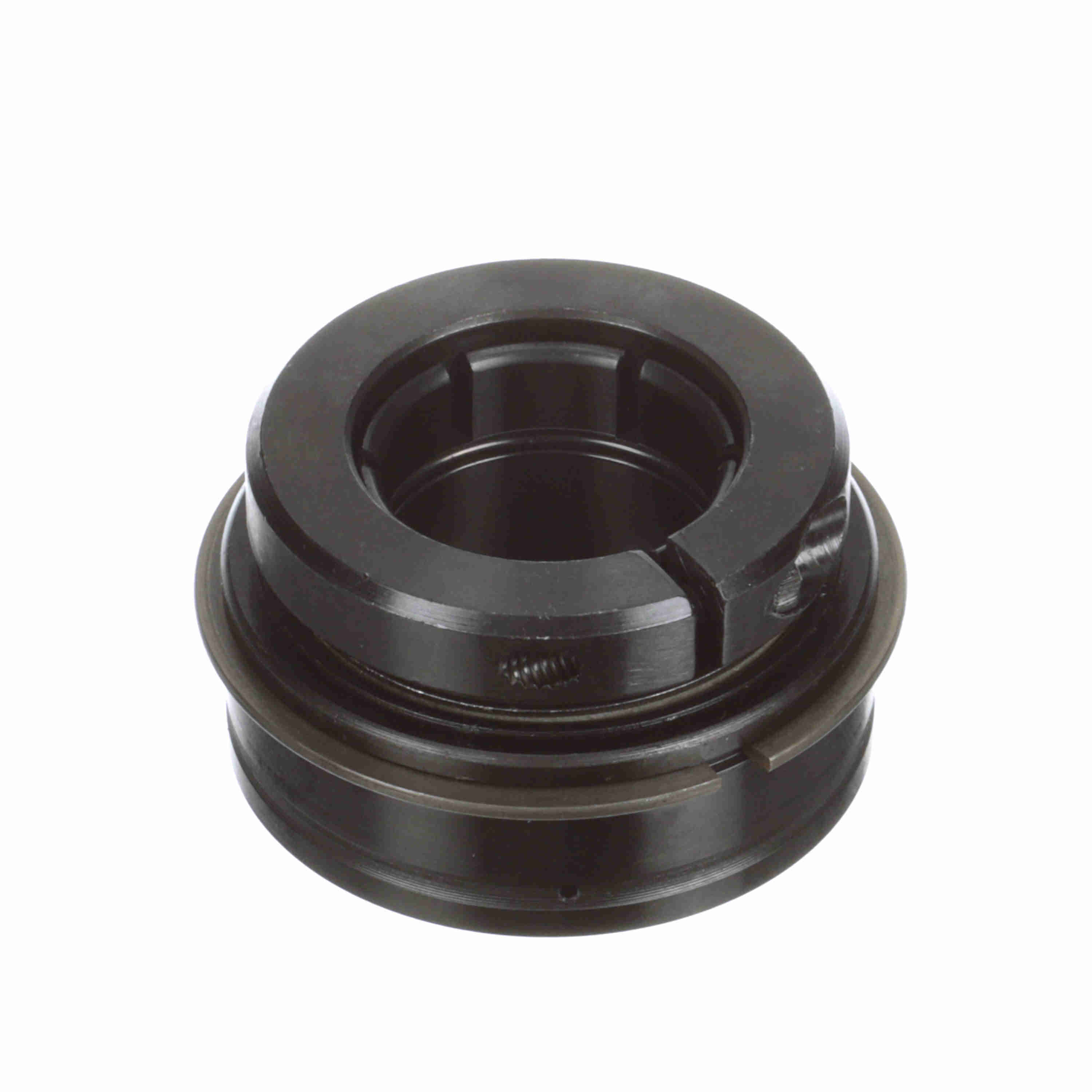

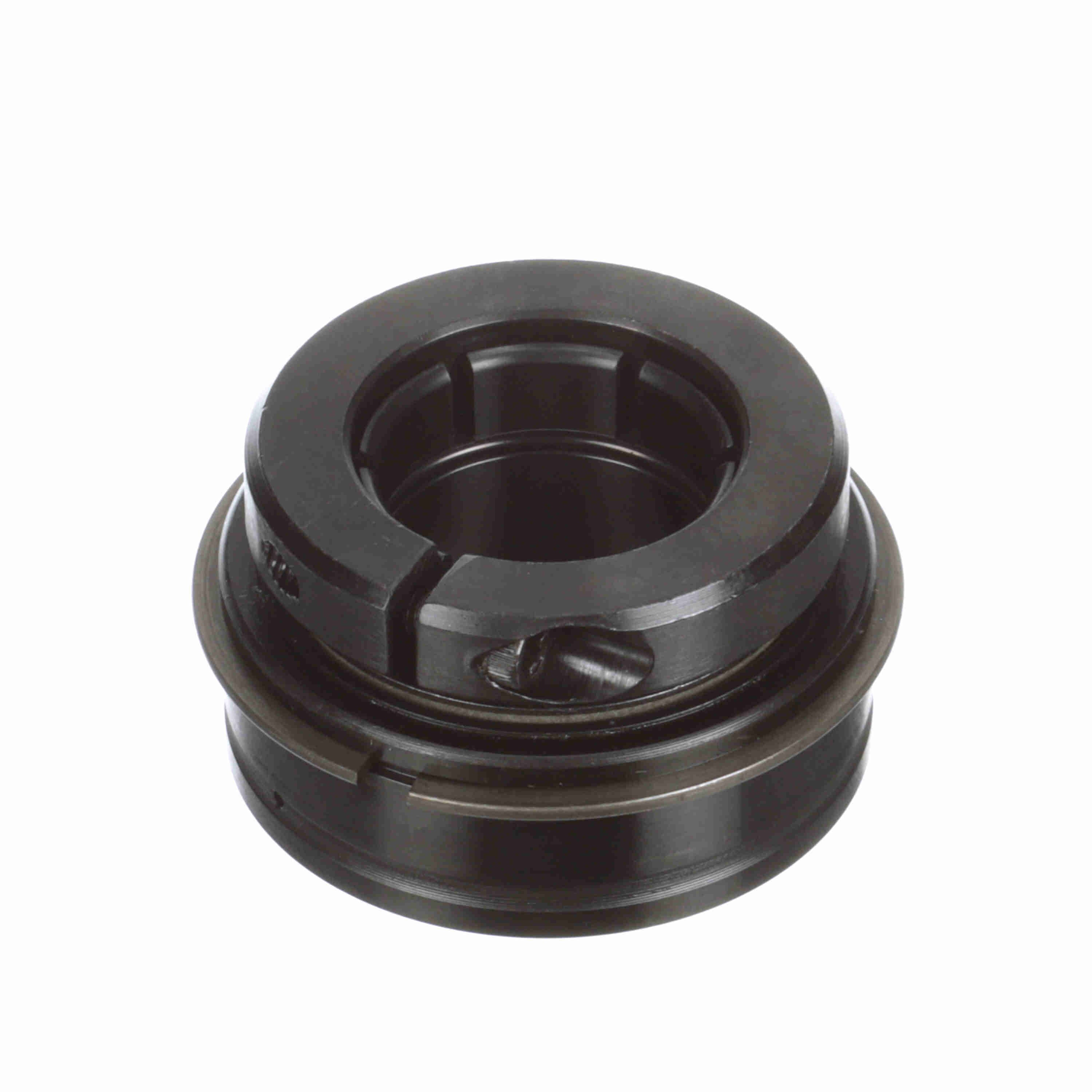

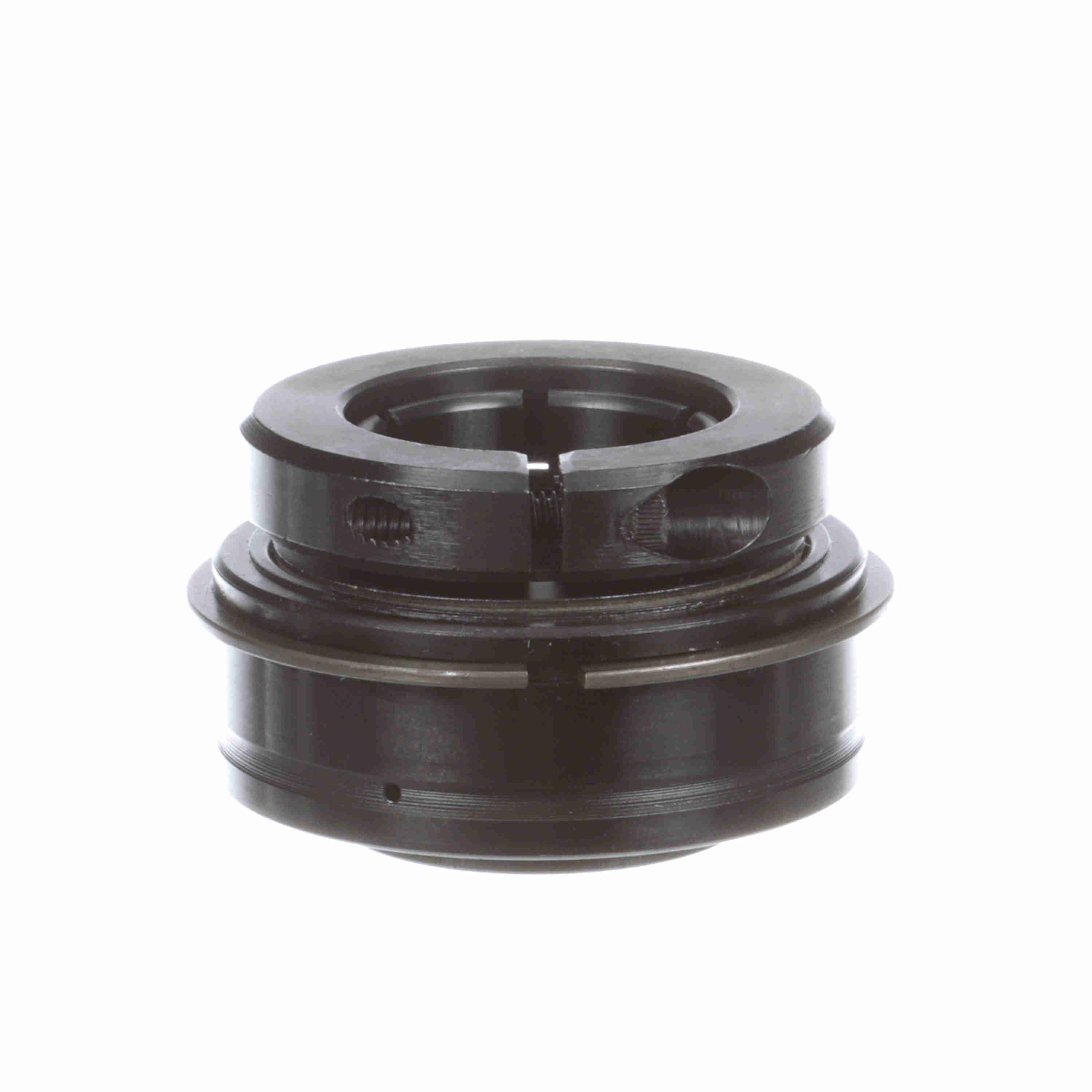

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - Low Drag - ERX-20RT LO
Part #:704980
Catalog #:ERX-20RT LO
KEY FEATURES
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Extra low drag seal cut down felt labyrinth seal and flinger
- Features a channeling grease that reduces drag while lubricating the bearing
- Nylon retainer to reduce overall drag
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.56 in | Bore Size (in): | 1.25 in |
| Outer Race OD (mm): | 62 mm | Collar OD (in): | 2.23 in |
| Outer Race Width (in): | 0.875 in | Inner Ring OD (in): | 1.594 in |
| Centerline to Front Face (in): | 0.938 in | Outer Race OD (in): | 2.4409 in |
| Length Through Bore (in): | 1.56 in | Outer Race Width (mm): | 22.2 mm |
Technical Specifications
| Measure Units: | Inch | Seal Type: | Cut Down Felt Labyrinth |
| Housing Type: | Insert (ER Style) | Insert Material: | 52100 Bearing Steel |
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Torx Cap Screw: | 10-24 UNC | Internal Clearance: | Standard |
| Expansion: | No | Misalignment: | None |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Bearing Insert Coating: | Black Oxide |
| Outer Ring Land Profile: | Tapered Lands | Options: | Low Drag |
| Cage Material: | PPS - Polyphenylene Sulfide | Precision Rating: | ABEC 1 |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Cylindrical |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Maximum Operating Temperature (F): | 220 °F | Vibration Frequency Fundamental Train: | 0.0066 cps |
| Setscrew Torque (in-lbs): | 100 in/lbs | Size Code: | 2-13 |
| Inner Race Heat Treat Method: | Zone-Hardened | Duty/Status: | Standard |
| Series: | Unmounted Replacement Bearings | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Lubrication Type: | Lithium NLGI 2 Low Torque Grease | Maximum Speed (rpm): | 4300 rpm |
| Inner Ring Fillet Radius (in): | 0.04 in | Vibration Frequency Roller Spin: | 0.0385 cps |
| Locking Type: | Concentric | Static Load Rating (lb): | 2,567 lb |
| Dynamic Load Rating (lb): | 4,381 lb | Cage Type: | Land Riding Retainer |
General Specifications
| UPC: | 662461258828 | Weight: | 1.20 LB |
| Packaged Length: | 2.75 IN | Packaged Width: | 1.56 IN |
| Packaged Height: | 2.75 IN | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
