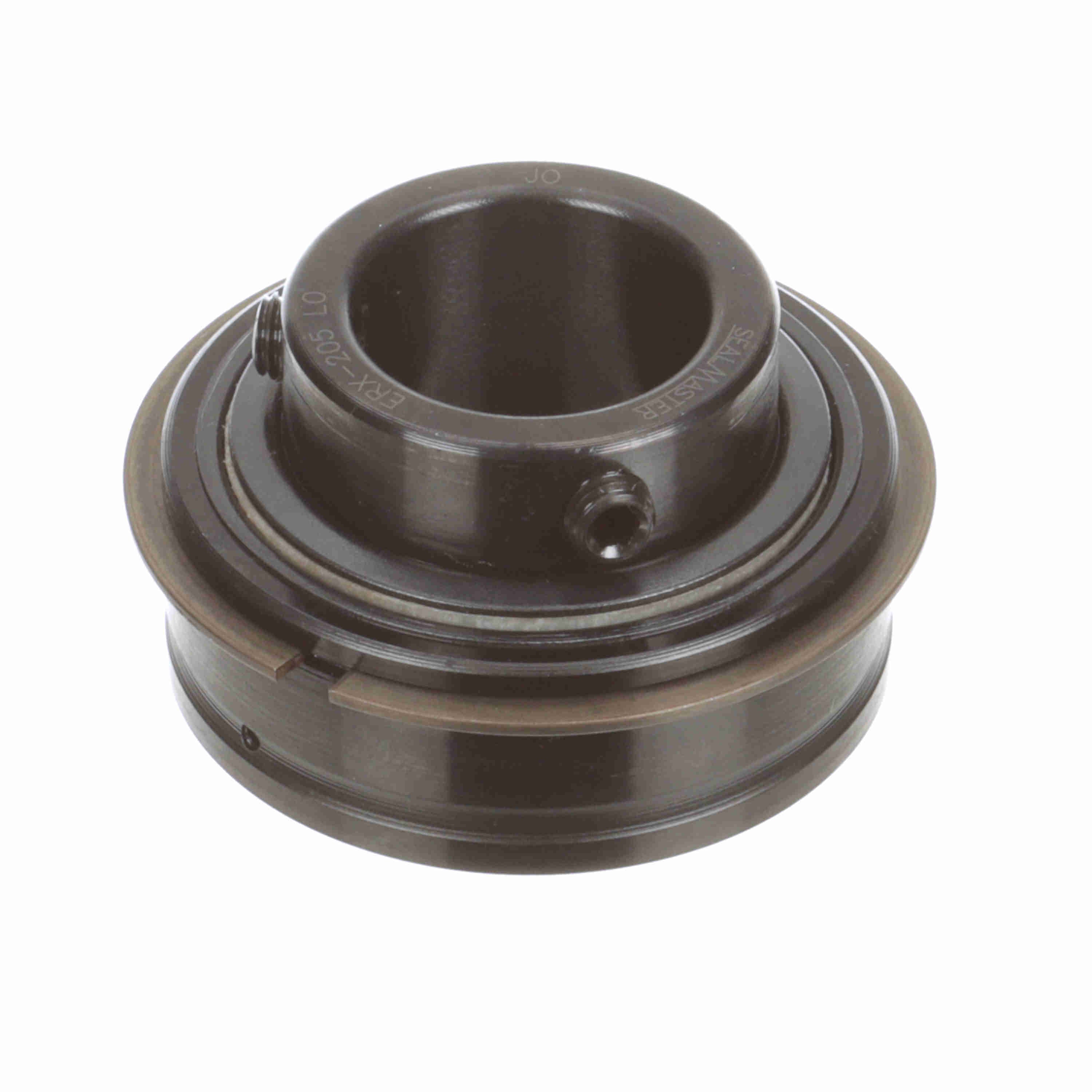

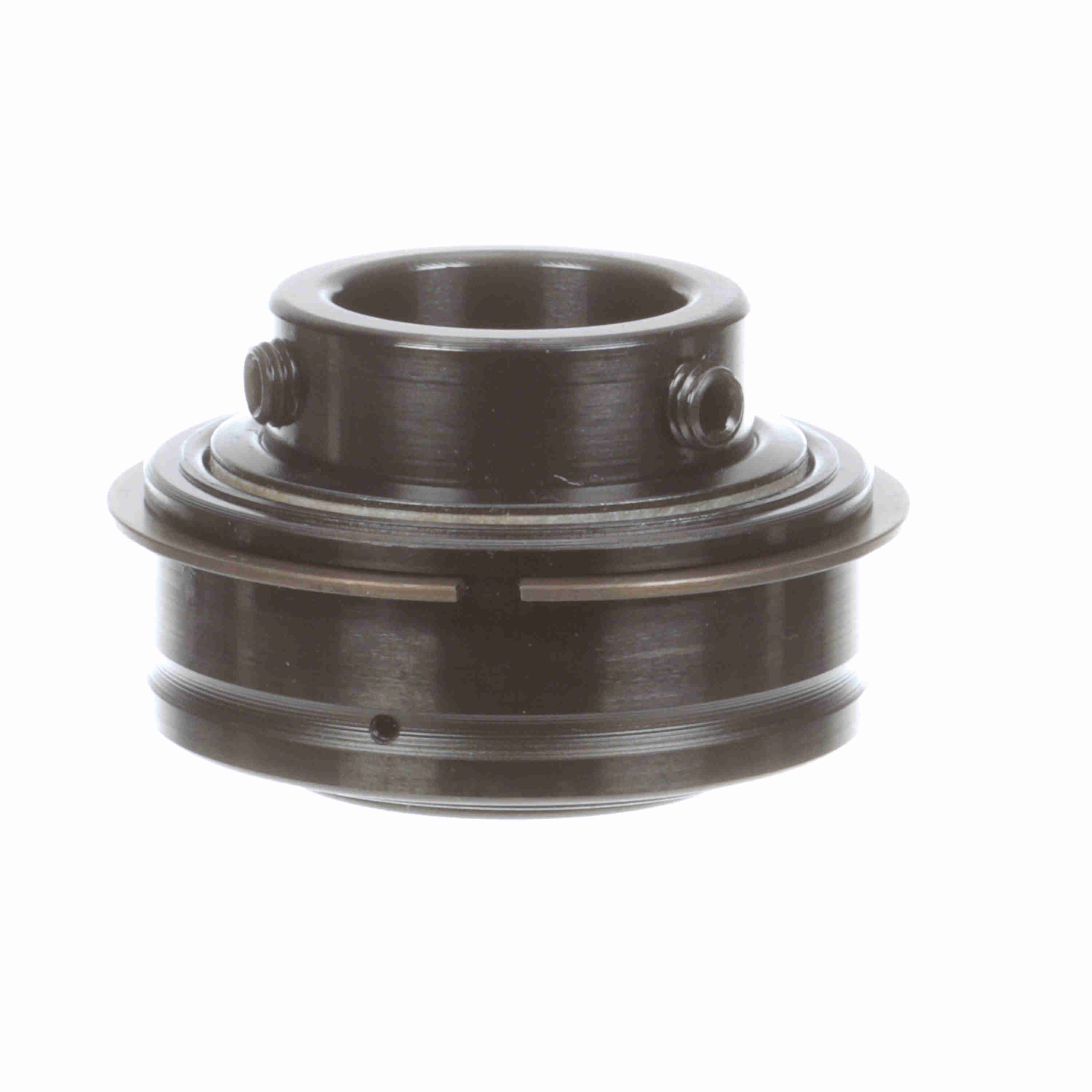

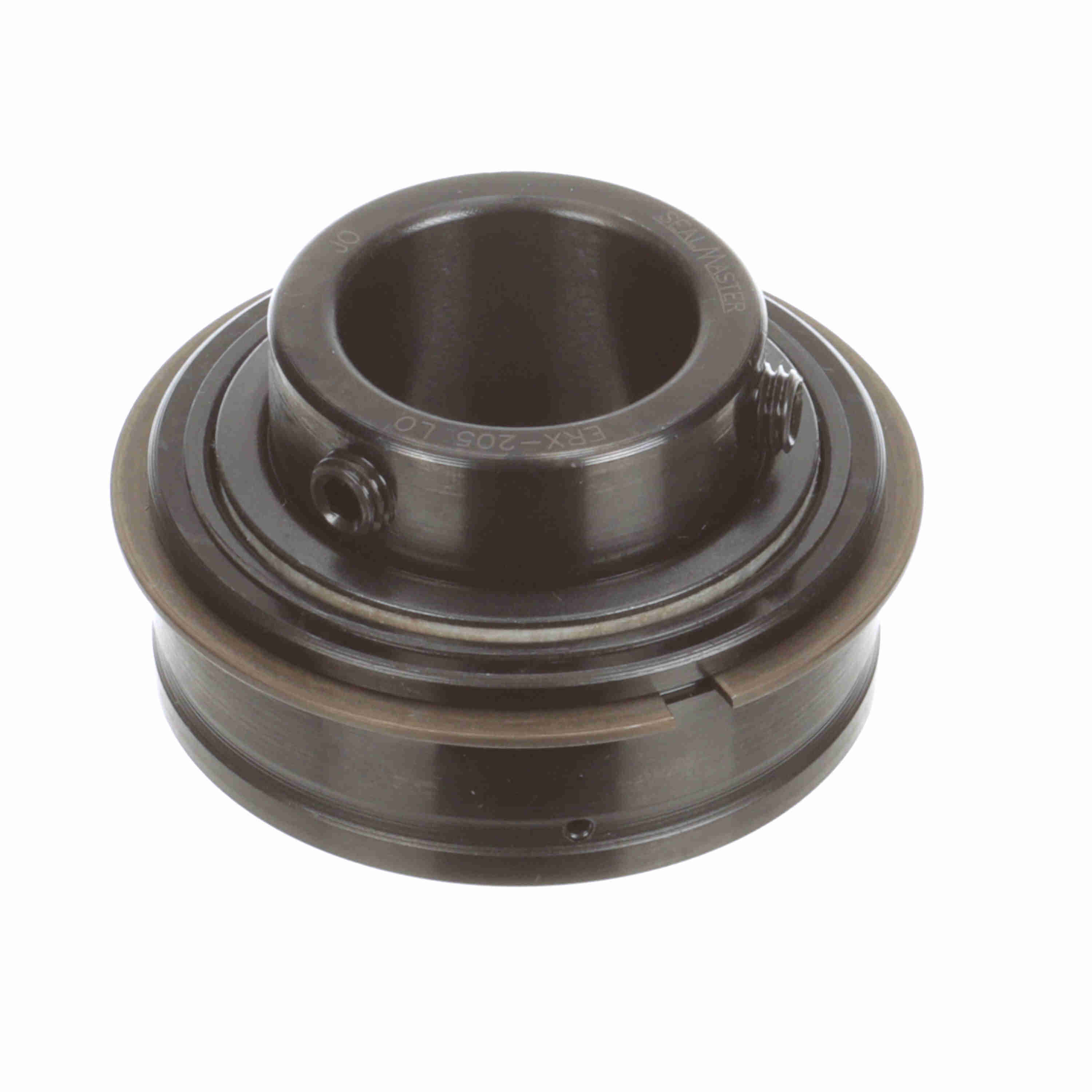

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - Low Drag - ERX-205 LO
Part #:708277
Catalog #:ERX-205 LO
KEY FEATURES
- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Extra low drag seal cut down felt labyrinth seal and flinger
- Features a channeling grease that reduces drag while lubricating the bearing
- Nylon retainer to reduce overall drag
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 1.38 in | Bore Size (mm): | 25 mm |
| Centerline to Front Face (in): | 0.859 in | Inner Ring OD (in): | 1.375 in |
| Outer Race OD (mm): | 52 mm | Outer Race OD (in): | 2.0472 in |
| Outer Race Width (in): | 0.75 in | Length Through Bore (in): | 1.375 in |
| Outer Race Width (mm): | 19.1 mm |
Technical Specifications
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
| Seal Type: | Cut Down Felt Labyrinth | Bore Shape: | Straight |
| Set Screw Thread: | 1/4-28 UNF | Insert Material: | 52100 Bearing Steel |
| Housing Type: | Insert (ER Style) | Internal Clearance: | Standard |
| Misalignment: | None | Expansion: | No |
| Bearing Insert Coating: | Black Oxide | Platform: | Gold Line Ball Bearing |
| Options: | Low Drag | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Tapered Lands | End Cap: | No |
| Precision Rating: | ABEC 1 | Cage Material: | PPS - Polyphenylene Sulfide |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Cylindrical |
| Size Code: | 2-015 | Vibration Frequency Inner Ring Defect: | 0.0985 cps |
| Setscrew Torque (in-lbs): | 65-85 in/lbs | Locking Type: | Set Screw |
| Duty/Status: | Standard | Vibration Frequency Roller Spin: | 0.0442 cps |
| Maximum Speed (rpm): | 5000 rpm | Series: | Unmounted Replacement Bearings |
| Ability to Relubricate: | Yes | Inner Ring Fillet Radius (in): | 0.04 in |
| Vibration Frequency Outer Ring Defect: | 0.0682 cps | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| Lubrication Type: | Lithium NLGI 2 Low Torque Grease | Static Load Rating (lb): | 1,651 lb |
| Dynamic Load Rating (lb): | 2,801 lb | Cage Type: | Land Riding Retainer |
General Specifications
| UPC: | 662461299210 | Weight: | 0.68 LB |
| Packaged Length: | 2.38 IN | Packaged Width: | 1.44 IN |
| Packaged Height: | 2.38 IN | HTC: | 8482.10.5048 |
| Country of Origin: | Mexico |
