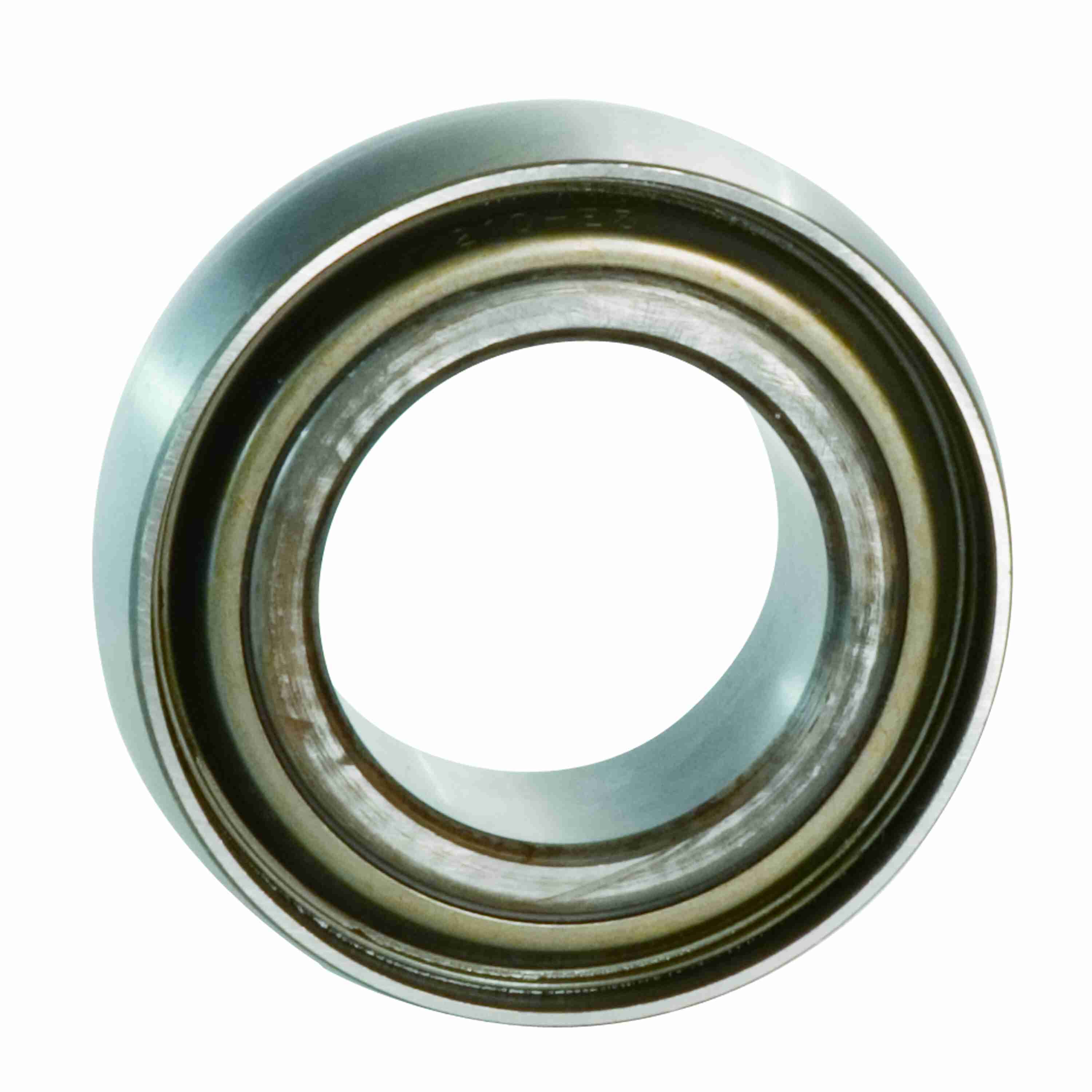

Link-Belt 24R6208E3 Unmounted Replacement Bearings Ball Bearings - 24R6208E3
Part #:10422178
Catalog #:24R6208E3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.5005 in |
Technical Specifications
| Available Seal Type: | E3 Triple Lip Seal; N Lip Seal | C Dynamic Load Rating: | 7330 lb |
| Retainer Type: | NYLON | Assembly Type: | Style 2 |
| Vibration Frequency Outer Ring Defect: | 0.0588 cps | Outer Ring Width (in): | 1 3/16 in |
| Vibration Frequency Fundamental Train: | 0.0065 cps | Lubrication Type: | EXXON RONEX MP STD |
| Outside Diameter (in): | 3.1496 in | Inner Ring Hub Diameter (in): | 2.083 in |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Co Static Load Rating: | 4460 lb |
| Service Instructions: | BR3-007 LB 200 BALL-300 BALL | Product: | Round Bore-Spherical Outer Ring O.D. |
| Type of Seal: | E3 Triple Lip Seal | Vibration Frequency Inner Ring Defect: | 0.0912 cps |
| Maximum Speed (RPM): | 650 rpm | Bore Length (in): | 1 11/16 in |
| Size Code: | 208 | Distance from Bearing Centerline to Inner Ring Face (in): | 0.844 in |
| Maximum Temperature (C): | 107 °C | Maximum Temperature (F): | 225 °F |
| Bearing Type: | Standard Duty | Vibration Frequency Roller Spin: | 0.0367 cps |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Mounted Clearance: | C3 STANDARD |
| Locking Type: | Direct Shaft Mount |
General Specifications
| UPC: | 662327196103 | Weight: | 1.52 LB |
| Packaged Length: | 4.00 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
