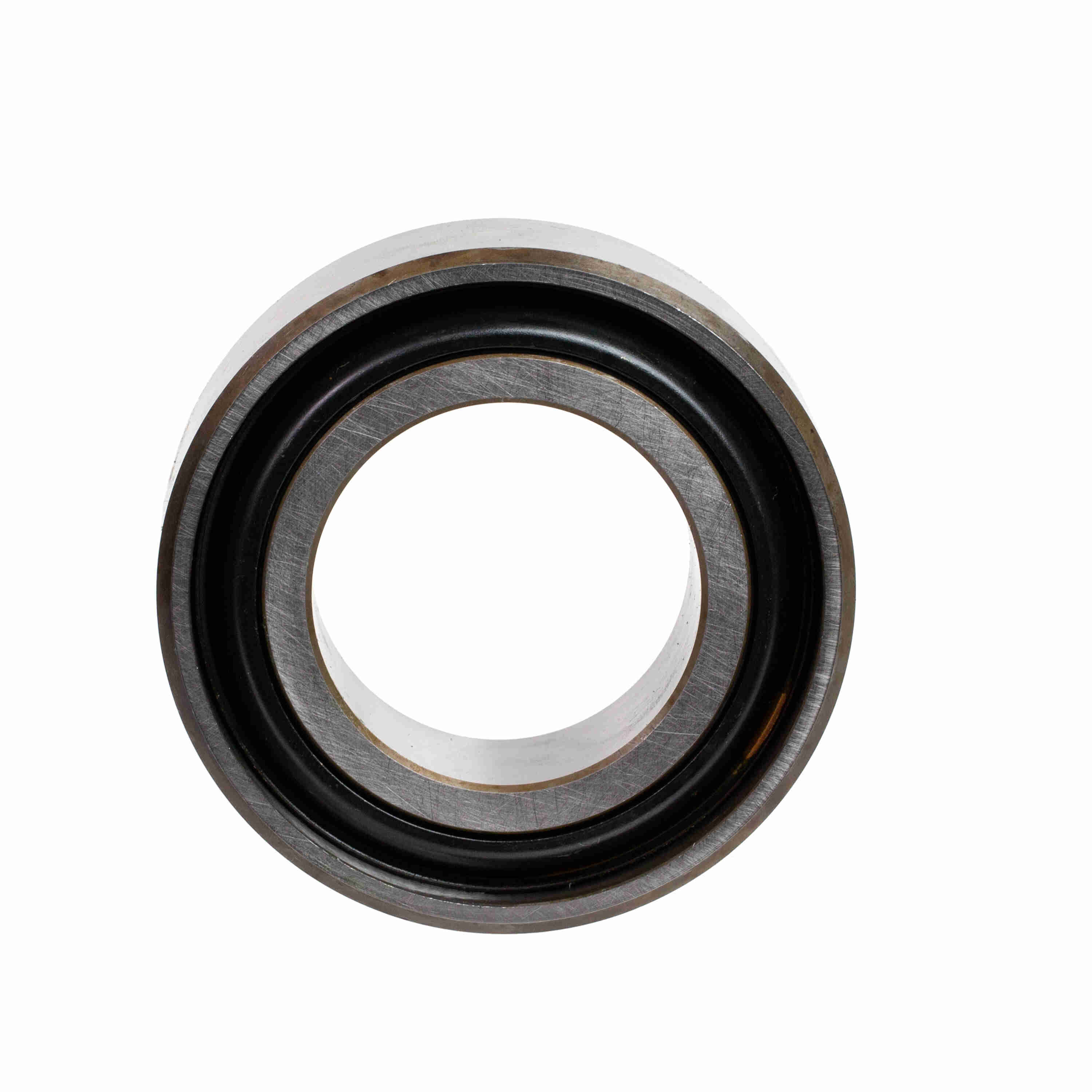

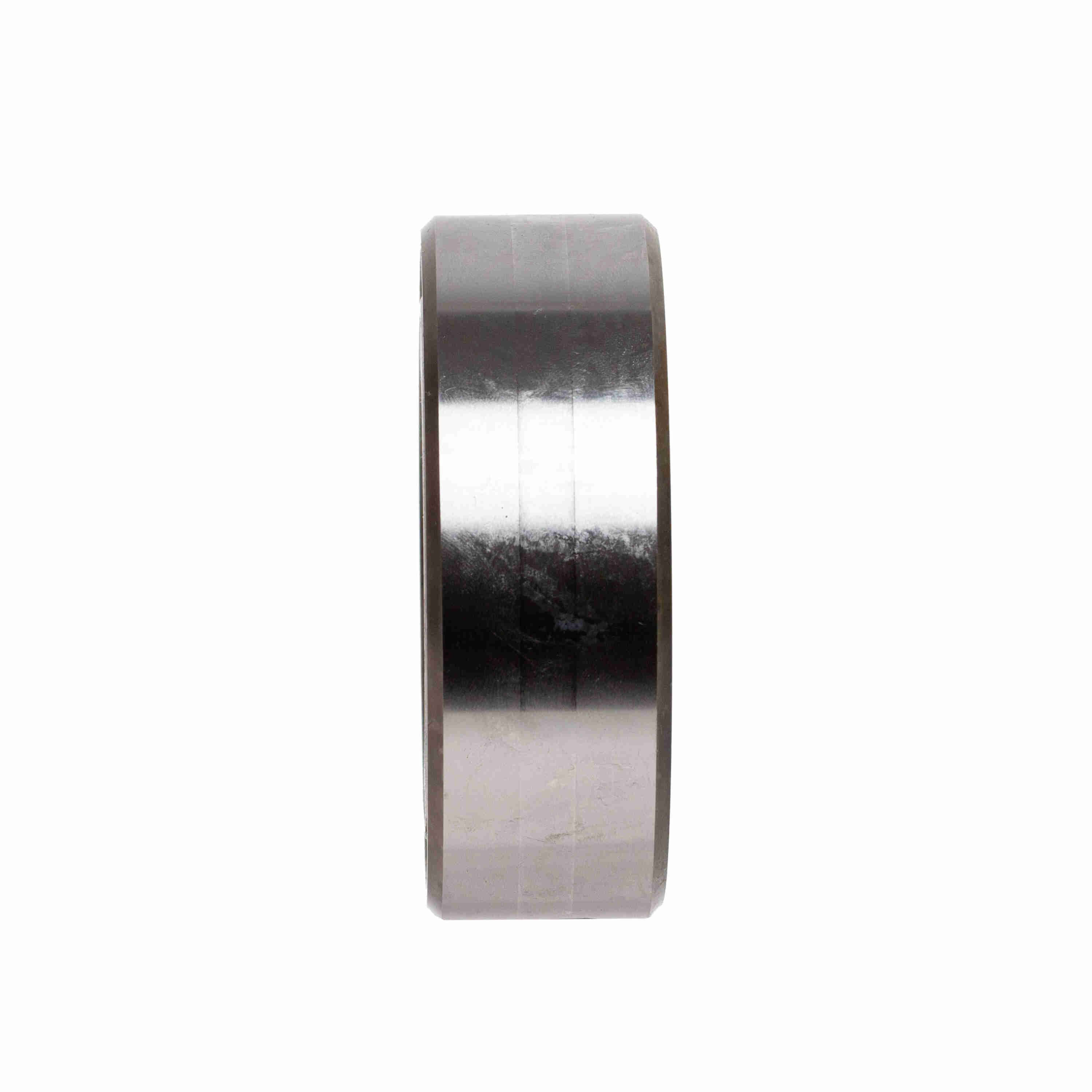

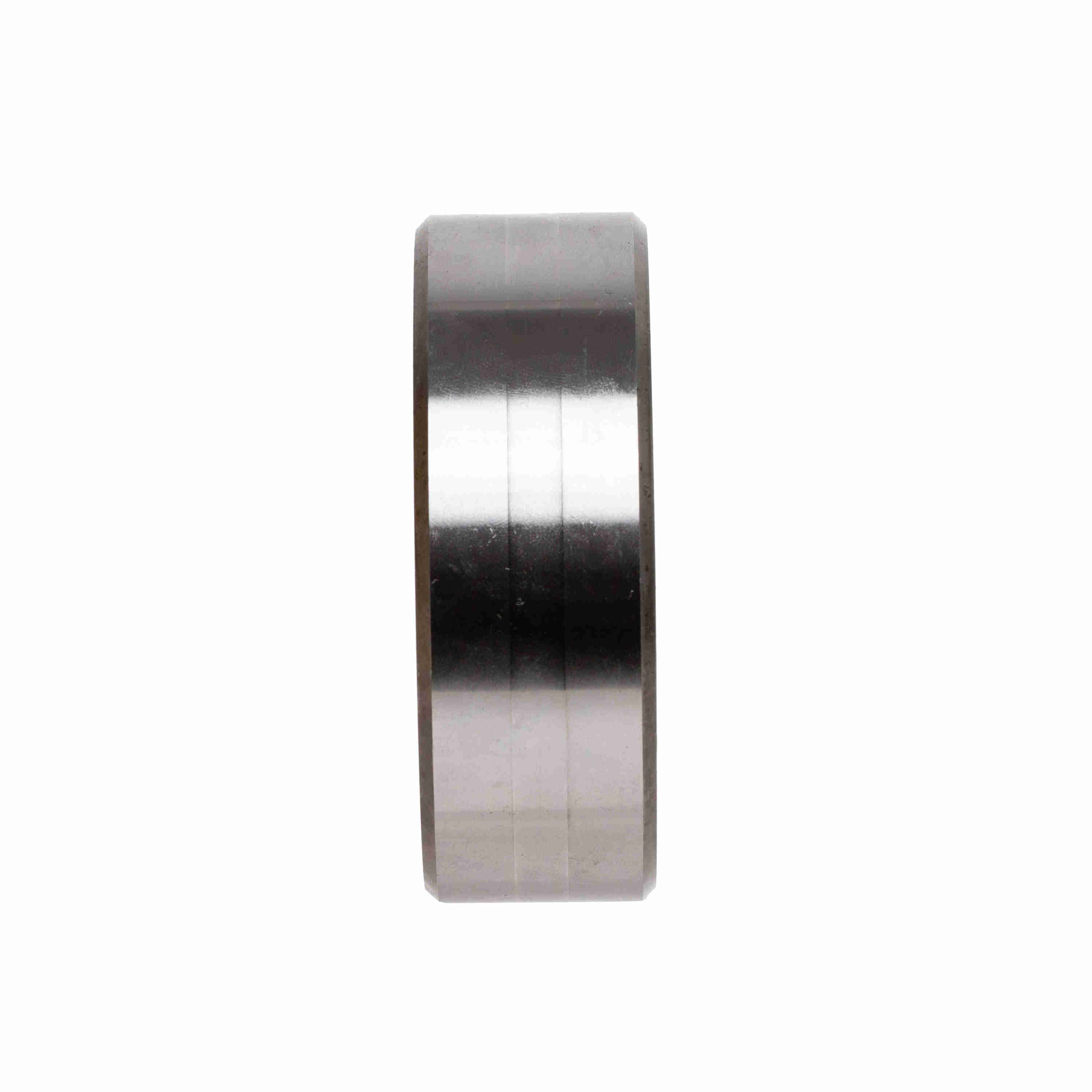

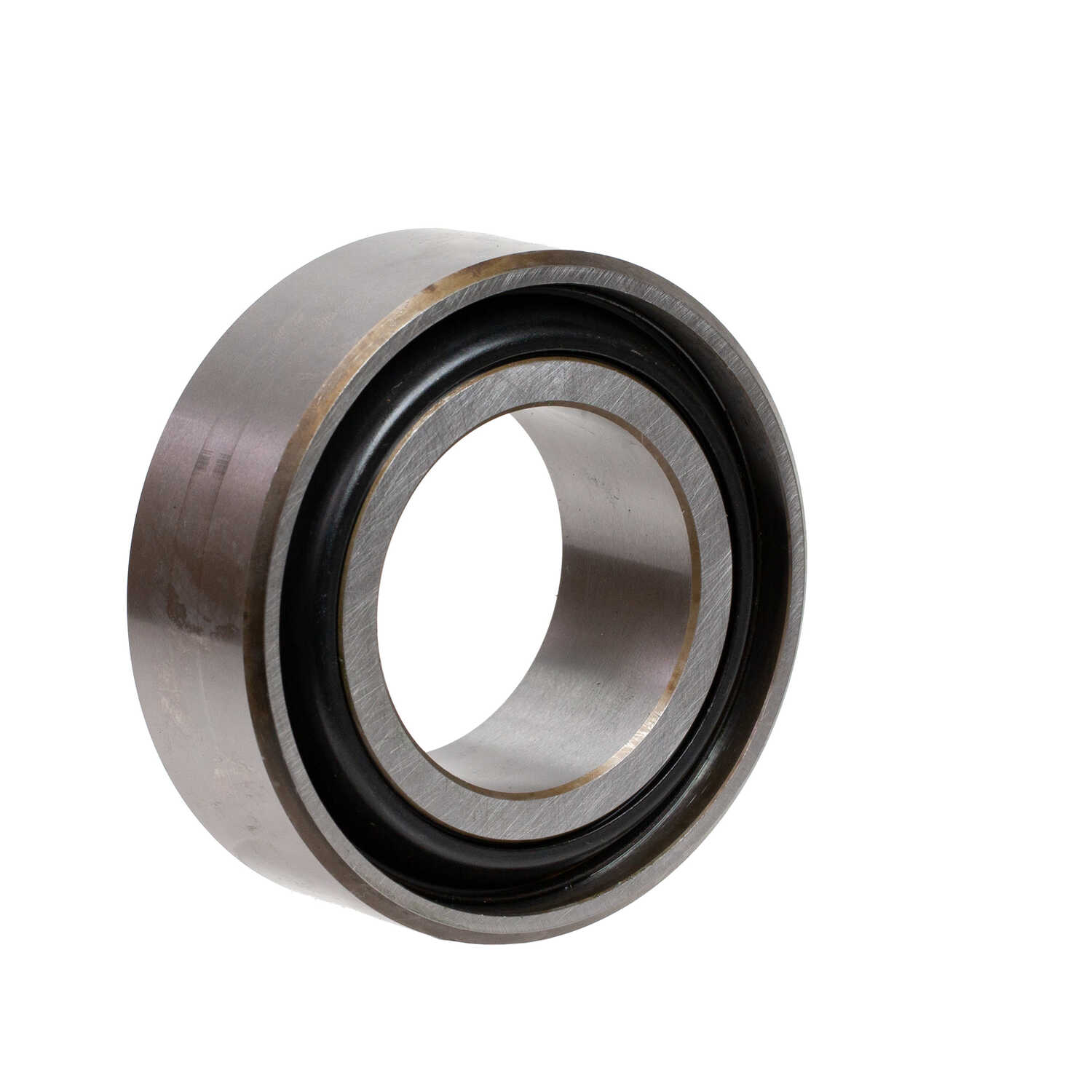

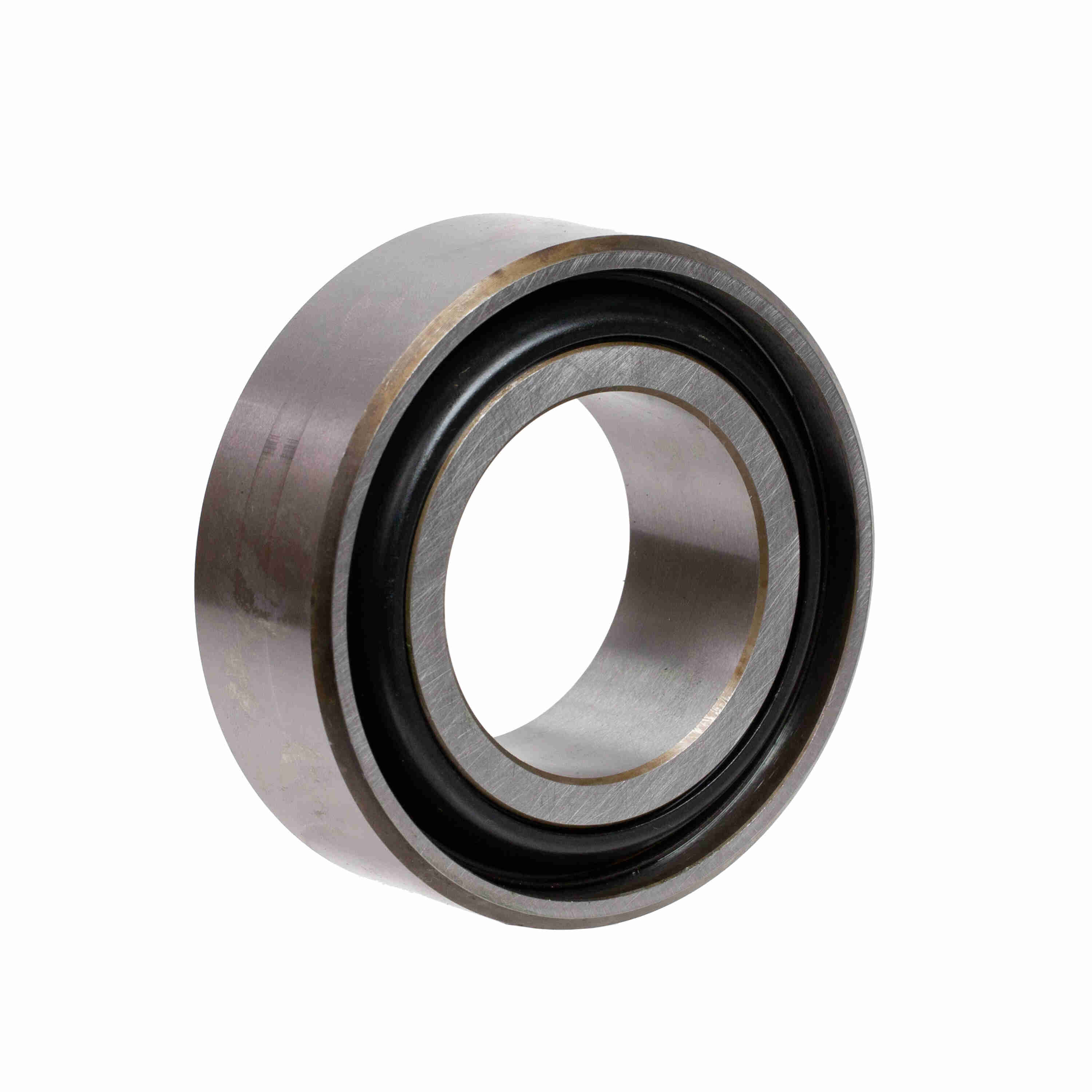

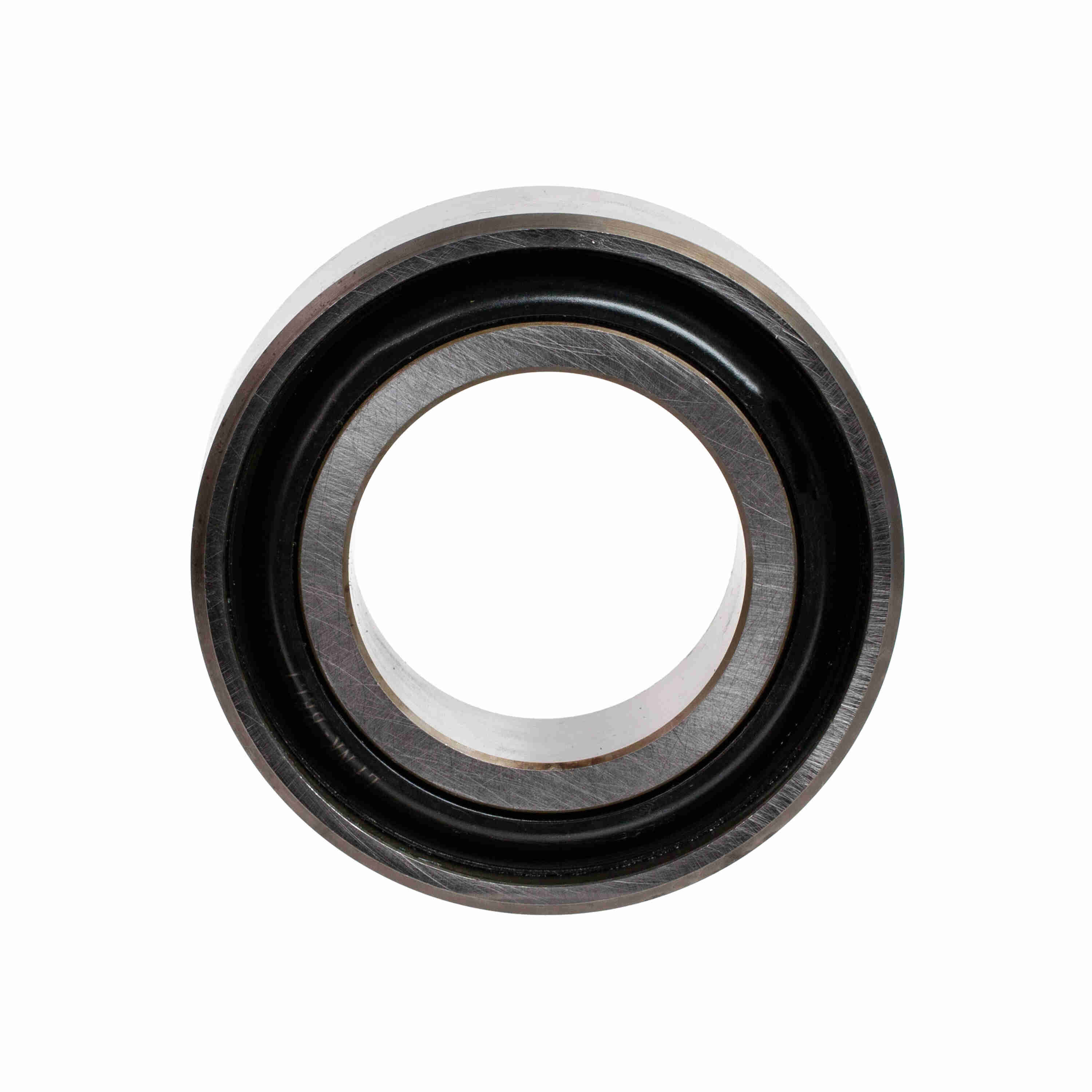

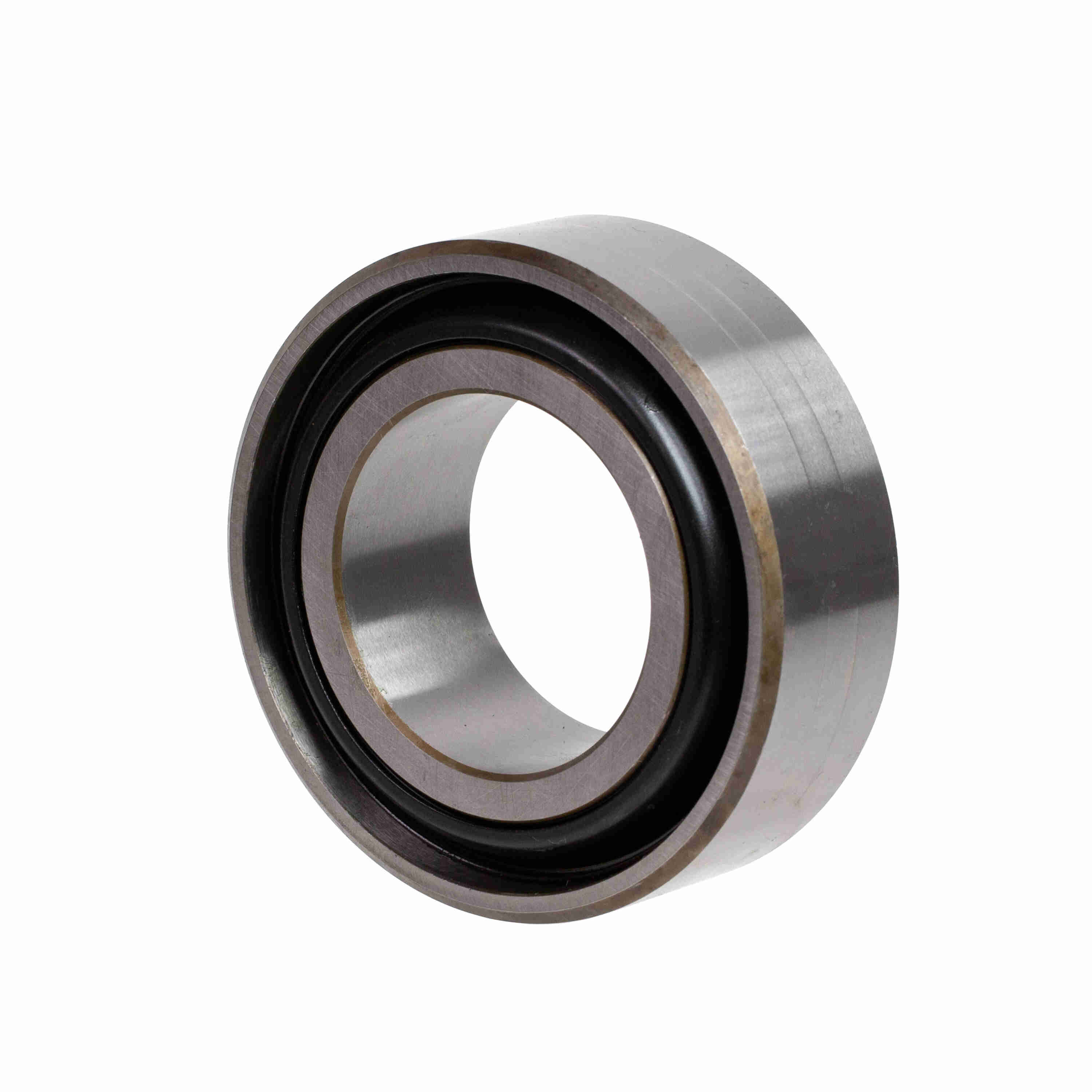

Link-Belt 35RB3211E3 Unmounted Replacement Bearings Ball Bearings - 35RB3211E3
Part #:10408687
Catalog #:35RB3211E3
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 2.1875 in |
Technical Specifications
| Inner Ring Hub Diameter (in): | 2.749 in | Lubrication Type: | EXXON RONEX MP STD |
| Bore Length (in): | 1 5/16 in | Retainer Type: | NYLON |
| Locking Type: | Direct Shaft Mount | Outside Diameter (in): | 3.937 in |
| Service Instructions: | BR3-007 LB 200 BALL-300 BALL | Maximum Temperature (F): | 225 °F |
| Size Code: | 211 | Bearing Type: | Standard Duty |
| C Dynamic Load Rating: | 9800 lb | Assembly Type: | Style 3 |
| Distance from Bearing Centerline to Centerline of Lube Hole (in): | 0.267 in | Distance from Bearing Centerline to Inner Ring Face (in): | 0.656 in |
| Product: | Round Bore-Cylindrical Outer Ring O.D. | Outer Ring Width (in): | 1 5/16 in |
| Vibration Frequency Outer Ring Defect: | 0.0680 cps | Maximum Temperature (C): | 107 °C |
| Available Seal Type: | E3 Triple Lip Seal; N Lip Seal | Vibration Frequency Roller Spin: | 0.0437 cps |
| Bearing Brand: | LINK-BELT 200 SERIES BALL | Vibration Frequency Inner Ring Defect: | 0.0987 cps |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Maximum Speed (RPM): | 500 rpm |
| Co Static Load Rating: | 6570 lb | Vibration Frequency Fundamental Train: | 0.0068 cps |
| Type of Seal: | E3 Triple Lip Seal | Mounted Clearance: | C3 STANDARD |
General Specifications
| UPC: | 662327200923 | Weight: | 2.25 LB |
| Packaged Length: | 4.25 IN | Packaged Width: | 2.06 IN |
| Packaged Height: | 4.38 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
