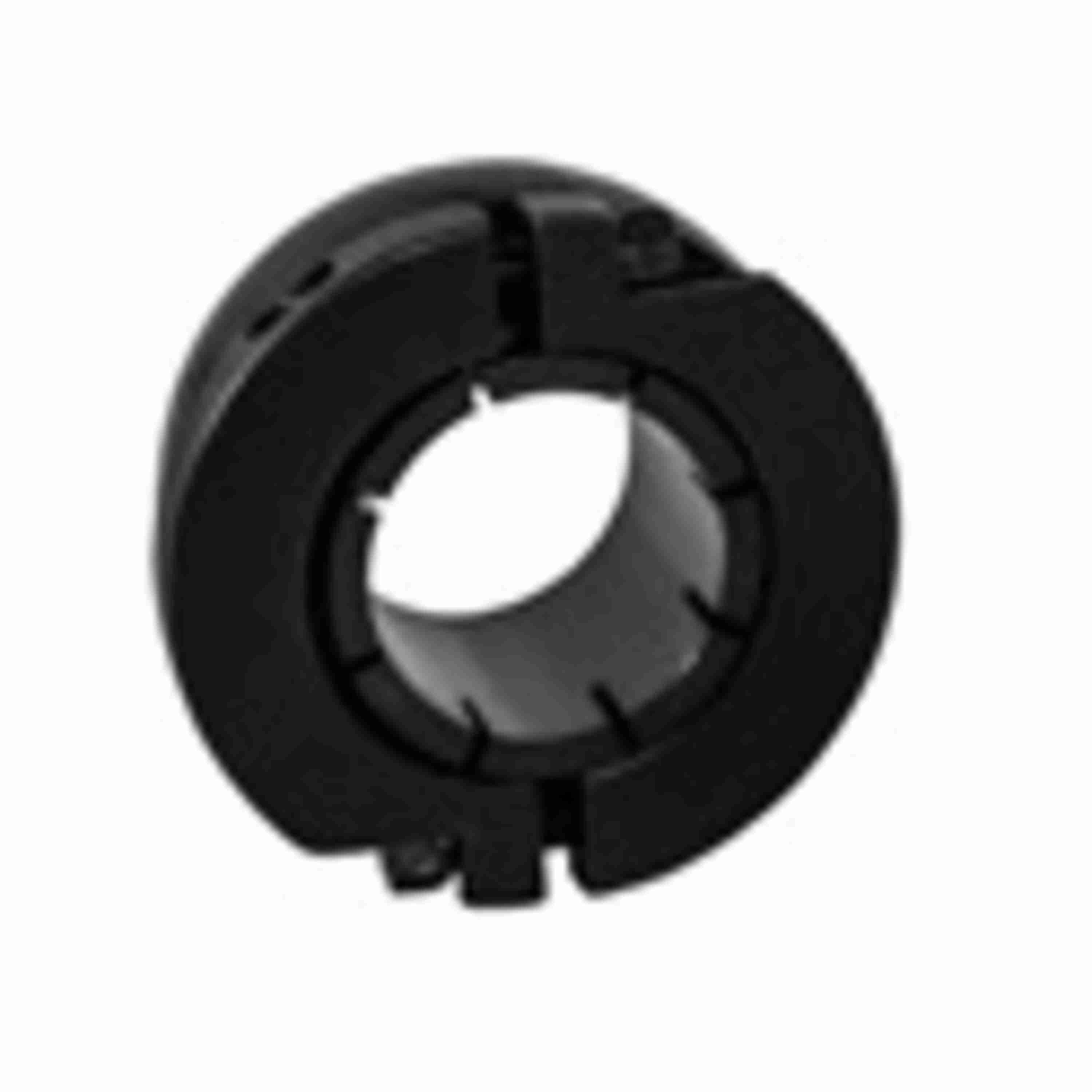

Link-Belt MCLG251NLPA Unmounted Replacement Bearings Ball Bearings - MCLG251NLPA
Part #:10439758
Catalog #:MCLG251NLPA
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 3.1875 in | Bore Size (mm): | 80.9625 mm |
Technical Specifications
| Vibration Frequency Inner Ring Defect: | 0.0981 cps | Type of Seal: | Single Lip Contact Seal |
| Vibration Frequency Outer Ring Defect: | 0.0685 cps | Maximum Temperature (F): | 225 °F |
| Primary Seal: | BUNA SINGLE LIP CONTACT SEAL | Locking Type: | Concentric |
| Distance from Bearing Centerline to Centerline of Lube Hole (in): | 0.313 in | Maximum Speed (RPM): | 2400 rpm |
| Vibration Frequency Roller Spin: | 0.0454 cps | Retainer Type: | NYLON |
| C Dynamic Load Rating: | 21580 lb | Locking Collar Outside Diameter (in): | 5 47/64 in |
| Bearing Coating Material: | BLACK OXIDE | Outer Ring Width (in): | 1.3945 in |
| Maximum Temperature (C): | 107 °C | Outside Diameter (in): | 6.2992 in |
| Bearing Type: | Medium Duty | Thread Size: | 3/8-24 in |
| Service Instructions: | BR3-007 LB 200 BALL-300 BALL | Bearing Brand: | LINK-BELT MEDIUM DUTY BALL |
| Mounted Clearance: | C3 STANDARD | Available Seal Type: | N Lip Seal; E1 Viton Seal; FF Free Running; HFF Free Running; MHFF Free Running |
| Locking Device Kit: | CL2565S | Lubrication Type: | EXXON RONEX MP STD |
| Setscrew Torque (in-lbs): | 540-600 in/lbs | Short Hub Length (in): | 0.804 in |
| Locking Collar Width (in): | 3/4 in | Size Code: | 218 |
| Inner Ring Hub Diameter (in): | 4.396 in | Co Static Load Rating: | 14400 lb |
| Bore Length (in): | 2 19/32 in | Product: | MCLG200 |
| Vibration Frequency Fundamental Train: | 0.0069 cps |
General Specifications
| UPC: | 662864846097 | Weight: | 8.71 LB |
| HTC: | 8482105056 | Country of Origin: | Mexico |
