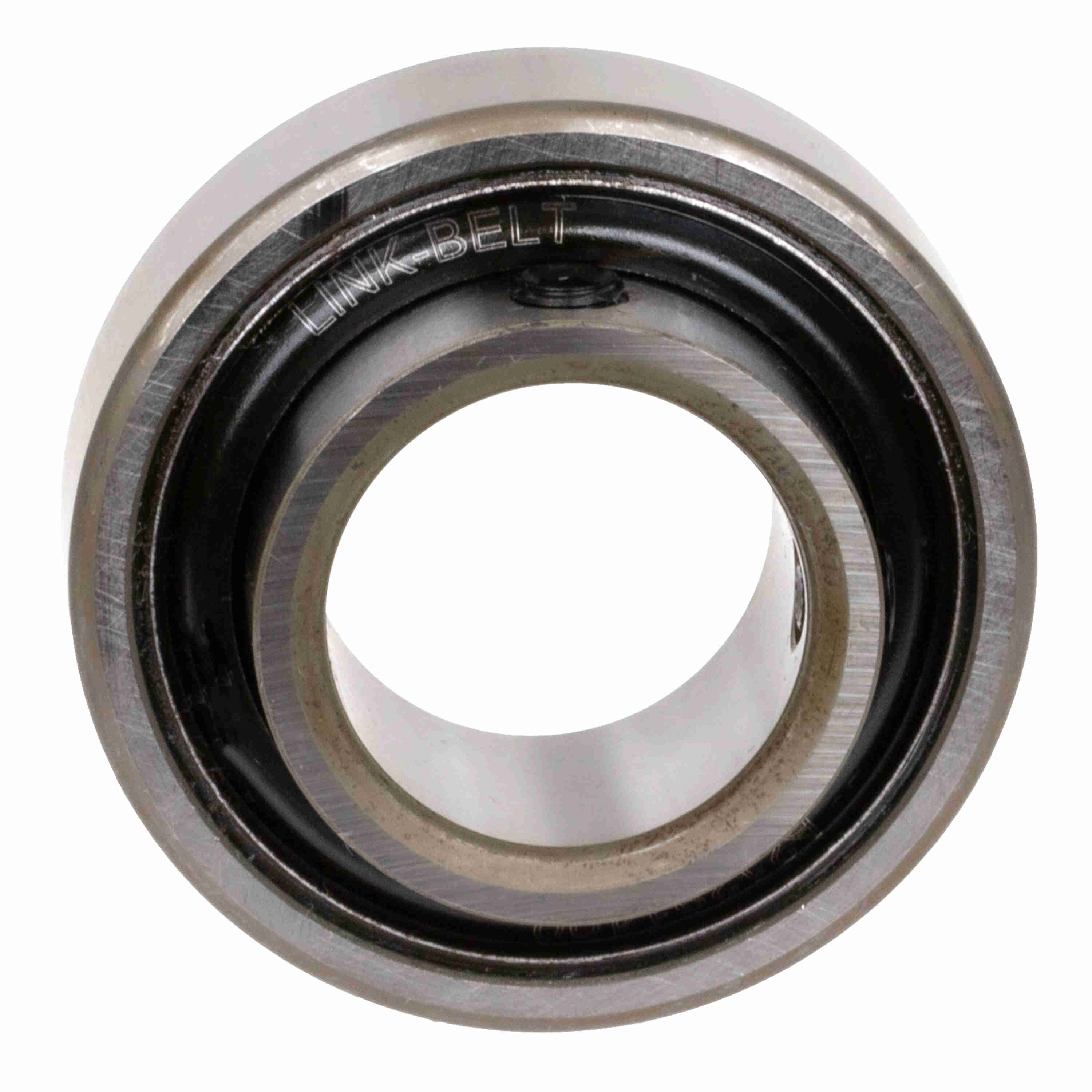

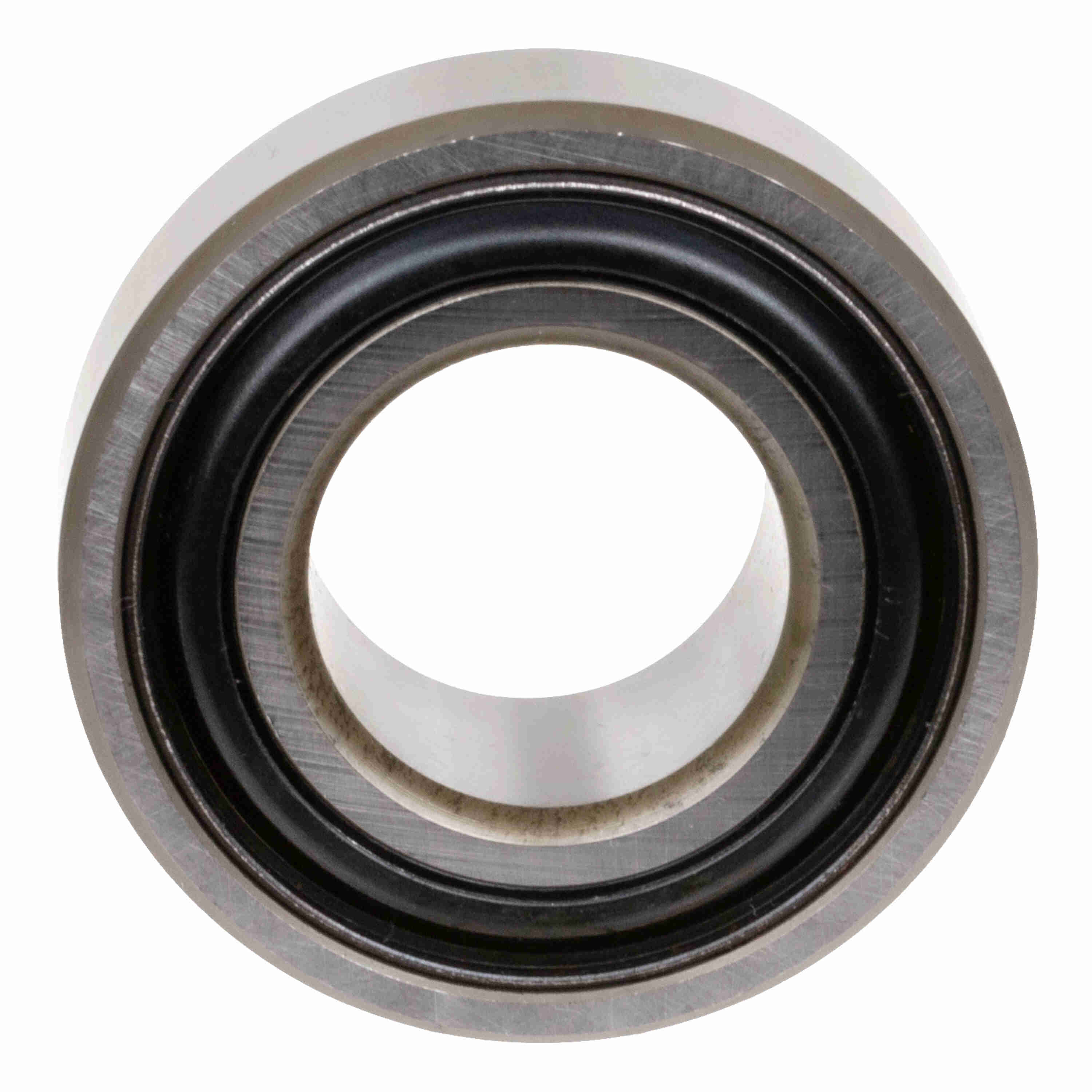

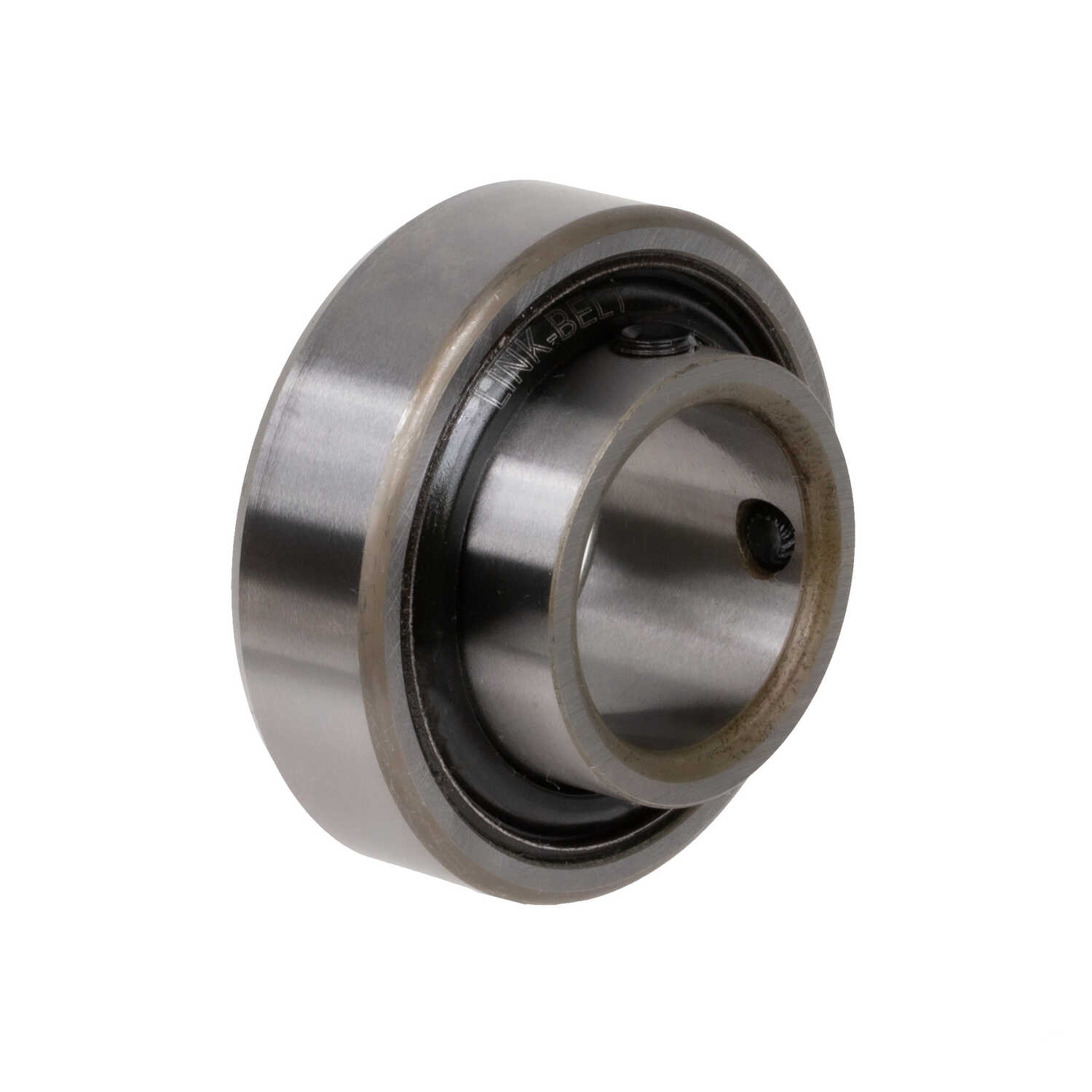

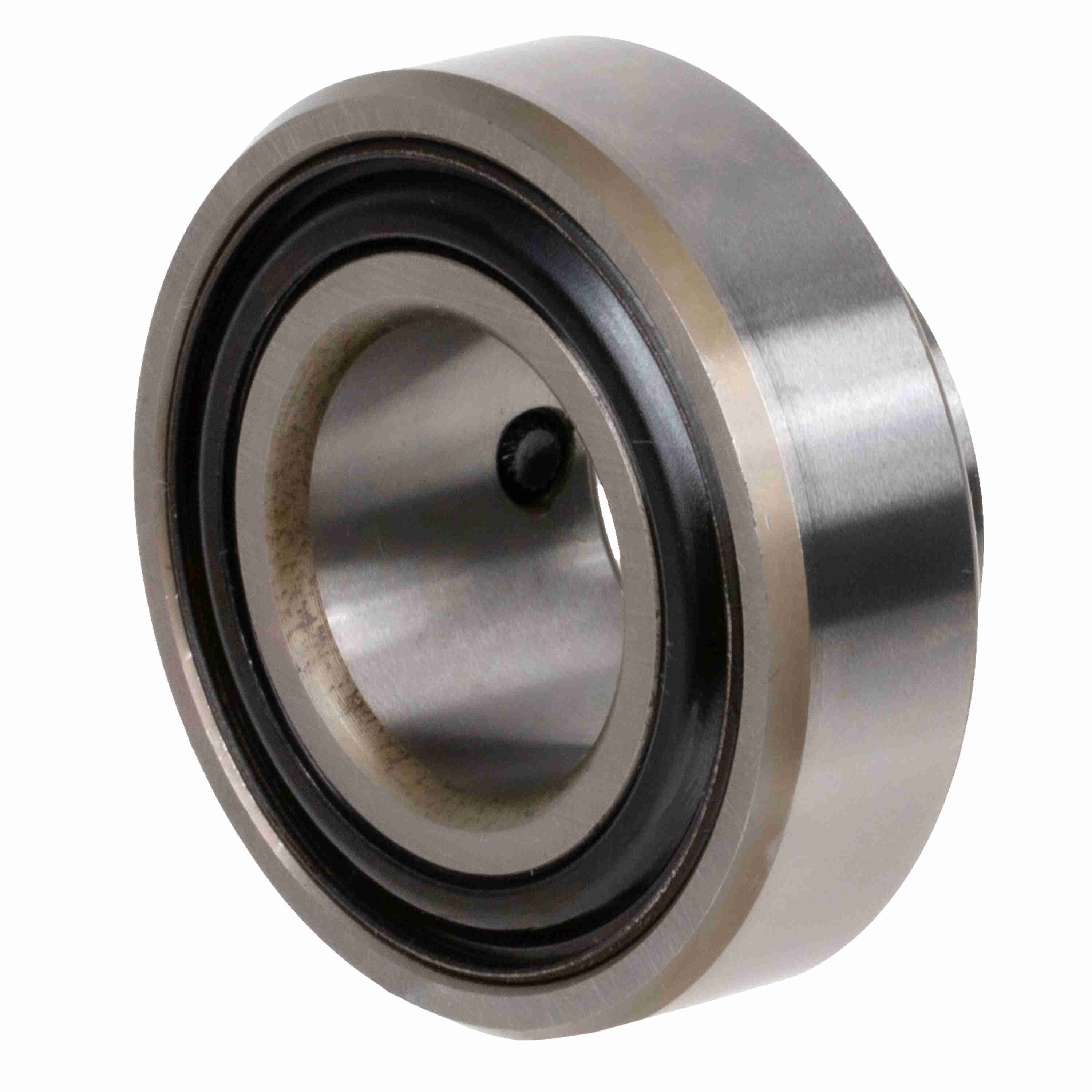

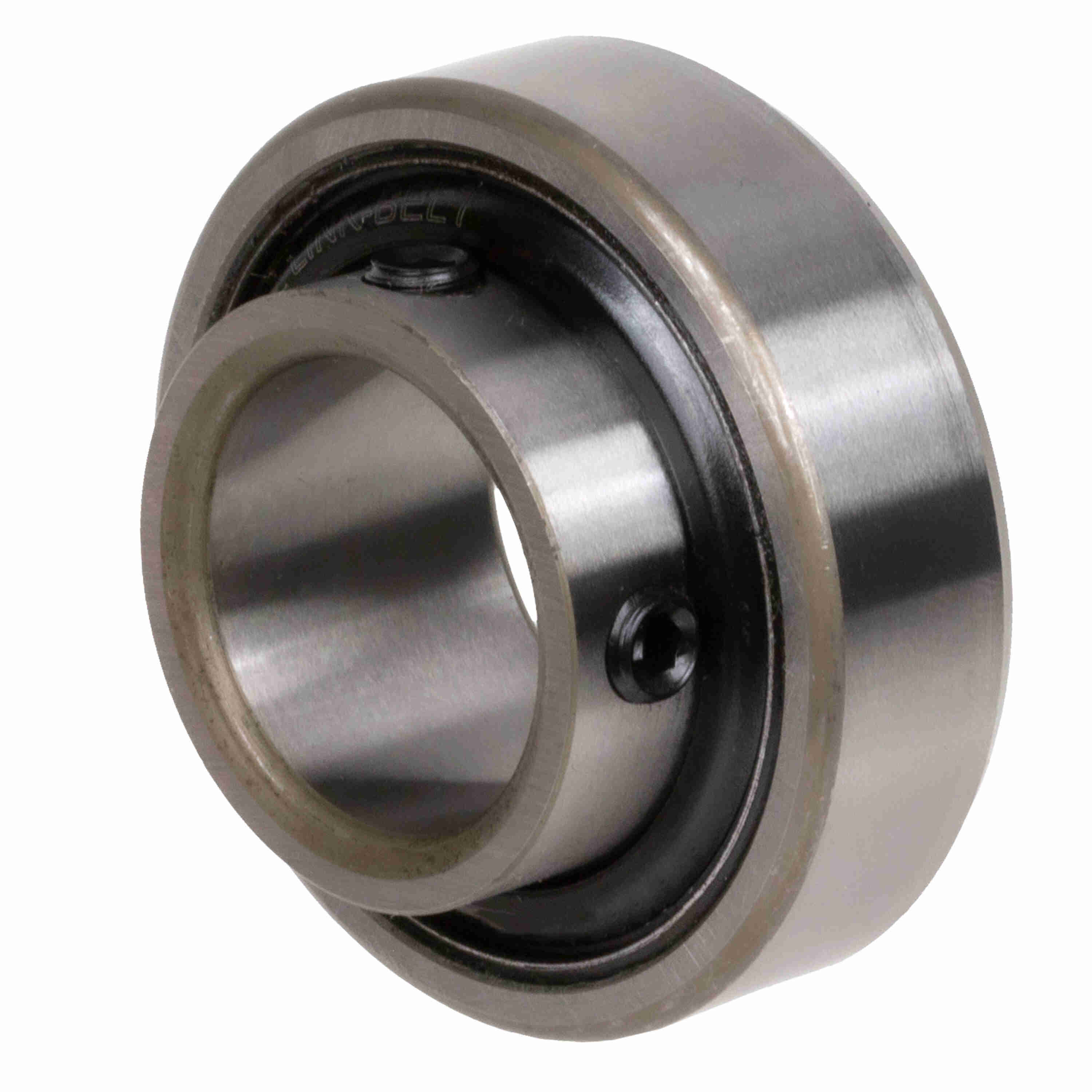

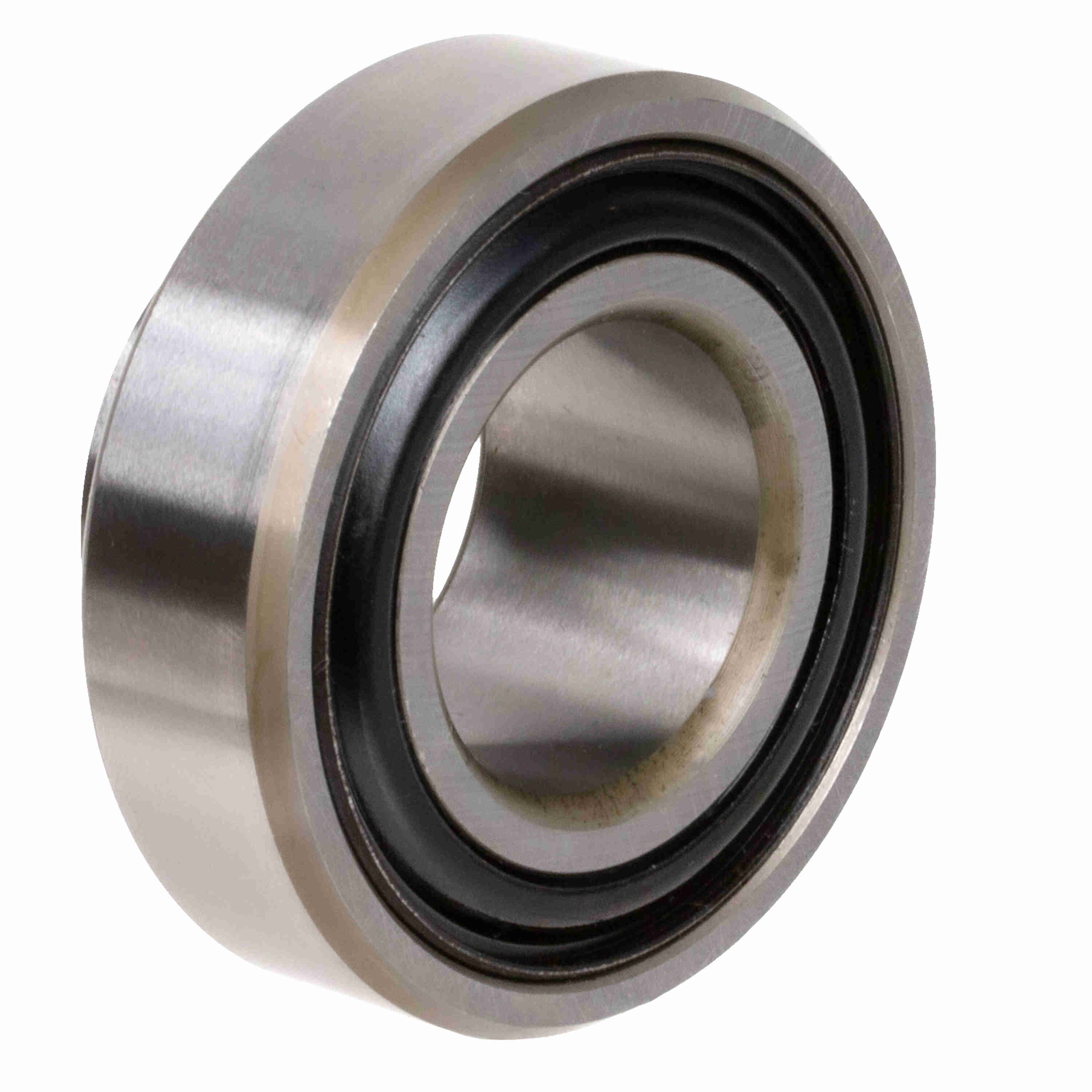

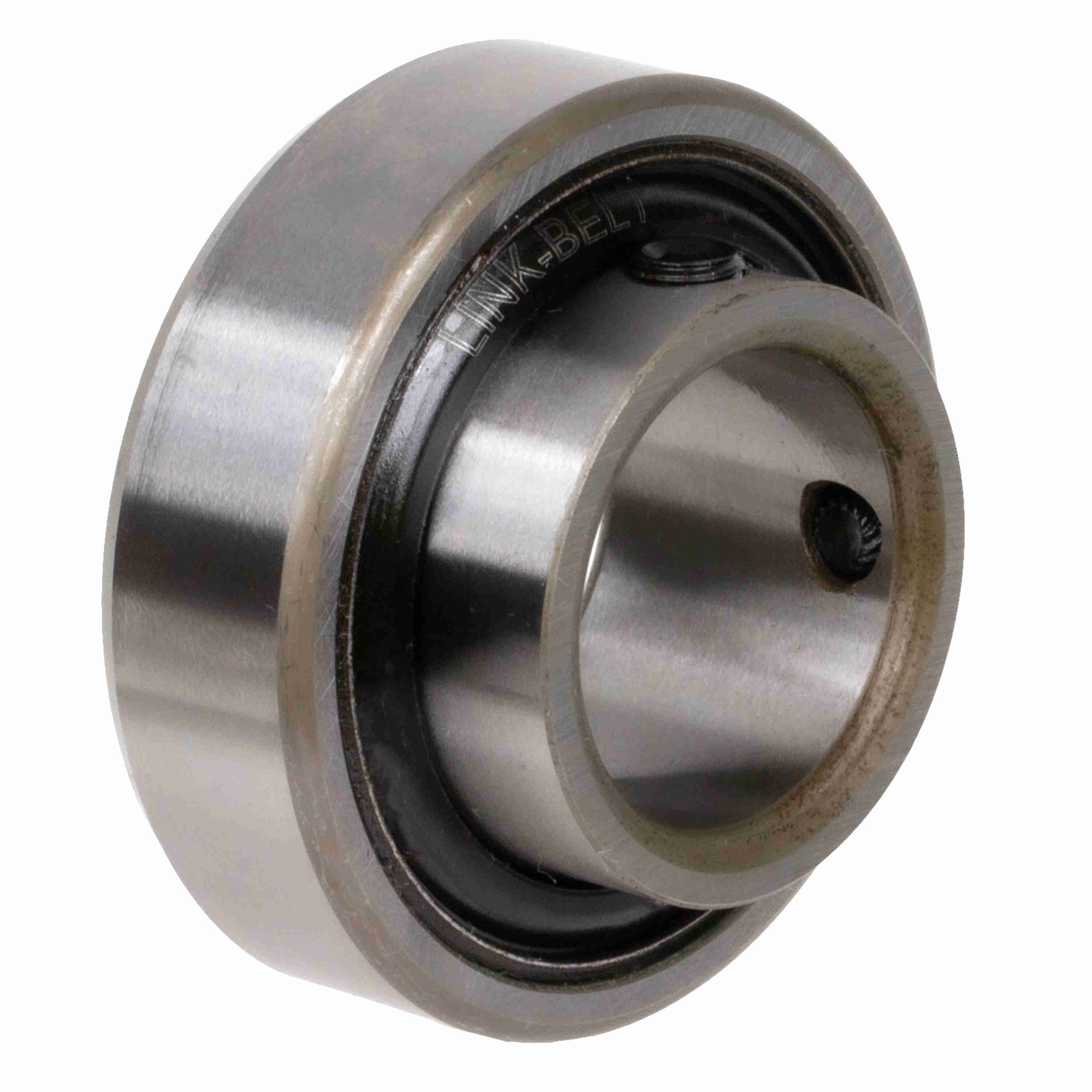

Link-Belt MSLN16 Unmounted Replacement Bearings Ball Bearings - MSLN16
Part #:10425974
Catalog #:MSLN16
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1 in |
Technical Specifications
| Co Static Load Rating: | 1760 lb | Vibration Frequency Roller Spin: | 0.0387 cps |
| Primary Seal: | BUNA SINGLE LIP CONTACT SEAL | Size Code: | 205 |
| Product: | MSLN | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Locking Type: | Set Screw | C Dynamic Load Rating: | 3150 lb |
| Maximum Speed (RPM): | 9600 rpm | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Lubrication Type: | EXXON RONEX MP STD | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Retainer Type: | NYLON | Bearing Type: | Standard Duty |
| Setscrew Torque (in-lbs): | 85 in/lbs | Mounted Clearance: | C3 STANDARD |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Bearing Brand: | LINK-BELT 200 SERIES BALL |
General Specifications
| UPC: | 662864005746 | Weight: | 0.34 LB |
| Packaged Length: | 2.50 IN | Packaged Width: | 2.50 IN |
| Packaged Height: | 1.50 IN | HTC: | 8482105048 |
| Country of Origin: | Mexico |
