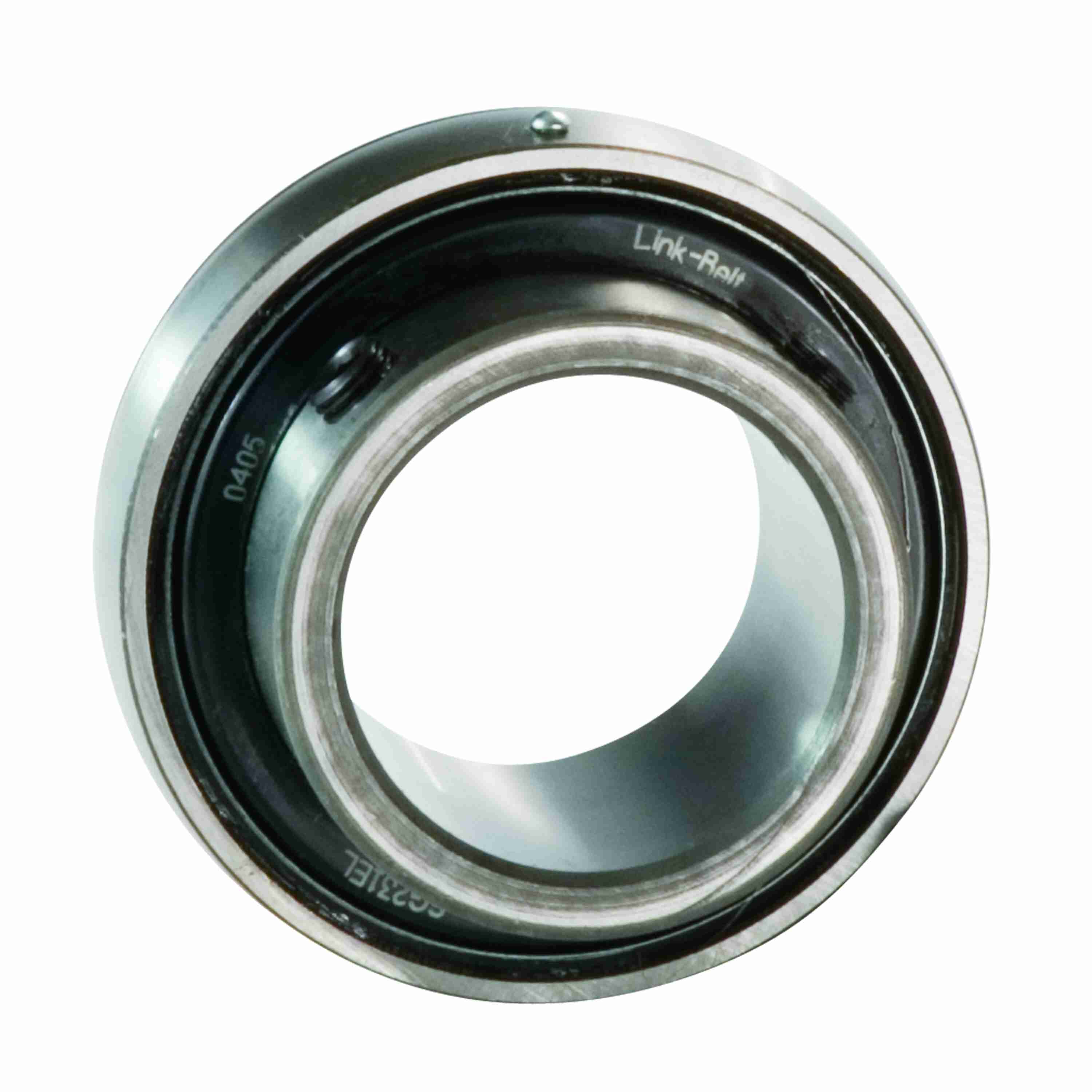

Link-Belt SSG212L Unmounted Replacement Bearings Ball Bearings - SSG212L
Part #:10414239
Catalog #:SSG212L
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 0.7500 in |
Technical Specifications
| Product: | SSG200 | Vibration Frequency Roller Spin: | 0.0332 cps |
| Bearing Coating Material: | STAINLESS STEEL | Retainer Type: | Stainless Steel |
| Vibration Frequency Fundamental Train: | 0.0063 cps | Mounted Clearance: | C3 STANDARD |
| Size Code: | 204 | Bearing Type: | Intermediate Duty |
| C Dynamic Load Rating: | 2870 lb | Maximum Speed (RPM): | 7500 rpm |
| Vibration Frequency Inner Ring Defect: | 0.0825 cps | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Co Static Load Rating: | 1480 lb | Primary Seal: | BUNA SINGLE LIP CONTACT SEAL |
| Vibration Frequency Outer Ring Defect: | 0.0508 cps | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Locking Type: | Set Screw | Lubrication Type: | MOBIL FM222 FOOD GRADE H1 |
General Specifications
| UPC: | 793699725292 | Weight: | 0.39 LB |
| Packaged Length: | 2.50 IN | Packaged Width: | 2.50 IN |
| Packaged Height: | 1.50 IN | HTC: | 84833080 |
