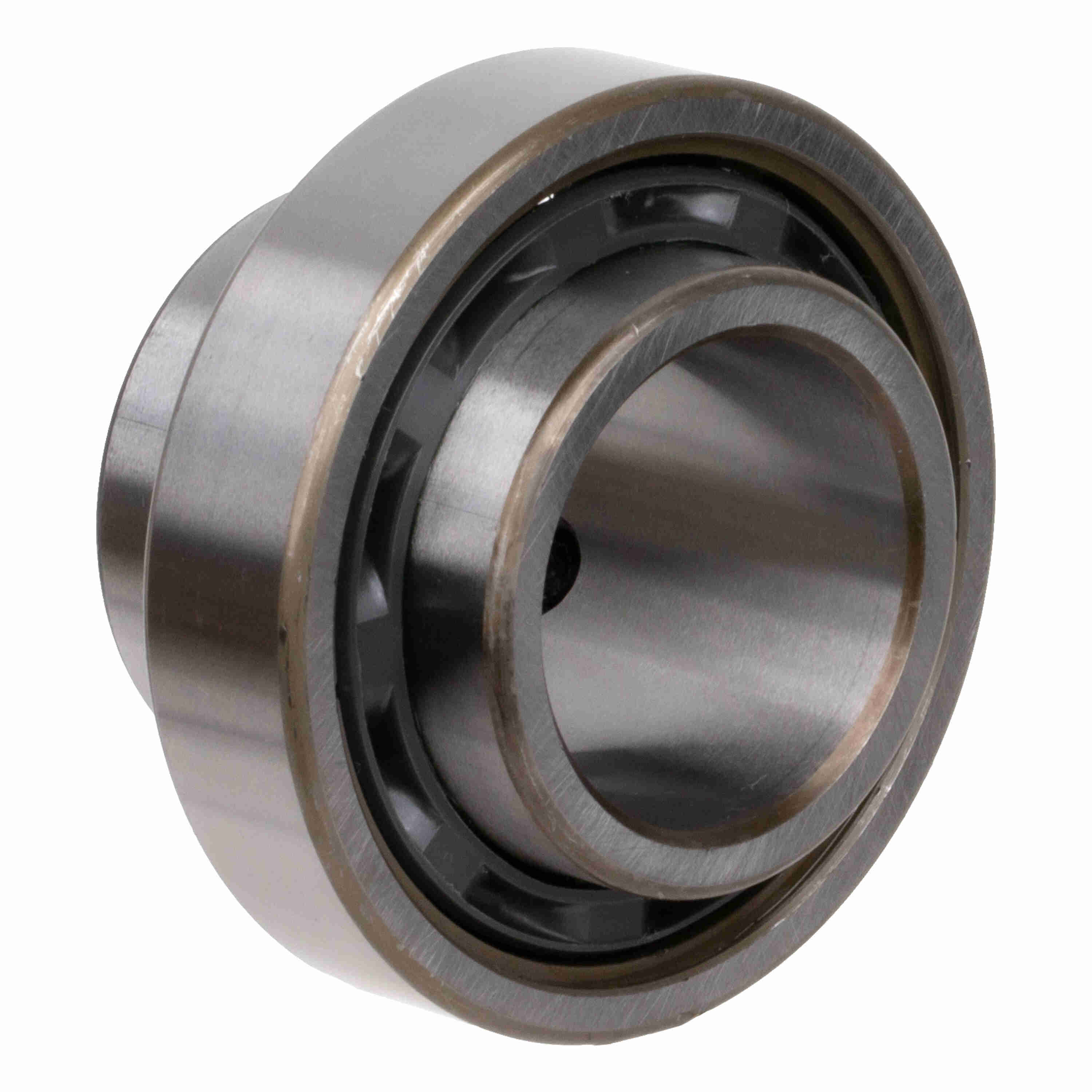

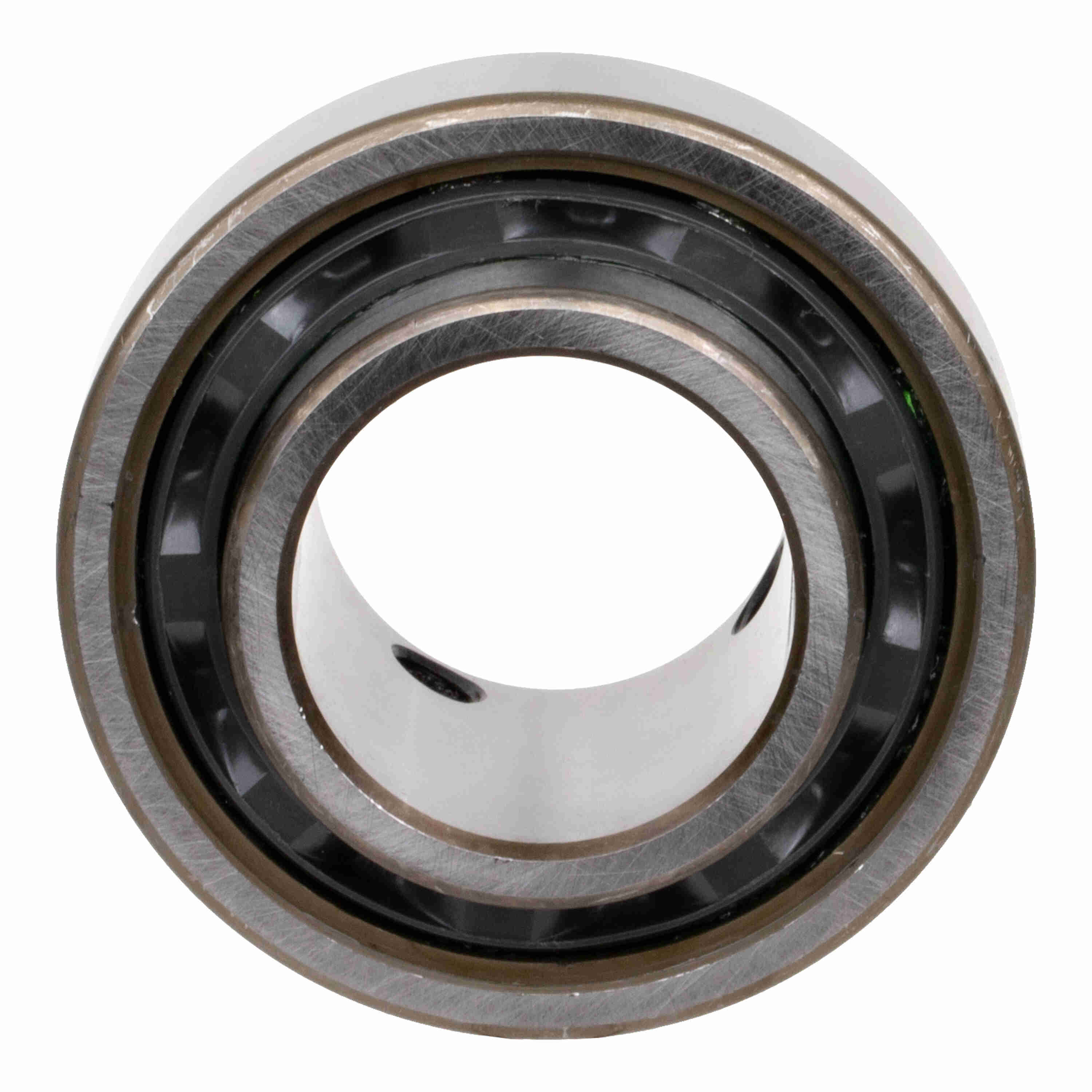

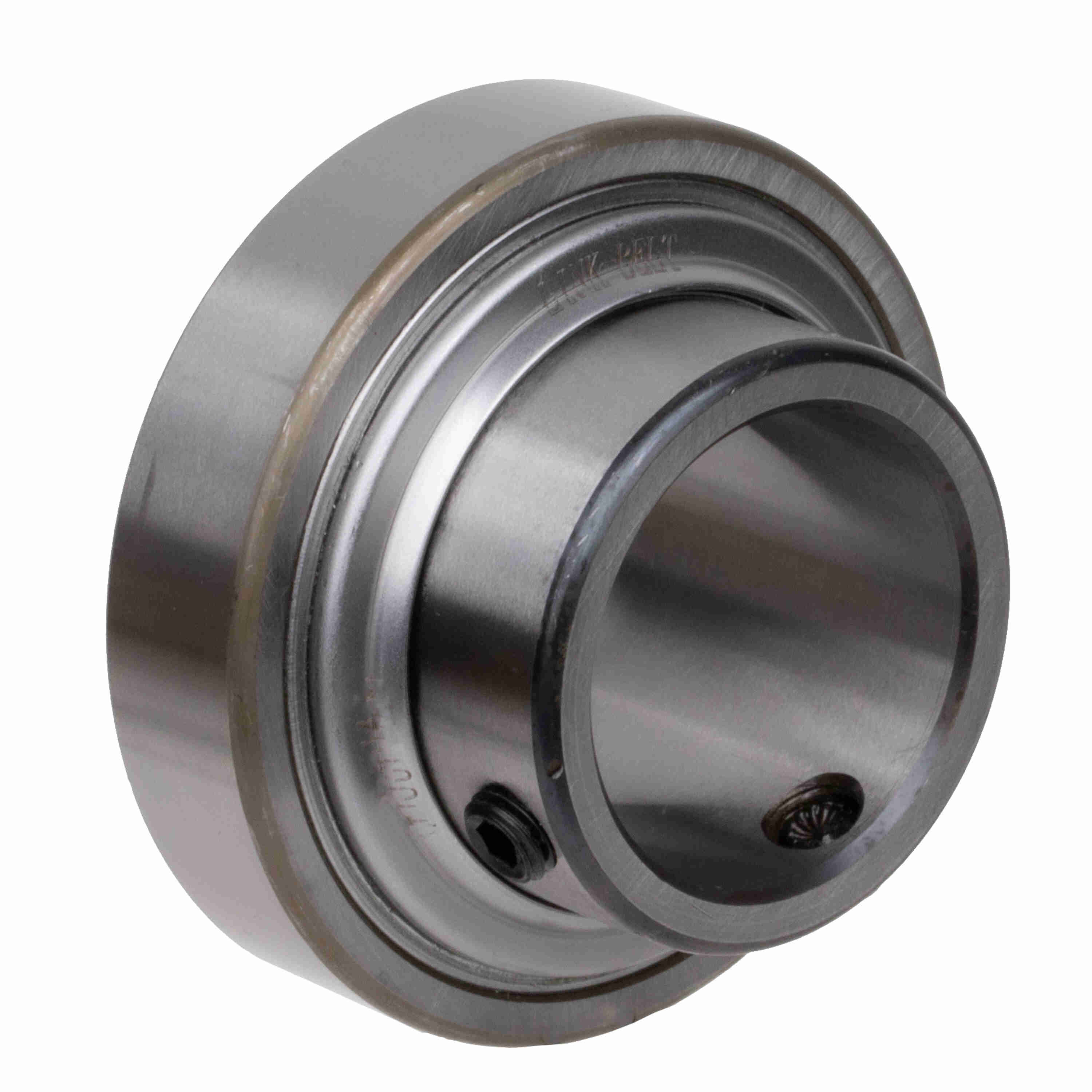

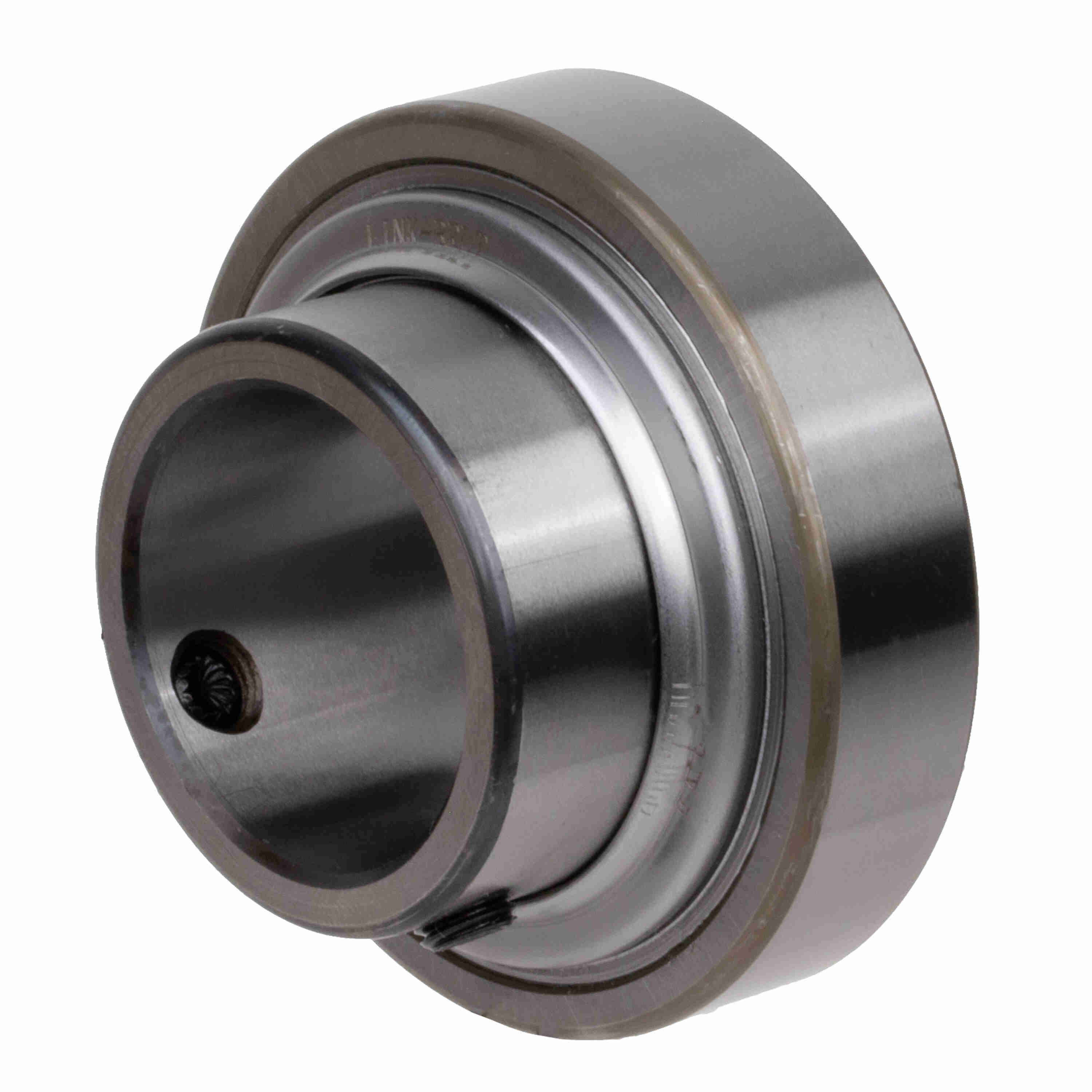

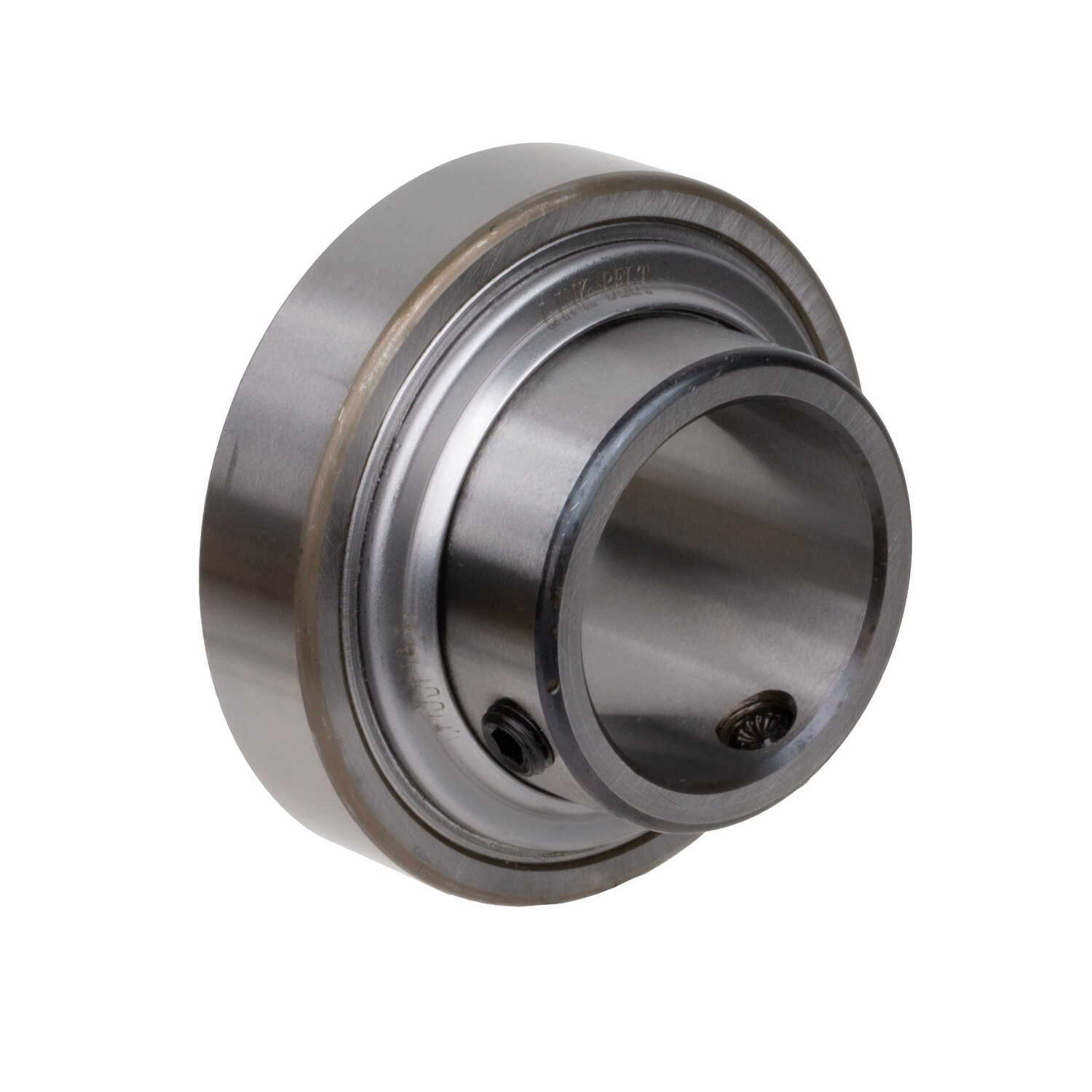

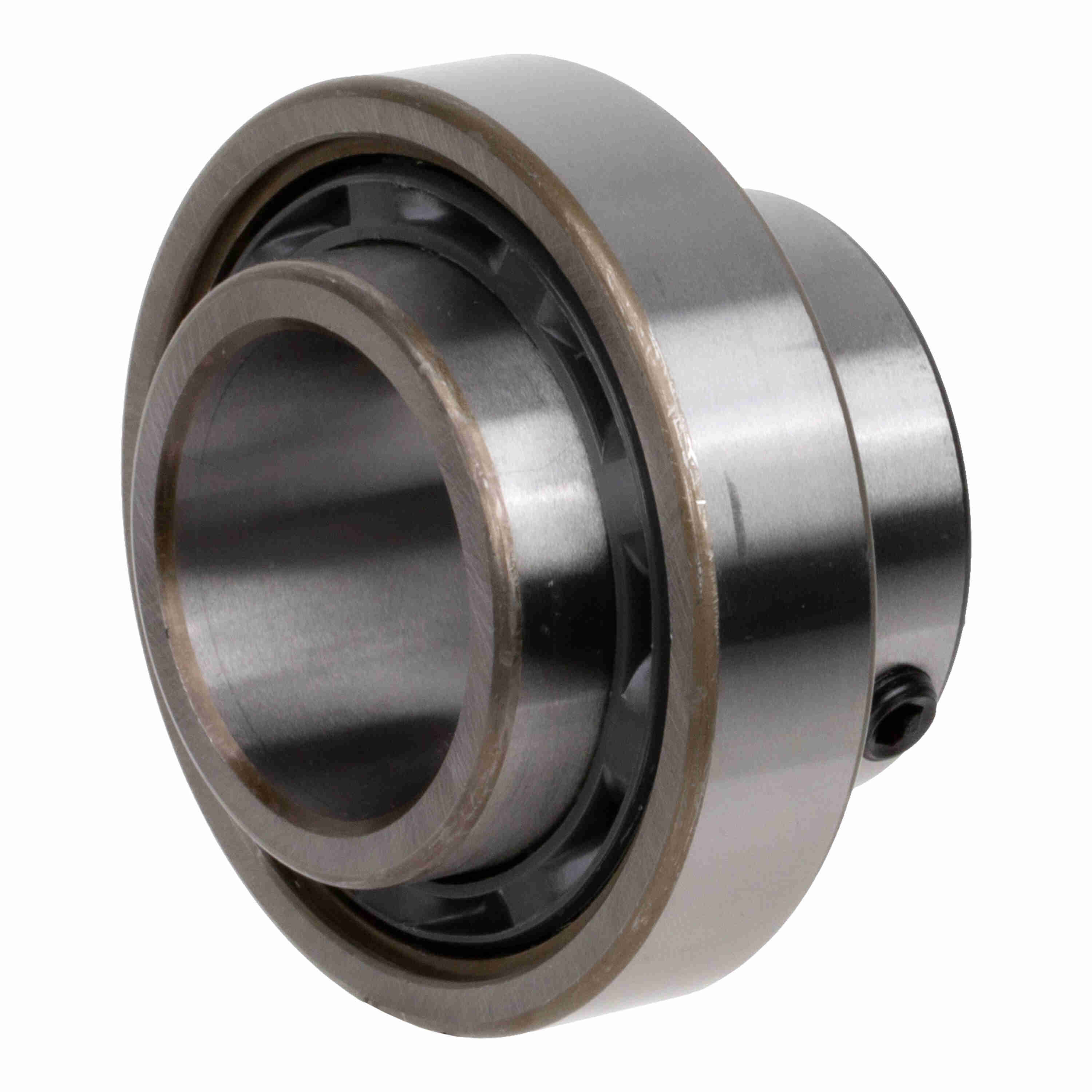

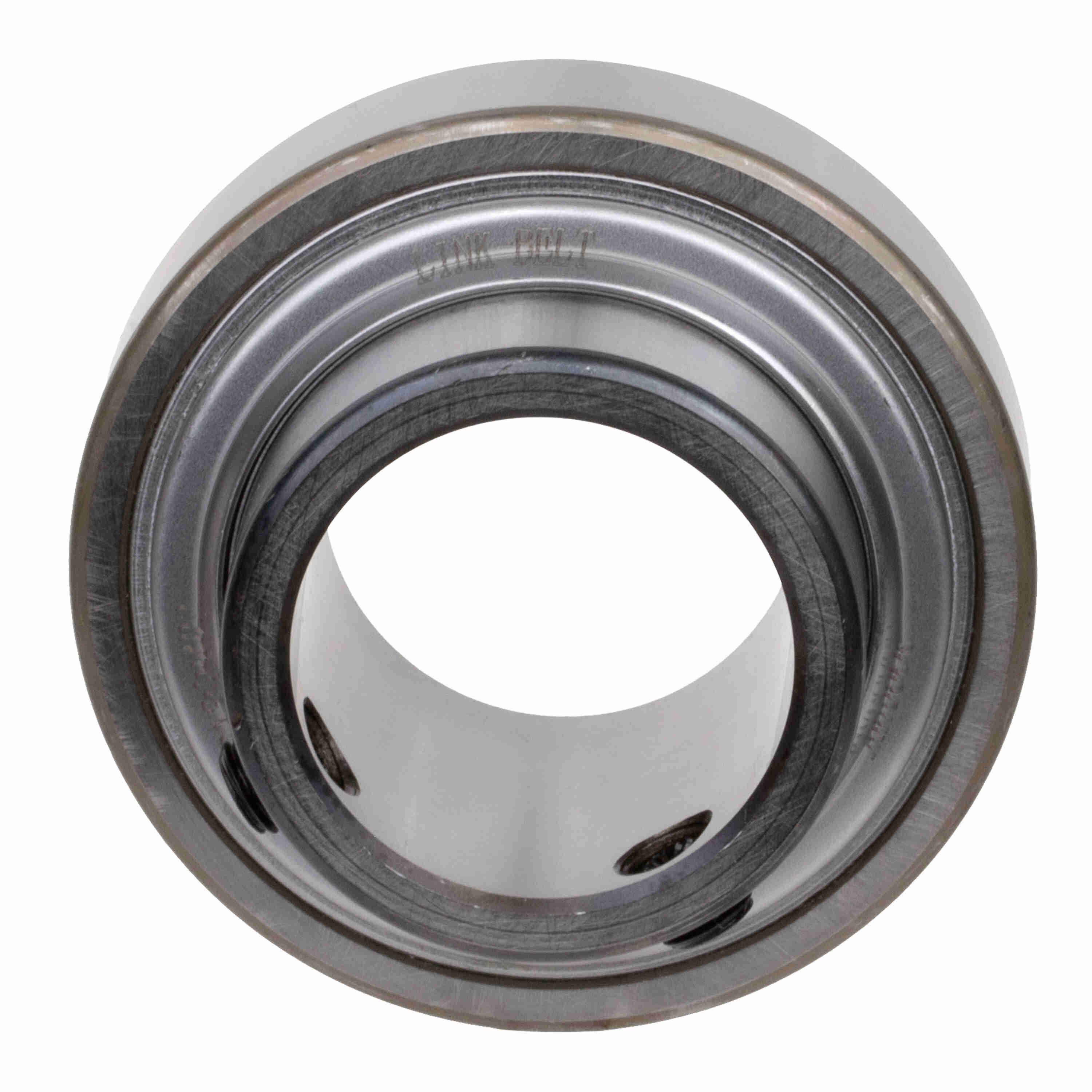

Link-Belt UB223XHL Unmounted Replacement Bearings Ball Bearings - UB223XHL
Part #:10415845
Catalog #:UB223XHL
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.4375 in |
Technical Specifications
| Bore Length (in): | 1 49/64 in | Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in): | 0.25 in |
| Outer Ring Width (in): | 0.6693 in | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Available Seal Type: | E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Outside Diameter (in): | 2.8346 in | Locking Type: | Set Screw |
| Mounted Clearance: | C3 STANDARD | Maximum Temperature (F): | 225 °F |
| Inner Ring Hub Diameter (in): | 1.847 in | Type of Seal: | Clearance Seal |
| Retainer Type: | NYLON | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Size Code: | 207 | Vibration Frequency Fundamental Train: | 0.0067 cps |
| Lubrication Type: | EXXON RONEX MP STD | Bearing Type: | Standard Duty |
| Co Static Load Rating: | 3440 lb | Product: | UB200 |
| Vibration Frequency Roller Spin: | 0.0383 cps | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Maximum Temperature (C): | 107 °C | Setscrew Torque (in-lbs): | 165 in/lbs |
| Primary Seal: | STL CLR LKG SIDE ONLY | Outer Ring Fillet Radius (in): | 0.039 in |
| C Dynamic Load Rating: | 5810 lb | Maximum Speed (RPM): | 6850 rpm |
| Short Hub Length (in): | 0.6563 in | Distance from Bearing Centerline to Centerline of Lube Hole (in): | 0.227 in |
General Specifications
| UPC: | 662327241162 | Weight: | 0.93 LB |
| Packaged Length: | 3.00 IN | Packaged Width: | 3.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
