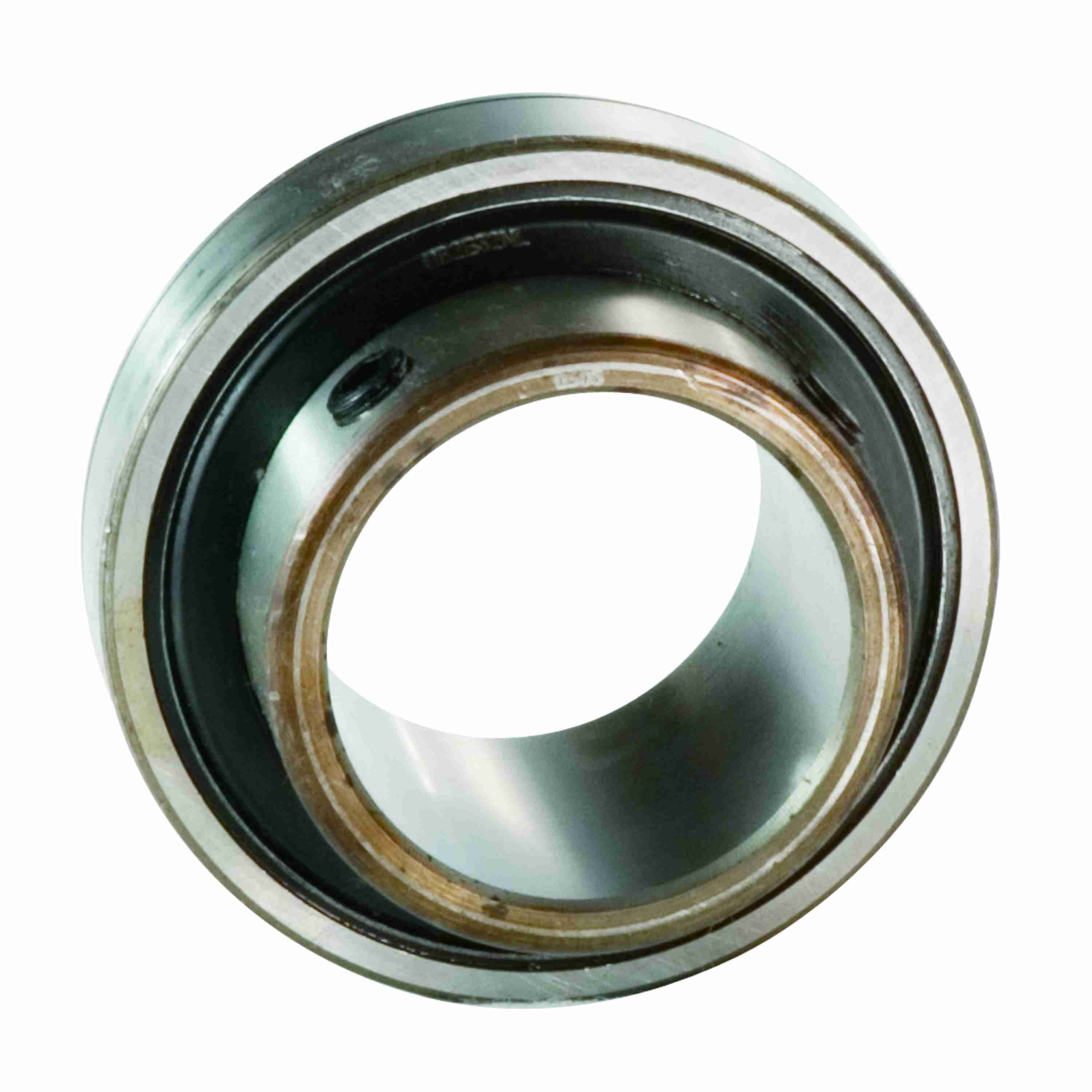

Link-Belt UB2E20NL Unmounted Replacement Bearings Ball Bearings - UB2E20NL
Part #:10437154
Catalog #:UB2E20NL
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Size (in): | 1.2500 in |
Technical Specifications
| Short Hub Length (in): | 0.6094 in | Available Seal Type: | N Lip Seal; H Labyrinth Seal |
| Outer Ring Width (in): | 0.6299 in | Size Code: | 206 |
| Maximum Speed (RPM): | 8000 rpm | Thread Size: | #1/4-28 |
| Product: | UB200 | Vibration Frequency Outer Ring Defect: | 0.0595 cps |
| Outside Diameter (in): | 2.4409 in | Primary Seal: | BUNA SINGLE LIP CONTACT SEAL |
| Co Static Load Rating: | 2530 lb | Bearing Brand: | LINK-BELT 200 SERIES BALL |
| Lubrication Type: | EXXON RONEX MP STD | Service Instructions: | BR3-007 LB 200 BALL-300 BALL |
| Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in): | 0.22 in | Bore Length (in): | 1 9/16 in |
| Maximum Temperature (F): | 225 °F | Distance from Bearing Centerline to Centerline of Lube Hole (in): | 0.202 in |
| Outer Ring Fillet Radius (in): | 0.039 in | Bearing Type: | Standard Duty |
| Locking Type: | Set Screw | Maximum Temperature (C): | 107 °C |
| C Dynamic Load Rating: | 4390 lb | Vibration Frequency Roller Spin: | 0.0385 cps |
| Setscrew Torque (in-lbs): | 85 in/lbs | Vibration Frequency Inner Ring Defect: | 0.0905 cps |
| Vibration Frequency Fundamental Train: | 0.0067 cps | Retainer Type: | NYLON |
| Type of Seal: | N Lip Seal | Inner Ring Hub Diameter (in): | 1.587 in |
| Mounted Clearance: | C3 STANDARD |
General Specifications
| UPC: | 662327406493 | Weight: | 0.75 LB |
| Packaged Length: | 3.00 IN | Packaged Width: | 3.00 IN |
| Packaged Height: | 2.00 IN | HTC: | 8482105052 |
| Country of Origin: | Mexico |
